- MSI B650 Gaming Plus WIFI DDR5 AMD Motherboard
Description
Features Of MSI B650 Gaming Plus WIFI
- MSI Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
DIY Friendly
PCI-E Steel Armor reinforces the expansions slots with metal plating and extra solder points, giving it the rigidity to handle heavy graphics cards. The EZ DEBUG LED and Flash BIOS Button help to streamline your troubleshooting process.
Expansion Slots
Two PCIe 4.0 x16 slots are available, with the first capable of supporting powerful graphics cards while the second one operates in x4 mode. The PCIe 3.0 x1 slot is ideal for network and port expansion cards.
Thermal Enhancements
This motherboard is designed to avoid heat throttling with a variety of features such as an extended heat sink and a 7W/mK MOSFET thermal pad. M.2 Shield Frozr covers help to ensure optimal SSD performance during heavy sustained workloads. CPU and liquid cooling pump headers are available for your choice of cooling system.
USB Connectivity
The rear panel includes a USB-C 3.2 Gen 2×2 port that can transfer up to 20 Gb/s with compatible devices while the two USB-A 3.2 Gen 2 ports support up to 10 Gb/s. There are also four 5 Gb/s USB-A 3.2 Gen 1 ports.
Front panel headers include support for two USB-A 3.2 Gen 1, one USB-C 3.2 Gen 2, and four USB-A 2.0 ports.
Graphics Ports
Both the HDMI 2.1 and DisplayPort 1.4 outputs support up to 4K, 60 Hz HDR monitors when using CPUs with integrated graphics.
Specifications Of MSI B650 Gaming Plus WIFI
Model |
B650 GAMING PLUS WIFI
|
Chipset | AMD B650 |
CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5 |
Memory |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
Onboard Graphics |
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz |
EXPANSION SLOT |
2x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
Multi-GPU |
AMD MULTI-GPU Support
|
Storage |
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
RAID |
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB |
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN |
Realtek® 8125BG 2.5G LAN
|
WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 |
Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
Internal I/O |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE |
4x EZ Debug LED
|

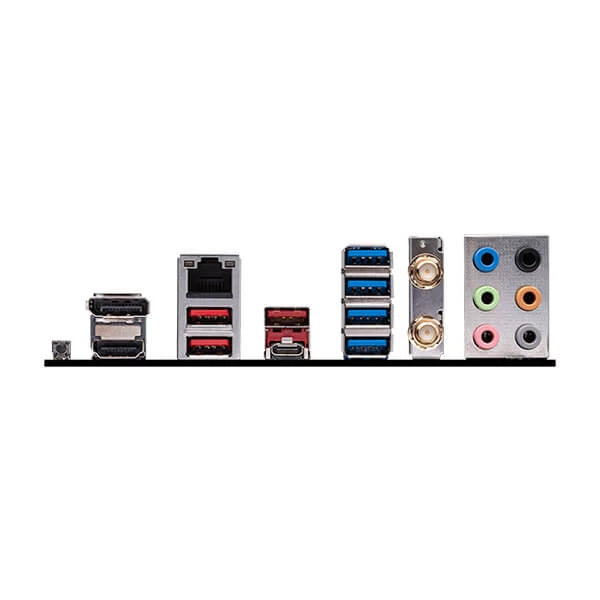

BACK PANEL PORTS |
DisplayPort
2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) |
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
PCB Dimension (W × L) |
ATX
243.84mmx304.8mm |
Warranty | 3 Years |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
