- MSI B550M Pro-VDH Wifi DDR4 AMD Motherboard
Description

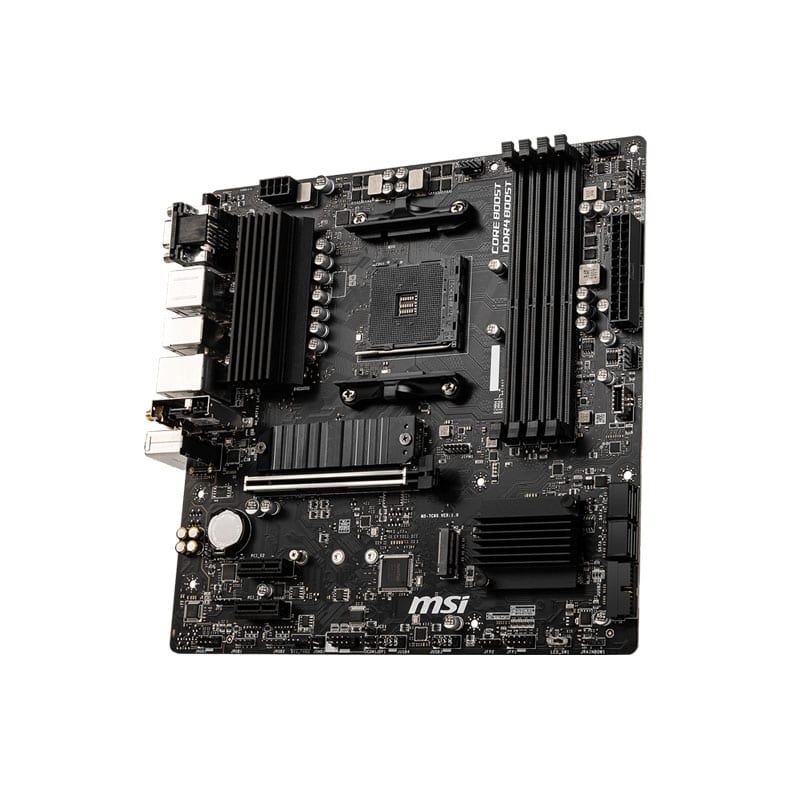

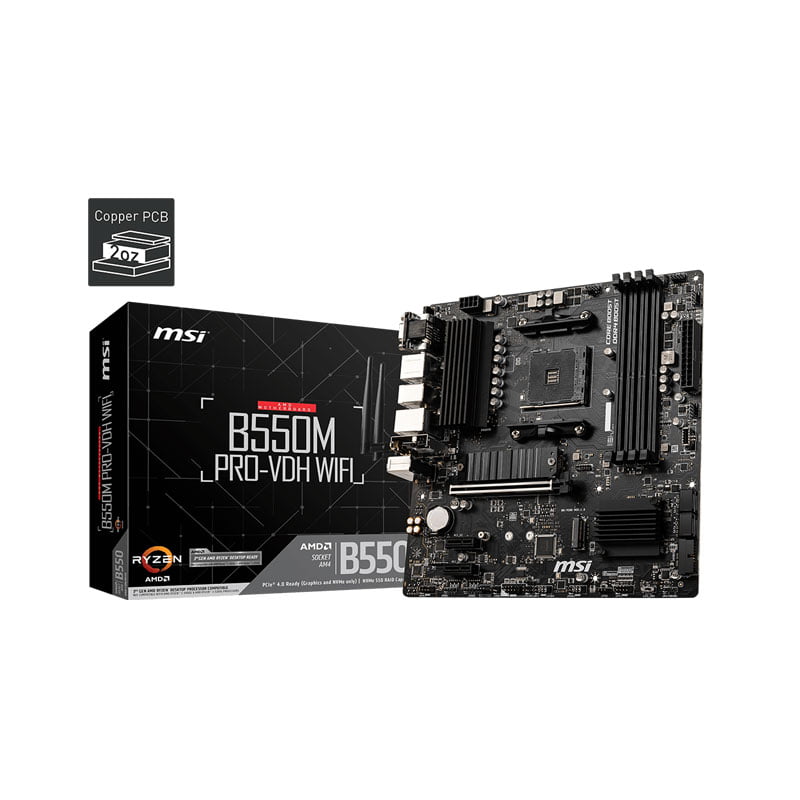

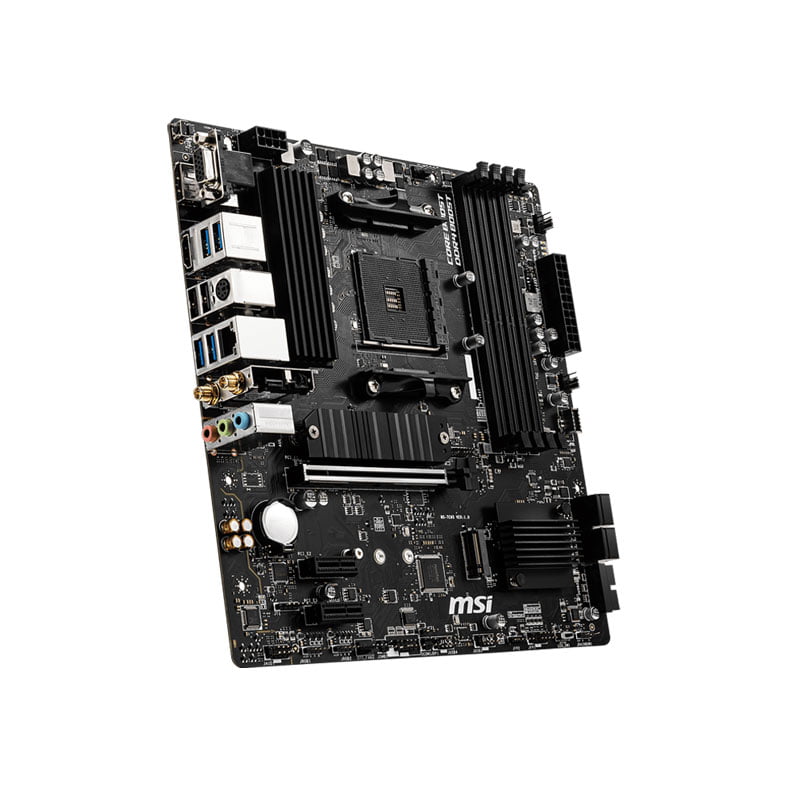

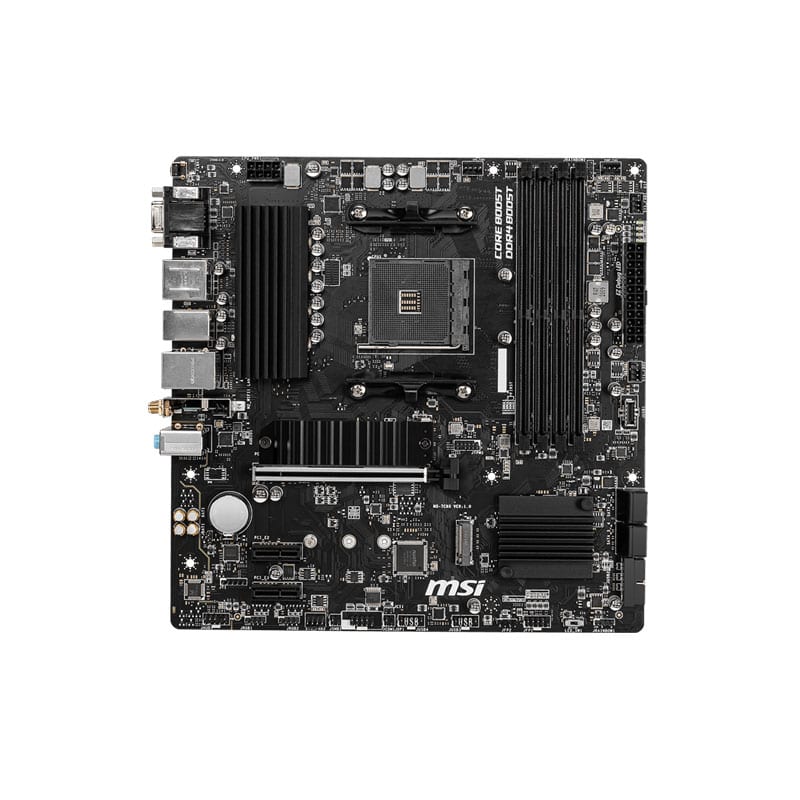

MSI B550M Pro-VDH WiFi Motherboard
- MSI B550M PRO-VDH WIFI Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- B550M PRO-VDH WIFI Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Important Notice :
- BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
- The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
- For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website
Msi B550M PRO-VDH WIFI Motherboard provide not only optimized professional workflows but also less troubleshooting and longevity.
Specifications:
| CPU | Supports AM4 socket 3rd & 5th Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |

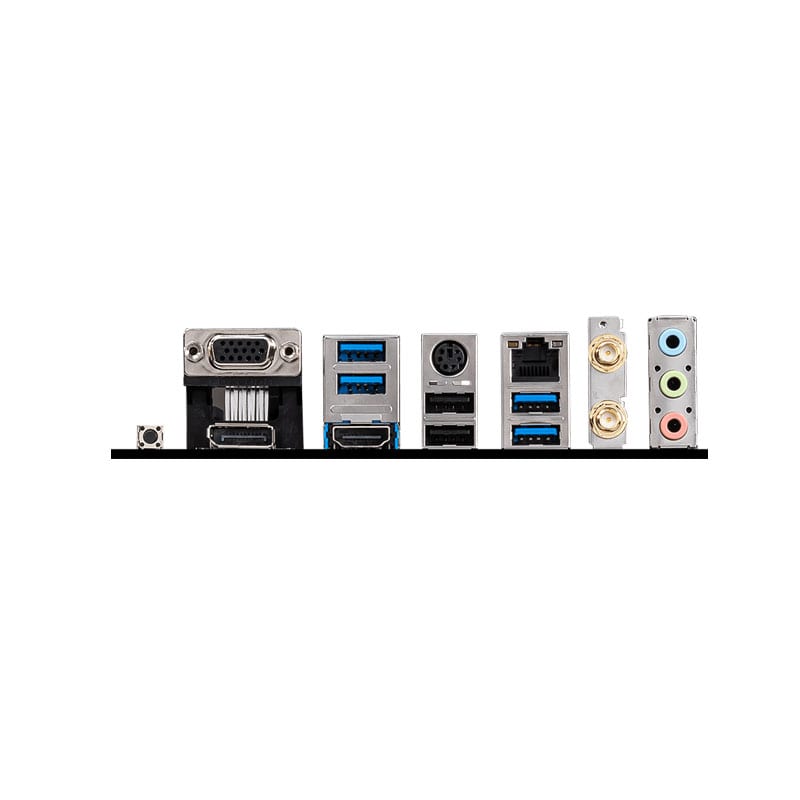

| Back Panel I/O Ports | VGA USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Flash BIOS Button DisplayPort HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A Wi-Fi Antenna connectors 3x Audio jacks |
| Chipset | AMD B550 Chipset |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| Onboard Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz1 Maximum shared memory of 16 GB Available for the processor with integrated graphics. |
| Expansion Slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. |
| Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |
| Audio | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| Mounting | 8 mounting holes |
| DIMENSION** | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Warranty** | 3 Years |
| **Note | Price, feature and specifications are subject to change without notice. |
