Description
Feature of MSI B460M Pro-VDH WiFi DDR4
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI B460M Pro-VDH Wifi motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
WI-FI AC & BLUETOOTH
This Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Specifications of MSI B460M Pro-VDH WiFi DDR4
| CPU | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket |
| Chipset | Intel® B460 Chipset |
| Memory |
4x DDR4 memory slots supporting up 128GB Intel® Core™ i7/ i9 Support DDR4-2933 Memory (Max.) Intel® Core™ i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot |
1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) |
| Onboard Graphics |
1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz |
| Storage |
4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for the M2_2 slot only Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Audio |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H Gigabit LAN Controller |
| Wireless & Bluetooth |
Intel® 3168NGW The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 802.11 a/ b/ g/ n/ ac Supports Bluetooth® 4.2 |
| Internal Connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector |

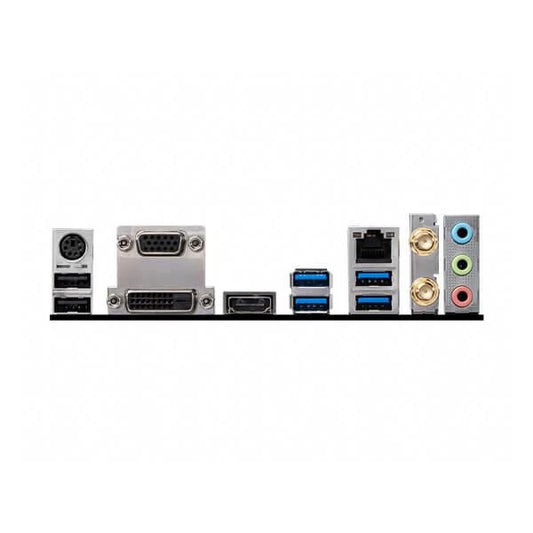

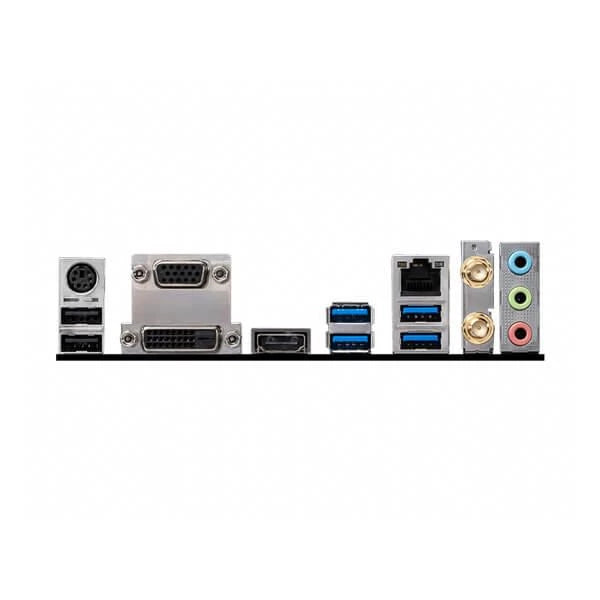

| Back Panel Ports |
Keyboard / Mouse VGA LAN USB 2.0 DVI-D HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Wireless / Bluetooth Audio Connectors |
| Form Factor |
mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | Price, feature and specifications are subject to change without notice. |
