- MSI B450M Pro-VDH Plus Motherboard
Description

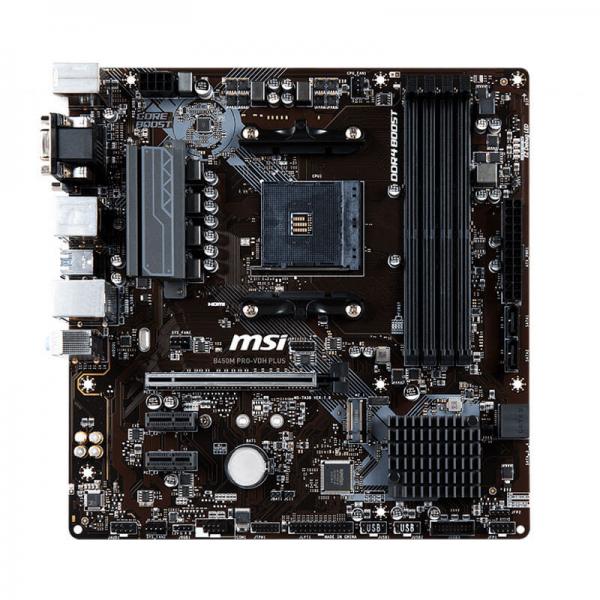

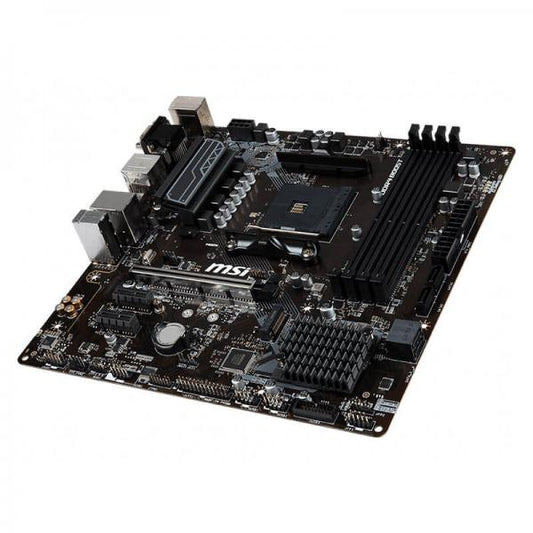

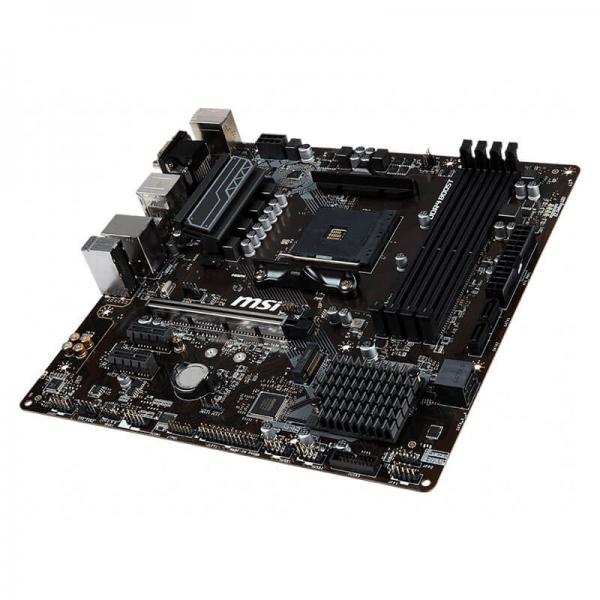

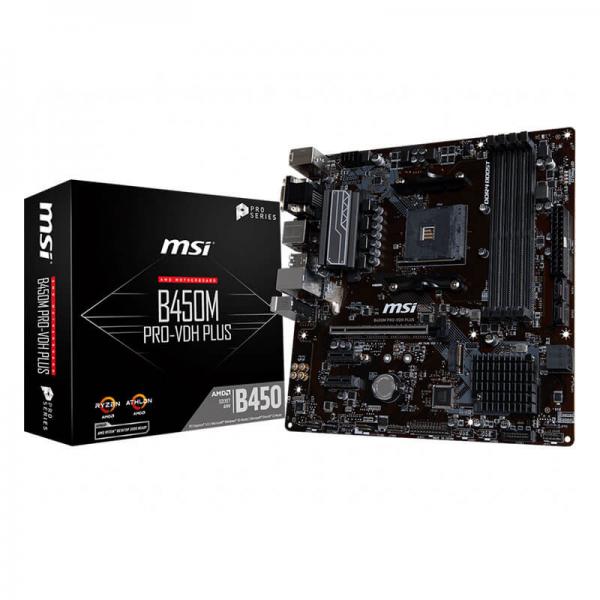

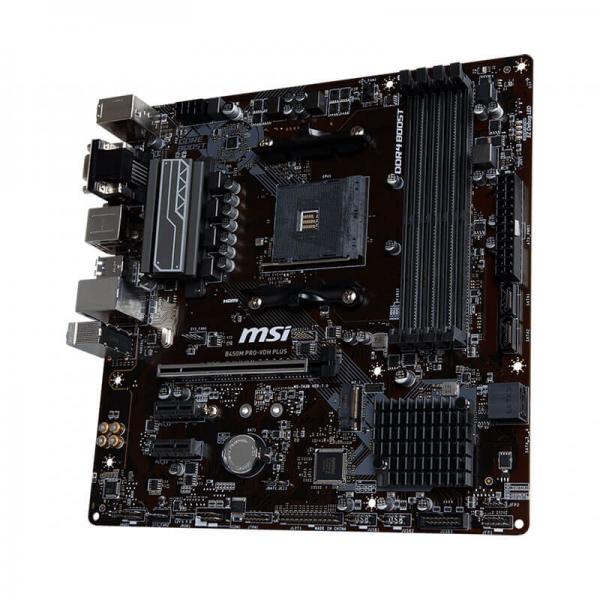

Msi B450M Pro-VDH Plus Motherboard
Features:
- AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
- Supports DDR4 Memory, up to 3466 (OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
Specifications:
PROCESSOR | Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
CHIPSET | AMD® B450 Chipset |
MEMORY |
4 x DDR4 memory slots, support up to 64GB1Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Supports Dual Channel mode Support non-ECC UDIMM memory |
SLOTS |
1 x PCIe 3.0 x16 slotSupports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors2 x PCIe 2.0 x1 slots |
ONBOARD GRAPHICS |
1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz1,2< 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1,2< 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1,2< Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB |
STORAGE |
AMD® B450 Chipset 4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101 x M.2 slot (Key M)Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
USB |
AMD® B450 Chipset 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors) AMD® processor 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
LAN | 1 x Realtek® 8111H Gigabit LAN controller |
INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x RGB LED strip connector 1 x Clear CMOS jumper |
BACK PANEL PORTS |

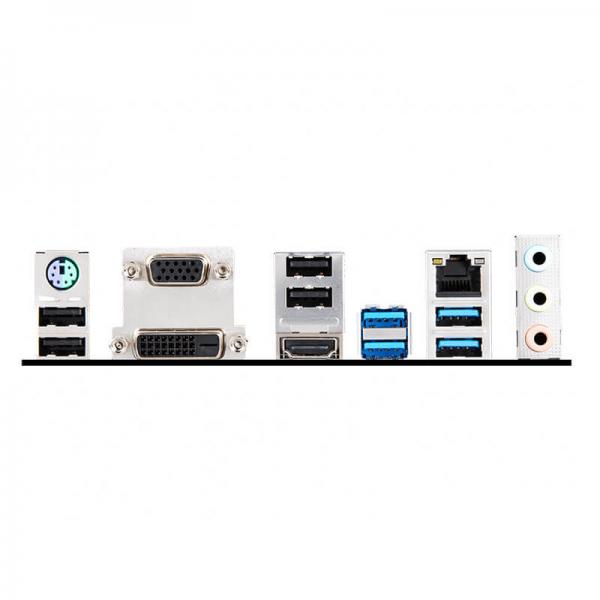

PS/2 Port VGA Port USB 2.0 Ports USB 3.1 Gen1 Ports LAN Port HD Audio Connectors DVI-D Port HDMI Port |
DIMENSIONS |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) m-ATX Form Factor |
MOUNTING | 8 mounting holes |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
