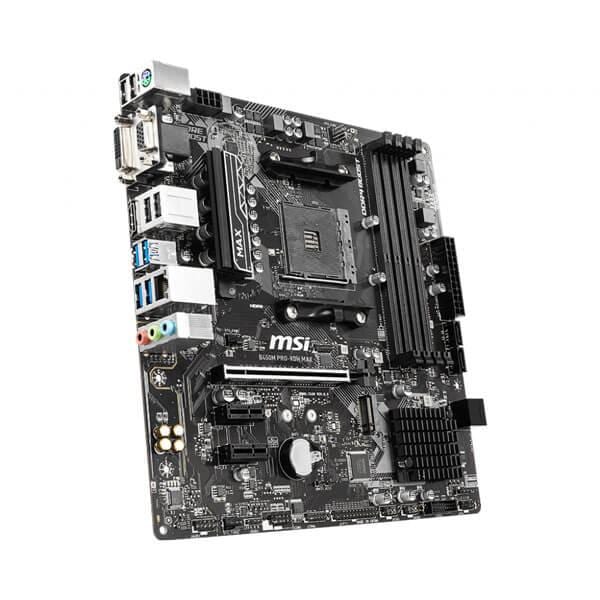

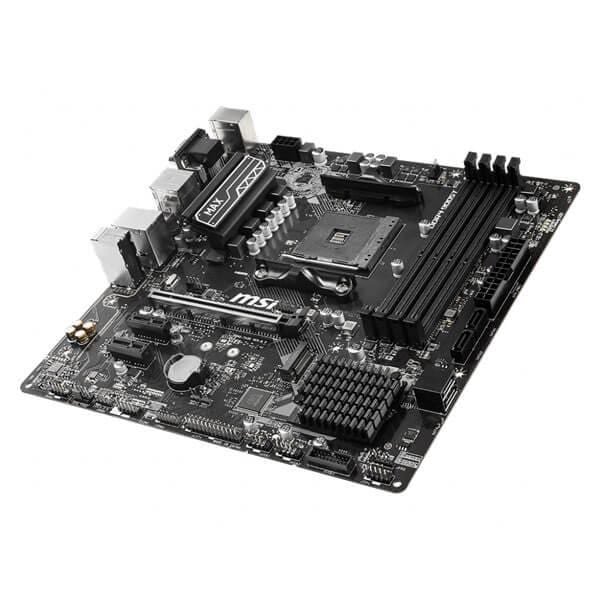

MSI B450M Pro-VDH Max Mothrboard
MSI B450M Pro-VDH Max Mothrboard
MSI B450M Pro-VDH Max Mothrboard

MSI B450M Pro-VDH Max DDR4 AMD Motherboard

Out of stock
Rs. 5,695.00 Rs. 9,450.00

Discount: Rs. 3,755.00 (40%)

45 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

23 July,2024 - 27 July,2024

In Stock Unavailable

Have a question?

Description

Features Of MSI B450M Pro-VDH Max DDR4

Specifications Of MSI B450M Pro-VDH Max DDR4



Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory 4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)For AMD Other ProcessorsSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Please refer www.msi.com for more information on compatible memory.
Slots 1 x PCIe 3.0 x16 slot1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode2 x PCIe 2.0 x1 slots
Onboard Graphics 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
Maximum shared memory of 2048 MB
Storage AMD® B450 Chipset
4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
USB AMD® B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio Realtek® ALC892 Codec
7.1-Channel High Definition Audio
LAN 1 x Realtek® 8111H Gigabit LAN controller
Internal connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper

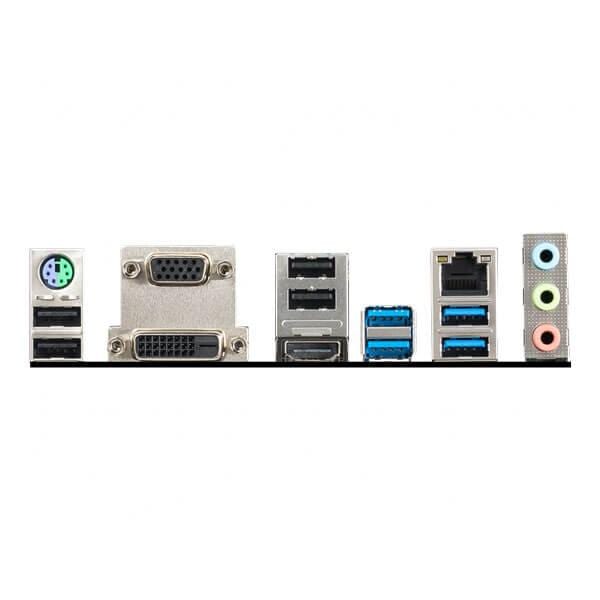

Back panel ports PS/2
VGA Port
USB 2.0 Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
DVI-D Port
HDMI Port
Dimensions 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
Mounting 8 mounting holes
Operating System Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
