Description

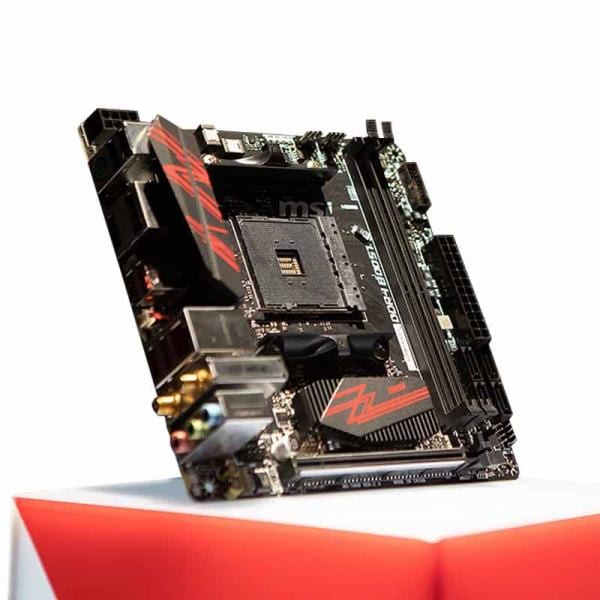

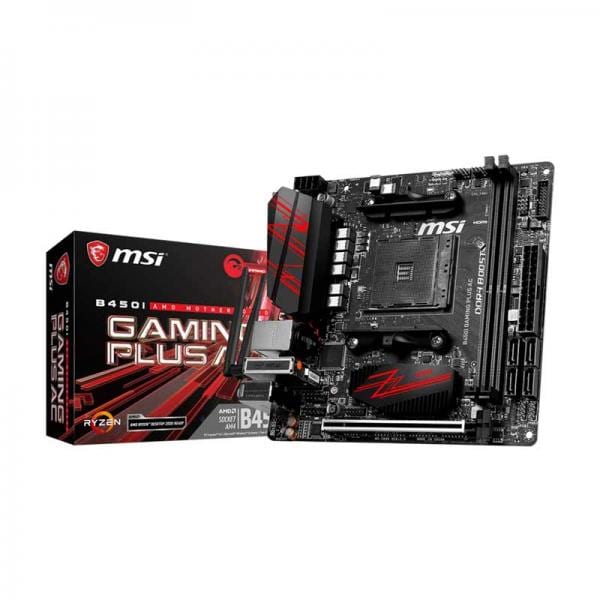

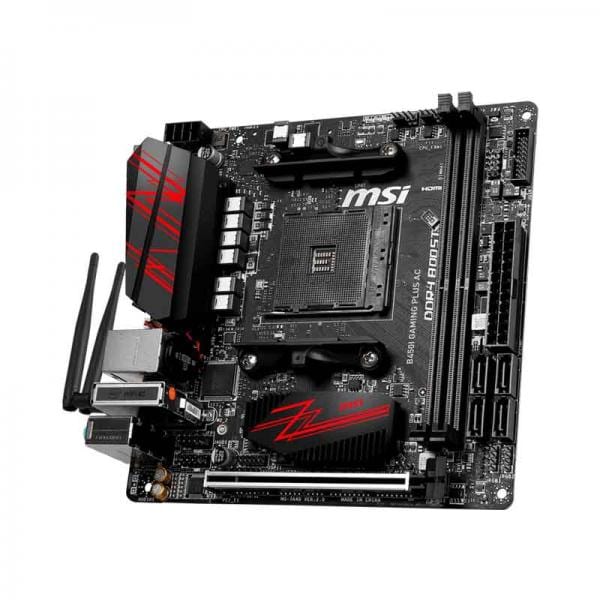

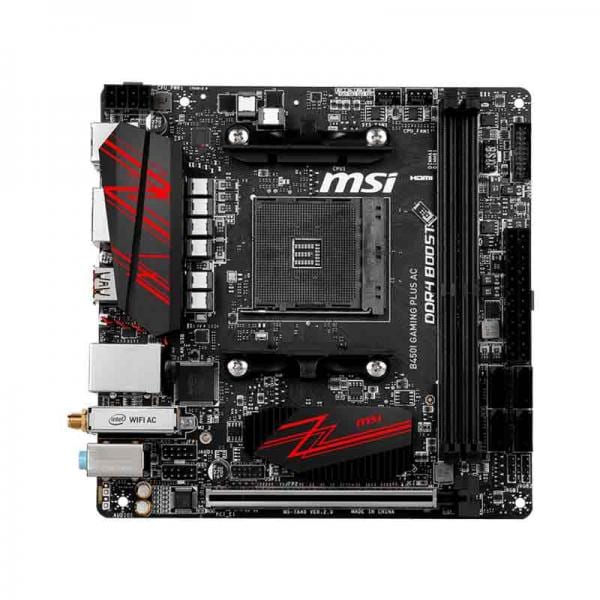

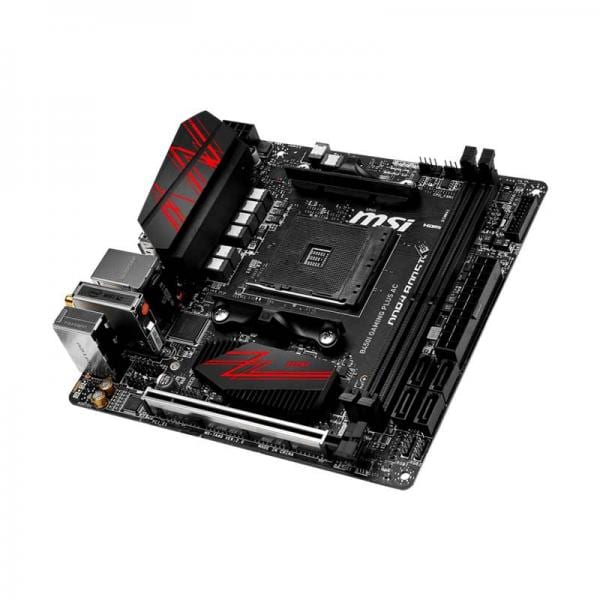

MSI B450I Gaming Plus Ac WiFi Motherboard
Features:
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
- Supports DDR4-3466(OC) Memory
- Lightning Fast Game experience: TURBO M.2, Store MI
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
- Intel® Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
- VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- EZ Debug LED: Easiest way to troubleshoot
- GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players
Specifications:
| PROCESSOR | Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
2 x DDR4 memory slots, support up to 32GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| SLOTS |
1 x PCIe 3.0 x16 slot Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors |
| STORAGE |
AMD® CPU 1 x M.2 ports (M2_1, Key M)Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2280 storageAMD® B450 Chipset 4 x SATA 6Gb/s ports |
| RAID |
AMD® B450 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| ONBOARD GRAPHICS |
1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz,1920x1200 @60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB |
| USB |
AMD® B450 Chipset 2 x USB 3.1 Gen1 (SuperSpeed USB 5Gbps) Type-A ports on the back panel 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) AMD® CPU 4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector) |
| AUDIO |
Realtek® ALC887 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| WIFI & BLUETOOTH |
Intel® Dual Band Wireless-AC 3168 module The Wireless module is pre-install in the M2_2 (Key E) slot. Supports Wi-Fi 1x1 802.11ac, dual band (2.4GHz,5GHz) up to 433 Mbps speed. Supports Bluetooth® 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1 EDR |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 2.0 connector (support additional 2 USB 2.0 ports) 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |

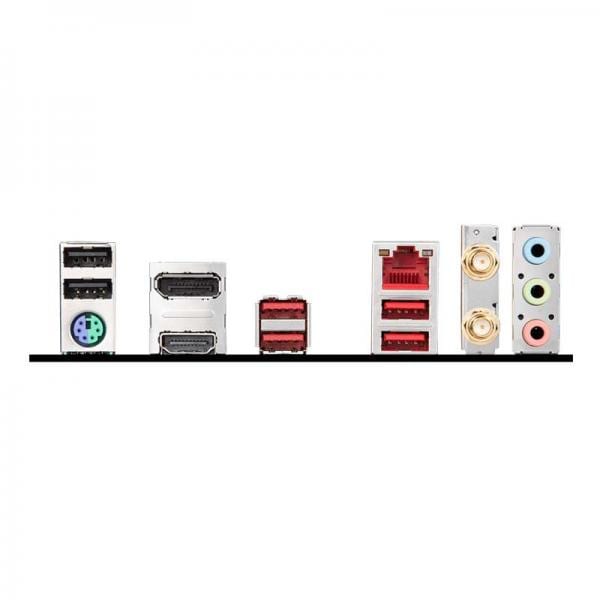

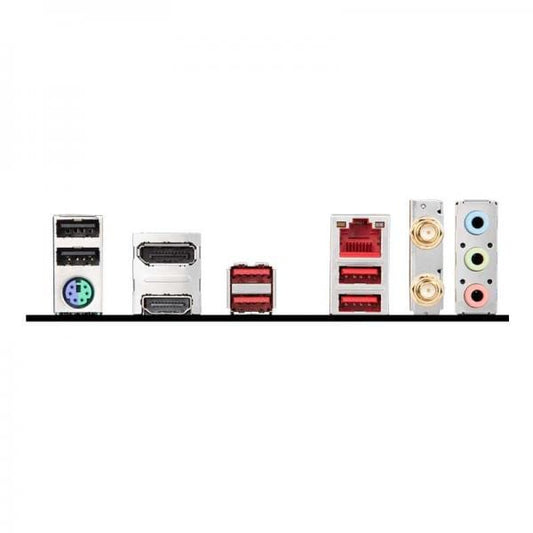

| BACK PANEL PORTS |
USB 2.0 DisplayPort LAN Wi-Fi / Bluetooth HD Audio Connectors PS/2 Combo Port, HDMI HDMI USB 3.1 Gen1 USB 3.1 Gen1 |
| DIMENSIONS |
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) Mini-ITX Form Factor |
| MOUNTING | 4 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit *To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
