- MSI B450 Tomahawk Max DDR4 AMD Motherboard
Description
Features Of MSI B450 Tomahawk Max DDR4 AMD
Now provide better performance by supporting more cores as the MSI B450 Tomahawk Max comes with a digital power design and premium layout. For the best gaming experience, MSI B450 Tomahawk Max comes with a DDR4 boost to deliver the best data signals. Supports two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up multi GPU build.MSI B450 Tomahawk Max gives the most immersive audio experience as it comes with studio sound quality. No need to install a CPU, memory, or graphics card. Now flash any BIOS within seconds by simply using a USB key. No need to install a CPU, memory, or graphics card.
- Military-style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design : MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience : 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost : With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU : With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive audio experience.
- Flash BIOS Button : Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specifications Of MSI B450 Tomahawk Max DDR4 AMD
PROCESSOR | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
CHIPSET | AMD® B450 Chipset |
MEMORY |
4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)For AMD Other CPUSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
SLOTS |
1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 3 x PCIe 2.0 x1 slots PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot. |
ONBOARD GRAPHICS |
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors Maximum shared memory of 2048 MB |
MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
STORAGE |
AMD® CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devicesAMD® B450 4 x SATA 6Gb/s ports SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot. |
RAID |
AMD® B450 Supports RAID 0, RAID1 and RAID 10 for SATA storage devices |
USB |
AMD® B450 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
LAN | 1 x Realtek® 8111H Gigabit LAN controller |
INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
BACK PANEL PORTS |

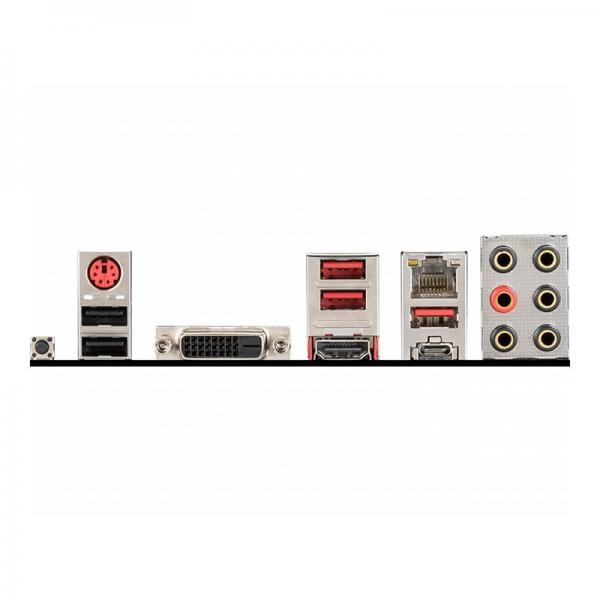

Flash BIOS Button PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.2 Gen2 Type A C |
DIMENSIONS |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
MOUNTING | 9 mounting holes |
OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
