Name: MSI B450 Gaming Pro Carbon Max WiFi Motherboard
Brand: MSI
SKU: msi-b450-pro-carbon-max-wifi
Price: 14100.0 INR
Availability: OutOfStock

Home
MSI B450 Gaming Pro Carbon Max WiFi Motherboard

PROCESSOR	Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
CHIPSET	AMD® B450 Chipset
MEMORY	4 x DDR4 memory slots, support up to 128GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPUSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)
SLOTS	1 x PCIe 3.0 x16 slot (PCI_E1)Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2 3 x PCIe 2.0 x1 slots2 PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot. PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot.
MULTI-GPU	Ryzen™ Desktop Processors Supports 2-Way AMD® CrossFire™ Technology
STORAGE	AMD® B450 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (M2_2, Key M)1Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD® CPU 1 x M.2 slot (M2_1, Key M)1Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices 2 x SATA 6Gb/s ports1 PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe RAID
ONBOARD GRAPHICS	1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz*1 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB
USB	AMD® B450 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO	Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
WIFI & BLUETOOTH	Intel® Dual Band Wireless-AC 92601 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed. Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2, 5.0 1 x M2_3 slot with E key (Wi-Fi mode) Only support windows 10 64-bit
LAN	1 x Intel® I211AT Gigabit LAN controller
INTERNAL CONNECTORS	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 1 x 2pin LED Power connector 2 x 5050 RGB LED strip 12V connectors (JRGB1~2) 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1) 1 x CORSAIR connector (JCORSAIR1)

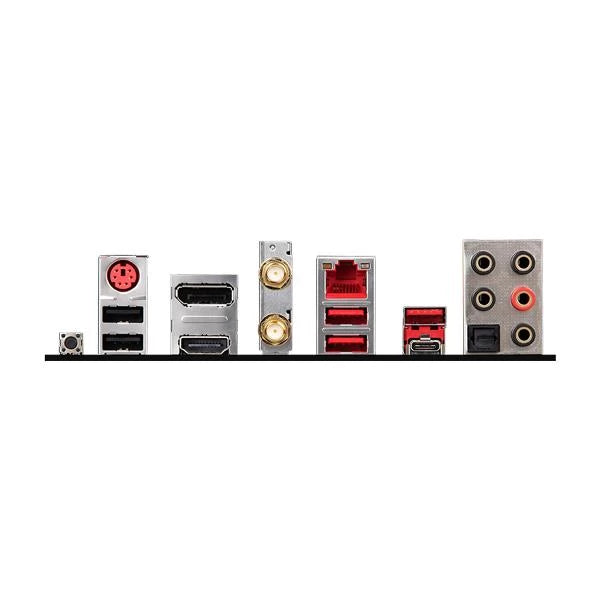

BACK PANEL PORTS	PS/2 Combo Port DisplayPort Wi-Fi / Bluetooth LAN HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen1 USB 3.2 Gen2 (Type A+C) Optical S/PDIF OUT
DIMENSIONS	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty	3 Years
