- MSI B365M Pro-VH DDR4 Intel Motherboard
Description
Feature of MSI B365M Pro-VH DDR4

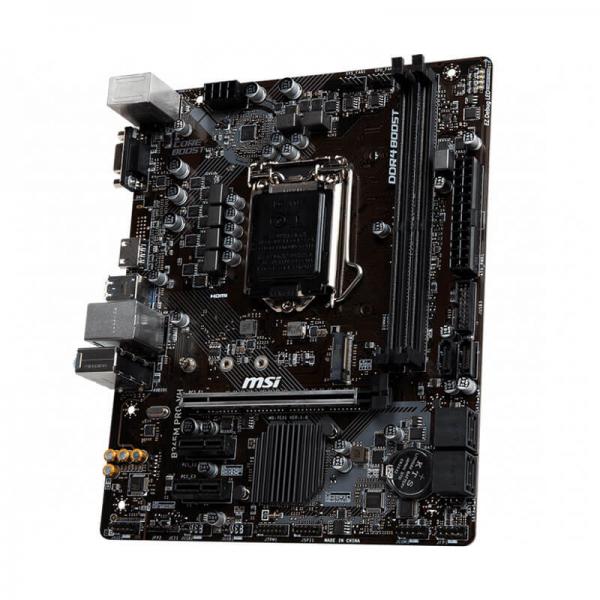

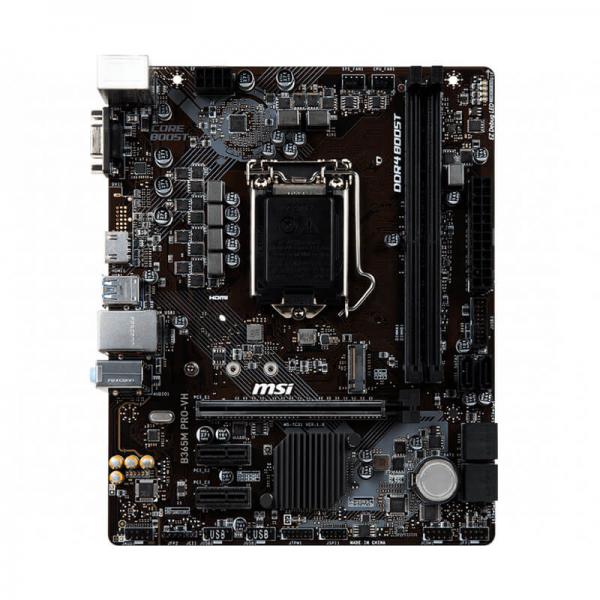

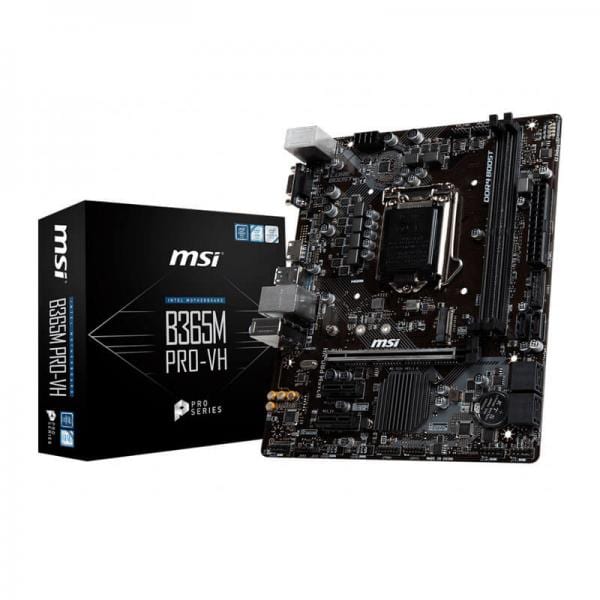

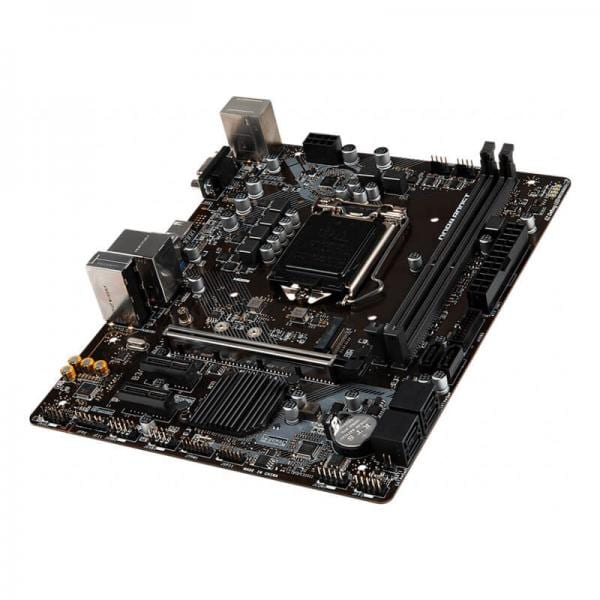

MSI B365M PRO-VH is an Intel LGA-1151 Micro-ATX motherboard with DDR4 memory support up to 2666MHz. MSI B365M PRO-VH is stronger than steel. Enhanced performance of the MSI B365M PRO-VH motherboard makes it suitable for enthusiasts and gamers. The optimized layout design and a fully isolated memory circuitry ensure perfect stability with high-quality materials and smart fan optimizations. The PCI-E Steel Armor protects the PCI-E slot of the MSI B365M PRO-VH from high-grade and high-performance graphics cards. MSI B365M PRO-VH allows the latest storage standards with support for turbo M.2 delivering speeds up to 32Gb/s using the PCI-E Gen3. The high-speed LAN network support of the motherboards provide great in-studio advantages designed to satisfy professional workflow.
The studio-grade sound quality and MSI Audio boost drivers boost audio performance of the MSI B365M PRO-VH. MSI adopted the modern style heavy plated heatsink design with huge surface and sleek appearance looked ripped and powerful whilst providing incredible cooling to the VRAM. Each MSI motherboard is built based on the specific needs of the consumer and each motherboard is designed and colored neutrally in black, grey, or silver as the main background to increase the visual aesthetics. The different RGB LED effects strongly fit the gamer essence and show off the gamers’ tunes. The industrial design of the PRO series motherboards combines stability and functionality. MSI with years of experience develops high-performance motherboards. MSI R&D and engineering teams have reviewed countless designs and selected the highest quality component for reliability under extreme conditions.
Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4 Boost, Audio Boost and EZ Debug LED
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: The easiest way to troubleshoot.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Specifications of MSI B365M Pro-VH DDR4
PROCESSOR | Supports 9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
CHIPSET | Intel® B365 Chipset |
MEMORY |
2x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
SLOTS |
1 x PCIe 3.0 x16 slots 2 x PCIe 3.0 x1 slots |
ONBOARD GRAPHICS |
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz No display support when using the processor model with suffix F |
STORAGE |
Intel B365 Chipset 6 x SATA 6Gb/s ports 1 x M.2 slot (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory ReadyThe SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
RAID |
Intel B365 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices |
USB |
Intel B365 Chipset 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
AUDIO |
Realtek ALC887 Codec 7.1-Channel High Definition Audio |
LAN | 1 x Realtek RTL8111H Gigabit LAN controller |
INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports) 6 x SATA 6Gb/s connectors 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x TPM module connector |
BACK PANEL PORTS |
PS/2 Combo VGA Port LAN Port HD Audio Connectors USB 2.0 Ports HDMI Port USB 3.1 Gen1 Ports |
DIMENSIONS |
8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) Micro-ATX Form Factor |
MOUNTING | 6 mounting holes |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
