Description

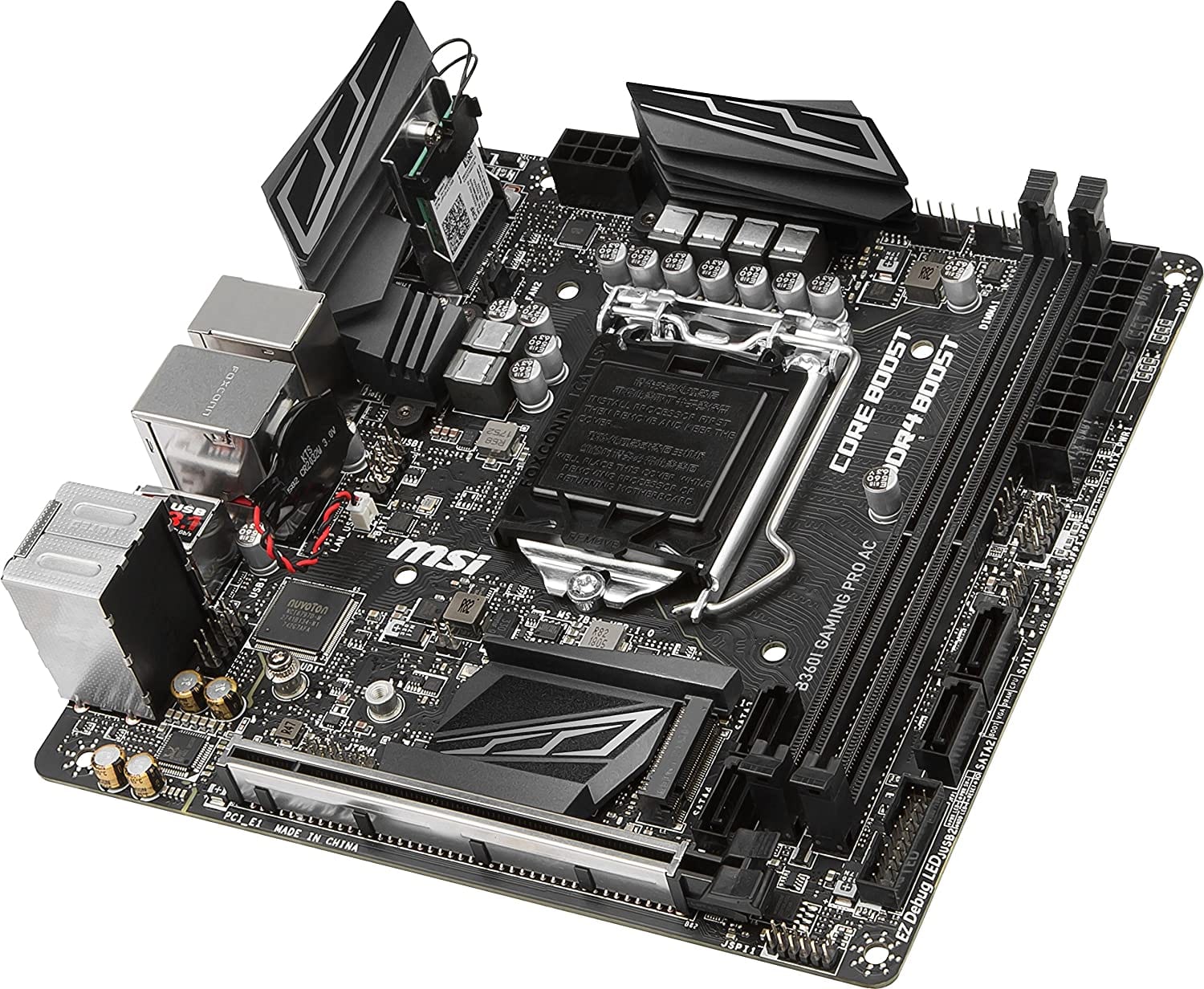

MSI B360I Gaming Pro Ac Motherboard
Features:
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® pro-cessors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device.
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Capacity Ready. Intel Turbo USB 3.1 Gen2
- Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- Intel® Wireless Support Uses smart MU-MIMO technology, delivering AC speeds up to 433Mbps with lower CPU loading and better long-term usage
- VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
- In-Game Weapons: GAMING Hotkey, X-Boost.
- EZ Debug LED: The easiest way to troubleshoot.
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites, and search function.
- GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.
Specifications:
Motherboard | |
CPU | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |

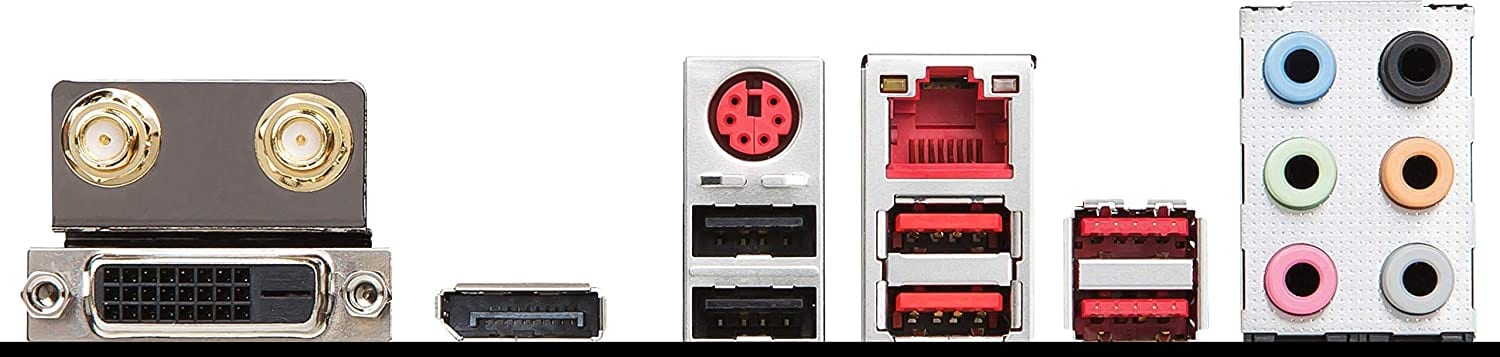

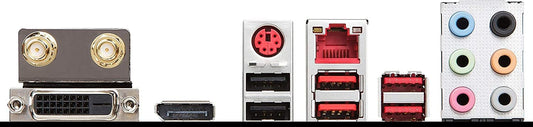

Back Panel I/O Ports | Wireless / Bluetooth PS/2 Combo Port LAN Port HD Audio Connectors DVI-D Display Port USB 2.0 Ports USB 3.1 Gen1 Ports USB 3.1 Gen2 Ports |
Chipset | Intel® B360 Chipset |
Memory | 2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz1 Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory |
Onboard Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz |
Slots | 1 x PCIe 3.0 x16 slot |
Storage | Intel® B360 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slots (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s1 Supports 2260 /2280 storage devices Intel® Optane™ Memory Ready for M2_2 slot only2 M2_2 slot supports PCIe M.2 SSD only.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
Wireless LAN & Bluetooth | Intel® Wireless-AC 9462 card Supports Wi-Fi 802.11 a/b/g/n/ac, Dual Band, MU-MIMO, up to 433 Mbps speed. Supports Bluetooth® 5 |
USB | Intel® B360 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) |
LAN | 1 x Realtek® RTL8111H-C Gigabit LAN controller |
Audio | Dual Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x 5050 RGB LED strip 12V connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
Operating System | Support for Windows® 10 64-bit |
Mounting | 8 mounting holes |
DIMENSION** | 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) mini-ITX Form Factor |
Warranty** | 3 Years |
**Note | Price, feature and specifications are subject to change without notice. |
