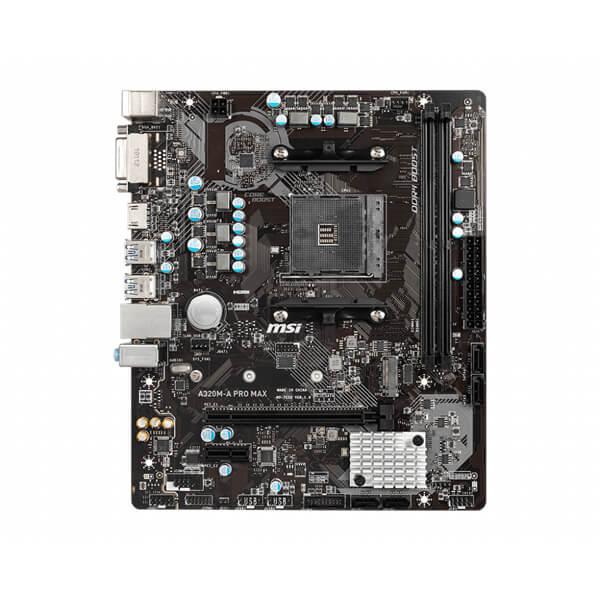

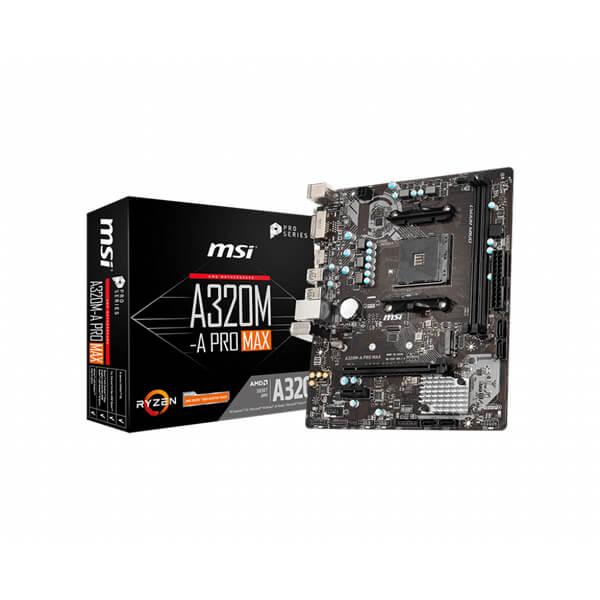

- MSI A320M-A Pro Max DDR4 AMD Motherboard
Description
Feature of MSI A320M-A Pro Max DDR4
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3200 (OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Audio Boost: Reward your ears with studio grade sound quality.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
DIY FRIENDLY
MSI A320M-A Pro Max DDR4 motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers
BIOS and Software
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.
Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range
ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
CPU
Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.
MEMORY
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4
Storage
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
Specifications of MSI A320M-A Pro Max DDR4
Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
Chipset | AMD® A320 Chipset |
Memory |
2 x DDR4 memory slots, support up to 32GB Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
Slots |
1 x PCIe 3.0 x16 slotSupports x16 speed1st, 2nd and 3rd Gen AMD Ryzen™
Supports x8 speedRyzen™ with Radeon™ Vega Graphics Supports x4 speedAMD® Athlon™ with Radeon™ Vega Graphics PCIe 2.0 x1 slot |
Onboard Graphics |
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Only support when using the processor with Graphicss Maximum shared memory of 2048 MB |
Storage |
AMD® A320 Chipset 4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101x M.2 slot (Key M)Supports PCIe 3.0 x4 and SATA 6Gb/s1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ GraphicsSupports PCIe 3.0 x2 and SATA 6Gb/sAMD® Athlon™ with Radeon™ Vega Graphics A-series Athlon™ X4Supports 2242/2280/22110 storage devices |
USB |
AMD® A320 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
Audio |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
LAN | 1 x Realtek® 8111H Gigabit LAN controller |
Internal connectors |
1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
Back panel ports |
Mouse DVI-D Port USB 3.2 Gen1 LAN Port Keyboard HDMI Port USB 2.0 Ports HD Audio Connectors |
Dimensions |
9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) m-ATX Form Factor |
Mounting | 6 mounting holes |
Operating System |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
