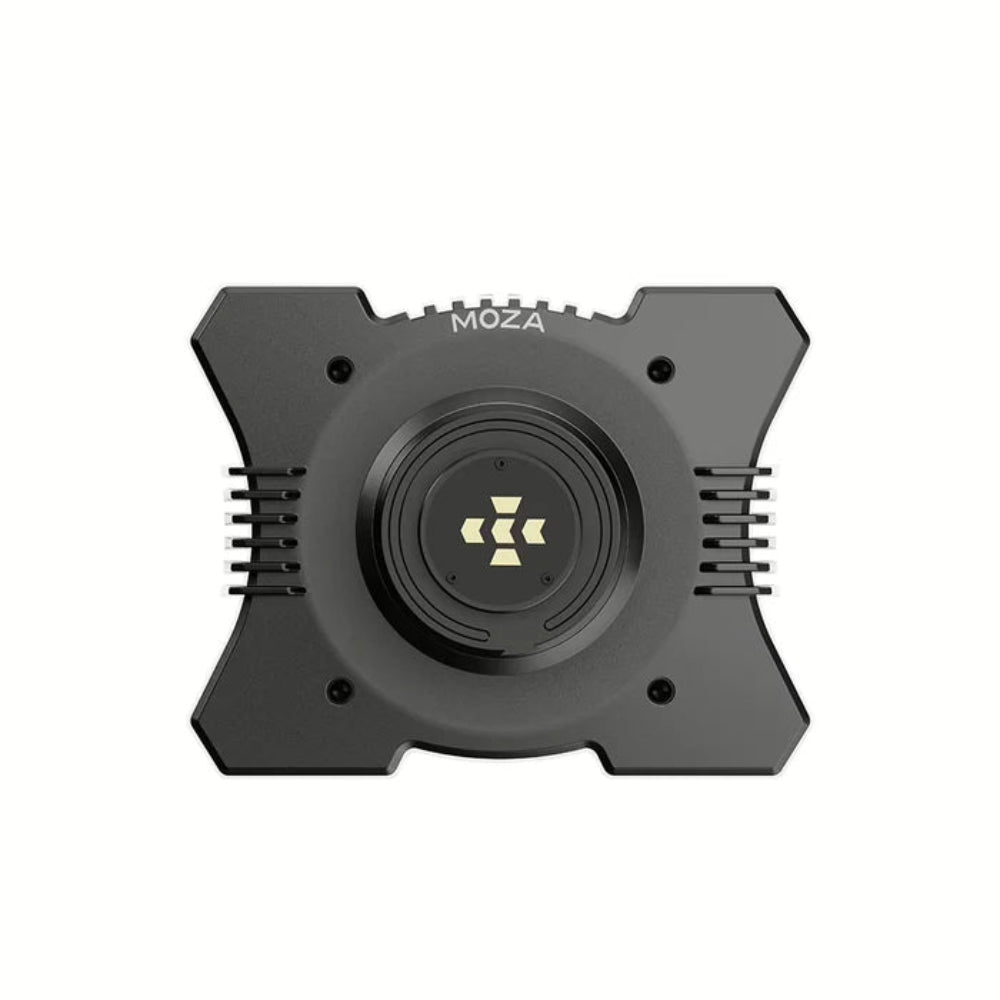

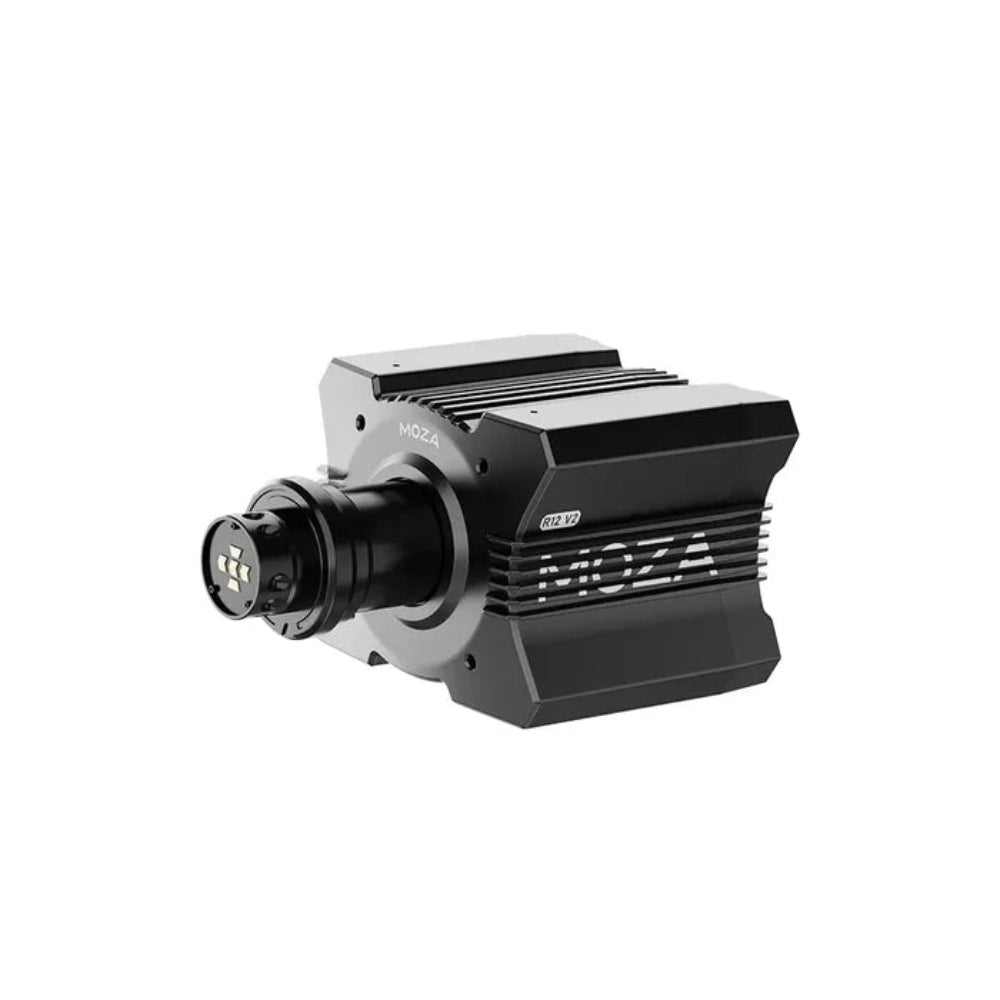

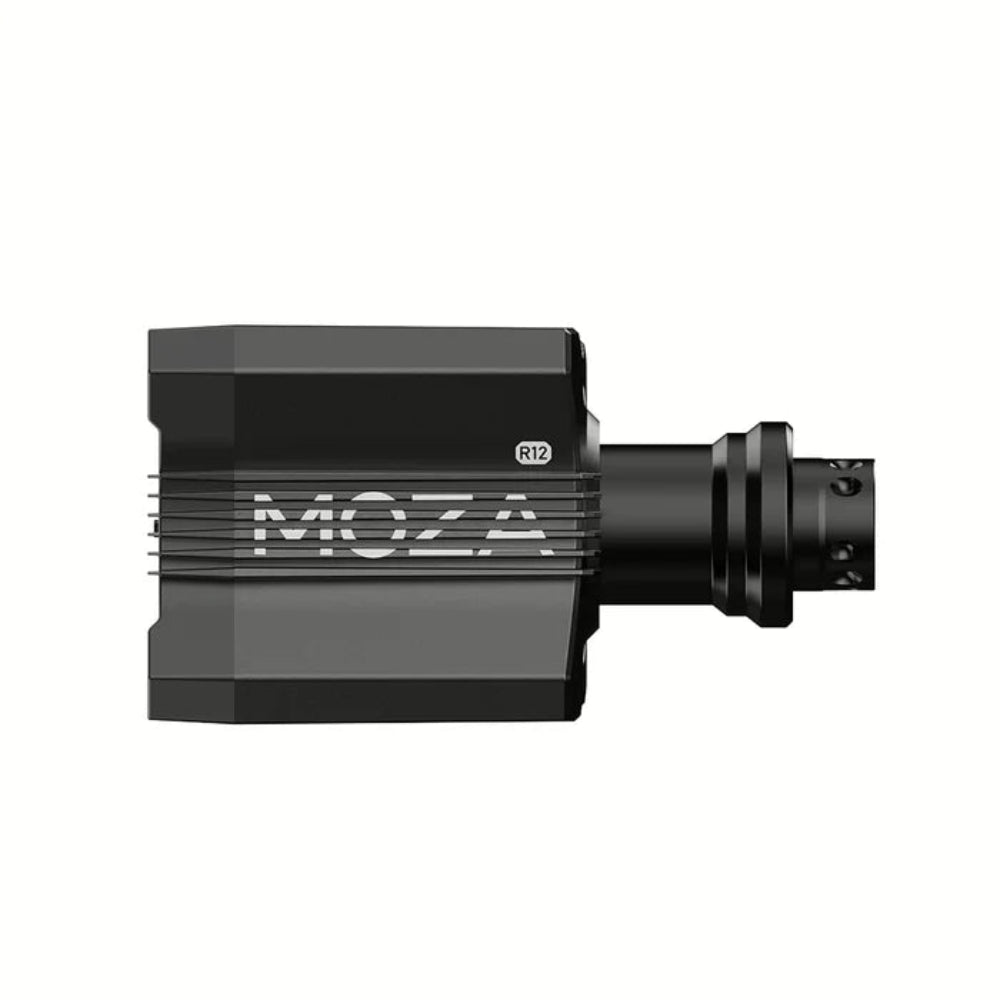

MOZA R12 V2 Direct Drive Racing Wheel Base

MOZA R12 V2 Direct Drive Racing Wheel Base

Rs. 69,858.00 Rs. 86,559.00

Discount: Rs. 16,701.00 (20%)

49 people are viewing this right now

Hurry Up! Only 5 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of MOZA R12 V2 Direct Drive Racing Wheel Base

The MOZA R12 V2 is a 12Nm direct-drive wheel base engineered for professional sim racing. Featuring a 21-bit magnetic encoder with a high-performance processor, a slanted-pole servo motor, and a carbon fiber wrapped rotor for superior thermal management, it delivers precise, responsive, and consistent force feedback with NexGen 4.0 and iRacing 360Hz support. Intelligent temperature control ensures stable performance, while aerospace-grade aluminum construction provides durability. Front-mounted holes allow optional bracket installation, and the MOZA Pit House app enables real-time configuration for ultimate control.

12Nm of Pure Direct Drive Power

Experience next-gen force feedback with a 21-bit encoder, aviation-grade aluminum body, and ultra-responsive control.

Ultra-Fine Resolution for Ultimate Control

Delivers 2,097,152 steps per revolution with 0.00017° resolution for ultra-smooth steering response and incredibly detailed force feedback.

Carbon Fiber Wrapped Rotor

Automotive-grade protection that minimizes eddy current losses and enhances thermal efficiency for long-lasting, consistent performance.

Aviation-grade Aluminum

Aviation-grade aluminum body with automotive-grade paint and laser-etched finish — built for durability and performance.

Compact Design

The compact integrated motor design retains a standard 4-hole mount, making it easy to install on most rigs, floorstands, or with a desktop clamp for space-saving convenience.

Hand-off Protection

Advanced hand-off protection stops oscillation, centers the wheel safely, and supports drifting without interruption — all with improved force feedback response.

Industrial Conductive Slip Ring

The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

Cloud-based Mobile App Control

Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.

Specifications of MOZA R12 V2 Direct Drive Racing Wheel Base

Model	MOZA R12 V2 DD Base
Platform	PC
FFB Drive System	Direct Drive
Encoder Resolution	21-Bit Magnetic Encoder with 280MHz High-Performance Processor
Max Wheel Rotation	90~2700°
Housing Material	Aviation-grade aluminum alloy
Housing Color	Black
Peak Torque	12 N·m
Peak Power	216W
Input Voltage	110V~220V AC → 36V DC
USB Refresh Rate	1000Hz
App Functions	Supported
Quick Release	Supported

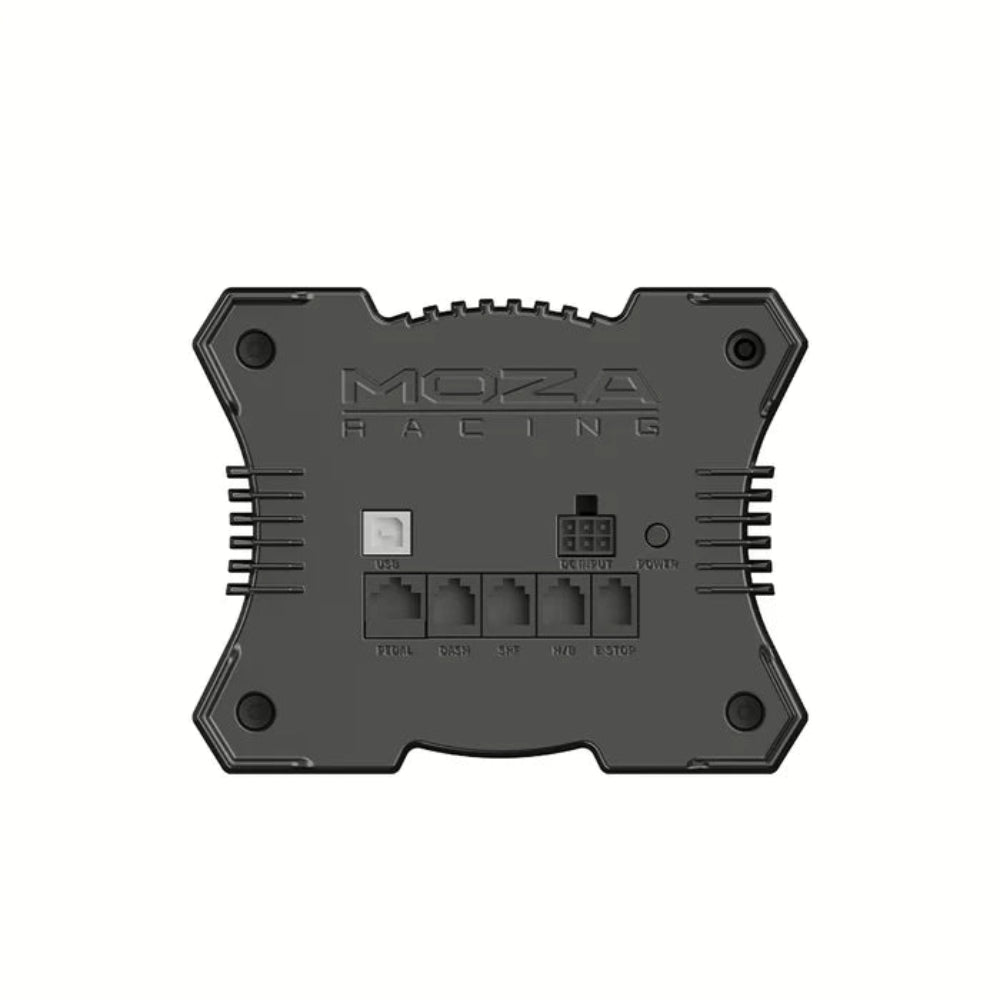

Connection Ports	Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Accessories	User manual, power adapter, cable, tool kit
Fixing Method	4-hole bottom mount
Desk Clamp	Optional
E-stop	Optional
Online Firmware Update	Supported
Weight	7.5 kg
Dimensions	225.87 × 156.68 × 123.99 mm
