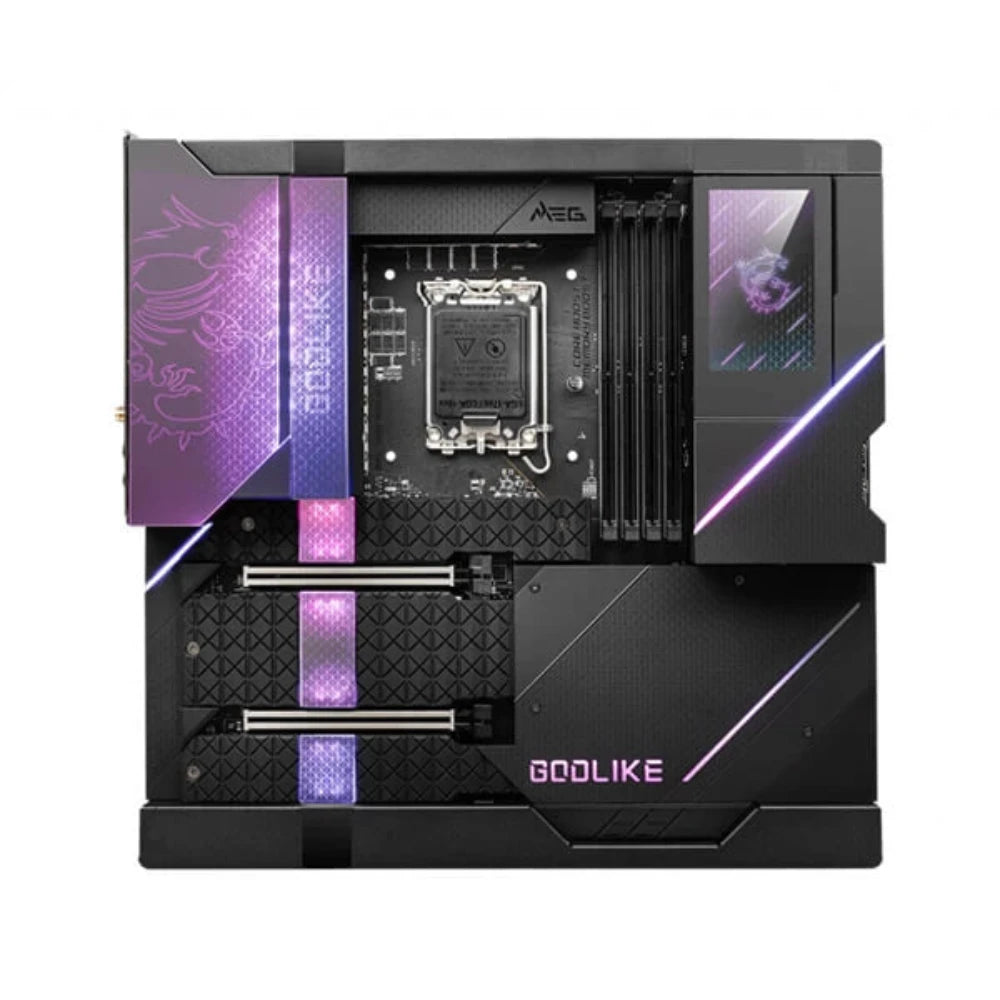

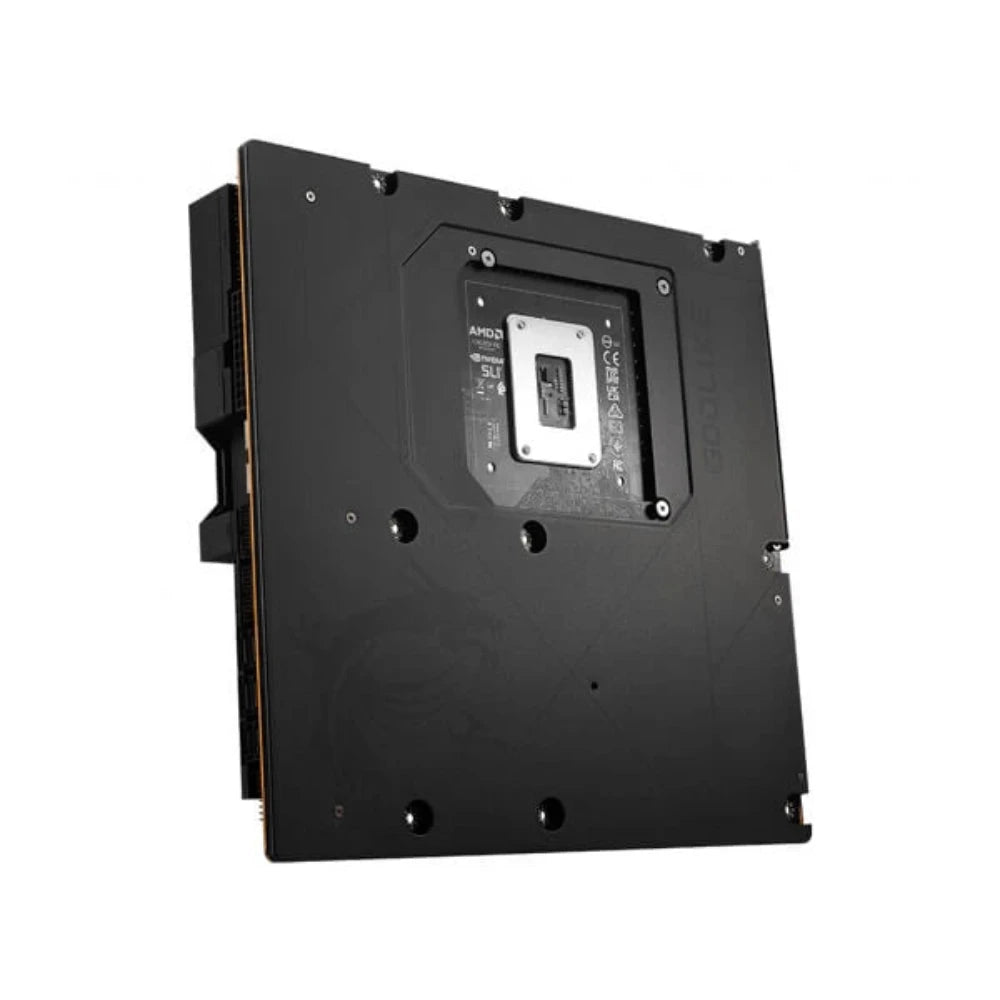

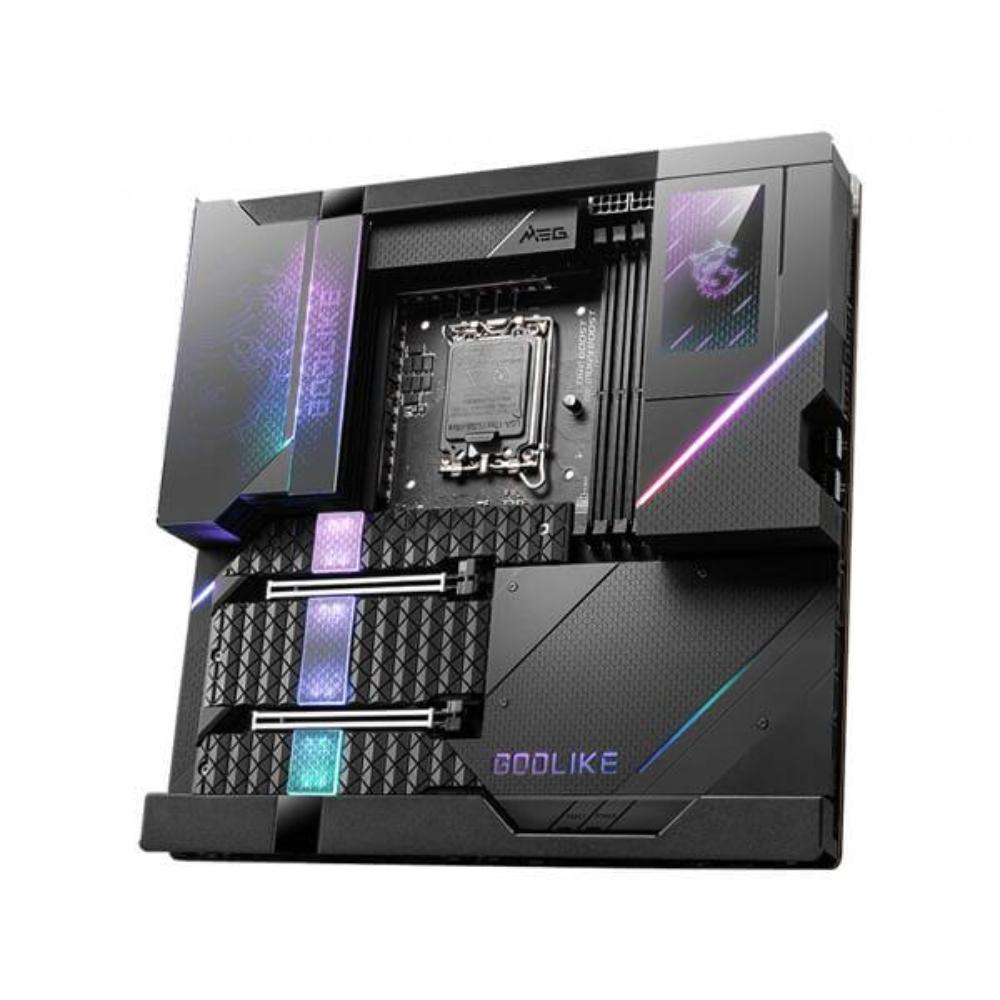

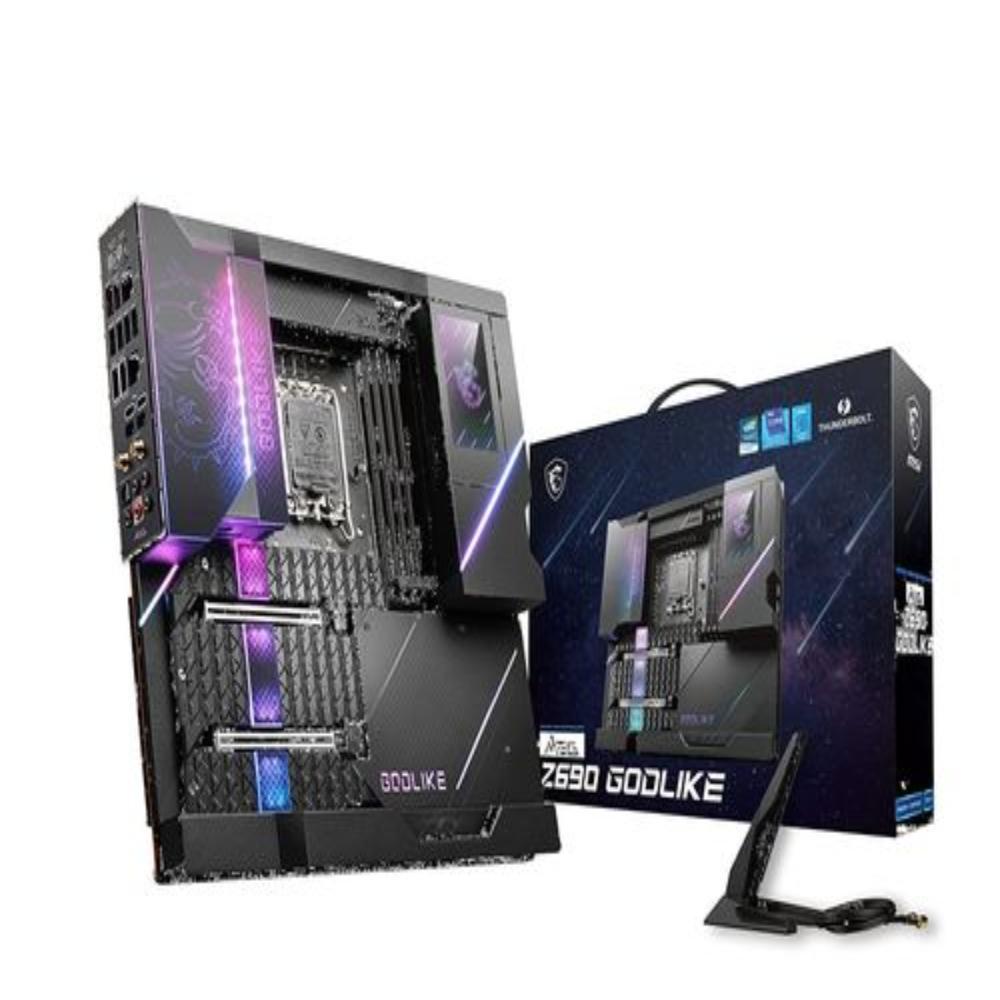

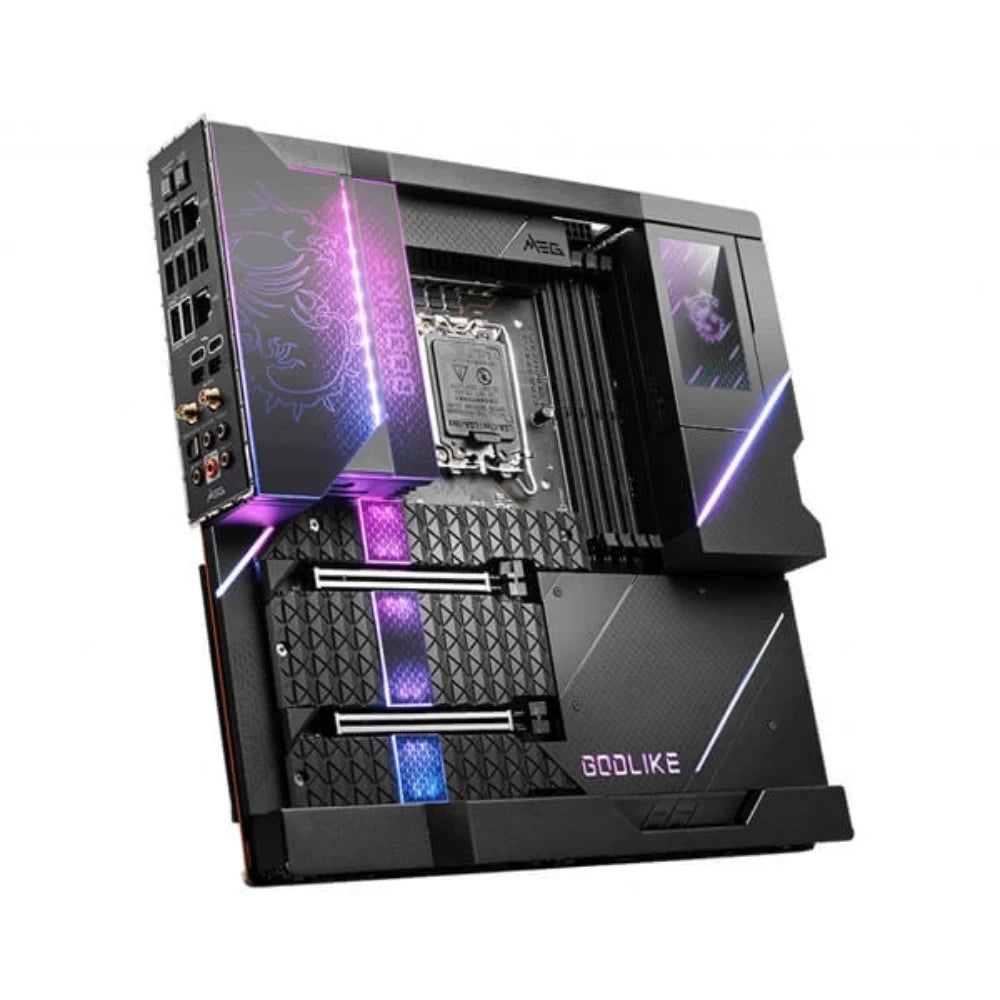

MSI MEG Z690 Godlike DDR5 Intel Motherboard

Feature of MSI MEG Z690 Godlike DDR5 Intel Motherboard

1. Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture.
2. Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture.
3. Not satisfied with the onboard operation? The detached mode brings a new way for your PC operation.
4. The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
5. Direct 20+2 Phases with 105A SPS power design are ready to push the latest processors to their limits!
6. The latest Lightning Gen 5 M.2 connector for the maximum storage performance.
7. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
8. This patent-pending magnetic design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.


M-VISION DASHBOARD

MSI MEG Z690 GODLIKE has Industry’s first built-in touchable LCD on the motherboard , supports system operation, OC tuning, hardware monitor, debug function, live weather, system clock, countdown timer and multiple functions with touch control. Moreover, the detached mode brings a new way for your PC operation.

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI MEG Z690 GODLIKE is ready to deliver the world class memory performance.

UNMATCHED MEMORY PERFORMANCE

MSI MEG Z690 GODLIKE motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

LIGHTNING GEN 5 PCI-E

MSI MEG Z690 GODLIKE Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot diminishes the interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

DIRECT 20+2 PHASES WITH 105A SMART POWER STAGE

Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2 digital power phases. Combining 105A Smart Power Stage and Core Boost technology, MSI MEG Z690 GODLIKE is ready for the challenge of high-end processors.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

MSI MEG Z690 GODLIKE features Aluminum Cover, Cross Heat-pipe Design, Wavy Fin Design with 7W/mK Thermal Pads, and Double-sided M.2 Shield Frozr to ensure the extreme performance with low temp.

SEXTUPLE M.2 WITH DOUBLE SIDE M.2 SHIELD FROZR

Incredible onboard 6x M.2 connectors for the maximum storage performance with Lightning Gen 5 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

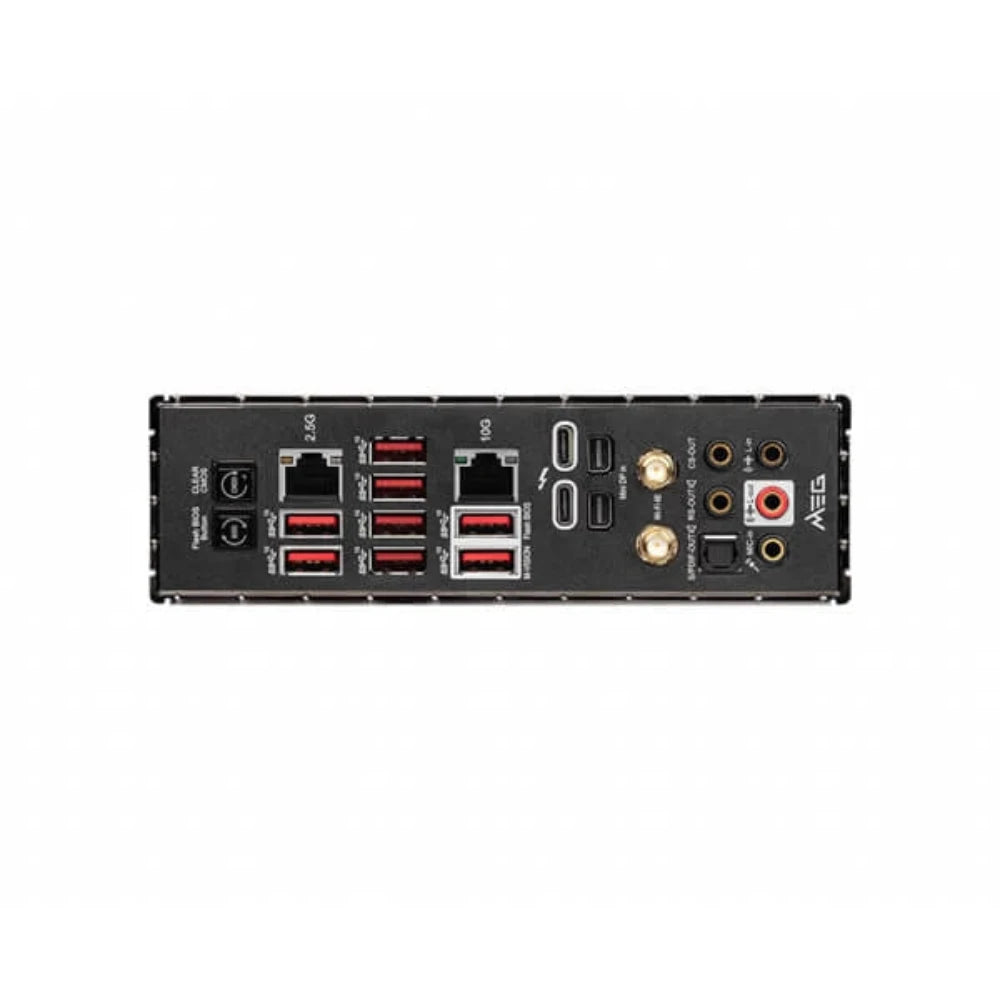

ONBOARD THUNDERBOLT 4 PORTS

Experience Thunderbolt 4 with unprecedented interface bandwidth speeds up to true 40Gbp and support for up to six daisy-chained devices. Additionally, Maximum 8K display support, Multi-Port Accessory Architecture and USB 4.0 compliant provide reliable connectivity and better user experience.

• Maximum 8K display support
• Daisy Chain support
• Multi-Port Accessory Architecture

DUAL FRONT LIGHTNING USB 20G

Featuring the Lighting USB 3.2 Gen2x2 controller, MSI MEG Z690 GODLIKE offers never before seen USB speeds up to 20Gb/s transmission speed, 4X faster than USB 3.2 Gen 1. Available when connecting the front USB Type-C.

ONBOARD 10G SUPER LAN & 2.5G LAN

MSI MEG Z690 GODLIKE features high-bandwidth and low-latency onboard 10G Super LAN plus Intel 2.5G LAN for power users, provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

Specifications of MSI MEG Z690 Godlike DDR5 Intel Motherboard
