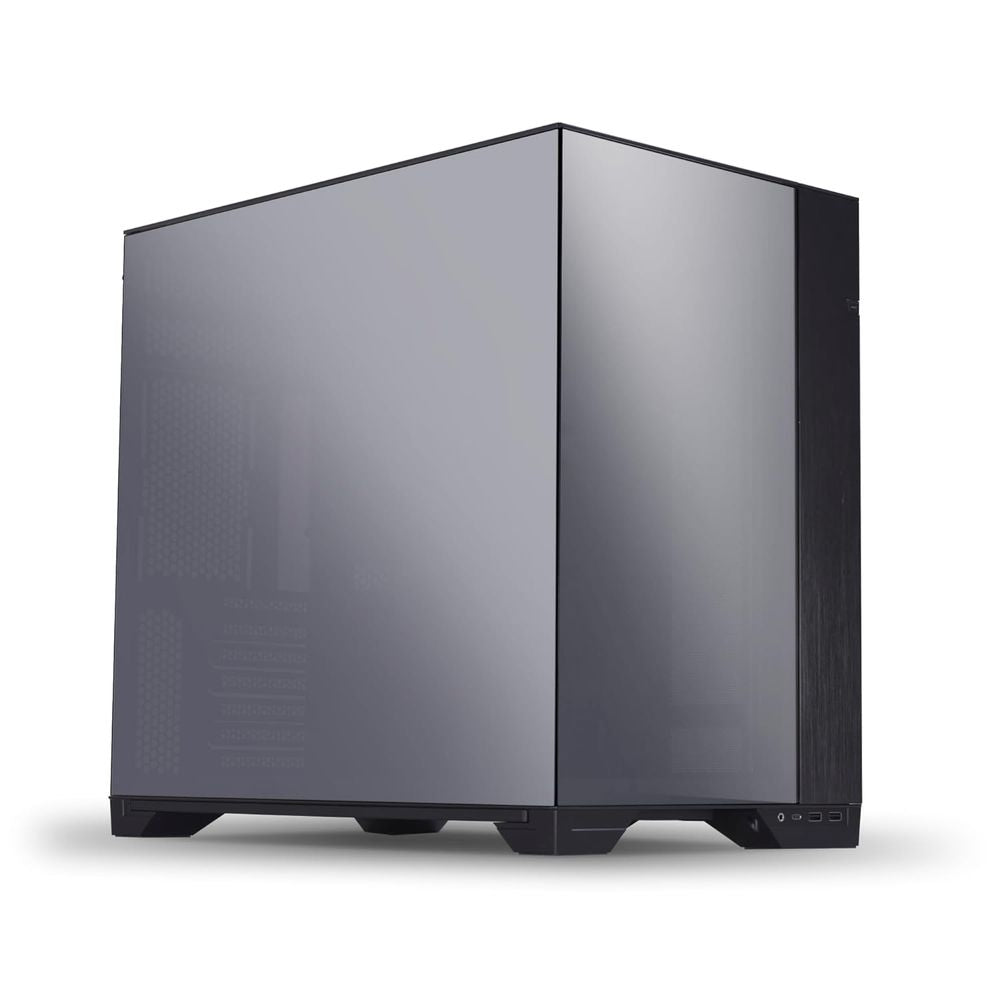

- LIAN LI O11 Vision (ATX) Mid Tower Cabinet (Chrome)
Description
Features of LIAN LI O11 Vision (ATX) Mid Tower Cabinet (Chrome)
LIAN LI joins forces with PC Master Race (PCMR) to present the LIAN LI O11 Vision ATX Cabinet (Chrome). By combining LIAN LI’s expertise in crafting high-quality, feature-rich cases with PCMR’s community of PC enthusiasts, we created a product that builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.
- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process
- Supports a up to 2 × 360mm radiators + 1 × 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.
- Dual-chamber layout with cable management compartment and cable holders
- Number of PSU supported : 1
UNOBSTRUCTED HARDWARE SHOWCASE
Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.
BEAUTY IN EVERY ANGLE
Just like the classic O11 series, O11 Vision is available in black and white, crafted from the finest materials, and looks stunning from every angle.
- Brushed Aluminum
- 3mm Mirror Finish Top Tempered Glass
- 4mm Mirror Finish Side and Front Tempered Glass
- Black Coated Mesh Panel
BALANCE BETWEEN COOL AND CLEAR
lian li cabinet O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis. Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.
SEAMLESS BUILD PROCESS
Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.
SOLID STRUCTURE
Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels
TWO-WAYS REVERSIBLE SIDE FAN BRACKET
Inner Scenario
For 75mm space in the main chamber
Outer Scenario
Optimized for a push-pull configuration
REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER
Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.
ADJUSTABLE MOTHERBOARD TRAY
Mount the motherboard, CPU pump, and graphics card outside the chassis first to make the installation process easier.
HIGH MODE
Enhance your PC’s aesthetics or maximize radiator space, catering to style-conscious users and water-cooling enthusiasts.
LOW MODE
Enhance your PC’s airflow with an extra rear fan while ensuring room for 3 × 140mm fans at the bottom, creating an optimal cooling setup.
RECOMMEND SET UP
- Side Intake with push-pull 360mm radiator and 6 ×120mm fans
- Rear Exhaust with 2 ×120mm fans
- Bottom Intake with 3 × 140mm fans
EASY TO ACCESS
The front I/O ports are strategically positioned at the bottom of the chassis, ensuring convenient access when the case is placed on a table, all while showcasing its aesthetic appeal.
THE CLEAN CABLE MANAGEMENT SOLUTION
To maintain the most aesthetic view in the main chamber, O11 Vision is designed with cable management in mind in the second chamber.
Flexible Cable Clips
Features 2 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
Bulky cables can be securely held in the cable holder.
Thinner cables can be managed using Velcro straps.
Extended Room
The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.
MULTI-FUNCTION STORAGE BRACKET
Offering the flexibility usage of the bracket for cable routing or a drive installation.
Cable Management Bar
2.5” SSD × 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.
Individual Drive Cage
2.5” SSD × 2 or 3.5” HDD × 2
Each drive cage can be removed to gain space for the cable routing.
COVERING THE GAP
Included 2 silicone covers for low mode configuration to provide a clean look for cable management.
Best cpu case gaming at affordable prices at Elitehubs!
Specifications of LIAN LI O11 Vision (ATX) Mid Tower Cabinet (Chrome)
| PRODUCT NAME | O11 Vision | ||
| CASE TYPE | Tower Chassis | ||
| MODEL | O11VX | O11VW | O11VC |
| COLOR | Black | White | Color Chrome (Black Mirror Finish) |
| DIMENSION | (D) 480mm x ( W ) 304mm x (H) 464.5mm | ||
| MATERIAL | Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum |
||
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX | ||
| EXPANSION SLOT | 6+1 | ||
| STORAGE | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD |
||
| GPU LENGTH CLEARANCE | 430mm (Max.) | ||
| CPU COOLER HEIGHT CLEARANCE | 174mm (Max.) | ||
| PSU SUPPORT | ATX (Under 232mm) | ||
| FAN SUPPORT | Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm |
||
| RADIATOR SUPPORT | Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm |
||
| I/O PORTS | 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
||
| DUST FILTER | Bottom × 1 | ||
| WARRANTY | 1 year | ||
