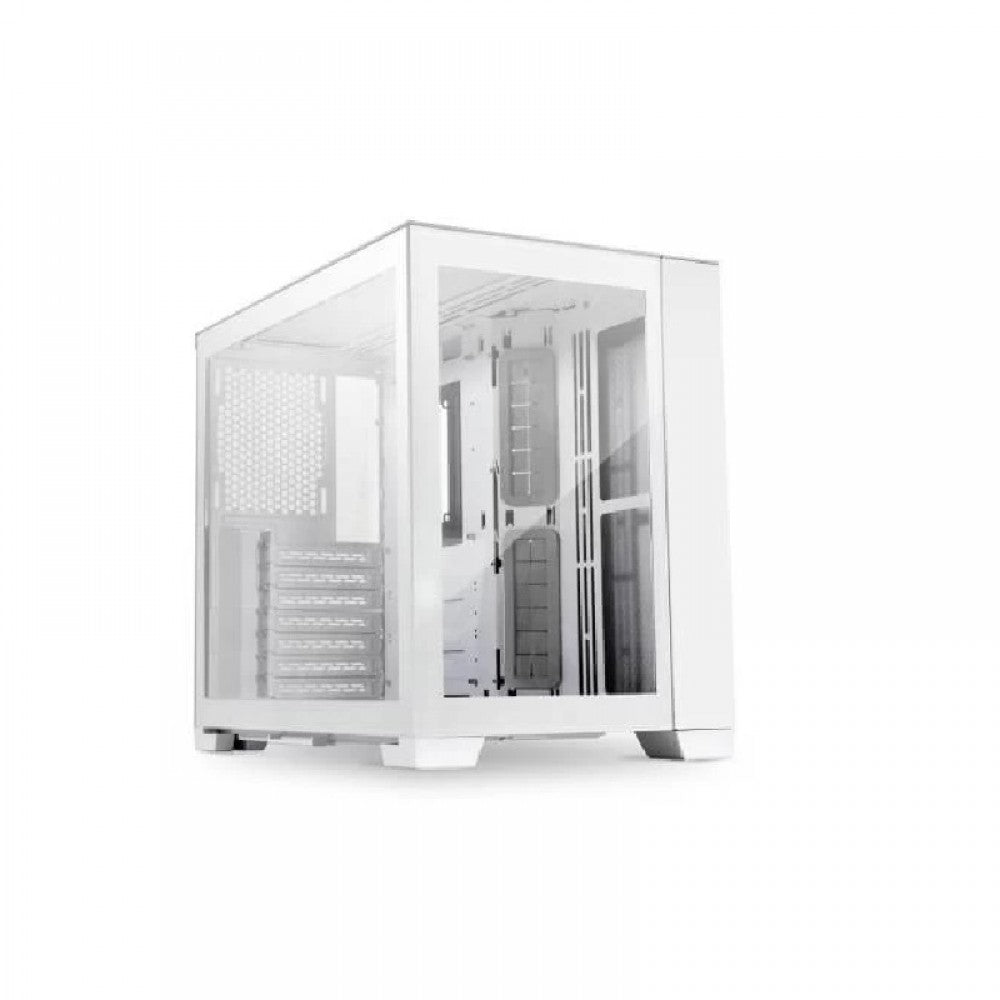

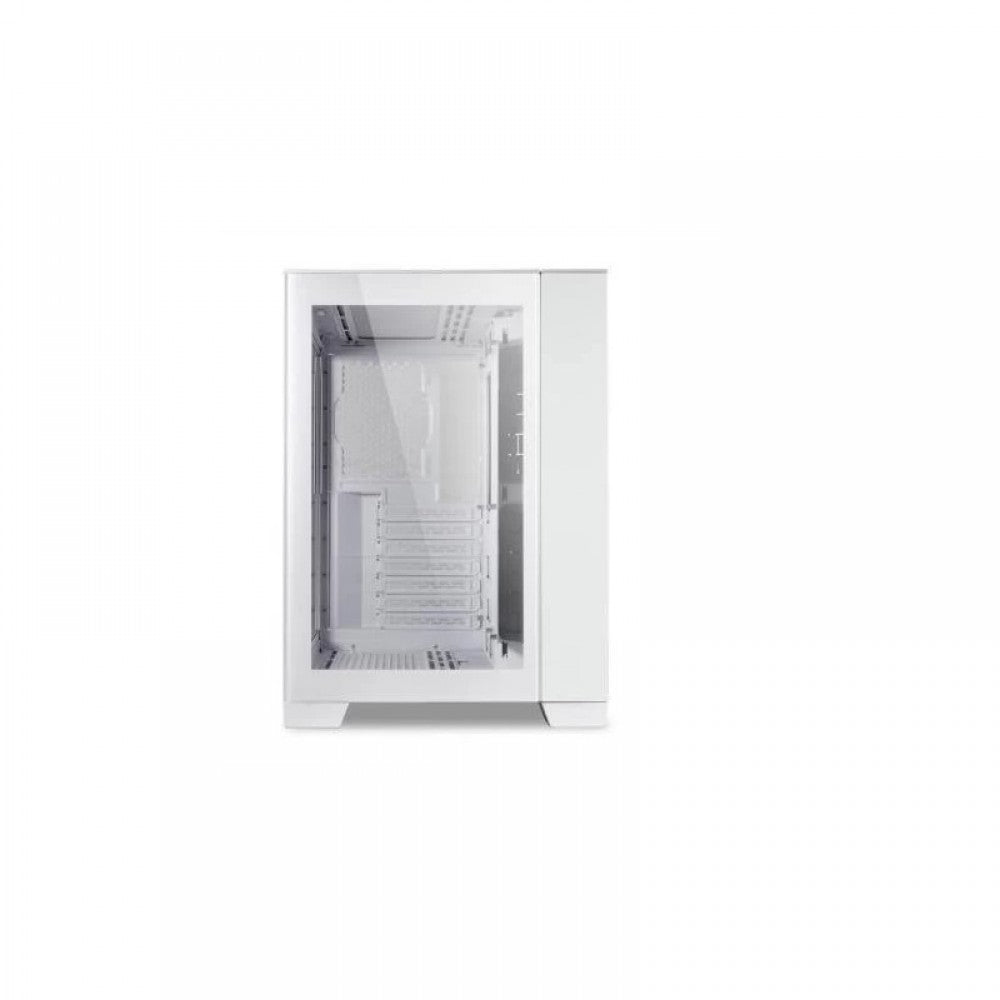

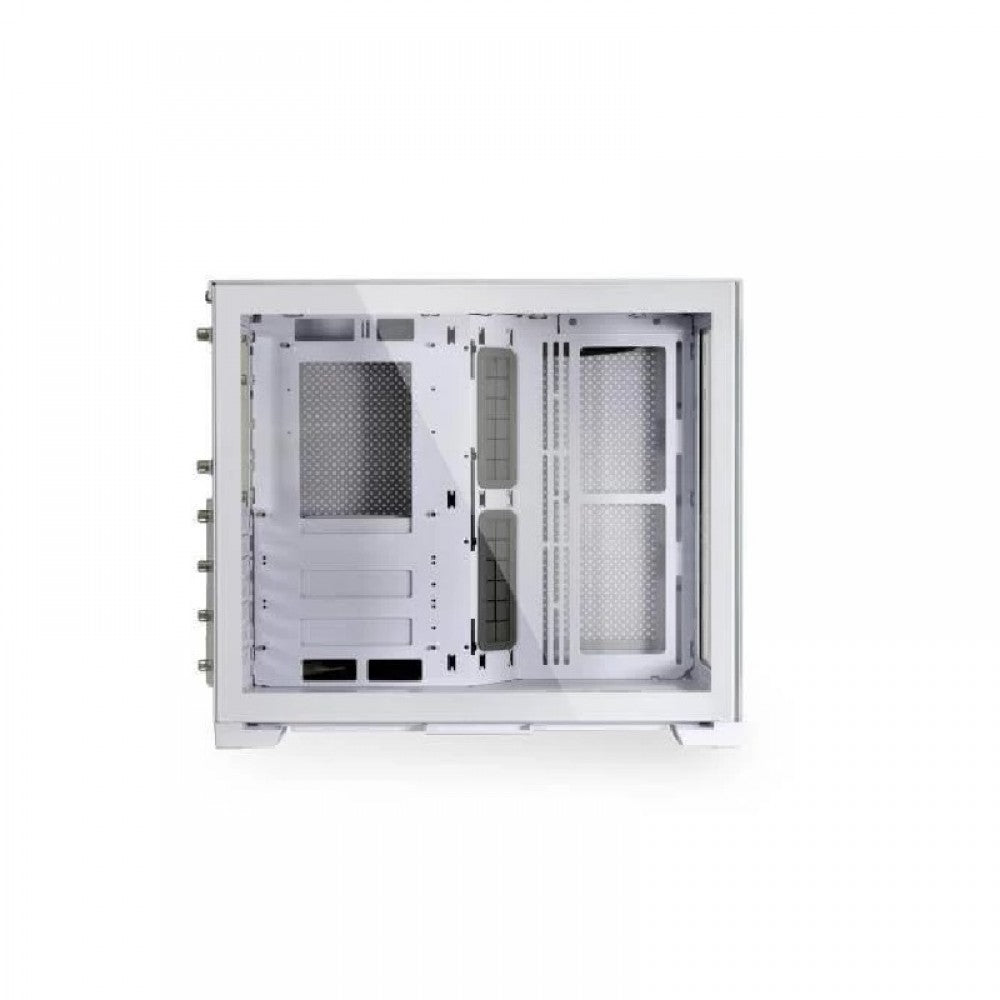

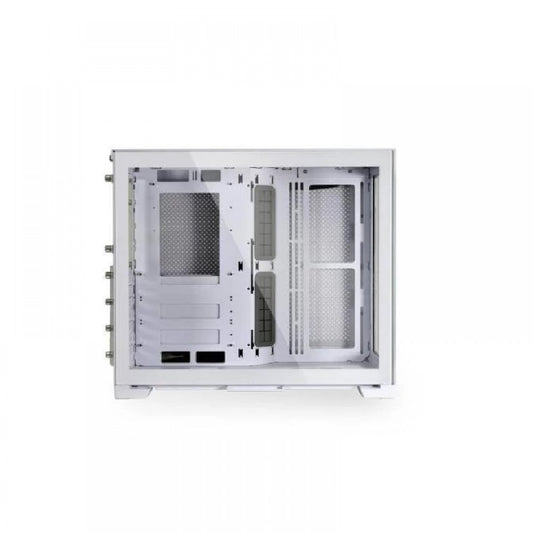

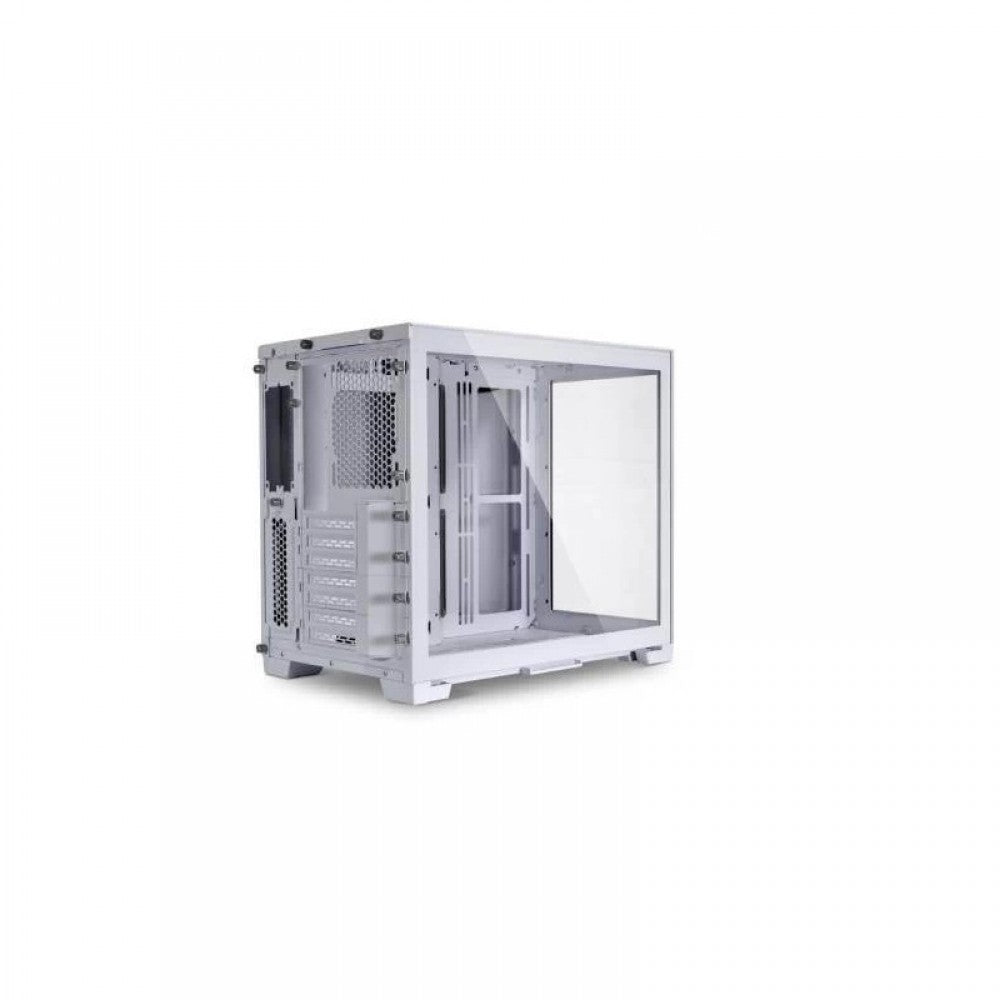

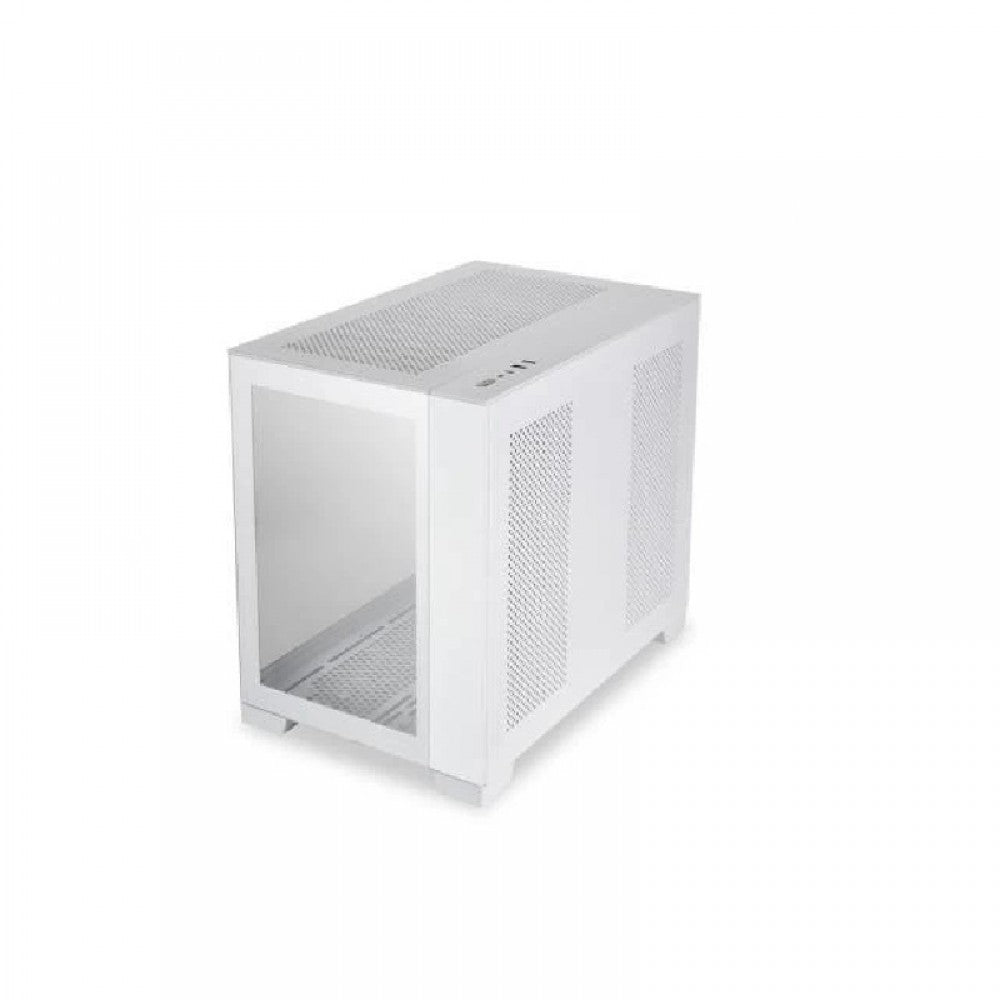

- LIAN LI O11 Dynamic ITX Mini Tower Cabinet (White)
Description
Features of LIAN LI O11 Dynamic ITX Mini Tower Cabinet (White)
LIAN LI O11 Dynamic ITX Mini Tower Cabinet (White) adding to the O11 Dynamic series, the classic and modern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, motherboard sizes. and up to 9 fans to cool the chassis.
CONFIGURATION OF YOUR CHOICE
MODULAR BACK PANEL
Decide how many expansion slots you need. Calculate the size of your fans & accessories.
Pick your motherboard type. 3 kinds of back panels to meet your demand!
SIDE RADIATOR CONFIGURATION WITH LONG GPU
The 30mm space behind the side fan / radiator bracket allows users to mount fans, thus efficiently intake fresh air to directly cool the radiator and leaves enough space to install long GPUs in this compact case.
WITH WATER COOLING IN MIND
MODULAR PUMP STAND
Friendly to custom water cooling users, the three different pump stands included can accommodate different scenarios.
FLAT PUMP STAND
IDEAL FOR MOUNTING THE PUMP DIRECTY AT THE BOTTOM OF THE CASE.
ELEVATED PUMP STAND
MOUNTING THE PUMP NEXT TO THE 240/280MM RADIATOR.
EASILY MATCH INTERFACE.
FLOATING PUMP STAND
MOUNTING ABOVE A 120MM FAN ON A RADIATOR.
EASILY MATCH INTERFACE.
EXQUISITE APPEARANCE
With a blend of brushed aluminum and tempered glass, the O11D Mini not only looks classic and modern,
but also has a high-quality feel and touch on the exterior.
1. Aluminum with white powder coating
2. Brushed aluminum
3. Brushed aluminum
4. Special crafted brush acrylic strip
5. Tempered glass
O11D MINI SNOW EDITION
Fully white version that isn’t missing any invisible details.
1. White Silkscreen
2 Silver Screws
3. White Dust Filters
4. White Coated Aluminum
5. Light Grey Rubber Grommets
DUAL-CHAMBER DESIGN FOR CABLE MANAGEMENT
Carried from the design of the O11D series, cables quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables while the SSD mounting bar helps keep the loose cables all snuggled up to ensure a clean look and prevent the right-side panel from not closing or bulging.
SECOND CHAMBER WITH 4 DRIVES CAPACITY
SSD Mounting Bar
2 x 2.5” SSD can be positioned at the front or back of the bar.
Drive Caddy
Optimized storage space for 2 x 3.5” HDD or 2 x 2.5” SSD.
COMPLETE DUST PROTECTION
All 3 ventilation intake sides are equipped
with magnetic dust filters and a removable dust tray
to prevent the dust from entering the case.
German Engineering Approved
The O11 Dynamic series from lian li cabinet is developed in collaboration with DER8AUER, a world-renowned German overclocking, water cooling, and gaming evangelist. Always looking for ways to improve computer design and performance, DER8AUER volunteered his time to review and test the design concepts of the O11D series.
Starting with the first O11 Dynamic and up until the most recent models of the O11D series, LIAN LI appreciates the input from DER8AUER which helped make the O11D series exceptional cases, especially in terms of custom water cooling compatibility, ease of build, and features offered. As a result, DER8AUER’s seal of approval is elegantly displayed beside the LIAN LI logo, standing as a statement of quality and reliability.
Best cpu case gaming at affordable prices at Elitehubs!
Specifications of LIAN LI O11 Dynamic ITX Mini Tower Cabinet (White)
| Product Name | O11 Dynamic MINI |
| MODEL | O11D Mini-W |
| COLOR | White |
| DIMENSIONS | (D)420mm X (W)269.5mm X (H)380mm |
| MOTHERBOARD | ATX/ Micro-ATX/ Mini-ITX |
| PSU | SFX/ SFX-L |
| MATERIAL |
0.8mm SPCC (body) 1mm SPCC (interior, back panel) 4 mm Tempered Glass 2mm Aluminum (top and left panel) |
| FAN SUPPORT |
Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm |
| RADIATOR SUPPORT |
Top: 360mm or 280mm or 240mm radiator Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator |
| GPU LENGTH CLEARANCE | 395mm |
| CPU COOLER HEIGHT CLEARANCE | 170mm |
| VGA Length | 370mm |
| DRIVES | Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD) |
| EXPANSION SLOTS | 3 or 5 or 7 slots (depends on back panel) |

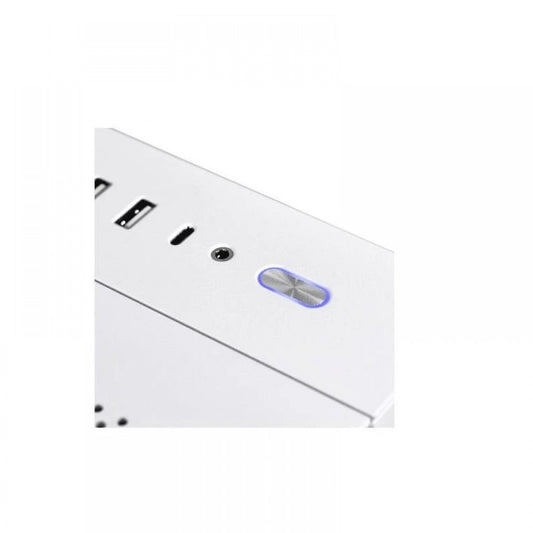

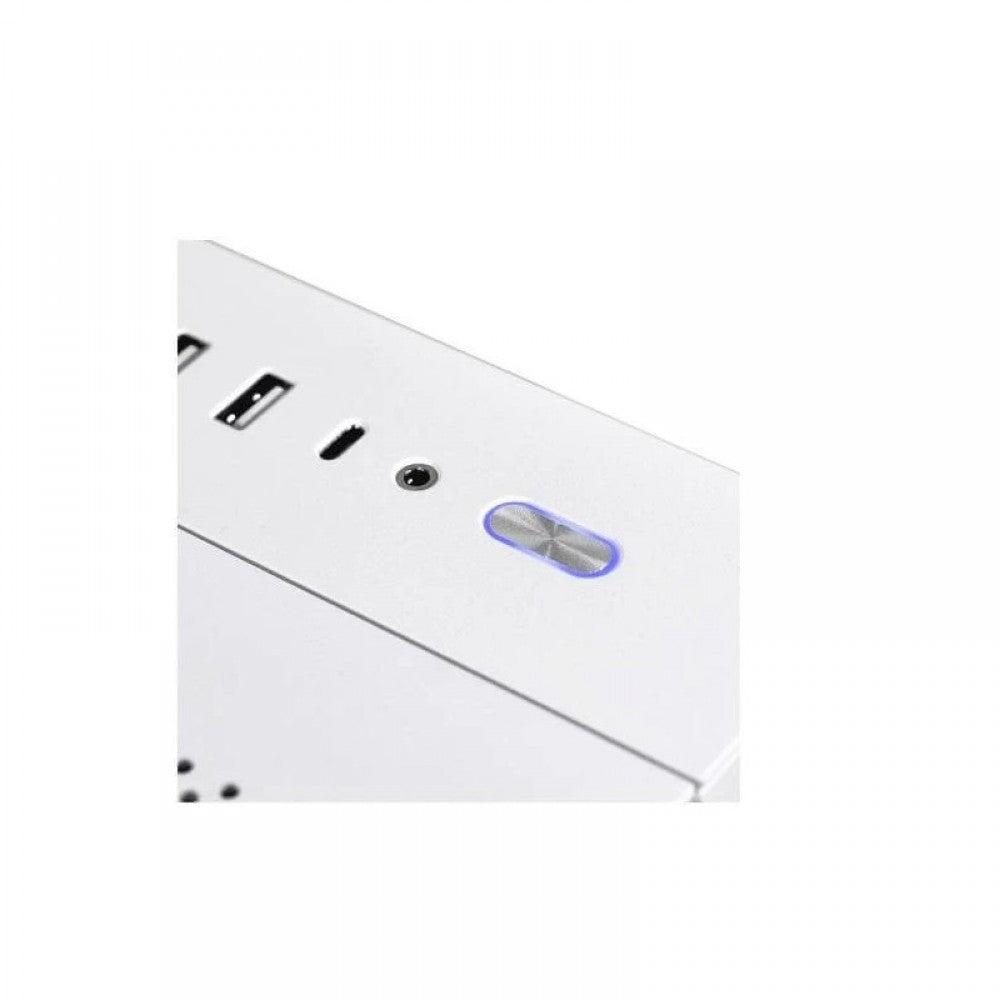

| IO PORTS | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button |
| DUST FILTERS | 1 x Top, 1 x Bottom, 2 x Side |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
