- LIAN LI O11 Dynamic ITX Mini Air Tower Cabinet (White)
Description
Features of LIAN LI O11 Dynamic ITX Mini Air Tower Cabinet (White)

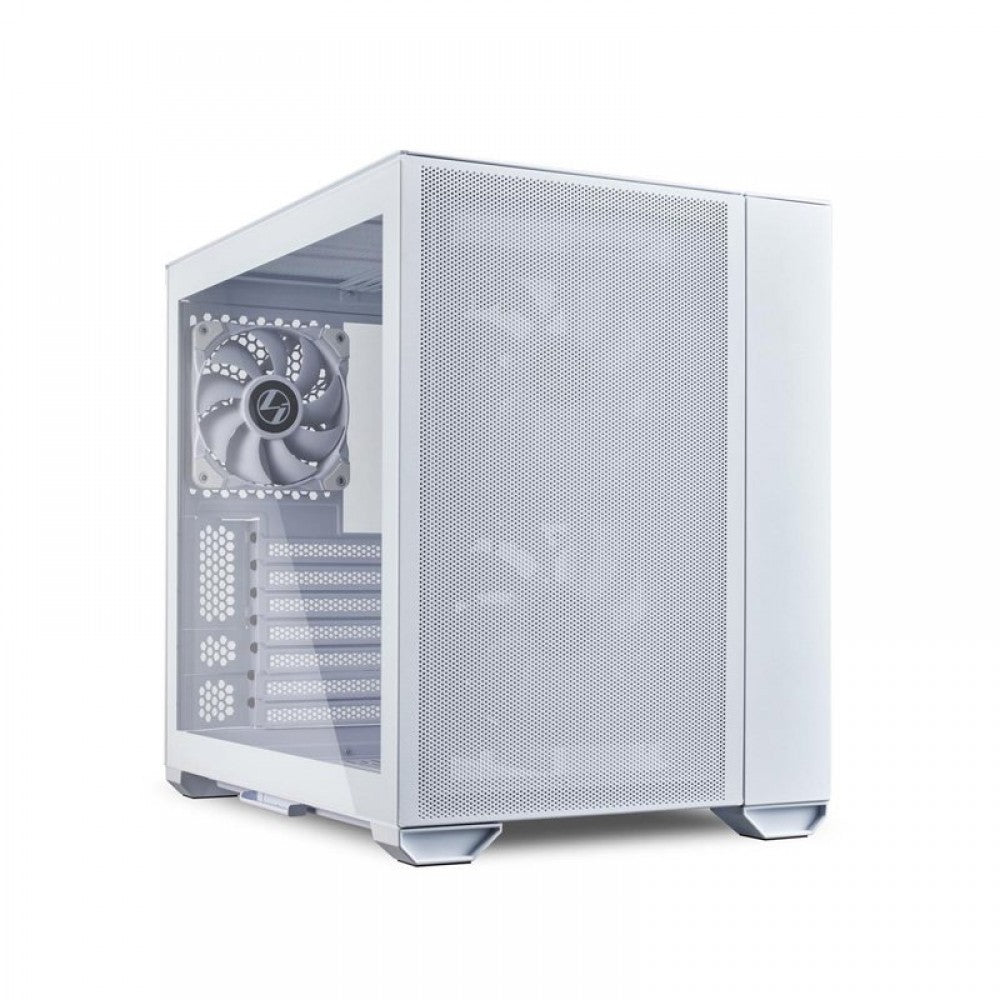

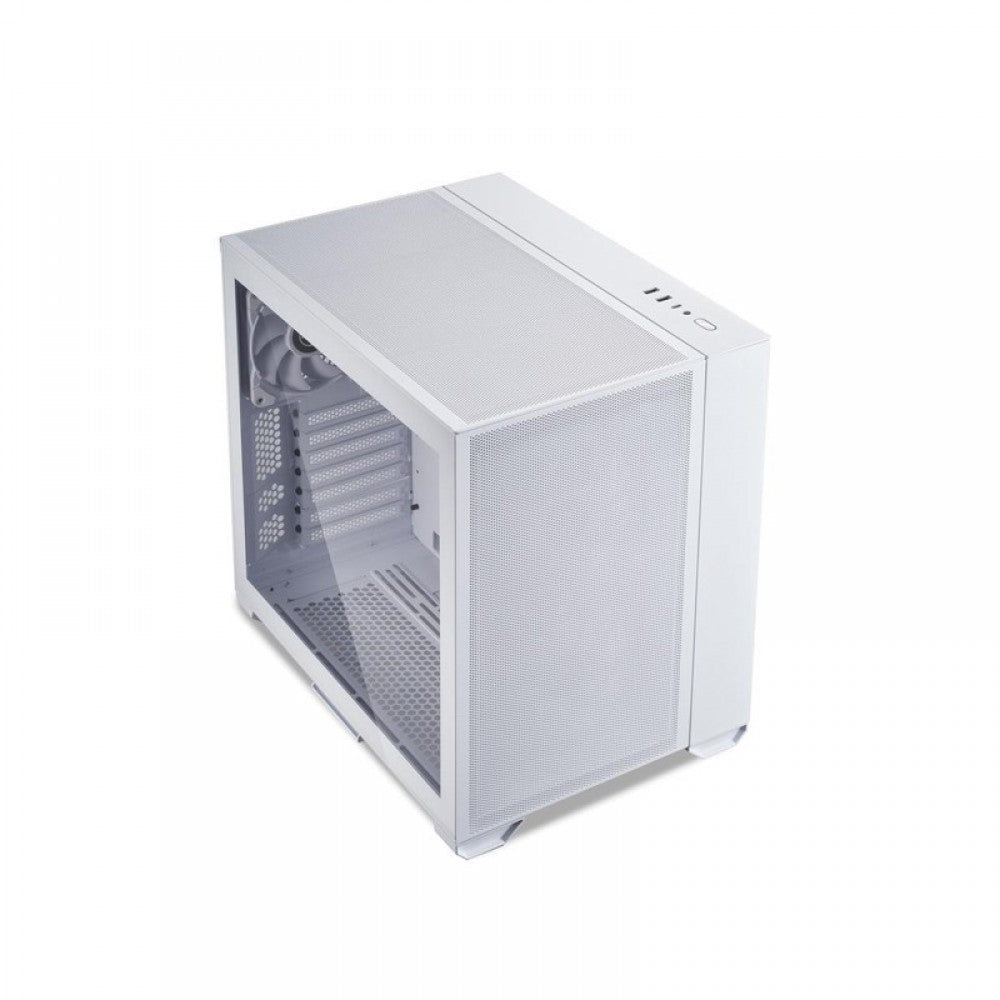

The LIAN LI O11 Dynamic ITX Mini Air Tower Cabinet (White) provides modular design for ATX, M-ATX or ITX motherboards. Being all about the air, O11 AIR MINI has a spacious interior to accommodate multiple configurations of fan and radiator setups to maximize the airflow.
- EXTREME AIRFLOW
- QUALITY MATERIAL
- MODULAR BACK PLATE
- UP TO 6 SSD OR 4 HDD + 2 SSD
- ATX PSU COMPATIBLE
- DUAL CHAMBER DESIGN
- VERTICAL GPU BACK PANEL (OPTIONAL)
- GERMAN ENGINEERED
EXTREME AIRFLOW

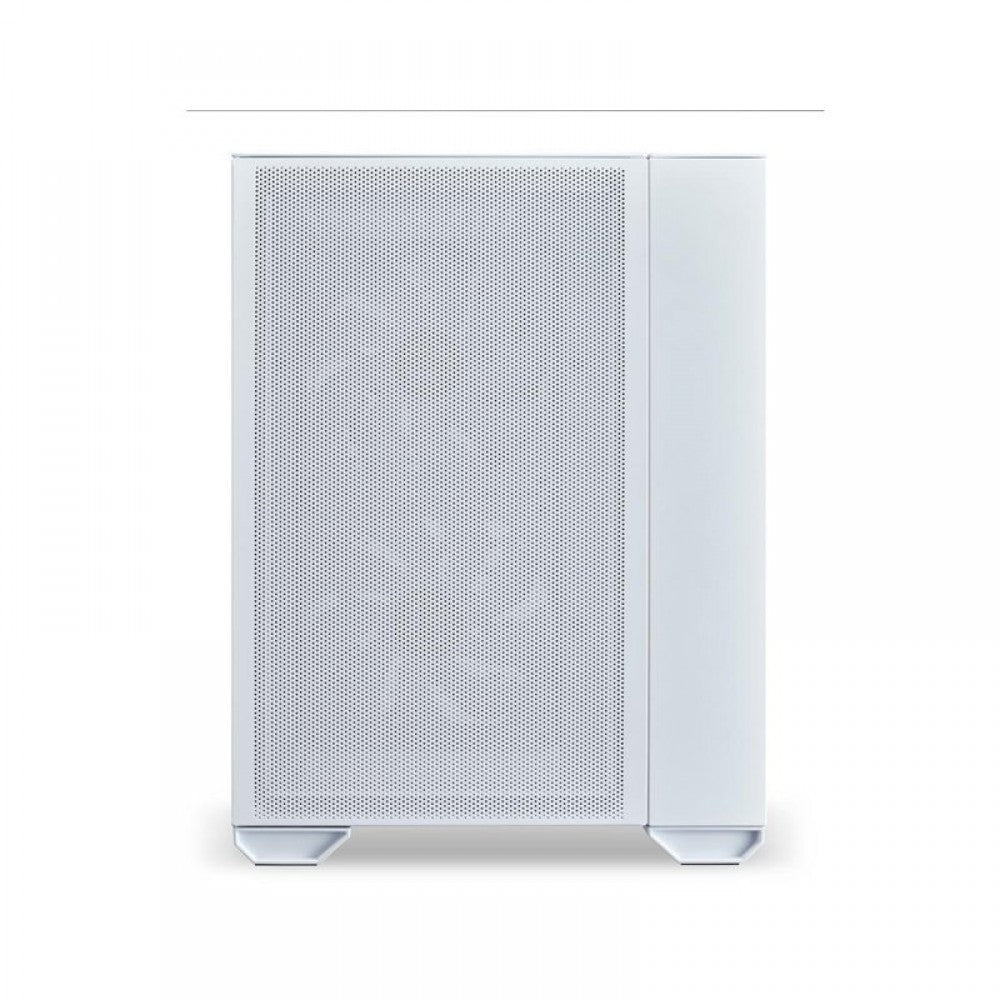

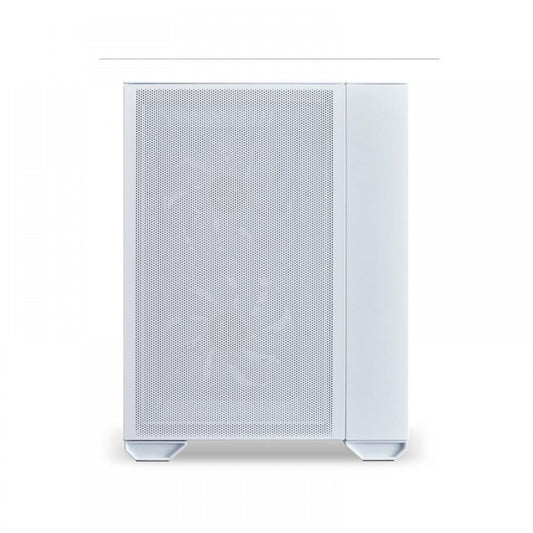

SUPER FINE MESH FRONT, TOP AND SIDE PANELS
The mesh design on the front, top and side panels of the O11 AIR MINI have been optimized to allow maximum airflow from different sides of the case to the temperatures stable and low. The super fine mesh also acts as dust filter to avoid dust buildup inside the case.
2 x 140MM FRONT FANS
AND 1 X 120MM REAR FAN INCLUDED
The lian li cabinet O11 AIR MINI comes with 2 x 140mm PWM front fans and 1 x 120mm PWM rear fan pre-installed straight out of the box. Get your system up and running faster with ease.
SIZE COMPARISION
O11 AIR MINI vs. O11 AIR
The AIR MINI is more compact in size than the original O11 AIR,
but interior space is just as accommodating and improves on cooling performance.
AIR COOLING OR…
The O11 AIR MINI is ideal for air cooling builds, as it has enough clearance for up to 170mm for larger tower coolers.
AIO WATERCOOLING
The O11 AIR MINI also accommodates AIO water cooling with enough installation space for 240mm or 280mm radiators on the top, side and bottom.
UNOBSTRUCTIVE AIRFLOW FOR
AIR OR AIO COOLING SETUPS
Designed with optimized mesh pattern on the front, top and side panels, the O11 AIR MINI provides exceptional focused airflow and overall system airflow for both air cooling setups and AIO setups. The spacious interior allows for different fan or radiator configurations to maximize the cooling temperature.
BUILT WITH THE FINEST MATERIALS

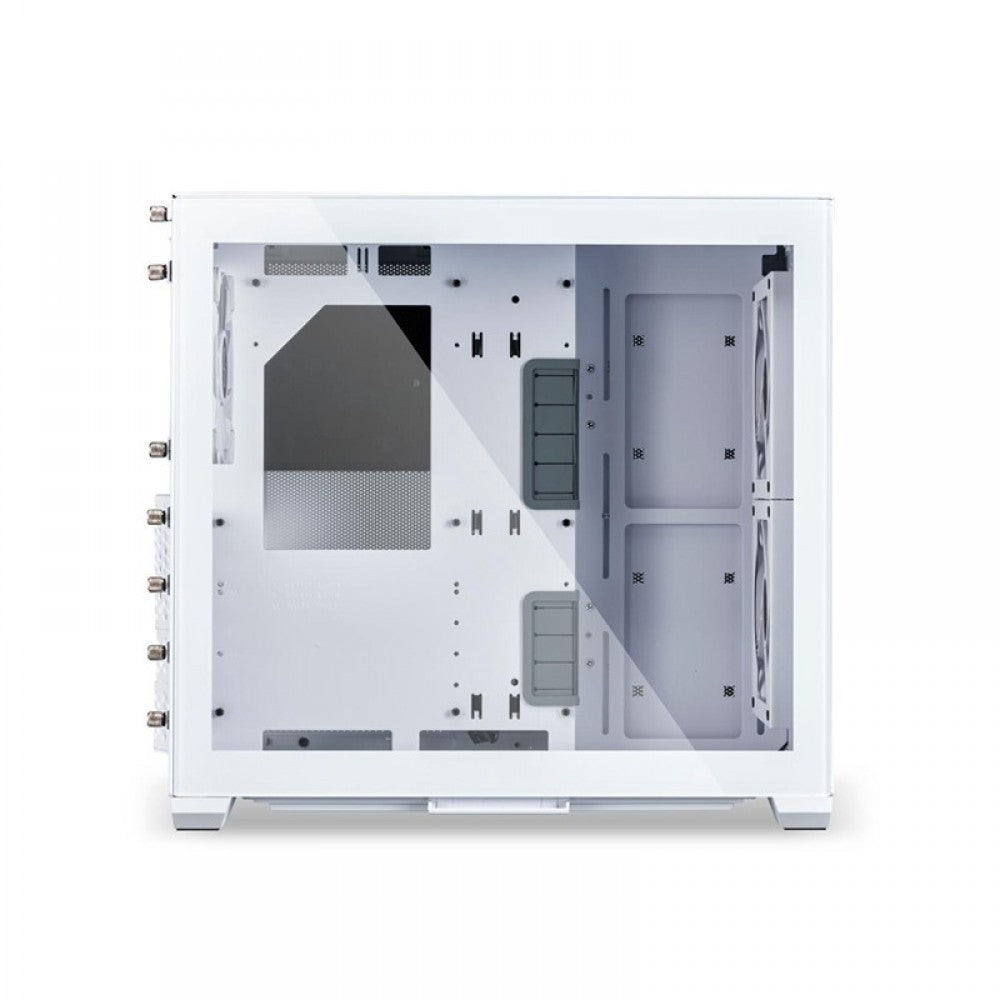

The O11 AIR MINI black has a premium hairline brushed aluminum that looks as good as it feels. The O11 AIR MINI white has a minimalist white powder coating. The durable tempered glass allows for easy and carefree maintenance and for showing off the internal components.
MODULAR BACK PANELS FOR COMPATIBILITY
WITH ATX, M-ATX OR ITX MOTHERBOARDS
7-slot or 5-slot back panels are included. 7-slot back panel for ATX, M-ATX, ITX motherboards and 5-slot back panel for M-ATX, ITX motherboards.
UP TO 6 x SSD OR 4 X HDD + 2 X SSD STORAGE
All storage is tucked away behind the motherboard tray.
A total of 6 x 2.5” drives or 4 x 3.5” + 2 x 2.5” drives can be installed with dedicated mounts for storage.
DUAL-CHAMBER CABLE MANAGEMENT
Cables can be quickly passed through rubber grommets to the second chamber. Multiple tie points and Velcro strap channels are provided for tidy cables.
Best cpu case gaming at affordable prices at Elitehubs!
Specifications of LIAN LI O11 Dynamic ITX Mini Air Tower Cabinet (White)
DIMENSION | (D) 400 X (W) 288 X (H) 384 mm |
COLOR | White |
MOTHERBOARD | E-atx/atx/m-atx/itx |
PSU | ATX(Max. 200 mm) |
MATERIAL |
4mm Aluminum Panel 0.8mm Mesh Panel 4.0 Mm Tempered Glass |
FAN |
(Top) 120mm X3 / 140mm X2(Option) (Side) 120mm X2(Option) (Bottom) 120mm X2/ 140mm X2(Option) (Front) 120mm X2/ 140mm X2(Option) (Rear)120 mm X1 |
RADIATOR |
(Top) 240mm or 280mm Radiator (Side) 240mm Radiator (Bottom) 240mm or 280mm Radiator (Front) 240mm or 280mm Radiator |
GPU LENGTH | 362 mm |
CPU CLEARANCE DRIVES | 167 mm |
DRIVES |
(Rear)2 X 2.5” SSD or 2 X 3.5” HDD (Back)2 X 2.5” SSD (Side)2 X 2.5” SSD or 2 X 3.5” HDD(Option) |
EXPENSION SLOTS | 7 |
I/O PORTS |
2 X Usb 3.0 1 X Usb 3.1 Type-c 1 X Hd Audio |
INCL FANS 2 X 140mm Fan (Front) 1 |
2 X 140mm Fan (Front) 1 X 120mm Fan (Rear) |
WARRANTY | 1 Year |
NOTE | ***Features, Price and Specifications are subject to change without notice. |
