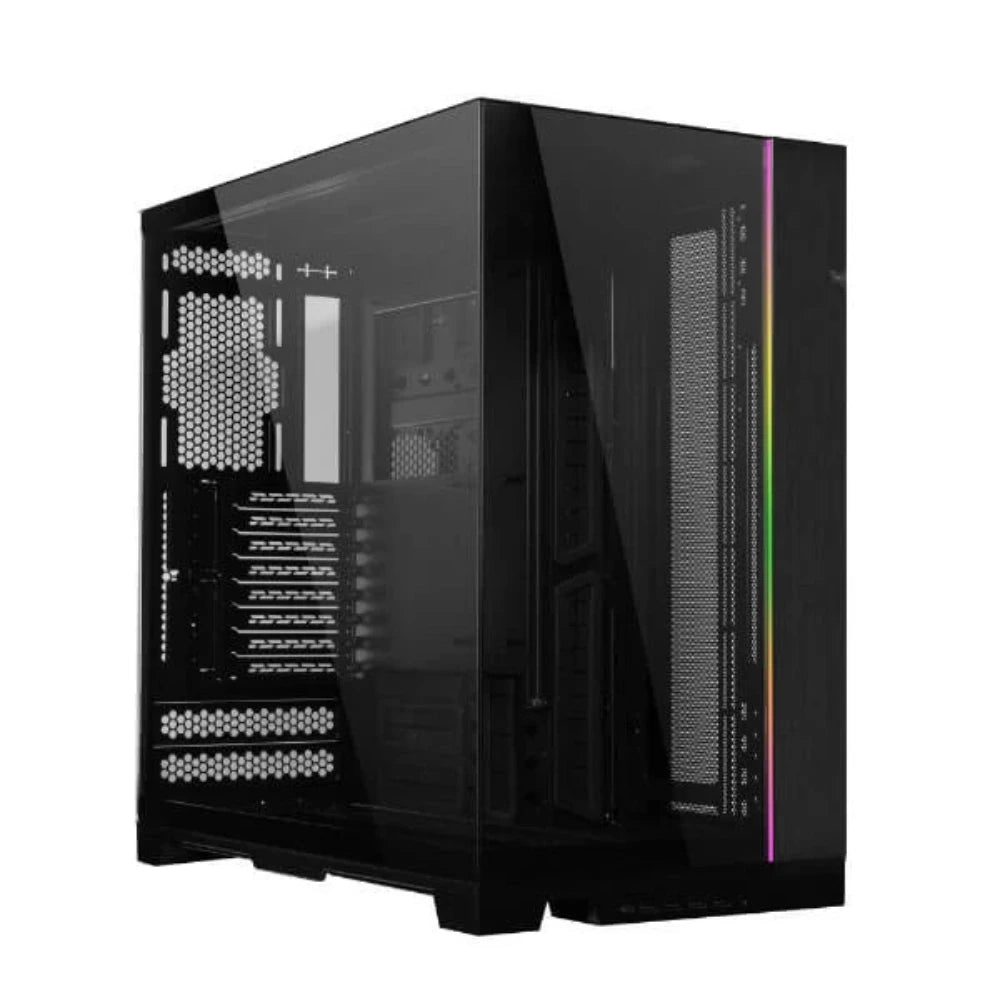

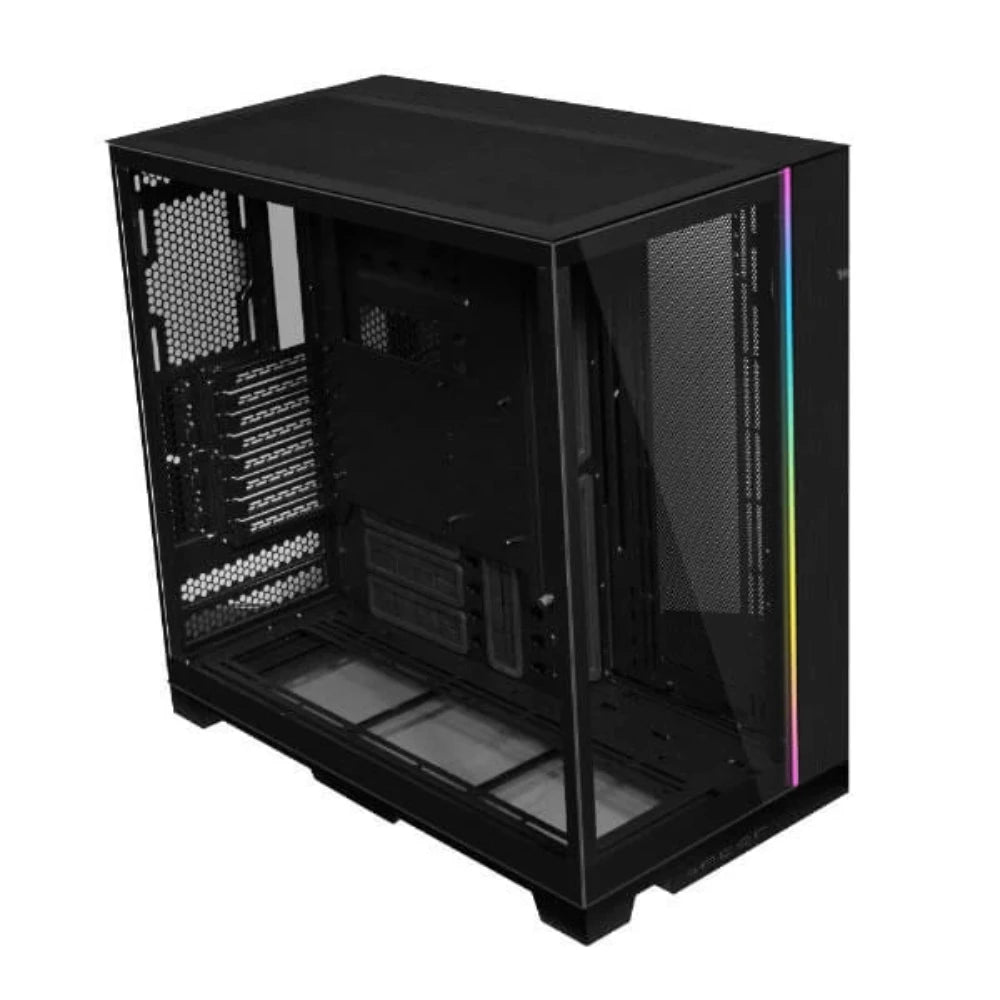

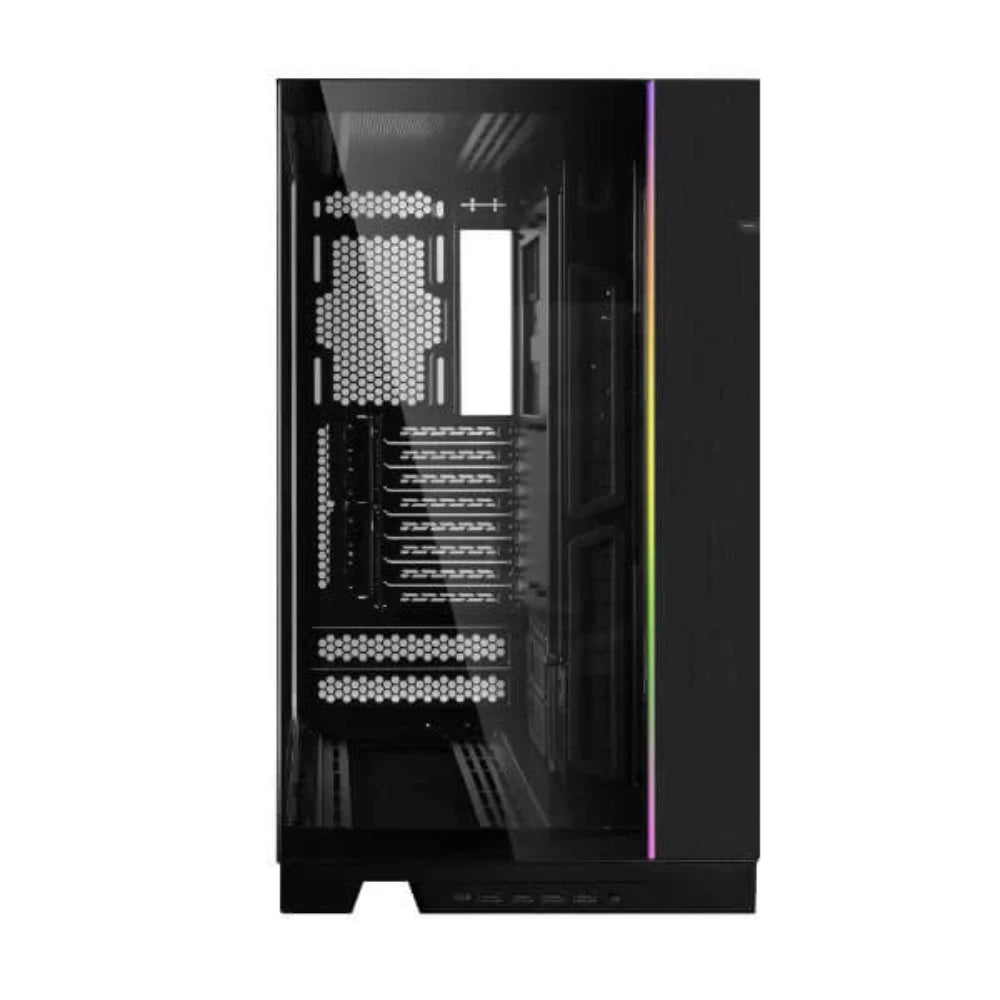

- LIAN LI O11 Dynamic EVO XL ARGB EATX Full Tower Cabinet (Black)
Description
Features of LIAN LI O11 Dynamic EVO XL ARGB EATX (Black)
Introducing the all-new LIAN LI O11 Dynamic EVO XL ARGB EATX Cabinet, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
- Full-tower chassis with two modes: Normal Mode/ Reverse Mode
- Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting
- Supports up to 3x 420mm radiators and a maximum of 11 fans
- Offers mounting space for 7 storage drives
- Dual-chamber layout with cable management compartment and three cable holders
- Features a multi-directional power button and movable IO module
- Optional accessories for vertical GPU or upright GPU mounting
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis.
COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
Note: Please keep the front pillar fixed in place while transporting the case.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
All 3 sides can hold up to a maximum of 420mm radiator
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
TOOL-LESS INSTALLATION
Easily secure the graphics card.
Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design,
the fan brackets can be easily removed or installed.
Top Fan Bracket
Removable from the top
Bottom Fan Bracket
Removable from the main chamber
The side bracket can be oriented in two ways depending on how you set up the fan intake/exhaust or position.
Side Fan Bracket
Removable with a quick-latch
Comes with 2 seal plates to ensure no air pressure leak is created when mounting a 360mm radiator or 3 × 120mm fan on the side. The plates can be adjusted and moved around based on the configuration.
Inner Scenario
Supports up to 81mm thick radiator/ fan combo in the main chamber
(40mm in the second chamber)
Outer Scenario
lian li cabinet Supports up to 117.2 mm thick radiator/ fan combo in the main chamber
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports.
At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs.
CABLE MANAGEMENT BAR
2.5” SSD × 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.
DRIVE CAGE
2.5” SSD× 4 or 3.5” HDD × 4
Two swinging hot-swappable cages that can mount a 15mm thick 120mm fan on the side to cool the drives.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
Best cpu case gaming at affordable prices at Elitehubs!
Specifications of LIAN LI O11 Dynamic EVO XL ARGB EATX (Black)
| PRODUCT NAME | O11D EVO XL |
| CASE TYPE | Tower Chassis |
| MODEL | O11DEXL-X |
| COLOR | Black |
| DIMENSIONS | (D) 522mm x (W) 304mm x (H) 531.9mm |
| MATERIAL |
Steel 4.0mm Tempered Glass Aluminum |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
| EXPANSION SLOT | 8 |
| STORAGE |
Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD |
| GPU LENGTH CLEARANCE | 460mm (Max.) |
| CPU COOLER HEIGHT CLEARANCE | 167mm (Max.) |
| PSU | ATX (Under 220mm) |
| FAN SUPPORT |
Top: 3 x 120mm / 3 x 140mm Side: 3 x 120mm / 3 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear: Up to 2x 120mm |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
