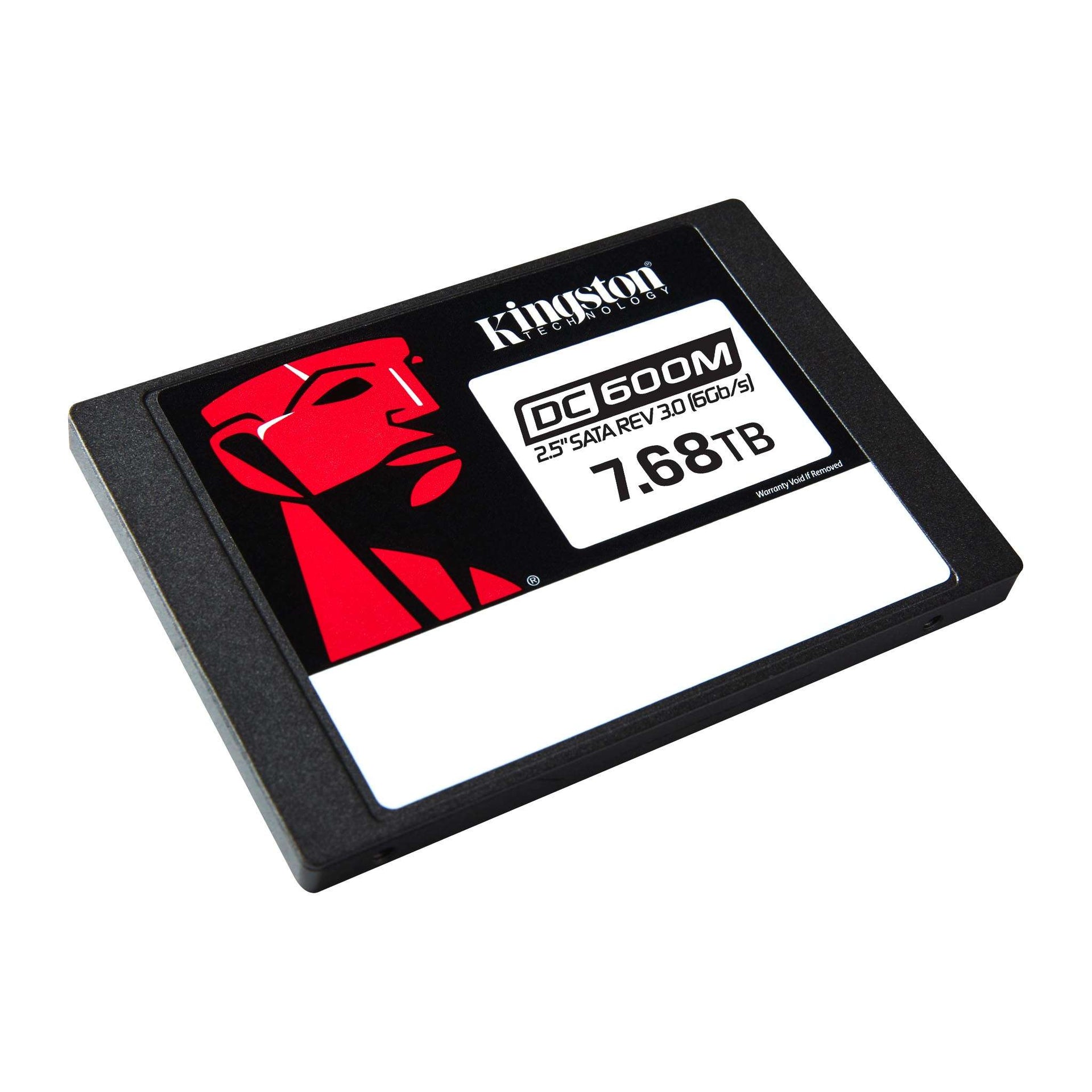

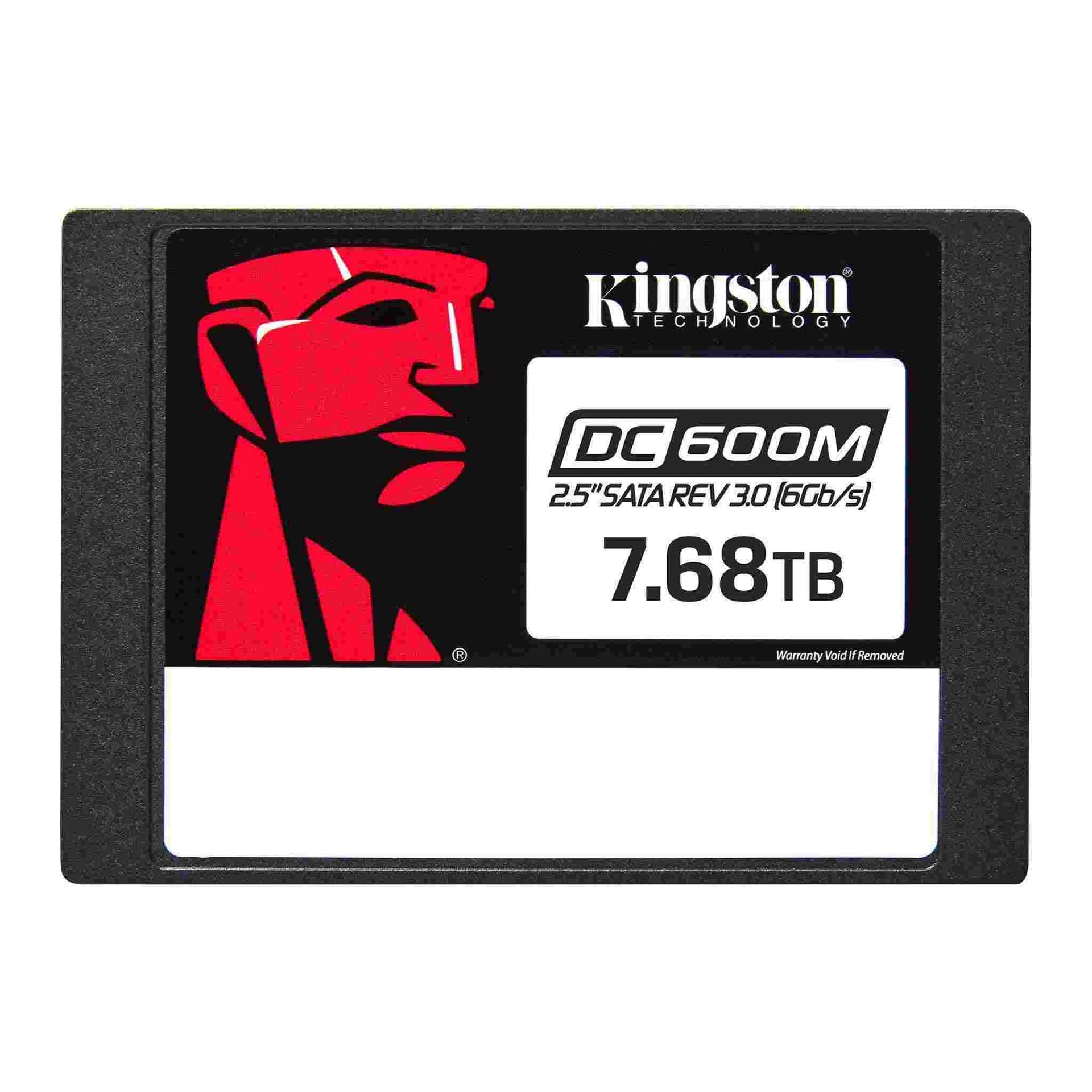

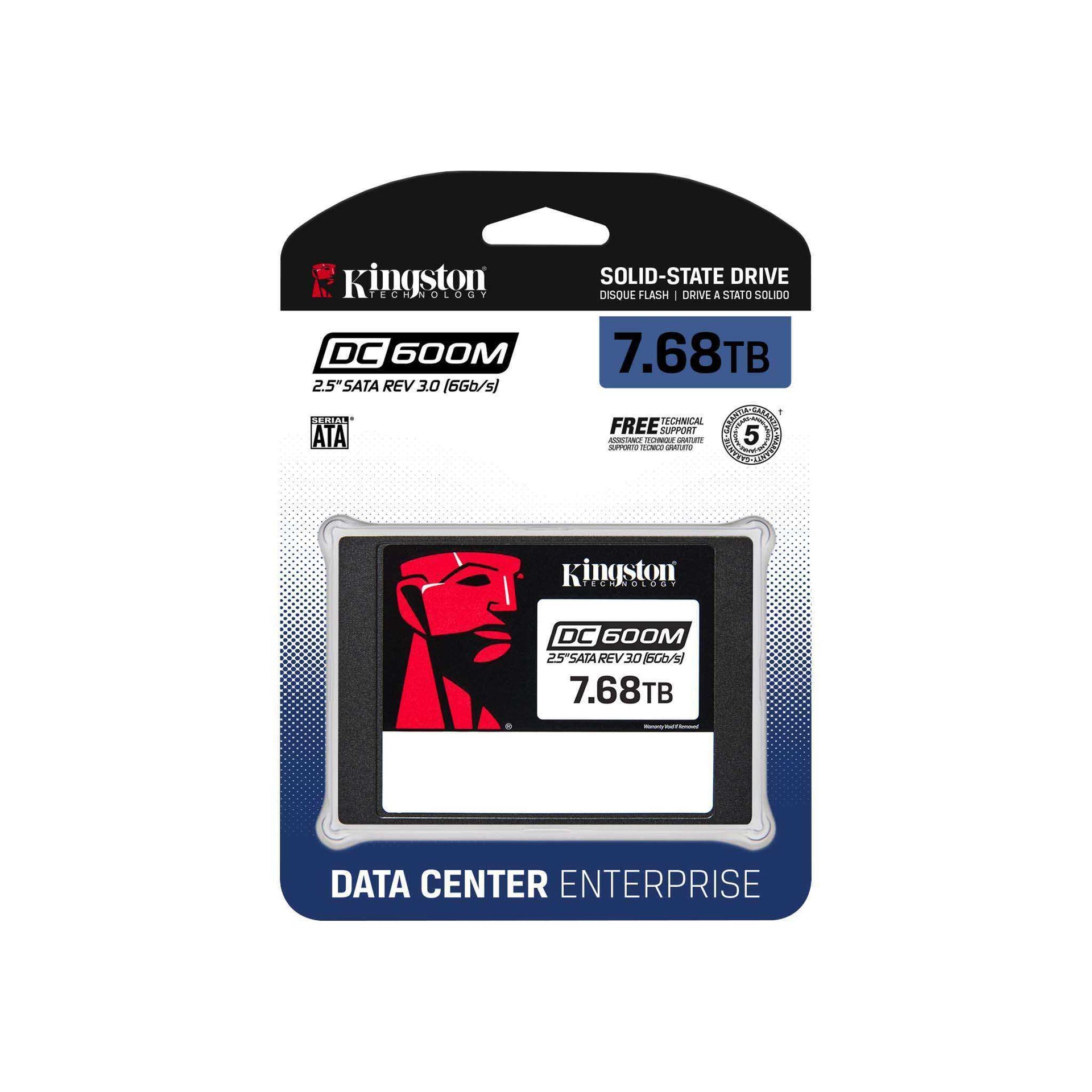

- KINGSTON DC600M 7.68TB 2.5 SATA3 Internal Solid State Drive ( SSD )
Description
Features of KINGSTON DC600M 7.68TB 2.5 SATA3 Internal Solid State Drive ( SSD )
Kingston’s DC600M SSD Series provides high-performance storage solutions for data centers, system integrators and more. Delivering consistent latency and reliability, the drives were designed for mixed-use workloads, featuring 3D TLC NAND, hardware-based power loss protection and capacities of up to 7.68TB, making them ideal for enterprise applications. For additional security, DC600ME is available with AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.
DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Capacities available from 480GB–7.68TB1 to meet your data storage requirements.
Specifications of KINGSTON DC600M 7.68TB 2.5 SATA3 Internal Solid State Drive ( SSD )
Model | SEDC600M/7680G |
Form factor | 2.5 inch |
Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
Capacities1 | 7.68TB |
NAND | 3D TLC |
DRAM Cache | Yes |
Sequential read/write | 7.68TB – 560MBs/530MBs |
Steady-state 4k random read/write | 7.68TB – 94,000/34,000 IOPS |
Quality of service (latency)2,3,4(99.999) | 7.68TB – 240/170 uSec |
Typical latency - read/write | <200 µs / <30 us2,3,4 |
Hot-plug capable | Static and dynamic wear levelling |
Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
Hardware-based power loss protection | Yes |
Endurance (TBW) 5 | 7.68TB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) |
Power consumption |
Idle: 1.30W Average: 1.45W Max read: 1.6W Max write: 3.6W |
Storage temperature | -40℃ ~ 85℃ |
Operating temperature | 0℃ ~ 70℃ |
Dimensions | 69.9mm x 100mm x 7mm |
Weight | 92.34g |
Vibration operating | 2.17G Peak (7–800Hz) |
Vibration non-operating | 20G peak (10–2000Hz) |
MTBF | 2 million hours |
UBER | ≤10 -17 |
Warranty/support | Limited 5-year warranty with free technical support6 |
