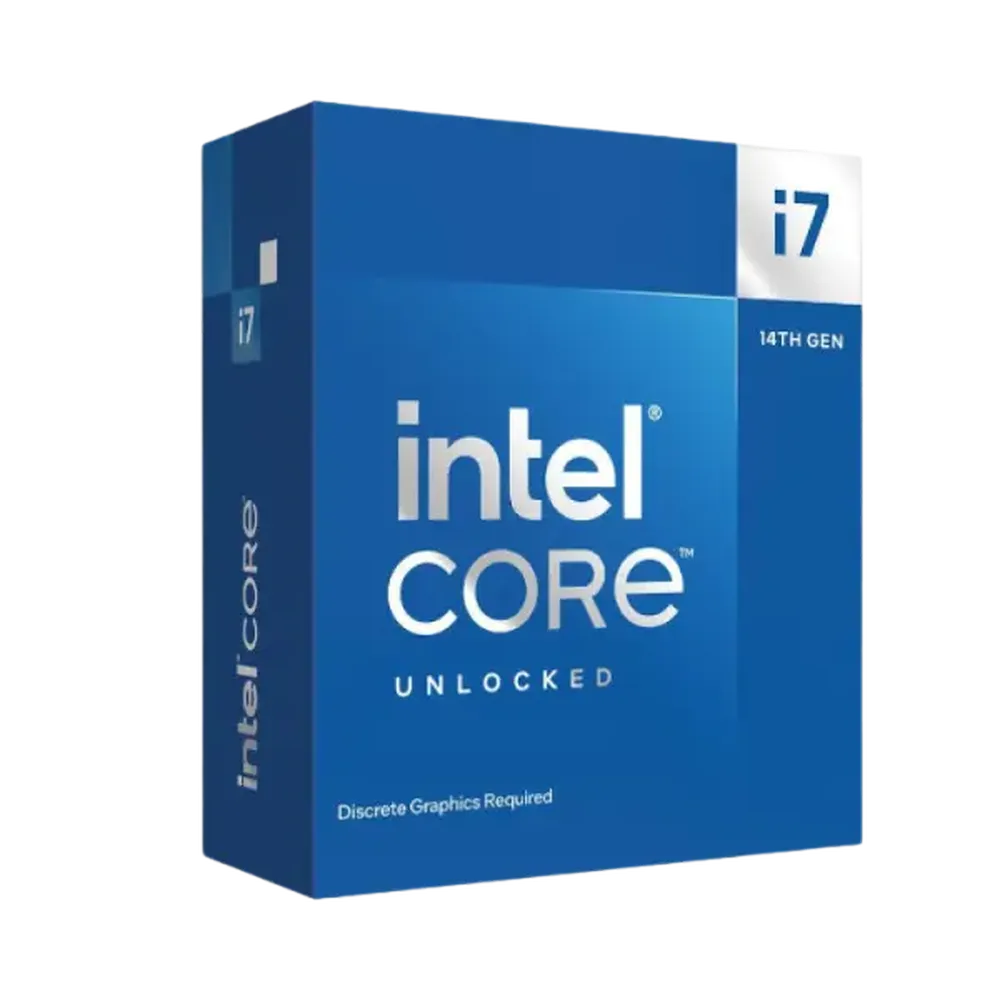

- INTEL Core i7 14700F 14th Generation Processor ( 5.4 GHz / 20 Cores / 28 Threads )
Description
Features Of INTEL Core i7 14700F 14th Generation Processor ( 5.4 GHz / 20 Cores / 28 Threads )
Intel Hyper-Threading technology is available and effectly doubles the core-count of the P-Cores, to a total of 28 threads. Core i7-14700F has 33 MB of L3 cache and operates at 2.1 GHz by default, but can boost up to 5.4 GHz, depending on the workload. Intel is building the Core i7-14700F on a 10 nm production process, the transistor count is unknown. The multiplier is locked on Core i7-14700F, which limits its overclocking capabilities.
With a TDP of 65 W, the Core i7-14700F consumes typical power levels for a modern PC. Intel's processor supports DDR4 and DDR5 memory with a dual-channel interface. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption.
For communication with other components in the machine, Core i7-14700F uses a PCI-Express Gen 5 connection.
This processor does not have integrated graphics, you will need a separate graphics card. Inside the box you will not only find the processor, but also a Laminar RM1 cooler.
Specifications Of INTEL Core i7 14700F 14th Generation Processor ( 5.4 GHz / 20 Cores / 28 Threads )
Model | i7-14700F |
Product Collection | Intel® Core™ i7 Processors (14th gen) |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 20 |
# of Performance-cores | 8 |
# of Efficient-cores | 12 |
Total Threads | 28 |
Max Turbo Frequency | 5.4 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.4 GHz |
Performance-core Max Turbo Frequency | 5.3 GHz |
Efficient-core Max Turbo Frequency | 4.2 GHz |
Performance-core Base Frequency | 2.1 GHz |
Efficient-core Base Frequency | 1.5 GHz |
Cache | 33 MB Intel® Smart Cache |
Total L2 Cache | 28 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 219 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 192 GB |
Memory Types | Up to DDR5 5600 MT/s |
Up to DDR4 3200 MT/s | |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 89.6 GB/s |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
Intel® Turbo Boost Technology ‡ | 2 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
