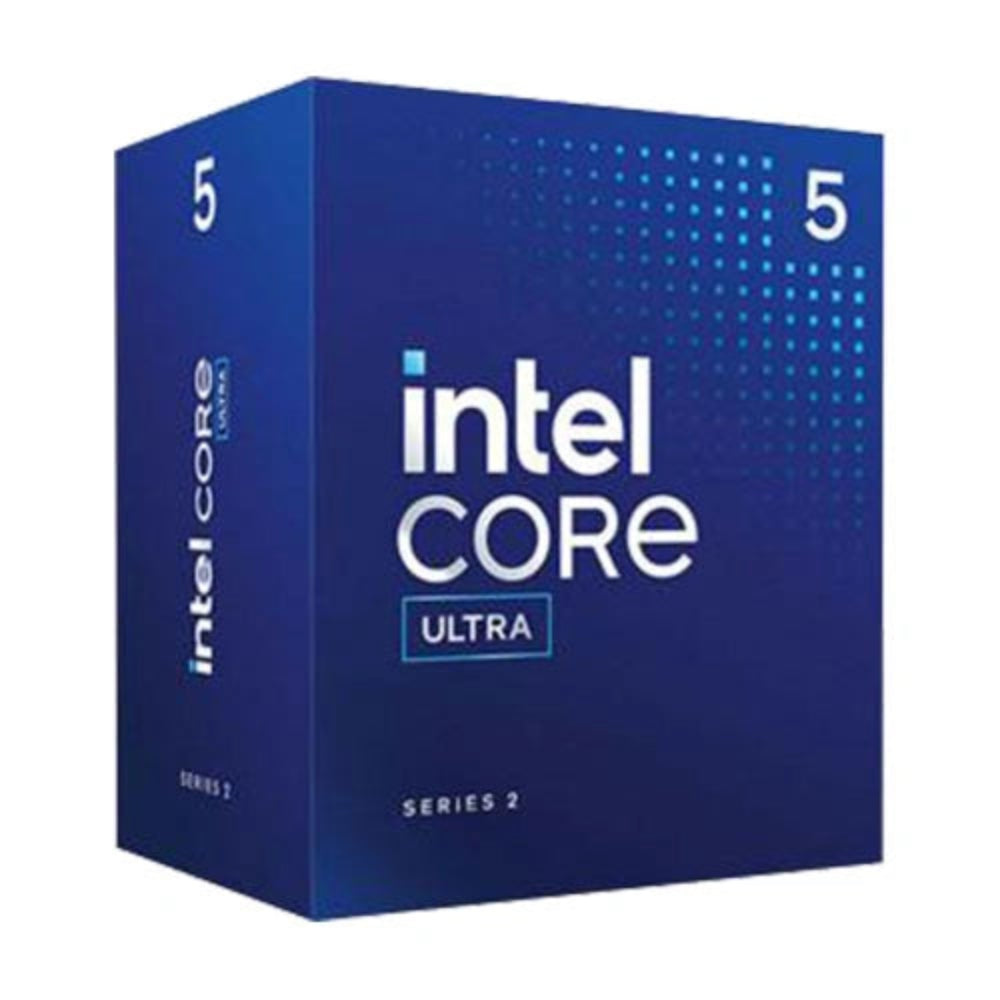

- INTEL Core Ultra 5 235 Processor ( 5 GHz / 14 Cores / 14 Threads )
Description
Features of INTEL Core Ultra 5 235 Processor ( 5 GHz / 14 Cores / 14 Threads )
Intel Core Ultra 5 Processor 235 comes with 14 cores and 14 threads, 5.00 GHz Max Turbo frequency, delivers amazingly smooth performance for demanding applications and gaming. It's also future-proof with PCIe 5.0 and DDR5 support, making it well ready for next Motherboards and memory.
Its 24 MB Intel Smart Cache and enhances data access speed, reducing latency. With a base power consumption of 65W and a maximum turbo power of 121W, the processor indicating strong performance even under heavy workloads. It supports up to 256 GB of memory, compatible with DDR5 memory types at speeds up to 6400 MT/s, and supports ECC Memory operates on dual memory channels for improved bandwidth. The processor is designed for FCLGA1851 sockets and is compatible with B860 and Z890 motherboards, making it ideal for high-end desktops and other updated PC's. This CPU offers a perfect balance of power, efficiency, and scalability for advanced computing needs.
Even this processor comes with Intel Graphics, which offering strong performance, multi-core efficiency, and future-proofing with its support for the latest technology.
Specifications of INTEL Core Ultra 5 235 Processor ( 5 GHz / 14 Cores / 14 Threads )
| Model No | BX80768235 |
| CPU Specifications | |
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| # of Low Power Efficient-cores | 0 |
| Total Threads | 14 |
| Max Turbo Frequency | 5 GHz |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Base Frequency | 3.4 GHz |
| Efficient-core Base Frequency | 2.9 GHz |
| Cache | 24 MB Intel® Smart Cache |
| Total L2 Cache | 26 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 121 W |
| Intel® Deep Learning Boost | Yes |
| AI Software Frameworks Supported | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| GPU Specifications | |
| GPU Name | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 2 GHz |
| GPU Peak TOPS (Int8) | 6 |
| Graphics Output | eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL |
| Xe-cores | 3 |
| Max Resolution (HDMI) | 7680 x 4320 @ 60Hz (FRL) / 4096 x 2304 @ 60Hz (TMDS) |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP) | 3840 x 2400 @ 120Hz |
| DirectX / OpenGL / OpenCL | 12 / 4.5 / 3.0 |
| Hardware Codecs (H.264/H.265/AV1) | Yes (Full Encode/Decode Support) |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x7D67 |
| Intel® DL Boost (GPU) | Yes |
| AI Software Frameworks | OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU |
| NPU Specifications | |
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only (Single Socket) |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16+2x4, 2x8+2x4, 1x8+4x4 |
| Max # of PCI Express Lanes | 24 |
| Sockets Supported | FCLGA1851 |
| Warranty* | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
