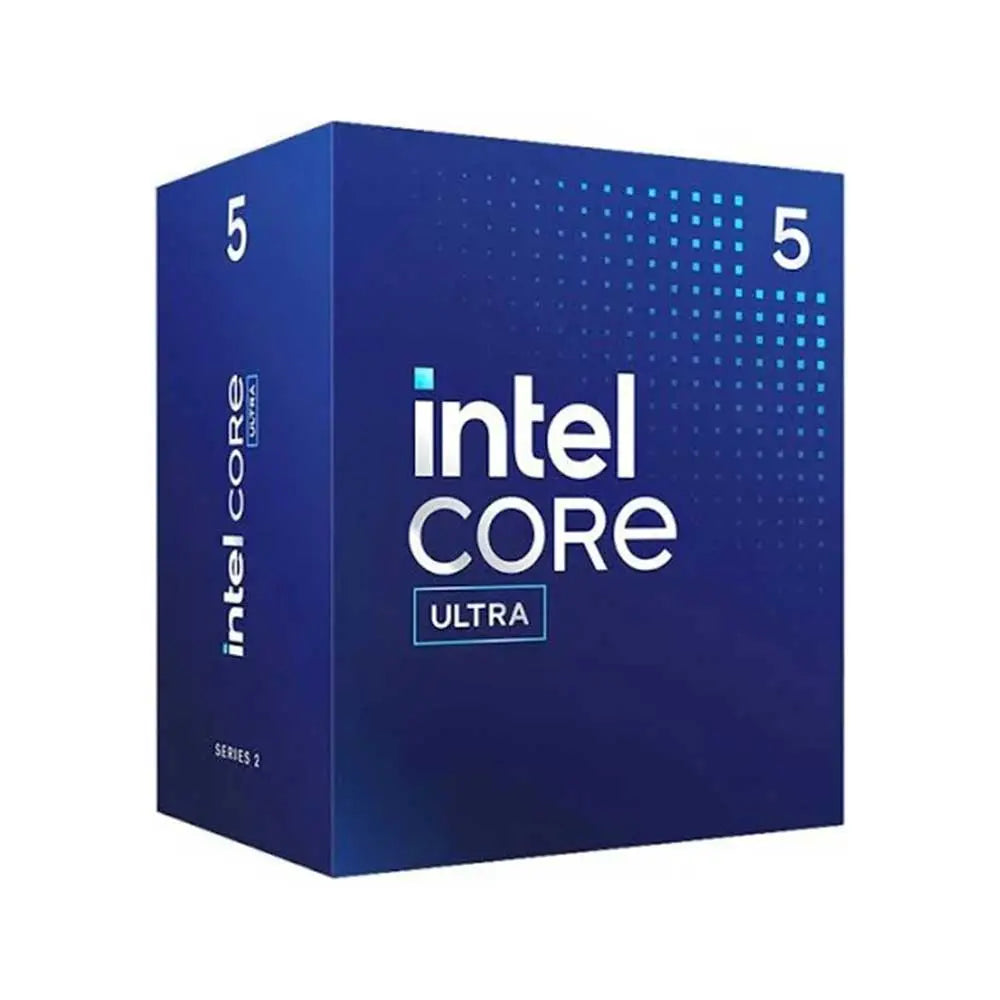

INTEL Core Ultra 5 225 5th Generation Processor ( 4.9 GHz / 10 Core / 10 Threads )

Features of INTEL Core Ultra 5 225 5th Generation Processor ( 4.9 GHz / 10 Core / 10 Threads )

Architecture & Performance

Built on the Arrow Lake architecture using TSMC’s N3B (3 nm) process

Hybrid core design with:

6 Performance‑cores (P‑cores) clocked up to 4.9 GHz (base 3.3 GHz)

4 Efficient‑cores (E‑cores) clocked up to 4.4 GHz (base 2.7 GHz)

Thermal & Power Specs

• Base power (PL1): 65 W

• Turbo (PL2): Up to 121 W

• Max operating temperature: Around 105 °C

Integrated GPU

• Intel Arc Graphics (Xe-based) with:

• 2 Xe cores, base GPU clock ~300 MHz, boost up to ~1.8 GHz

• Capable of driving up to 4 displays, supports up to 8K @ 60 Hz resolutions, DirectX 12, OpenGL 4.5, OpenCL 3.0, and Quick Sync Video

AI Acceleration & Software Support

• Features Intel AI Boost NPU delivering 13 TOPS (Int8) for AI tasks

• Supports AI frameworks such as OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• Includes Intel Deep Learning Boost (DL Boost) on CPU

Platform & Connectivity

• Supports PCIe 5.0 and 4.0, with up to 24 PCIe lanes

• Compatible with high-speed memory—dual-channel DDR5‑6400, supporting up to 256 GB

• Equipped with Thunderbolt 4, Intel Thread Director, and multiple modern instruction-set and security technologies (AES‑NI, AVX2, SSE4.1/4.2, VT‑x, VT‑d, OS Guard, Boot Guard, etc.)

Use Cases

This chip offers a balanced mix of strong multicore performance, efficient power usage, integrated AI acceleration, and capable iGPU. It’s well-suited for:

• Everyday computing

• Content creation and productivity

• Light to moderate gaming (or paired with discrete GPU)

• Entry-level AI workloads and media processing

Specifications of INTEL Core Ultra 5 225 5th Generation Processor ( 4.9 GHz / 10 Core / 10 Threads )
