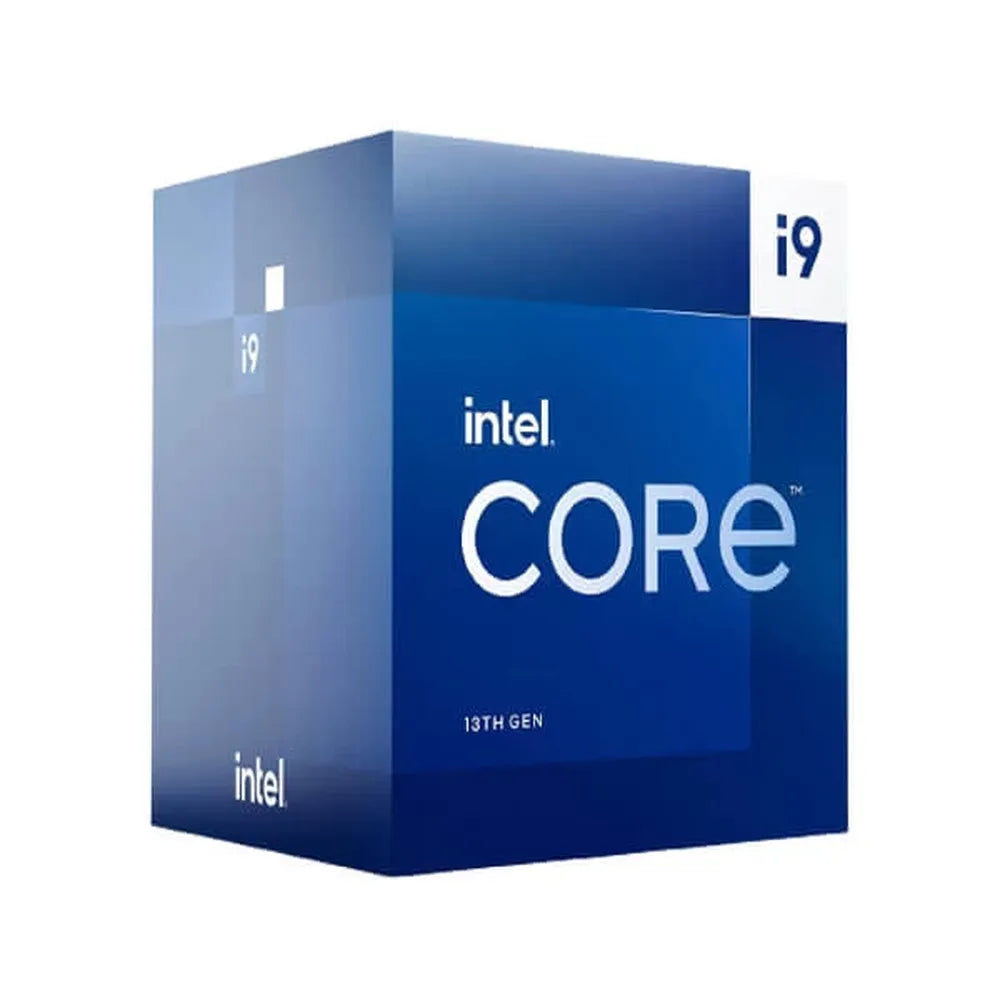

- INTEL Core i9 13900 13th Generation Processor ( 5.6 GHz / 24 Cores / 32 Threads )
Description
Features of INTEL Core i9 13900 13th Generation Processor
13th Gen Intel Core i9-13900 desktop processor
Stream, create and compete at the highest levels. Push your gameplay beyond performance with Intel Core I9 13900 processors.
Game and multitask without interruption.
- 24 cores (8 P-cores + 16 E-cores).
- 32 threads.
- Push your in-game settings without worrying about background tasks slowing you down.
- Up to 5.6 GHz Max Clock Speed.(1)
- Intel Laminar RH1 Cooler included.
- Integrated Intel UHD Graphics 770 included.
Designed for the needs of today’s gamers.
- The latest version of performance hybrid architecture will push your gameplay beyond performance, giving you the power to do it all.
- Performance-cores unleashes the capability to optimize the latest games and gaming software.
- Efficient-cores provides multitasking power to work, play, and most importantly game together.
Personalize your PC.
- Support for both DDR4 and DDR5 gives you control over your memory configuration.(4)
- Support for Thunderbolt 4 technology offers a simple and fast way to connect peripherals.
- Connect quickly and without interference with support for Intel Killer Wi-Fi 6/6E (Gig+).(5)
Unlocked features are present with select chipsets and processor combinations. Altering clock frequency or voltage may void any product warranties and reduce stability, security, performance, and life of the processor and other components. Check with system and component manufacturers for details.
Intel® Thread Director is designed into 13th Gen Intel® Core™ processors and helps supporting operating systems to intelligently channel workloads to the right core. No user action required. See Intel.com for details.
Maximum memory speeds are associated with 1 DIMM per Channel (IDPC) configurations. Additional DIMM loading on any channel may impact maximum memory speed. Up to DDR5-5600 MT/s 1DPC UDIMM 1Rx8, 1Rx16 and DDR5-5200 1Rx8, 1Rx16, 2Rx8 on select SKUs. Maximum memory capacity is achievable with 2DPC configurations.
Visit www.intel.com/PerformanceIndex (connectivity) for more details. No product or component can be absolutely secure. Your costs and results may vary. Intel technologies may require enabled hardware, software or services, some of which may not be available on all systems. Please check with the manufacturer for full system specifications.
Intel Core i9-13900 Processor is a 13th Gen Desktop Processor.
It has 24 Cores and 32 Threads.
Max Turbo Frequency 5.60GHz.
36 MB Intel Smart Cache with Intel UHD Graphics 770
Specifications of INTEL Core i9 13900 13th Generation Processor
Essentials | |
Product Collection | 13th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i9-13900 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 24 |
# of Performance-cores | 8 |
# of Efficient-cores | 16 |
Total Threads | 32 |
Max Turbo Frequency | 5.60 GHz |
Intel® Thermal Velocity Boost Frequency | 5.60 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.50 GHz |
Performance-core Max Turbo Frequency | 5.20 GHz |
Efficient-core Max Turbo Frequency | 4.20 GHz |
Performance-core Base Frequency | 2.00 GHz |
Efficient-core Base Frequency | 1.50 GHz |
Cache | 36 MB Intel® Smart Cache |
Total L2 Cache | 32 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 219 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types |
Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 89.6 GB/s |
ECC Memory Supported ‡ | Yes |
Processor Graphics | |
Processor Graphics ‡ | Intel® UHD Graphics 770 |
Graphics Max Dynamic Frequency | 1.65 GHz |
Graphics Base Frequency | 300 MHz |
Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0xA780 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
Intel® Thermal Velocity Boost | Yes |
Intel® Turbo Boost Technology ‡ | 2 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
