- Intel Core i9 12900K Processor
Description

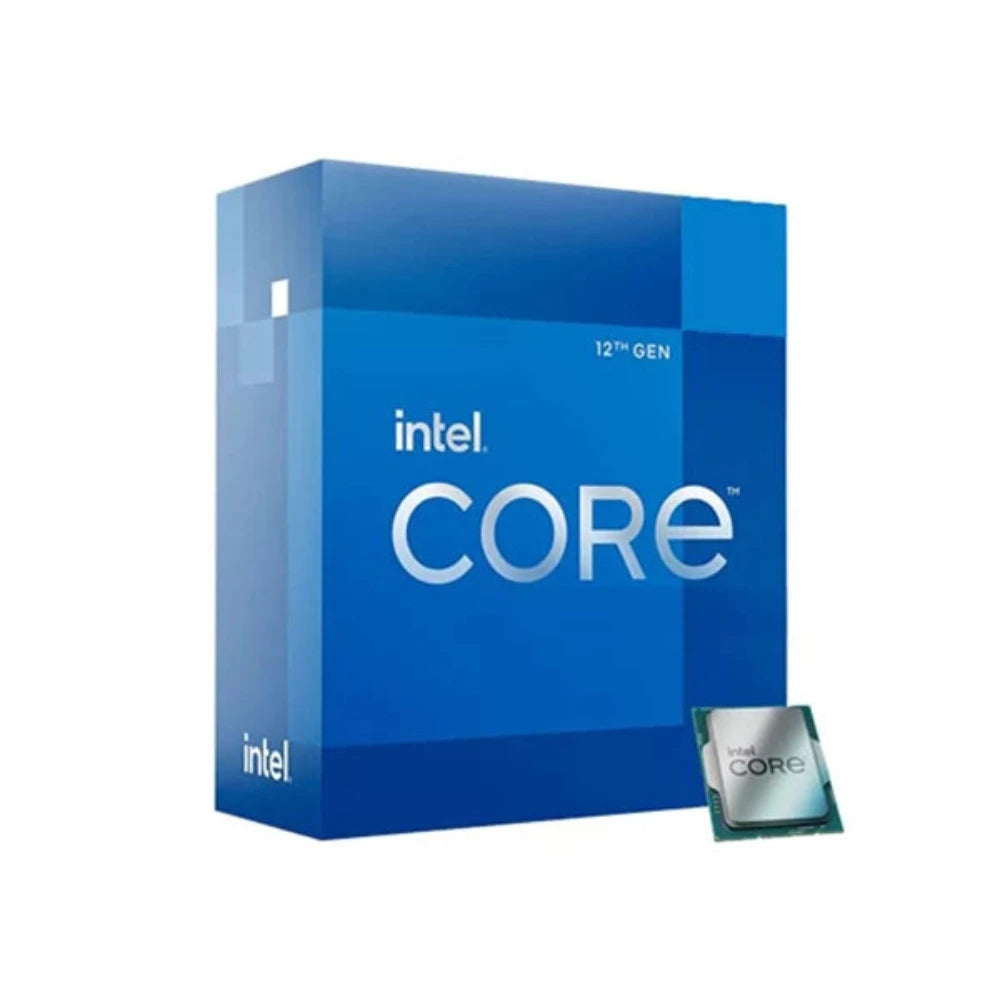

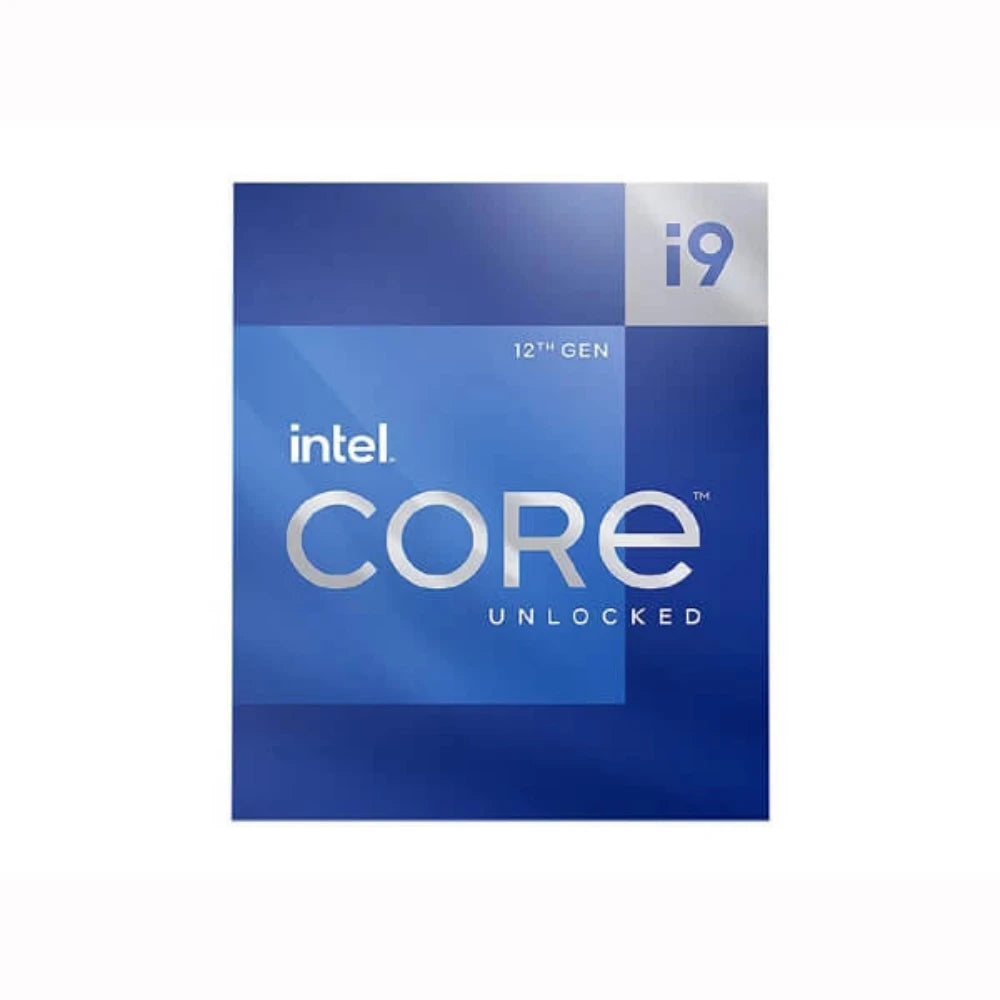

Intel Core i9 12900K Processor
Features:
- Series: Core i9 (12th Gen)
- CORES: 16 Cores
- THREADS: 24 Threads
- SocketLGA: 1700
- SPEED: 2.40 GHz
- SPEED (TURBO) : 5.20 GHz
- CACHE : 30 MB
- MAX MEMORY SUPPORT : 128 GB
- INTEGRATED GRAPHICS Intel UHD : 770
- INCLUDED CPU COOLER: No
- UNLOCKED: Yes
- TDP:125W
- WARRANTY:*3 Years
Specifications:
| Product Collection | 12th Generation Intel® Core™ i9 Processors |
| Code Name | Products formerly Alder Lake |
| Vertical Segment | Desktop |
| Processor Number | i9-12900K |
| Status | Launched |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| Total Cores | 16 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 8 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.20 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 5.20 GHz |
| Performance-core Max Turbo Frequency | 5.10 GHz |
| Efficient-core Max Turbo Frequency | 3.90 GHz |
| Performance-core Base Frequency | 3.20 GHz |
| Efficient-core Base Frequency | 2.40 GHz |
| Cache | 30 MB Intel® Smart Cache |
| Total L2 Cache | 14 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 241 W |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| Processor Graphics | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.50 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4680 |
| OpenCL* Support | 2.1 |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® AES New Instruction | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
