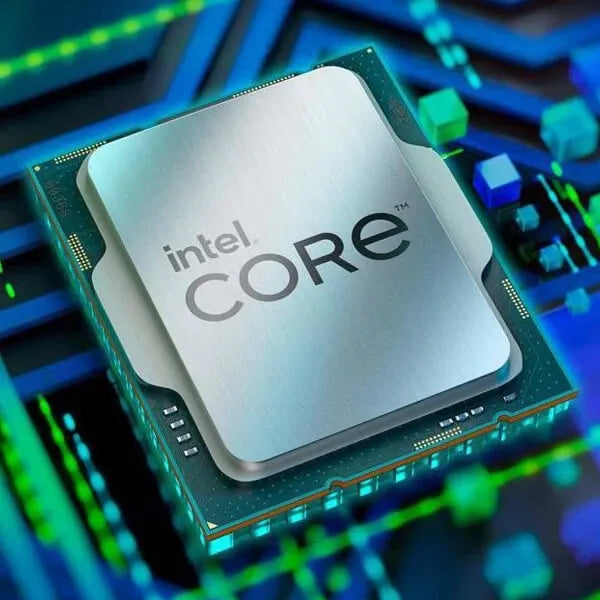

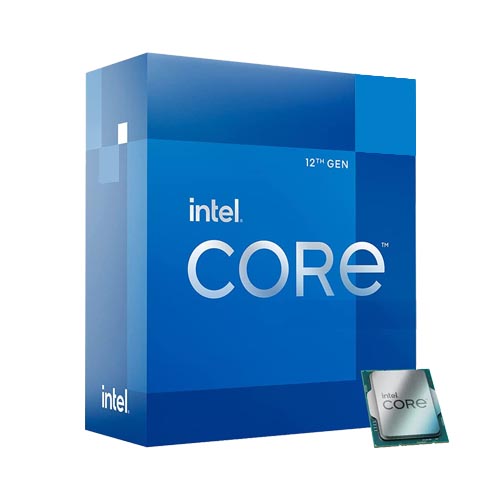

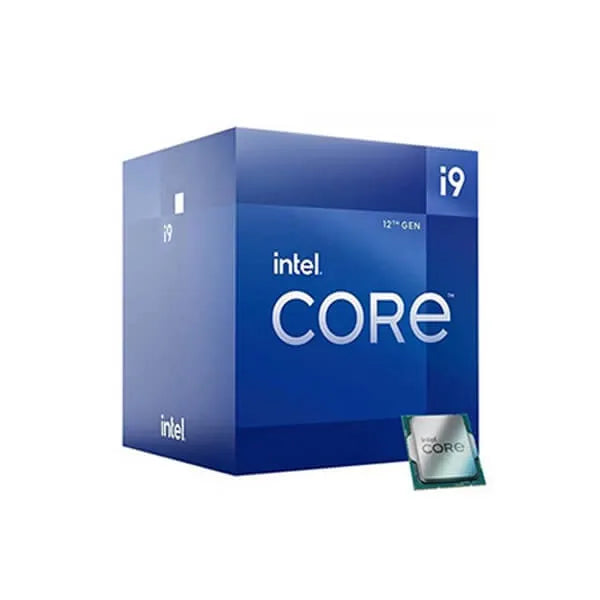

Intel Core i9 12900 Processor

Intel Core i9 12900 Processor

Features :

Intel Core i9-12900 2.4 GHz Processor

Technical Details

Brand : Intel

Model : Core i9-12900

Technical Specs

Essentials

Product Collection : 12th Generation Intel® Core™ i9 Processors

Code Name : Products formerly Alder Lake

Vertical Segment : Desktop

Processor Number : i9-12900

Lithography : Intel 7

Use Conditions : PC/Client/Tablet, Workstation

CPU Specifications

Total Cores : 16

No of Performance-cores : 8

No of Efficient-cores : 8

Total Threads : 24

Max Turbo Frequency : 5.10 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡ : 5.10 GHz

Performance-core Max Turbo Frequency : 5.00 GHz

Efficient-core Max Turbo Frequency : 3.80 GHz

Performance-core Base Frequency : 2.40 GHz

Efficient-core Base Frequency : 1.80 GHz

Cache : 30 MB Intel® Smart Cache

Total L2 Cache : 14 MB

Processor Base Power : 65 W

Maximum Turbo Power : 202 W

Memory Specifications

Max Memory Size (dependent on memory type) : 128 GB

Memory Types : Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s

Max # of Memory Channels : 2

Max Memory Bandwidth : 76.8 GB/s

ECC Memory Supported ‡ : Yes

Processor Graphics

Processor Graphics ‡ : Intel® UHD Graphics 770

Graphics Base Frequency : 300 MHz

Graphics Max Dynamic Frequency : 1.55 GHz

Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units : 32

Max Resolution (HDMI)‡ : 4096 x 2160 @ 60Hz

Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz

DirectX* Support : 12

OpenGL* Support : 4.5

Multi-Format Codec Engines : 2

Intel® Quick Sync Video : Yes

Intel® Clear Video HD Technology : Yes

No of Displays Supported ‡ : 4

Device ID : 0x4680

OpenCL* Support : 2.1

Expansion Options

Direct Media Interface (DMI) Revision : 4.0

Max No of DMI Lanes : 8

Scalability : 1S Only

PCI Express Revision : 5.0 and 4.0

PCI Express Configurations ‡ : Up to 1x16+4, 2x8+4

Max No of PCI Express Lanes : 20

Package Specifications

Sockets Supported : FCLGA1700

Max CPU Configuration : 1

Thermal Solution Specification : PCG 2020C

TJUNCTION : 100°C

Package Size : 45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator : 3.0

Intel® Thread Director : Yes

Intel® Deep Learning Boost (Intel® DL Boost) : Yes

Intel® Optane™ Memory Supported ‡ : Yes

Intel® Speed Shift Technology : Yes

Intel® Turbo Boost Max Technology 3.0 ‡ : Yes

Intel® Turbo Boost Technology ‡ : 2.0

Intel® Hyper-Threading Technology ‡ : Yes

Intel® 64 ‡ : Yes

Instruction Set : 64-bit

Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States : Yes

Enhanced Intel SpeedStep® Technology : Yes

Thermal Monitoring Technologies : Yes

Intel® Volume Management Device (VMD) : Yes

Security & Reliability

Intel vPro® Platform Eligibility ‡ : Yes

Intel vPro® Enterprise Platform Eligibility ‡ : Yes

Intel vPro® Essentials Platform Eligibility ‡ : Yes

Intel® Threat Detection Technology (TDT) : Yes

Intel® Active Management Technology (AMT) ‡ : Yes

Intel® Standard Manageability (ISM) ‡ : Yes

Intel® One-Click Recovery ‡ : Yes

Intel® Hardware Shield Eligibility ‡ : Yes

Intel® AES New Instructions : Yes

Secure Key : Yes

Intel® OS Guard : Yes

Intel® Trusted Execution Technology ‡ : Yes

Execute Disable Bit ‡ : Yes

Intel® Boot Guard : Yes

Mode-based Execute Control (MBEC) : Yes

Intel® Control-Flow Enforcement Technology : Yes

Intel® Total Memory Encryption - Multi Key : Yes

Intel® Total Memory Encryption : Yes

Intel® Stable IT Platform Program (SIPP) : Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ : Yes

Intel® Virtualization Technology (VT-x) ‡ : Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes

Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes

Specifications :
