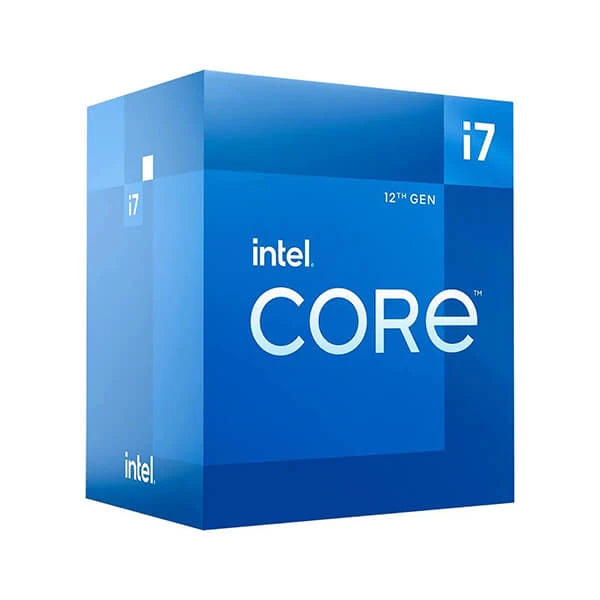

- INTEL Core i7 12700 12th Generation Processor ( 4.9 GHz / 12 Cores / 20 Threads )
Description
Features Of INTEL Core I7 12700 12th Generation Processor
Performance Hybrid Architecture
Performance hybrid architecture, combining Performance-cores (P-cores) and Efficient-cores (E-Cores) to deliver balanced single-thread and multi-threaded real-world performance.
Intel® Thread Director
Optimizes workloads by helping the OS scheduler intelligently distribute workloads to the optimal cores.
PCIe 5.0 up to 16 Lanes
Offers readiness for up to 32 GT/s for fast access to discrete graphics, storage, and peripheral devices with up to 16 PCI Express 5.0 lanes.
PCIe 4.0 up to 4 Lanes
Offers up to 16 GT/s for fast access to storage and peripheral devices with up to 4 PCI Express 4.0 lanes.
Up to DDR5 4800 MT/s
This industry first memory technology supports fast frequencies and high bandwidth and throughput leading to enhanced workflow and productivity.
Up to DDR4 3200 MT/s
Continued support of existing memory technology and speeds.
L3 and L2 Cache
Increased shared Intel® Smart Cache (L3) and L2 cache sizes deliver large memory capacity and reduced latency for fast game loading and smooth frame rates.
Intel® Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Gaussian & Neural Accelerator 3.0 (GNA 3.0)
Processes AI speech and audio applications such as neural noise cancellation while simultaneously freeing up CPU resources for overall system performance and responsiveness.
Intel® Turbo Boost Max Technology 3.0
Identifies the processor’s fastest cores and directs critical workloads to them.
Intel® UHD Graphics driven by Xe Architecture
Rich media and intelligent graphics capabilities enable amplified visual complexity, enhanced 3D performance, and faster image processing.
Overclocking Features and Capabilities
When paired with the Intel® Z690 chipset, processor P-cores, E-cores, graphics, and memory can be set to run at frequencies above the processor specification resulting in higher performance.
Wide Selection
Intel Core i7 12700 desktop processor come in a wide range of options for maximum flexibility so you can choose the performance and thermal characteristics you need.
Overview
The intel core i7 redefines x86 architecture performance. Introducing our new performance hybrid architecture,1 combining Performance-cores with Efficient-cores to elevate gaming, productivity, and creation. These breakthrough processors assist the OS in intelligently characterizing workloads to ensure optimal core placement for execution and pave the way for future leaps in processor design. Enjoy the full range of the latest platform innovations like industry first PCIe 5.0 readiness and DDR5 memory. With Intel® UHD graphics immerse yourself in a visually stunning experience with up to 8K HDR support and the ability to view 4 simultaneous 4K displays. Intel Core i7 12700 desktop processors are available in a wide range of options for maximum flexibility, so you can choose the performance and thermal characteristics you need to game, work, and create like never before.
Breakthrough Core Technology
Intel Core i7 12700 desktop processor product brief block diagram
In a game-changing advance for core performance, Intel Core i7 12700 desktop processors power a revolutionary approach to the x86 architecture. Its Performance-cores—or “P-cores”—are optimized for single & lightly-threaded performance, while its Efficient-cores—or “E-cores”—are optimized for scaling highly-threaded workloads. Intel® Thread Director helps to monitor and analyze performance data in real-time to seamlessly place the right application thread on the right core and optimize performance per watt.2 That means gamers, creators, and professionals can harness both intelligence and power to enhance the experiences that matter most.
Immersive Experiences
Gaming room with powerful personal computer
Whether you’re delving into the latest gaming titles or focusing on advanced professional applications, Intel Core i7 12700 desktop processor enable you to immerse without interruptions. Intel® UHD Graphics driven by Xe Architecture invite you to take a deep dive into vivid new experiences with enhanced visual support for up to 8K HDR video in billions of colors and up to 4 simultaneous 4K displays. 12th Gen Intel® Core™ desktop processors are capable of canceling out interruptions with enhanced Gaussian & Neural Accelerator 3.0 (GNA) for more efficient noise suppression and background blurring on video. For elite gaming, world-class productivity, free flowing creation, and more, 12th Gen Intel® Core™ desktop processors enable deep immersion and focus.
Accelerating Platform Innovation
Mother with infant works with NUC 11 performance mini pc
Tap into the latest platform technologies that drive incredible gaming, workflow, and creation. Our Intel Core i7 12700 Processor offer up to 20 lanes (16 PCIe 5.0 and 4 PCIe 4.0) to drive optimal discrete graphics and storage performance by enabling higher bandwidth connection points. DDR5 brings fast speeds up to 4800 MT/s, this allows for increased memory bandwidth speeds compared to previous generations that use DDR4 3200 MT/s memory.3 Fine tune both compute power and performance with unlocked 12th Gen Intel® Core™ desktop processors that have overclocking capabilities and Advanced Tuning support via Intel® Extreme Tuning Utility (XTU).4 With these and other platform enhancements you’ll be able to work, game, and create with impressive control and confidence.
Get the best intel processors list at lowest price from us today!
Specifications Of INTEL Core I7 12700 12th Generation Processor
Product Collection | 12th Generation Intel® Core™ i7 Processors |
Code Name | Products formerly Alder Lake |
Vertical Segment | Desktop |
Processor Number | i7-12700 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 12 |
# of Performance-cores | 8 |
# of Efficient-cores | 4 |
Total Threads | 20 |
Max Turbo Frequency | 4.90 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency | 4.90 GHz |
Performance-core Max Turbo Frequency | 4.80 GHz |
Efficient-core Max Turbo Frequency | 3.60 GHz |
Performance-core Base Frequency | 2.10 GHz |
Efficient-core Base Frequency | 1.60 GHz |
Cache | 25 MB Intel® Smart Cache |
Total L2 Cache | 12 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 180 W |
Supplemental Information | |
Embedded Options Available | Yes |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
Processor Graphics | |
Processor Graphics | Intel® UHD Graphics 770 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.50 GHz |
Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
Max Resolution (DP) | 7680 x 4320 @ 60Hz |
Max Resolution (eDP - Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported | 4 |
Device ID | 0x4680 |
OpenCL* Support | 2.1 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations | Up to 1x16+4, 2x8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Optane™ Memory Supported | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 | Yes |
Intel® Turbo Boost Technology | 2 |
Intel® Hyper-Threading Technology | Yes |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
Intel® 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
