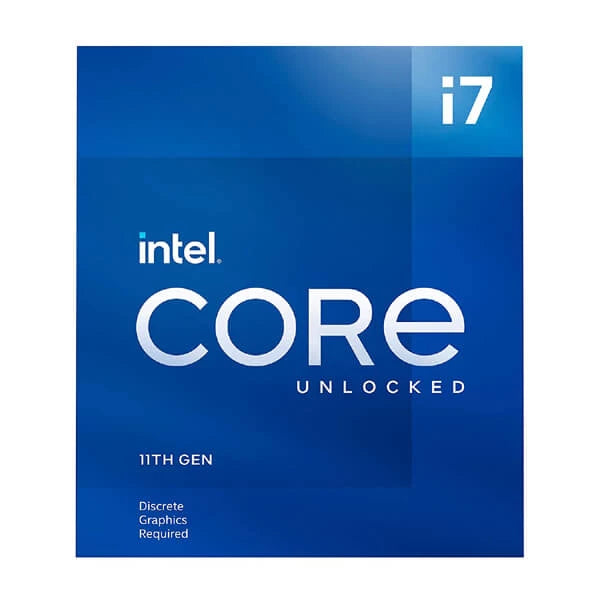

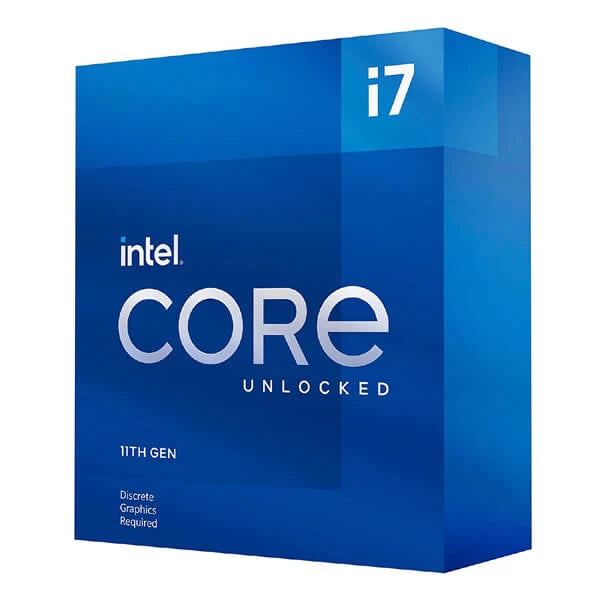

- INTEL Core i7 11700KF 11th Generation Processor ( 5 GHz / 8 Cores / 16 Threads )
Description
Features of INTEL Core i7 11700KF 11th Generation Processor
The Intel Core i7-11700KF was a desktop processor with 8 cores, launched in March 2021, at an MSRP of $374. It is part of the Core i7 lineup, using the Rocket Lake-S architecture with Socket 1200. Thanks to Intel Hyper-Threading the core-count is effectively doubled, to 16 threads. Core i7-11700KF has 16 MB of L3 cache and operates at 3.6 GHz by default, but can boost up to 5 GHz, depending on the workload.
Intel is making the Core i7-11700KF on a 14 nm production node, the transistor count is unknown. You may freely adjust the unlocked multiplier on Core i7-11700KF, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 125 W, the intel core i7 consumes a lot of power, so good cooling is definitely needed. Intel's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the machine, Core i7-11700KF uses a PCI-Express Gen 4 connection.
This processor does not have integrated graphics, you will need a separate graphics card.
Hardware virtualization is available on the Intel Core i7 11700KF Processor, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel has added support for the newer AVX2 and AVX-512 instructions, too.
- Series Core i7 (11th Gen)
- CORES 8 Cores
- THREADS 16 Threads
- Socket LGA1200
- SPEED 3.6 GHz
- SPEED (TURBO) 5 GHz
- CACHE 16 MB
- MAX MEMORY SUPPORT 128 GB
- INTEGRATED GRAPHICS No
- INCLUDED CPU COOLER No
- UNLOCKED Yes
- TDP 125W
- WARRANTY* 3 Years
Get the best intel processors list at lowest price from us today!
Specifications of INTEL Core i7 11700KF 11th Generation Processor
Essentials | |
Product Collection | 11th Generation Intel® Core™ i7 Processors |
Code Name | Products formerly Rocket Lake |
Vertical Segment | Desktop |
Processor Number | i7-11700KF |
Status | Launched |
Launch Date | Q1'21 |
Lithography | 14 nm |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
# of Cores | 8 |
# of Threads | 16 |
Processor Base Frequency | 3.60 GHz |
Max Turbo Frequency | 5.00 GHz |
Cache | 16 MB Intel® Smart Cache |
Bus Speed | 8 GT/s |
Intel® Turbo Boost Max Technology 3.0 Frequency | 5.00 GHz |
Intel® Turbo Boost Technology 2.0 Frequency | 4.90 GHz |
TDP | 125 W |
Configurable TDP-down Frequency | 3.10 GHz |
Configurable TDP-down | 95 W |
Supplemental Information | |
Embedded Options Available | No |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types | DDR4-3200 |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 50 GB/s |
ECC Memory Supported | No |
Expansion Options | |
Scalability | 1S Only |
PCI Express Revision | 4 |
PCI Express Configurations | Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 |
Max # of PCI Express Lanes | 20 |
Advanced Technologies | |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Optane™ Memory Supported | Yes |
Intel® Thermal Velocity Boost | No |
Intel® Turbo Boost Max Technology 3.0 | Yes |
Intel® Turbo Boost Technology | 2 |
Intel vPro® Platform Eligibility | No |
Intel® Hyper-Threading Technology | Yes |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
Intel® 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Identity Protection Technology | Yes |
Intel® Stable Image Platform Program (SIPP) | No |
Intel® Gaussian and Neural Accelerator 2.0 | Yes |
Security & Reliability | |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® Software Guard Extensions (Intel® SGX) | No |
Intel® OS Guard | Yes |
Intel® Trusted Execution Technology | No |
Execute Disable Bit | Yes |
Intel® Boot Guard | Yes |
Package Specifications | |
Sockets Supported | FCLGA1200 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2019A |
TJUNCTION | 100°C |
Package Size | 37.5 mm x 37.5 mm/td> |
Warranty | 3 Years |
Note |
***Features, Price and Specifications are subject to change without notice.
|
