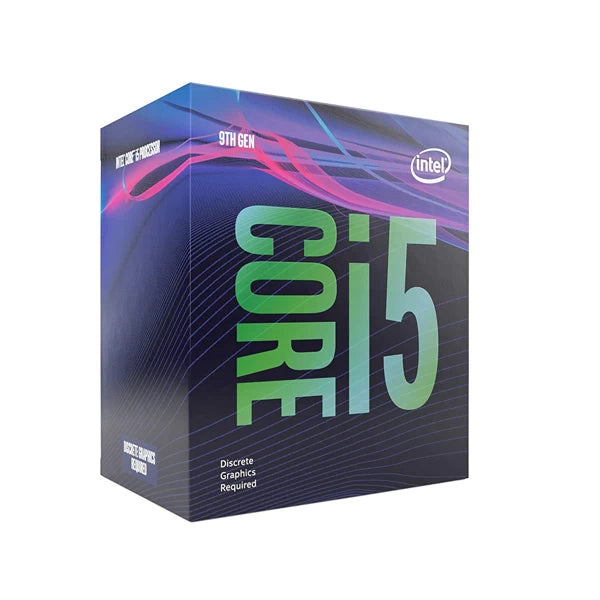

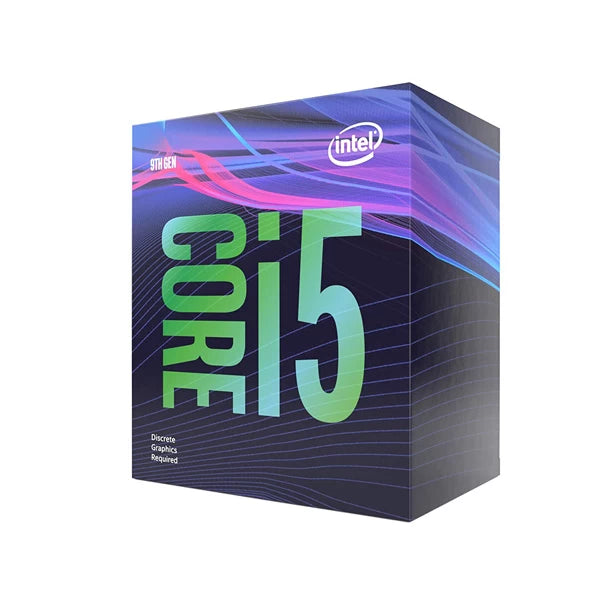

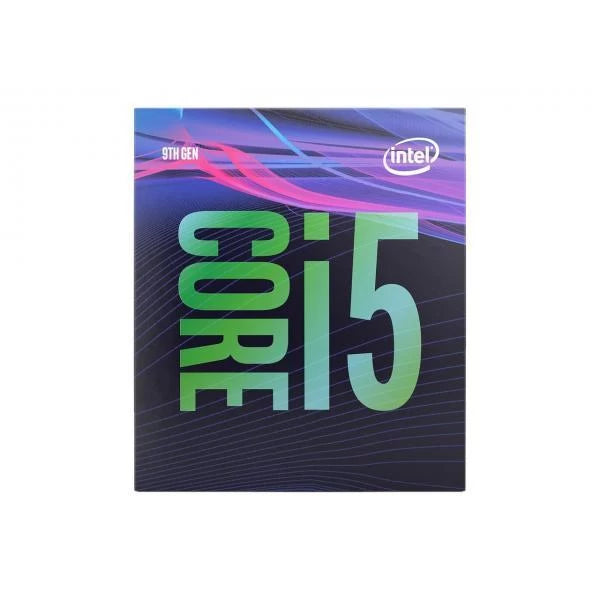

- INTEL Core i5 9500 9th Generation Processor ( 4.4 GHz / 6 Cores / 6 Threads )
Description
Features of INTEL Core i5 9500 9th Generation Processor
The Intel Core i5-9500 was a desktop processor with 6 cores, launched in October 2018. It is part of the Core i5 lineup, using the Coffee Lake Refresh architecture with Socket 1151. Core i5-9500 has 9 MB of L3 cache and operates at 3 GHz by default, but can boost up to 4.3 GHz, depending on the workload.
Intel is making the Core i5-9500 on a 14 nm production node, the transistor count is unknown. The multiplier is locked on Core i5-9500, which limits its overclocking potential.
With a TDP of 65 W, the Core i5-9500 consumes typical power levels for a modern PC. Intel's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 2666 MT/s, but with overclocking (and the right memory modules) you can go even higher.
For communication with other components in the computer, Core i5-9500 uses a PCI-Express Gen 3 connection. This processor features the UHD 630 integrated graphics solution.
Hardware virtualization is available on the Core i5-9500, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware.
Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
The Intel core i5 9th Gen processor is among the best processors for those who want functional performance for the intel i5 cpu price.
- SeriesCore i5 (9th Gen)
- CORES6 Cores
- THREADS6 Threads
- SocketLGA1151
- SPEED3 GHz
- SPEED (TURBO)4.4 GHz
- CACHE9 MB
- MAX MEMORY SUPPORT64 GB
- INTEGRATED GRAPHICSIntel UHD Graphics 630
- INCLUDED CPU COOLERYes
- UNLOCKEDNo
- TDP65W
- WARRANTY*3 Years
Get the best latest intel processor at lowest price from us today!
Specifications of INTEL Core i5 9500 9th Generation Processor
Essentials | |
Product Collection | 9th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Coffee Lake |
Vertical Segment | Desktop |
Processor Number | i5-9500 |
Lithography | 14 nm |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Cores | 6 |
Threads | 6 |
Base Frequency | 3.00 GHz |
Max Turbo Frequency | 4.40 GHz |
Cache | 9 MB Intel® Smart Cache |
Bus Speed | 8 GT/s |
Intel Turbo Boost 2.0 Technology Frequency | 4.40 GHz |
TDP | 65 W |
Embedded Options Available | No |
Memory Specifications | |
Max Memory Size | 128 GB |
Memory Types | DDR4-2666 |
Memory Channels | 2 |
Max Memory Bandwith | 41.6 GB/s |
ECC Memory Supported | No |
Processor Graphics | |
Processor Graphics | Intel® UHD Graphics 630 |
Graphics Base Frequency | 350 MHz |
Graphics Max Dynamic Frequency | 1.10 GHz |
Graphics Video Max Memory | 64 GB |
4K Support | Yes, at 60Hz |
Max Resolution (HDMI) | 4096 x 2304@24Hz |
Max Resolution (DP) | 4096 x 2304@60Hz |
Max Resolution (eDP - Integrated Flat Panel) | 4096 x 2304@60Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
Intel® Quick Sync Video | Yes |
Intel® InTru™ 3D Technology | Yes |
Intel® Clear Video HD Technology | Yes |
Intel® Clear Video Technology | Yes |
# of Displays Supported | 3 |
Device ID | 0x3E92 |
Expansion Options | |
Scalability | 1S Only |
PCI Express Revision | 3 |
PCI Express Configuration | Up to 1x16, 2x8, 1x8+2x4 |
Max # of PCI Express Lanes | 16 |
Package Specifications | |
Socket Supported | FCLGA1151 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2015C (65W) |
T Junction | 100°C |
Package Size | 37.5mm x 37.5mm |
Advanced Technologies | |
Intel® Optane™ Memory Supported | Yes |
Intel® Turbo Boost Technology* | 2 |
Intel vPro® Platform Eligibility | Yes |
Intel® Hyper-Threading Technology | No |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
Intel® Transactional Synchronization Extensions | Yes |
Intel® 64 | Yes |
Instruction Set | 64-Bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Identity Protection Technology | Yes |
Intel® Stable Image Platform Program (SIPP) | Yes |
Security & Reliability | |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
Intel® Memory Protection Extensions (Intel® MPX) | Yes |
Intel® OS Guard | Yes |
Intel® Trusted Execution Technology | No |
Execute Disable Bit | Yes |
Intel® Boot Guard | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
