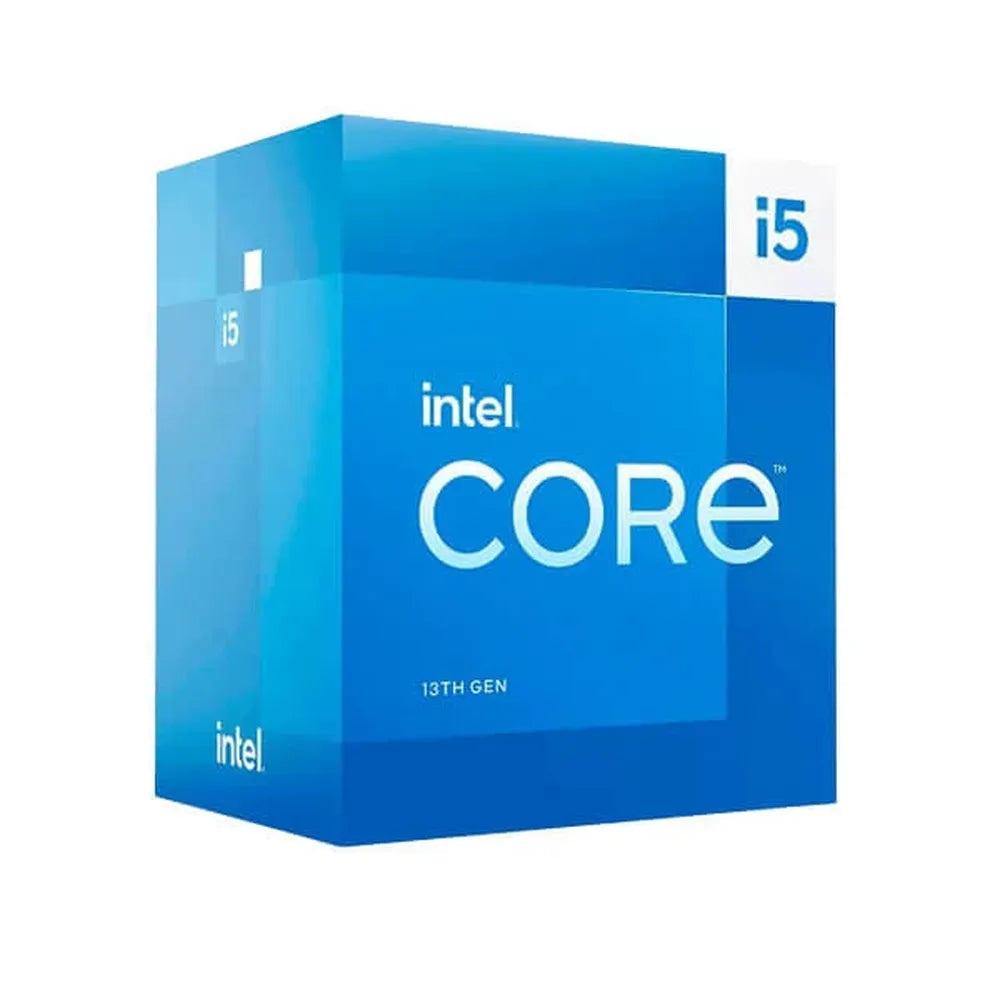

- INTEL Core i5 13500 13th Generation Processor ( 4.8 GHz / 14 Cores / 20 Threads )
Description
Features Of INTEL Core i5 13500 13th Generation Processor
INTEL Core i5-13500 Processor is a 13th Gen Desktop Processor. This Products formerly Raptor Lake It has 14 Cores and 20 Threads. Max Turbo Frequency 4.80GHz. 24 MB Intel Smart Cache Memory, with Intel UHD Graphics 770.
Intel Core i5-13500 Processor 24M Cache, up to 4.80 GHz
The highest-performing CPU core ever built by Intel, designed to handle single-threaded, lightly threaded, or burst workloads like 4K gaming and 3D design. Integrates two core microarchitectures into a single die, prioritizing and distributing workloads to optimize performance. Optimizes workloads by helping the OS scheduler intelligently distribute workloads to the optimal cores. Boxed CPU
The core i5-13500 processor 24m cache, up to 4.80 ghz CPUs & Processor is manufactured by Intel and was added around February 2023.
This version of the CPUs & Processor comes in Core Processor : i5 , Processor Speed GHZ : 4.80 GHZ.
Power up your productivity, gaming, and content creation
With the Intel Core i5-13500 2.5 GHz 14-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 14 cores— four more than the previous generation— onto a single processor while still supporting the LGA 1700 socket. Designed to provide strong performance for everyday tasks, the Core i5-13500 features eight low-voltage Efficient-cores that handle background tasks for multitasking while the six 2.5 GHz Performance-cores power applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 24MB of cache and a 4.8 GHz Turbo frequency, this processor is made to handle a variety of applications. The Core i5-13500 also supports PCI Express 5.0 and dual-channel DDR5 ECC memory at 4800 MHz.
The Intel core i5 13th Generation is among the best processors for those who want functional performance for the intel i5 price.
The Core i5-13500 features integrated Intel UHD 770 Graphics.
This processor has a 65W TDP (Thermal Design Power) and includes an Intel Laminar RM1 cooling solution. This processor is backed by a 3-year warranty.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor’s Efficient-cores for multitasking.
Intel Thread Director
The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Get the best latest intel processor at lowest price from us today!
Specifications Of INTEL Core i5 13500 13th Generation Processor
Essentials | |
Product Collection | 13th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i5-13500 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 14 |
# of Performance-cores | 6 |
# of Efficient-cores | 8 |
Total Threads | 20 |
Max Turbo Frequency | 4.80 GHz |
Performance-core Max Turbo Frequency | 4.80 GHz |
Efficient-core Max Turbo Frequency | 3.50 GHz |
Performance-core Base Frequency | 2.50 GHz |
Efficient-core Base Frequency | 1.80 GHz |
Cache | 24 MB Intel® Smart Cache |
Total L2 Cache | 11.5 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 154 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
ECC Memory Supported ‡ | Yes |
Processor Graphics | |
Processor Graphics ‡ | Intel® UHD Graphics 770 |
Graphics Max Dynamic Frequency | 1.55 GHz |
Graphics Base Frequency | 300 MHz |
Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0x4680 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | No |
Intel® Turbo Boost Technology ‡ | 2 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
