- INTEL Core i5 13400F 13th Generation Processor ( 4.6 GHz / 10 Cores / 16 Threads )
Description
Features Of INTEL Core i5 13400F 13th Generation Processor
- Processor Box CPU 20 MB Cache 10 Cores (6 Performance Cores and 4 Efficient Cores) 16 Threads. This is the best and latest processor in the i5 category.
- Intel Core i5 13400F supports the latest LGA1700 Socket. Some of the supported Motherboards are B760, H770, Z790, Q670, W680, H610, H670, B660, Z690. It does not come with inbuilt graphics and hence you need a graphic card for display.
- Intel Core i5 13400F uses a base power of 65W and a Maximum Turbo Power of 148W. This Processor can handle any task, Gaming, Editing, content creation, multiple displays, etc, and can be used for building a high-end PC.
- Intel Core i5 13400F Comes with 3 Years of warranty directly from the Intel Brand.
- DDR5 RAM up to 4800 Mhz is supported according to specific motherboard compatibility. DDR4 RAM is also supported. Windows 11 runs very smoothly with this processor. PCI-E 5.0 PCI-E 4.0 Support.

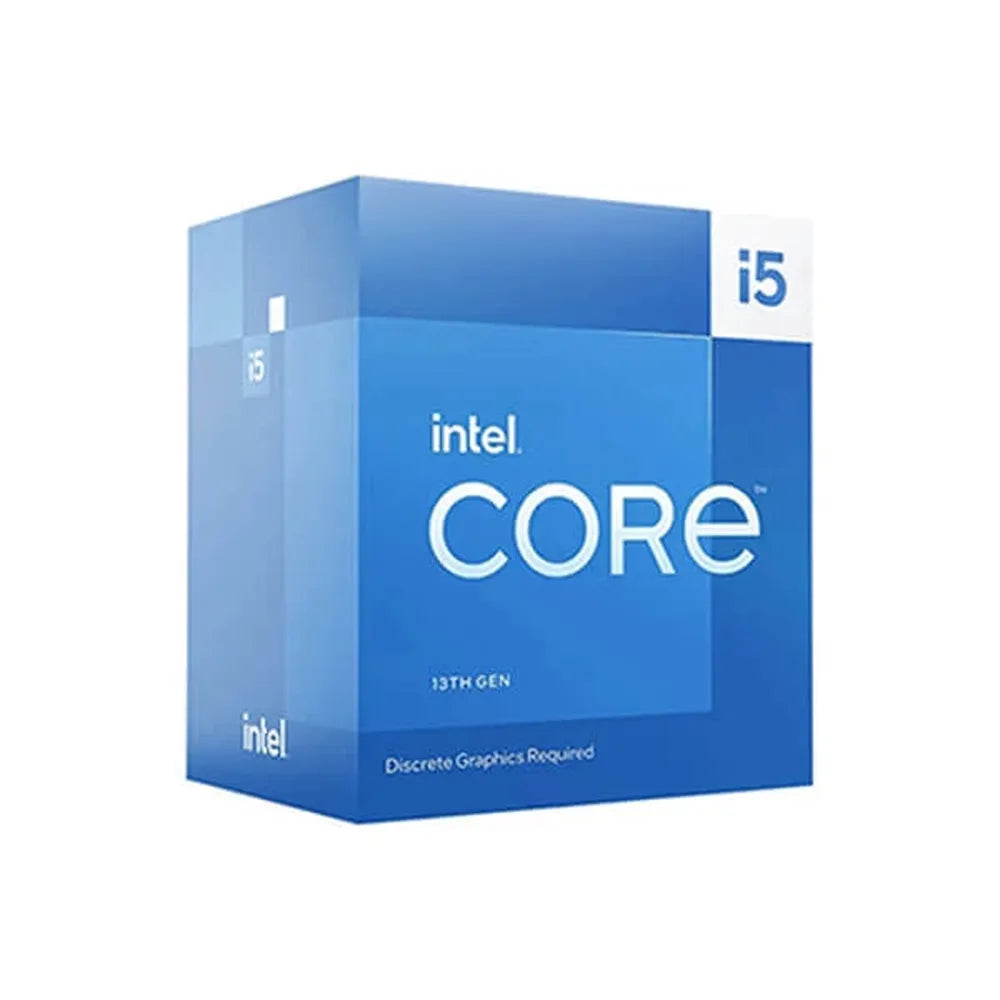

13th Gen INTEL Core i5-13400F desktop processor
Stream, create and compete at the highest levels. Push your gameplay beyond performance with 13th Gen Intel Core processors.
Game and multitask without interruption.
10 cores (6 P-cores + 4 E-cores).
16 threads.
Push your in-game settings without worrying about background tasks slowing you down.
Up to 4.6 GHz Max Clock Speed.(1)
Intel Laminar RM1 Cooler included
Designed for the needs of today’s gamers.
The latest version of performance hybrid architecture will push your gameplay beyond performance, giving you the power to do it all.
Performance-cores unleashes the capability to optimize the latest games and gaming software.
Efficient-cores provides multitasking power to work, play, and most importantly game together.
Personalize your PC.
Support for both DDR4 and DDR5 gives you control over your memory configuration.(4)
Support for Thunderbolt 4 technology offers a simple and fast way to connect peripherals.
Connect quickly and without interference with support for Intel Killer Wi-Fi 6/6E (Gig+).(5)
Specifications Of INTEL Core i5 13400F 13th Generation Processor
Essentials | |
Product Collection | 13th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i5-13400F |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 10 |
# of Performance-cores | 6 |
# of Efficient-cores | 4 |
Total Threads | 16 |
Max Turbo Frequency | 4.60 GHz |
Performance-core Max Turbo Frequency | 4.60 GHz |
Efficient-core Max Turbo Frequency | 3.30 GHz |
Performance-core Base Frequency | 2.50 GHz |
Efficient-core Base Frequency | 1.80 GHz |
Cache | 20 MB Intel® Smart Cache |
Total L2 Cache | 9.5 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 148 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | No |
Intel® Turbo Boost Technology ‡ | 2 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
