- INTEL Celeron G6900 12th Generation Processor ( 3.4 GHz / 2 Cores / 2 Threads )
Description
Features of INTEL Celeron G6900 12th Generation Processor

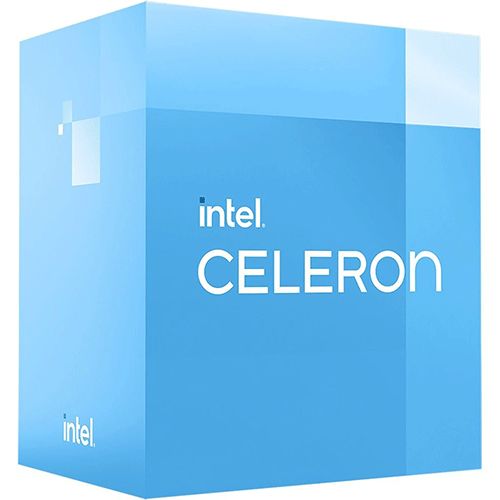

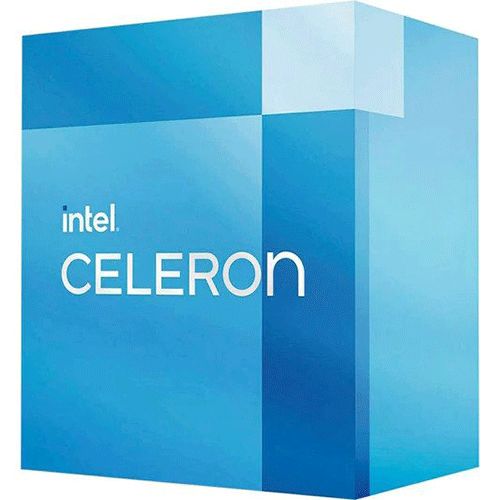

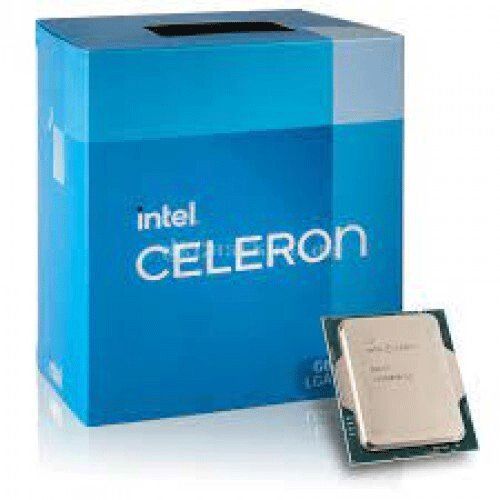

Intel Celeron G6900 Dual-core 3.40 GHz Processor
INTEL Celeron G6900 3.40 GHz processor keeps up with the demands of conventional apps and lets you work without performance issues The Socket LGA-1700 socket allows processor to be placed on the PCB without soldering
4 MB level 3 cache architecture to provide versatile performance and fast access to frequently used data To boost graphics and visual quality, the chipset has a built in Intel UHD Graphics 710 controller
Power up your productivity by installing the Intel Celeron G6900 3.4 GHz Dual-Core LGA 1700 Processor into your desktop computer system or data server. This 12th generation 3.4 GHz processor features two Performance cores with 4MB of cache and it supports up to 2 threads, providing the power to run and multitask a variety of applications. The Celeron G6900 also includes support for PCI Express 5.0 and dual-channel DDR5 memory in addition to having integrated Intel UHD 710 Graphics. An Intel Laminar RS1 thermal solution is included. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
The integrated Intel UHD 710 Graphics delivers rich performance with high-quality visuals.
Technical Detail
Brand : Intel
Modal : G6900
Technical Spec
Product Collection : Intel® Celeron® Processor G Series
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : G6900
Status : Launched
Launch Date : Q1'22
Lithography : Intel 7
Use Conditions : PC/Client/Tablet
Recommended Customer Price : $42.00
CPU Specifications
Total Cores : 2
# of Performance-cores : 2
# of Efficient-cores : 0
Total Threads : 2
Performance-core Base Frequency : 3.40 GHz
Cache : 4 MB Intel® Smart Cache
Total L2 Cache : 2.5 MB
Processor Base Power : 46 W
Supplemental Information : Embedded Options Available : No
Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels : 2 :
Max Memory Bandwidth : 76.8 GB/s
Processor Graphics
Processor Graphics ‡ : Intel® UHD Graphics 710
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.30 GHz
Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units : 16
Max Resolution (HDMI)‡ : 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported ‡ : 4
Device ID : 0x4693
Expansion Options : Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations ‡ : Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes : 20
Package Specifications
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 3
Advanced Technologies
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) : Yes
Intel® Optane™ Memory Supported ‡ : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 ‡ : No
Intel® Turbo Boost Technology ‡ : No
Intel® Hyper-Threading Technology ‡ : No
Intel® 64 ‡ : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Volume Management Device (VMD) : Yes
Specifications of INTEL Celeron G6900 12th Generation Processor
Model | |
Brand | Intel |
Model | G6900 |
Processors Type | Intel Celeron |
Series | Dual-Core |
CPU Socket Type | |
CPU Socket Type | FCLGA1700 |
Tech Spec | |
Core | Dual Core |
Name | Celeron G6900 3.40 GHz |
Operating Frequency | 3.40 GHz |
L2 Cache | 2.5 MB |
64 bit Support | Yes. |
Hyper-Threading Support | No. |
Virtualization Technology Support | |
Multimedia Instruction | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
Cooling Device | Heatsink and Fan included |
L3 Cache | 4MB |
