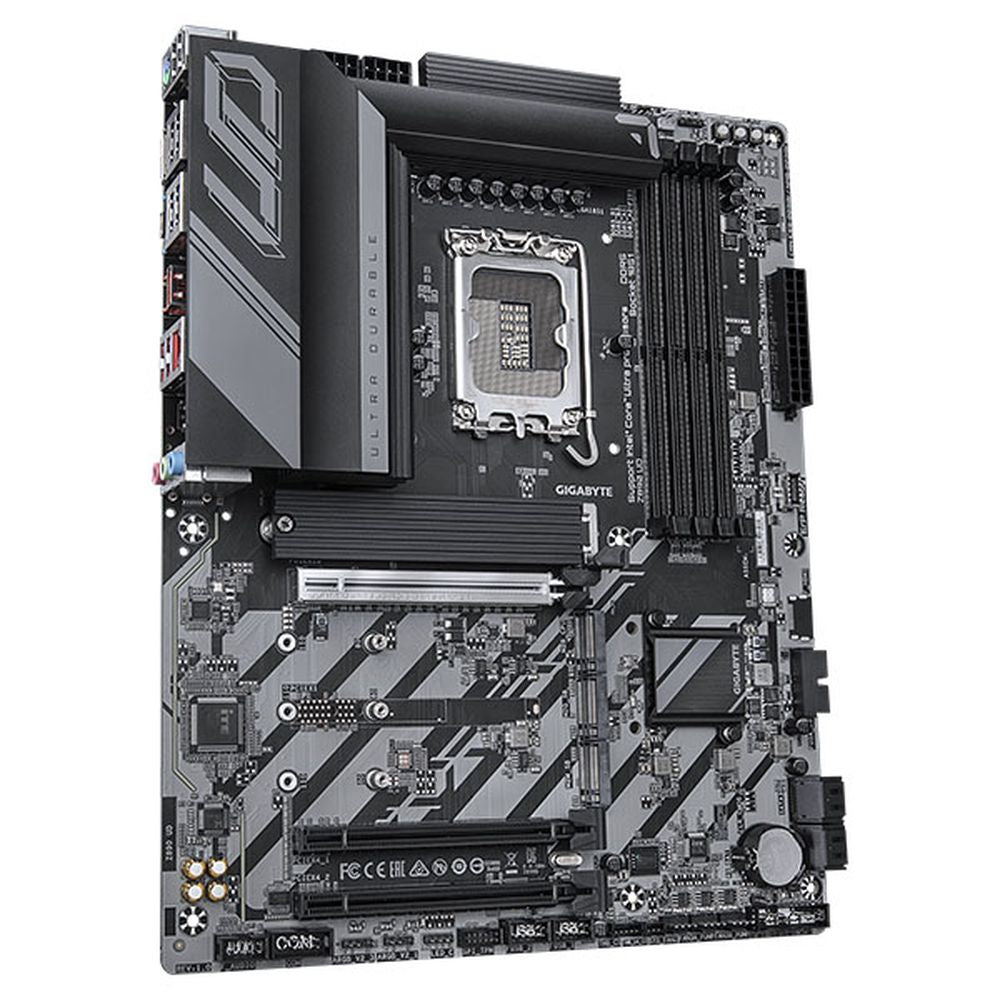

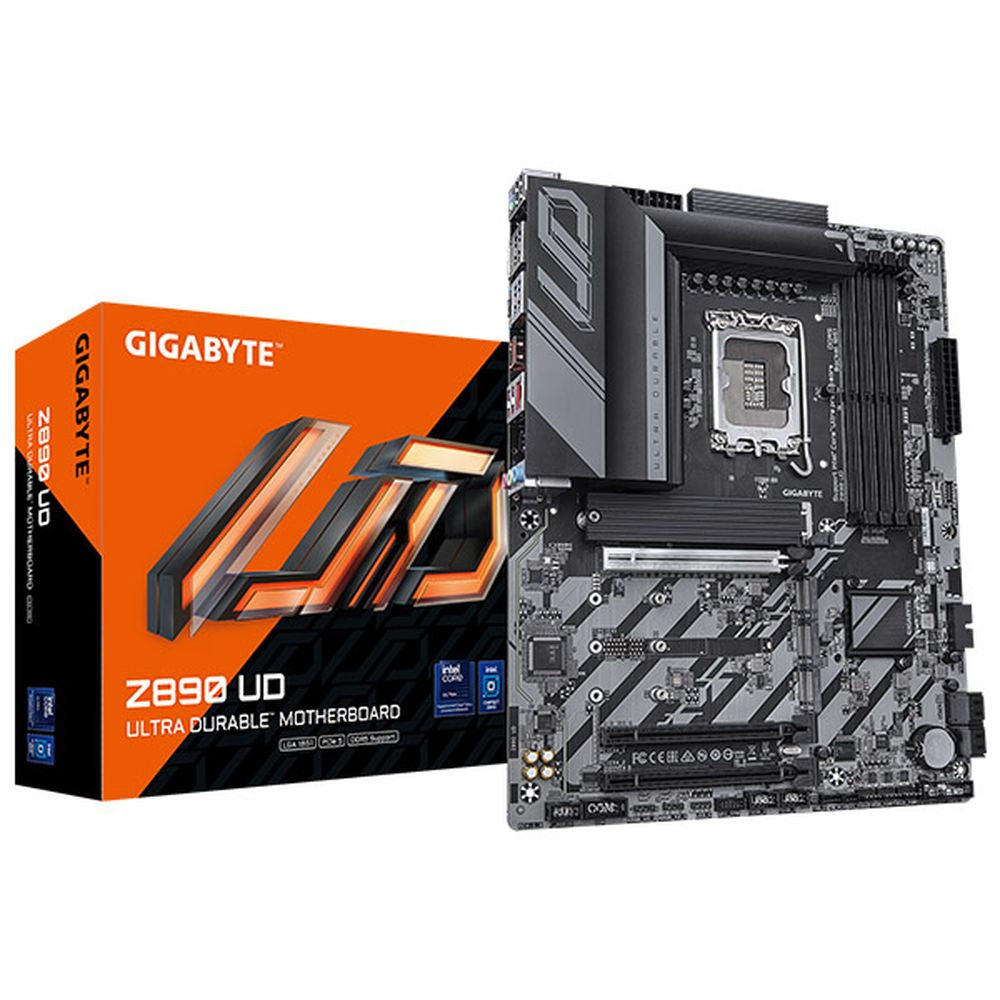

- GIGABYTE Z890 UD ATX DDR5 Intel Motherboard
Description
Features of GIGABYTE Z890 UD ATX DDR5 Intel Motherboard
- Gigabyte Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital Twin VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Fully Covered MOSFET Heatsink
With up to 3 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
True one-piece heatsink design
- Outperforms competitors’ multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
40Gbps USB4 with DP-Alt
The latest USB4 Type-C ports provides blistering fast and reliable transfer speed up to 40 Gbps. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
Specification of GIGABYTE Z890 UD ATX DDR5 Intel Motherboard
| CPU Socket | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. <br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory <br> Dual channel memory architecture <br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) <br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules <br> Support for Extreme Memory Profile (XMP) memory modules <br> Support CUDIMM memory module |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: <br> 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version) <br> 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version) |
| Audio | Realtek® Audio CODEC <br> High Definition Audio <br> 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: <br> 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) <br> Chipset: <br> 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| Storage Interface | CPU: <br> 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) <br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) <br> Chipset: <br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) <br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) <br> 4 x SATA 6Gb/s connectors <br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices <br> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB Ports | CPU: <br> 1 x USB4® USB Type-C® port on the back panel <br> Chipset: <br> 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header <br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel <br> 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) <br> Chipset + 2 USB 2.0 Hubs: <br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector <br> 2 x 8-pin ATX 12V power connectors <br> 1 x CPU fan header <br> 1 x CPU fan/water cooling pump header <br> 2 x system fan headers <br> 2 x system fan/water cooling pump headers <br> 3 x addressable RGB Gen2 LED strip headers <br> 1 x RGB LED strip header <br> 4 x M.2 Socket 3 connectors <br> 4 x SATA 6Gb/s connectors <br> 1 x front panel header <br> 1 x front panel audio header <br> 1 x USB Type-C® header, with USB 3.2 Gen 1 support <br> 1 x USB 3.2 Gen 1 header <br> 2 x USB 2.0/1.1 headers <br> 2 x Thunderbolt™ add-in card connectors <br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) <br> 1 x serial port header <br> 1 x power button <br> 1 x reset button <br> 1 x Q-Flash Plus button <br> 1 x reset jumper <br> 1 x Clear CMOS jumper |

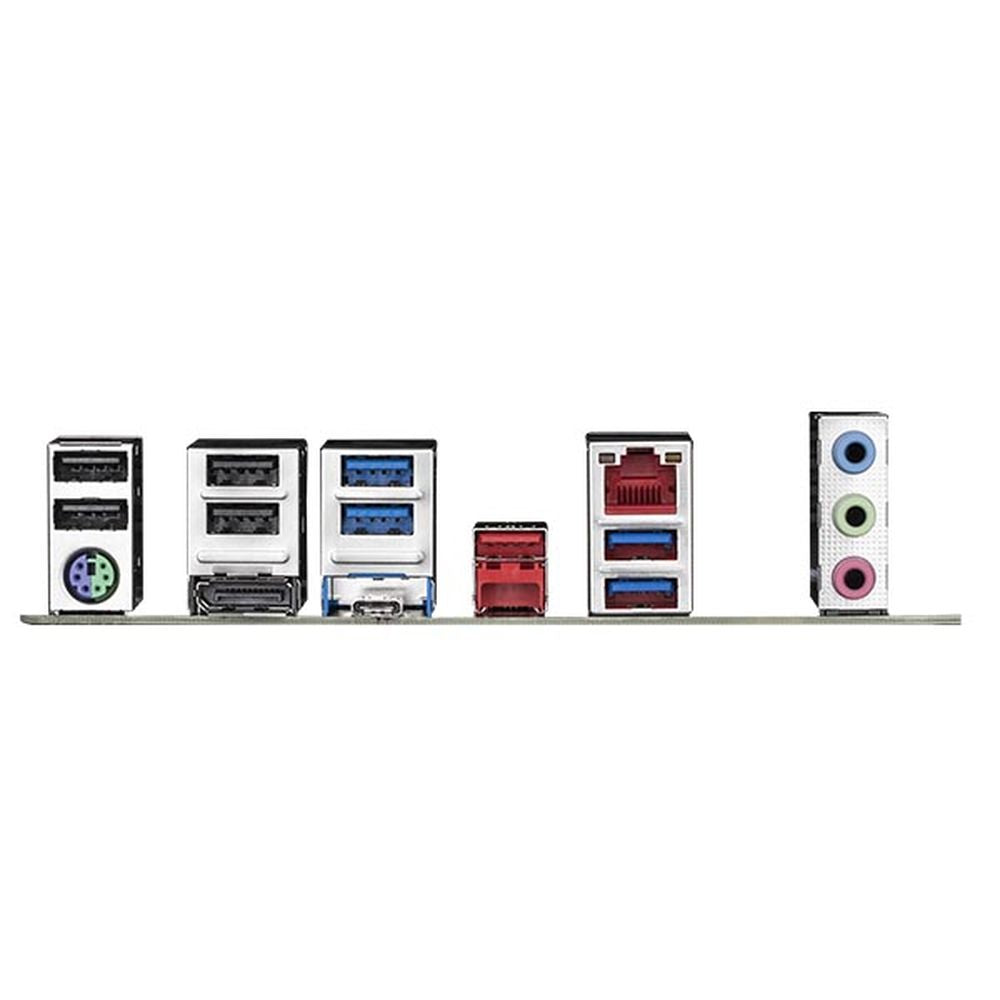

| Back Panel Connectors | 4 x USB 2.0/1.1 ports <br> 1 x PS/2 keyboard/mouse port <br> 1 x DisplayPort (Note) <br> 4 x USB 3.2 Gen 1 ports <br> 1 x USB4® USB Type-C® port (DisplayPort (Note)) <br> 1 x USB 3.2 Gen 2 Type-A port (red) <br> 1 x RJ-45 port <br> 3 x audio jacks (Note: Actual support may vary by CPU) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection <br> Temperature detection <br> Fan speed detection <br> Water cooling flow rate detection <br> Fan fail warning <br> Fan speed control (Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.) |
| BIOS | 1 x 256 Mbit flash <br> Use of licensed AMI UEFI BIOS <br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) <br> Support for Q-Flash <br> Support for Q-Flash Plus <br> Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) <br> LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
