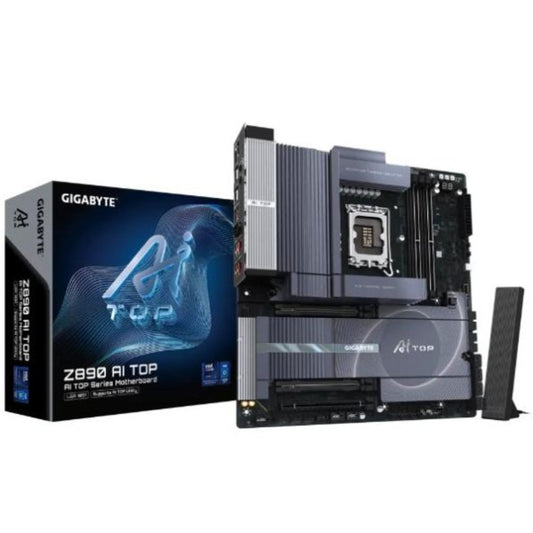

- GIGABYTE Z890 AI Top Wifi7 DDR5 Intel Motherboard
Description
Features of GIGABYTE Z890 AI Top Wifi7 DDR5 Intel Motherboard
Training your own AI on your desk
Supports Intel® Core™ Ultra processors (Series 2)
Twin Digital 16+1+2 phases VRM solution
Ultimate Scalibility :
2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
Next-gen Connectivity :
Dual Thunderbolt™ 5 Type-C with DP-Alt, HDMI
Blazing Fast Networks :
Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH :
Auto-Overclocking Software by AI models
AI Perfdrive :
Provides optimal and customized BIOS preset profile for users
Premium Compatibility :
4*DDR5 with XMP Memory Module Support
Reinforced Overall Thermal :
VRM Thermal Armor Advanced & M.2 Thermal Guard XL
ESSential High-Fidelity Audio :
ESS9260 DAC
Gigabyte WIFI EZ-Plug :
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus :
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click :
M.2 heatsinks with screwless design
Friendly UI :
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
PCIe UD Slot X :
PCIe 5.0 x16 slot with 10X strength for graphics card
Ultra Durable PCIe Armor :
The metal back plate of PCIe x16 slot for enhanced durability
Specification of GIGABYTE Z890 AI Top Wifi7 DDR5 Intel Motherboard
| CPU | LGA1851 socket, supports Intel® Core™ Ultra Processors; L3 cache varies with CPU. Refer to "CPU Support List" for details. |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Supports DDR5 up to 9500(O.C) MT/s; 4 x DDR5 DIMM sockets with max capacity of 256GB (64GB per DIMM); dual-channel architecture; supports ECC and non-ECC un-buffered memory; XMP support. |
| Onboard Graphics | Integrated Intel® HD Graphics and Thunderbolt™ 5 Controller; 2 x Thunderbolt™ 5 (USB4® Type-C®) ports, max resolution 7680x4320@60Hz; 1 x Thunderbolt™ 4 (USB4® Type-C®) port, max resolution 5120x2880@60Hz; 1 x HDMI port, max resolution 4096x2160@60Hz. |
| Audio | ESS ES9260 CODEC (rear), Realtek® ALC897 CODEC (front), High Definition Audio, 2-channel. |
| LAN | Dual Marvell® AQtion AQC113C 10GbE LAN chips (supports 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless Communication | Intel® Wi-Fi 7 BE200, supports 802.11a/b/g/n/ac/ax/be; Bluetooth 5.4; supports 2.4/5/6 GHz bands and 11be 320MHz standard (requires Windows 11 SV3). |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 5.0 x8 (CPU, shares with x16 slot); 1 x PCIe 4.0 x4 (Chipset); compatible with graphics or NVMe SSD in certain slots. |
| Storage Interface | CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2; Chipset: 2 x M.2 PCIe 4.0 x4/x2; 8 x SATA 6Gb/s (4 via Chipset + ASMedia® ASM1164); RAID support for NVMe and SATA devices. |
| USB Ports | Thunderbolt™ 5 Controller: 2 x Thunderbolt™ 5 (USB Type-C®) on back; Chipset: 1 x USB4® Type-C®, 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A (red), 2 x USB 3.2 Gen 1, additional internal USB headers for USB 3.2 Gen 1, Gen 2, and USB 2.0. |
| Internal I/O Connectors | 24-pin ATX, 2 x 8-pin ATX 12V, CPU and system fan headers, RGB and addressable LED headers, USB 3.2 and USB 2.0 headers, power/reset buttons, TPM header, noise detection header, M.2 slots, SATA connectors, Thunderbolt™ 4 (USB4® Type-C®) port. |
| Back Panel Connectors | 1 x DisplayPort In, 1 x HDMI, 2 x audio jacks, 2 x Thunderbolt™ 5 (USB Type-C®), 2 x USB 3.2 Gen 1, 6 x USB 3.2 Gen 2 Type-A (red), 2 x antenna connectors, 2 x RJ-45. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control, noise detection. |
| BIOS | AMI UEFI BIOS, 256 Mbit flash, supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) support, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Windows 11 64-bit supported |
| Form Factor | E-ATX, 30.5 cm x 28.5 cm |
