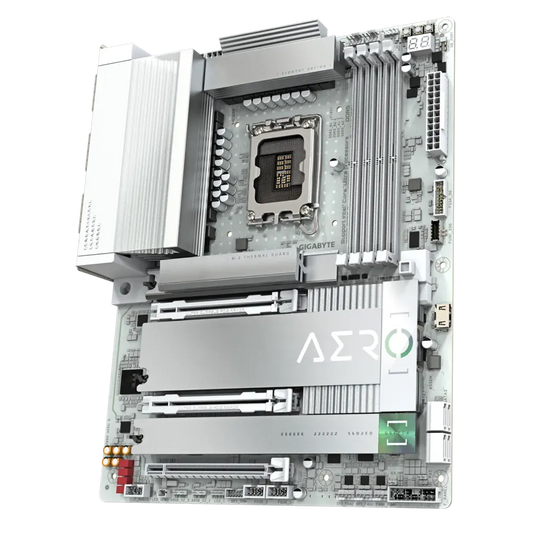

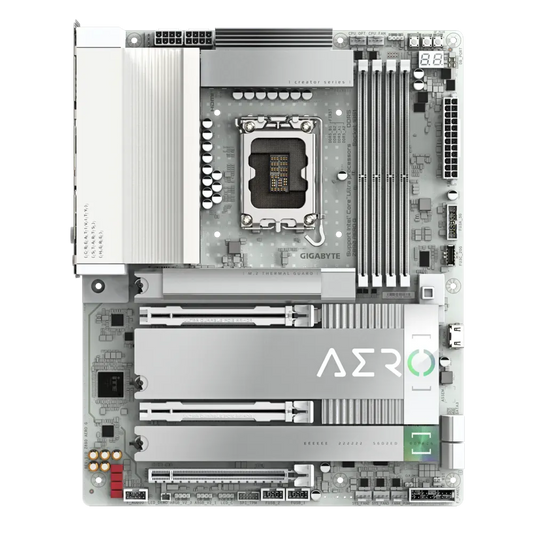

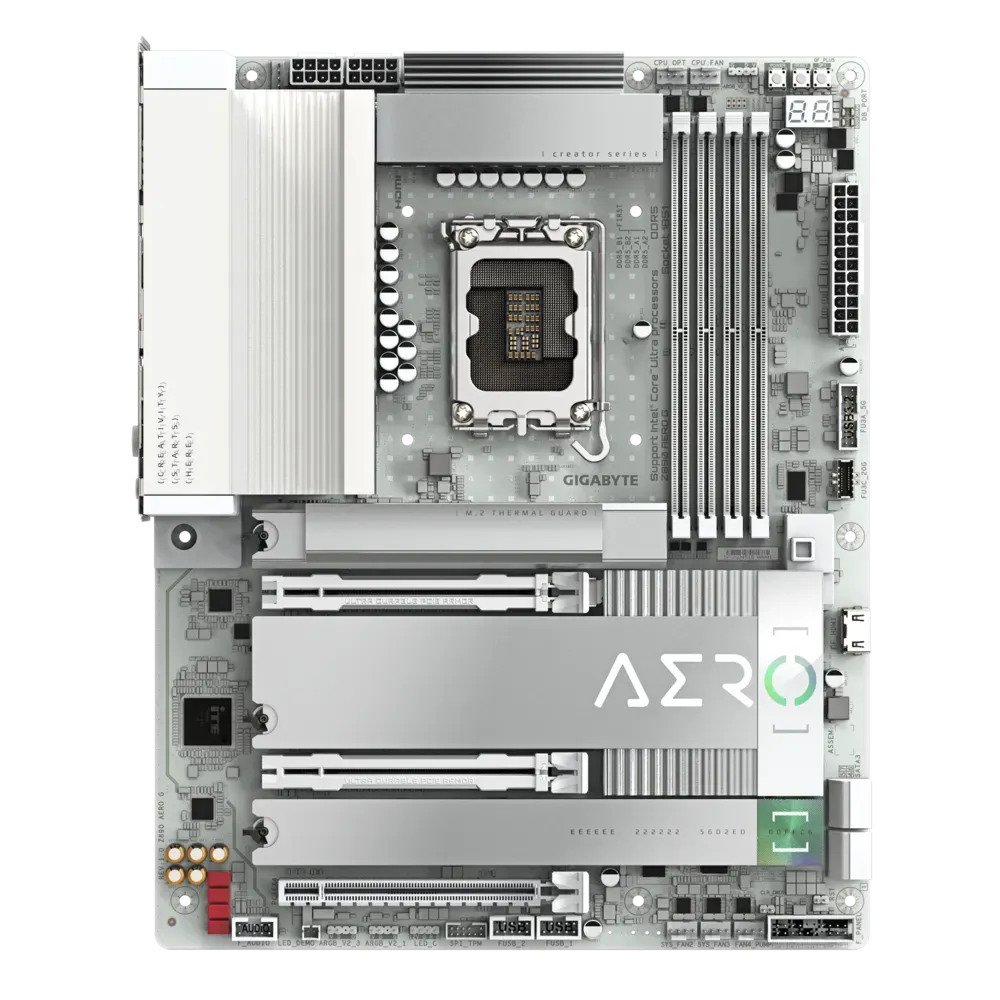

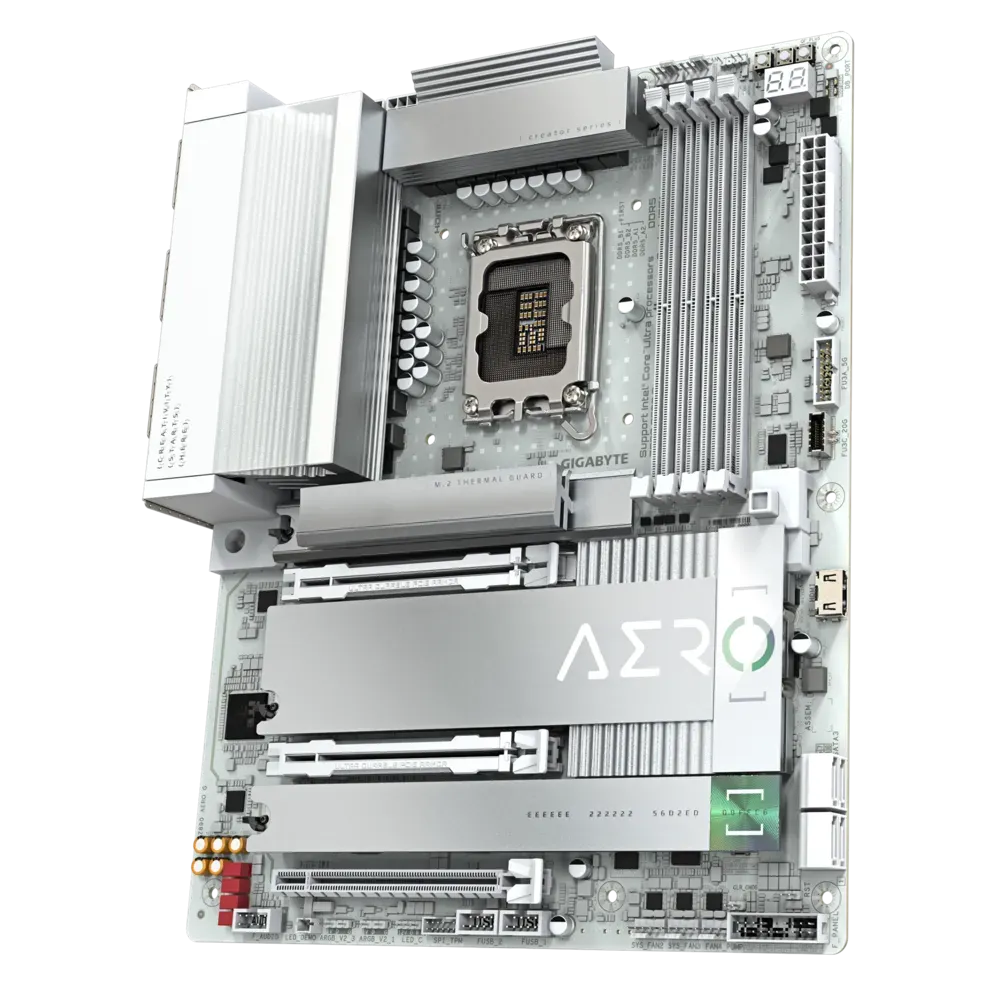

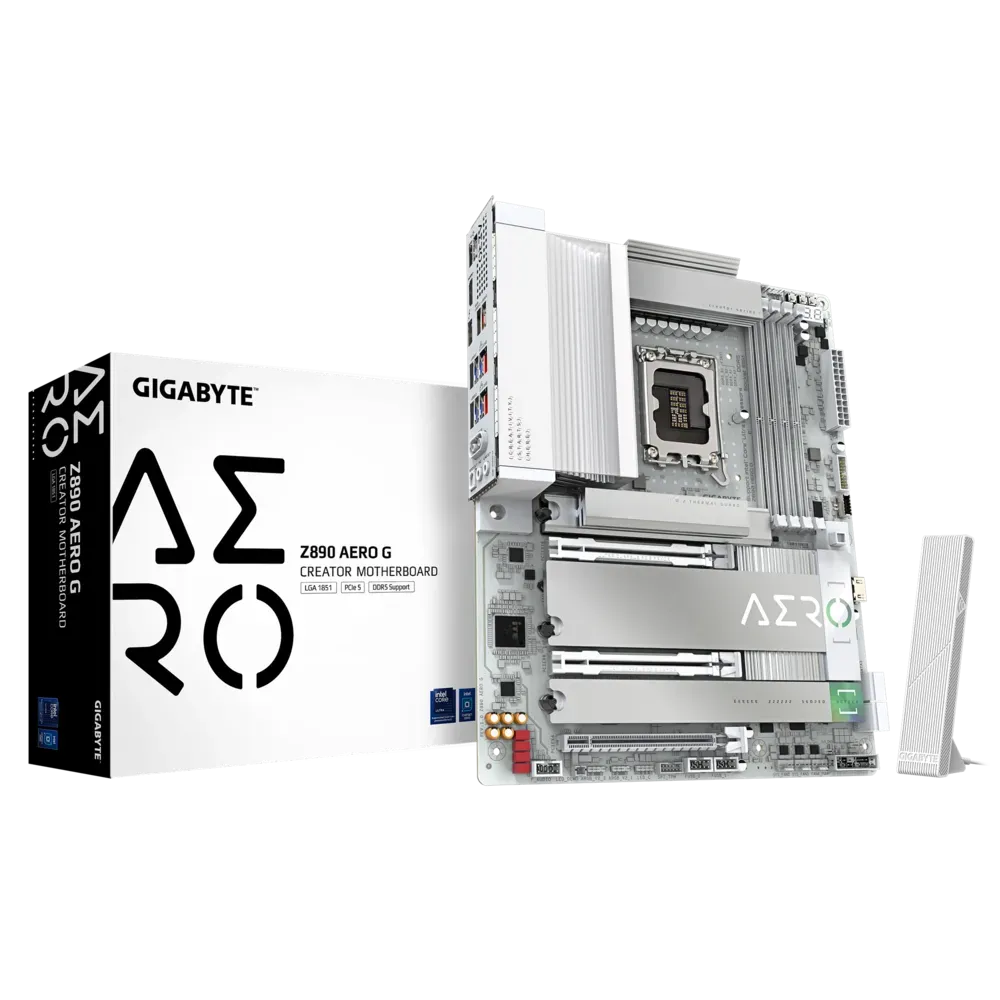

GIGABYTE Z890 AERO G DDR5 Intel Motherboard

GIGABYTE Z890 AERO G DDR5 Intel Motherboard ( White )

Rs. 35,700.00 Rs. 42,548.00

Discount: Rs. 6,848.00 (17%)

46 people are viewing this right now

Hurry Up! Only 2 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 17 December,2024 - 21 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of GIGABYTE Z890 AERO G DDR5 Intel Motherboard

Supports Intel® Core™ Ultra processors (Series 2)
VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI
Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4
Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna
Digital twin 16+1+2 phases VRM solution
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability

CREATIVITY STARTS HERE

Gigabyte AERO series motherboards present an innovative design for content creators to handle demanding creative tasks like 3D rendering and long-form video editing.
．Superior Connectivity
．Expandable Graphics
．Ultra-fast Storage

16*+1+2 Twin Digital VRM Design

80A Smart Power Stage
2X Copper PCB
Premium Choke and Capacitor

* 8+8 Phases parallel power design

Intel® Core Ultra
processors (Series 2) Support

UD Power connector

24 pin ATX Power Connector

8+8 pin CPU with UD Solid Pin

4 x DIMMs, Dual Channel DDR5

5 x M.2 Slots

1 x PCIe 5.0 M.2 Slot

4 x PCIe 4.0 M.2 Slots

VisionLink/ TB

Simplify Your Connections.
Connected to GIGABYTE VisionLINK/ TB port, you can transfer data, video and power charging via a single USB Type-C® cable.

VisionLINK TB, Your Thunderbolt™ 4

GIGABYTE VisionLINK TB is based on Thunderbolt™ 4, delivers 40Gb/s high-bandwidth speeds, data, video, 60W power, and USB4™ compliance devices with the simplicity of just one cable to make your work better than ever.

DisplayPort™ Alternate Mode with USB Power Delivery

VisionLink/ TB comes with data transfer capabilities, DisplayPort Alternate Mode for video, and 60W of power for device charging.

USB Power Delivery

With the design of USB Power Delivery(PD) Profile 4 and goes up to 60W specific. It is a specification for handling higher power and allows a range of devices to fast charge over a USB connection.

DisplayPort™ Alternate Mode

Alternate mode is the feature in USB Type-C® allowing for standard USB Type-C® connectors to carry both USB signal and non USB data like video signal.

DisplayPort™ Alternate Mode with USB Power Delivery.

VisionLink/ TB comes with data transfer capabilities, DisplayPort Alternate Mode for video, and 60W of power for device charging.

AI SNATCH Engine

The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimizing performance. This model serves as the core of AORUS AI Snatch software.

OC to 20% higher speed

OC Efficiency UP

No more try and error

Optimal performance-stability balance.

AI-Driven PCB Technology
-Redefining PCB Design with Artificial Intelligence

AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

AI-ViaFusion™ Technology – AI-Powered Excellence in Signal Integrity

Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.

Best-in-class Signal Quality

Superior signal transmission efficiency

Dramatically reduced signal reflection

Elevated signal quality and reliability

Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology – AI-Engineered Via Design Formula

AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.

Optimized Via DesignVaried via sizes for optimized signal and power paths

Driven Pad OptimizationCustom pad sizes for performance and production balance

Precision Impedance MatchingVia & pad sizes selected for optimal signal impedance

Unlock AI-Powered Performance with AI-ViaFusion Technology

Minimized Insertion LossOptimized vias reduce signal loss

Enhanced Return LossPrecision impedance matching reduces reflections

Optimized Eye DiagramWider eye opening improves signal integrity

*Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.

HyperTune BIOS – Advanced MRC Optimization

Memory Reference Code (MRC) is a critical component in BIOS that initializes and configures system memory. HyperTune BIOS leverages AI to optimize MRC, pushing memory performance to new heights while maintaining system stability.

Benefits of HyperTune BIOS MRC Optimization

Boosted memory clock speeds

Faster system response

Improved stability under load

Auto-adapts to memory modules

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

VCORE Phases SPS 80A

Unlock the full power of your multi-core CPU for unmatched performance.

*8+8 phases parallel power design

VCCGT Phase DrMOS 40A

Optimized for integrated GPU performance and memory management within the CPU.

VCCSA Phases SPS 80A

Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling

Comprehensive Thermal

AERO motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

Ultra Durable™

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. AERO series motherboards are engineered to endure and excel.

PCIe UD Slot X

The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.

10X load-bearing capacity

integrated, single-piece design anchored to a exclusive backplate

Inner Lining Rubber Strip

Safeguards your graphics card’s PCB against potential damage

Zinc Alloy

Provides effective EMI shielding for high-frequency signals

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Ultra Durable PCIe Armor

Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.

Tailored Computing

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specifications of GIGABYTE Z890 AERO G DDR5 Intel Motherboard

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	2 x Intel® 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	Intel® Wi-Fi 7 BE202 (BE200NGW M) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel Support up to 40Gbps with Thunderbolt devices Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU.

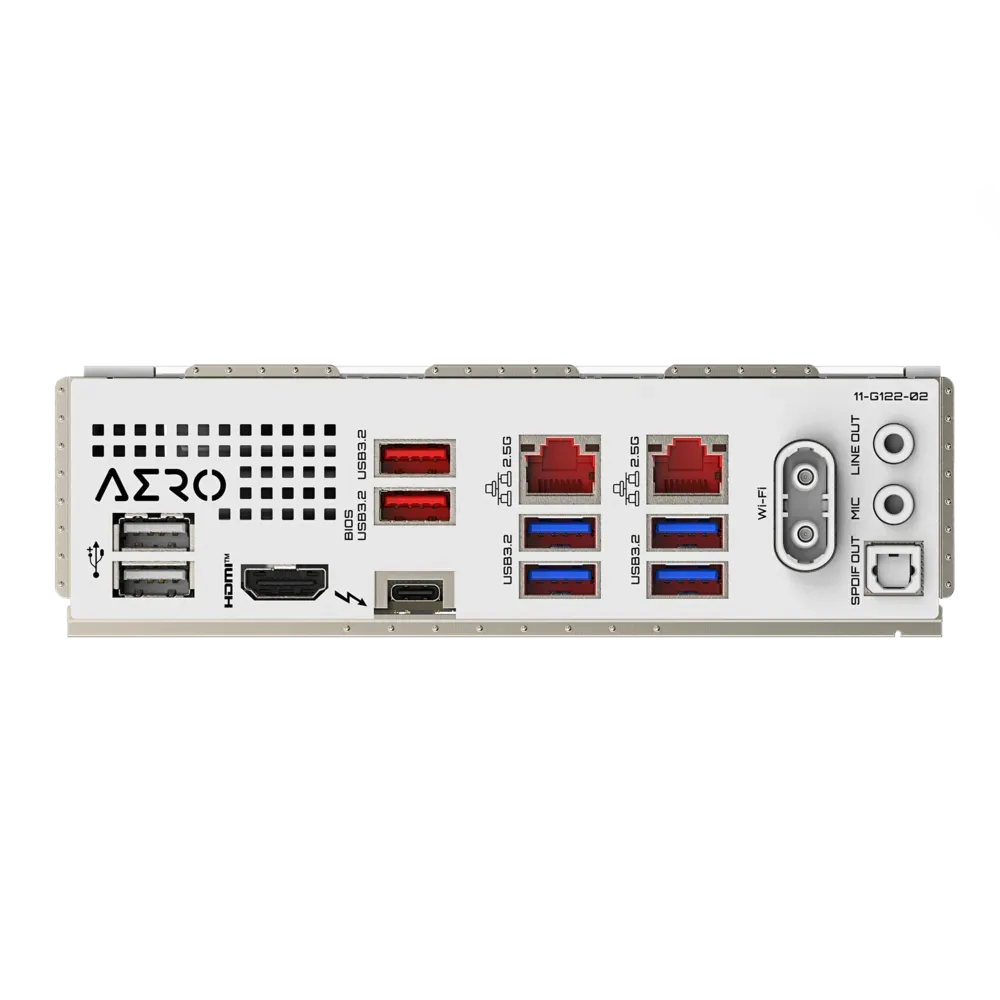

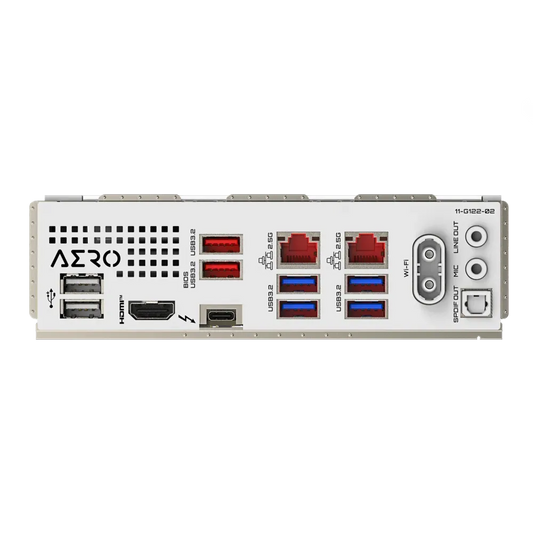

Back Panel Ports	2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x RJ-45 ports 4 x USB 3.2 Gen 1 ports 2 x SMA antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Feature	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
