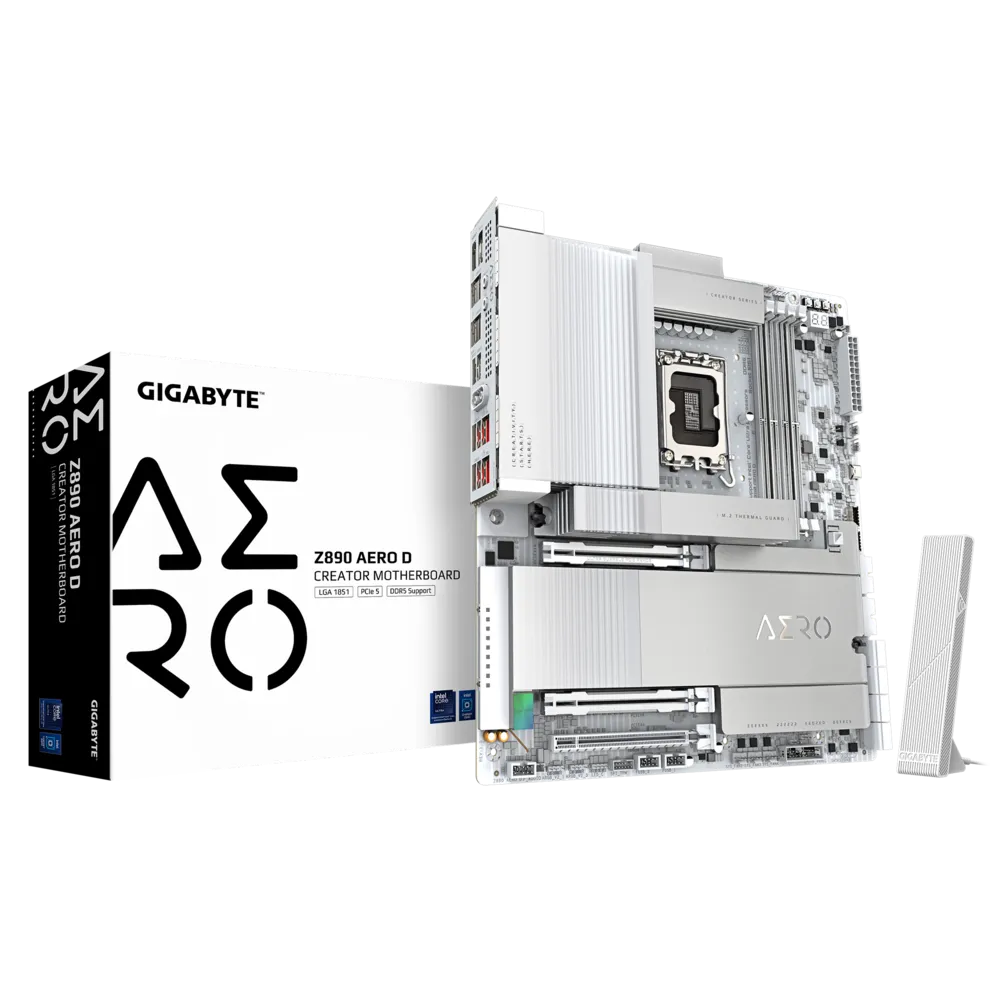

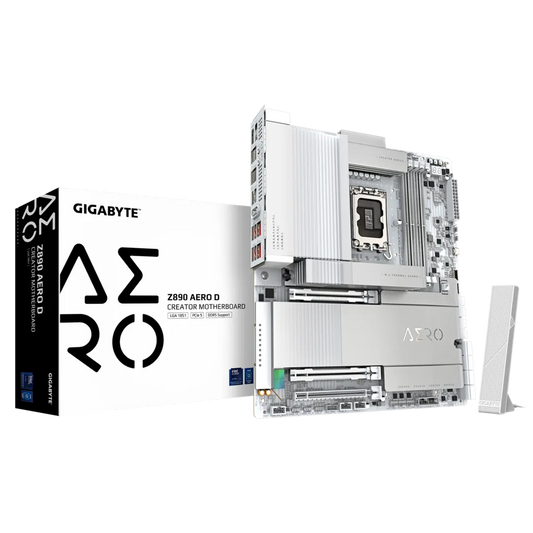

- GIGABYTE Z890 Aero D DDR5 Intel Motherboard (White)
Description
Features of GIGABYTE Z890 Aero D DDR5 Intel Motherboard (White)
- Supports Intel® Core™ Ultra processors (Series 2)
- VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
- Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
- Extended Connectivity : Dual THUNDERBOLT™ 5 Type-C®with DP-Alt, HDMI
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Blazing Fast Networks : Daul 10 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna
- Digital twin 16+1+2 phases VRM solution
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- ESSential High-Fidelity Audio : ESS9260 DAC
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
CREATIVITY STARTS HERE
AERO series motherboards present an innovative design for content creators to handle demanding creative tasks like 3D rendering and long-form video editing.
- Superior Connectivity
- Expandable Graphics
- Ultra-fast Storage
VisionLink/ TB
Simplify Your Connections.
Connected to GIGABYTE VisionLINK/ TB port, you can transfer data, video and power charging via a single USB Type-C® cable.
VisionLINK TB, Your Thunderbolt™ 5
GIGABYTE VisionLINK TB is based on Thunderbolt™ 5, delivers 80Gb/s high-bandwidth speeds, data, video, 60W power, and USB4™ compliance devices with the simplicity of just one cable to make your work better than ever.
DisplayPort™ Alternate Mode with USB Power Delivery.
VisionLink/ TB comes with data transfer capabilities, DisplayPort Alternate Mode for video, and 60W of power for device charging.
With the design of USB Power Delivery(PD) Profile 4 and goes up to 60W specific. It is a specification for handling higher power and allows a range of devices to fast charge over a USB connection.
DisplayPort™ Alternate Mode
Alternate mode is the feature in USB Type-C® allowing for standard USB Type-C® connectors to carry both USB signal and non USB data like video signal.
One Port For All.
Video, Data Transfer, Charging
Dual Thunderbolt™ 5, Endless Possibilities
The latest Thunderbolt™ 5 delivers incredible display and data transfer experience for content creators and gamers.
- Boosts bandwidth up to 120 Gbps
- Bidirectional bandwidth up to 80 Gbps
- Dual 8K monitor support
Dual PCIe x 16 slots for Multi-GPU
Dual PCIe 5.0 x16 slots (run x16, x8) to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.
4X M.2 Slots Fast Storage
With four onboard PCIe 5.0/ 4.0 M.2 slots, Z890 AERO D is perfect for creators, enthusiasts, AI operation to RAID multiple NVMe devices for demanding workloads
Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
Dual 10G LAN
The Dual 10G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
up to 10X
faster than Gigabit Ethernet
Immerse in Essential Audio
Deliver you a highly immersive listening experience with strong technical specifications.
Essential USB DAC
ESS 9260 immerses you into your favorite games or any sounding scenario like never before.
• ESS SABRE reference DAC (ESS 9260)
• Hyperstream Dynamic Range (SNR 125dB)
• High-Res music (32bit, 192KHz PCM)
• Super low THD+N (THD+N -112db)
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
Effortlessly Boost Your DDR5 Memory Speed
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
Infinite Memory Performance
AERO motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Better Play AERO Series, steady power keeps your creation smooth.
AI SNATCH Engine
The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimizing performance. This model serves as the core of AORUS AI Snatch software.
- OC to 20% higher speed
- OC Efficiency UP
- No more try and error
- Optimal performance-stability balance.
AI-Driven PCB Technology -Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
- AI-ViaFusion Technology Optimized vias & pads for signal integrity
- AI-Trace Technology Smart routing for peak performance
- AI-Layer Technology Tailored stackups for enhanced functionality
HyperTune BIOS – AI-Driven Advanced BIOS Optimization Technology BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimize MRC and adapt to signals. Z890 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimization
- AI-driven MRC parameter optimization
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE’s AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.
Specifications of GIGABYTE Z890 Aero D DDR5 Intel Motherboard (White)
| CPU |
LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel® Z890 Express Chipset |
| Memory |
Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) Support for up to triple-display at the same time |
| Audio |
ESS ES9260 CODEC (rear panel audio) - High Definition Audio - 2-channel Realtek® ALC897 CODEC (front panel audio) |
| LAN | 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps) |
| Wireless Communication module |
Intel® Wi-Fi 7 BE200 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Expansion Slots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector. |
| Storage Interface |
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) - 4 x SATA 6Gb/s connectors (SATA3 4~7) Chipset+ASMedia® ASM1164 chip: - 4 x SATA 6Gb/s connectors (SATA3 0~3) RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB |
Chipset+Intel® Thunderbolt™ 5 Controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB4® USB Type-C® port onboard - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header |
| Back Panel Connectors |
1 x DisplayPort In port 1 x HDMI port (Note) 2 x audio jacks 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports) 2 x USB 3.2 Gen 1 ports 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x RJ-45 ports (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit (version 24H2 or later) |
| Form Factor | E-ATX Form Factor; 30.5cm x 28.5cm |
| Warranty | 3 Years |
