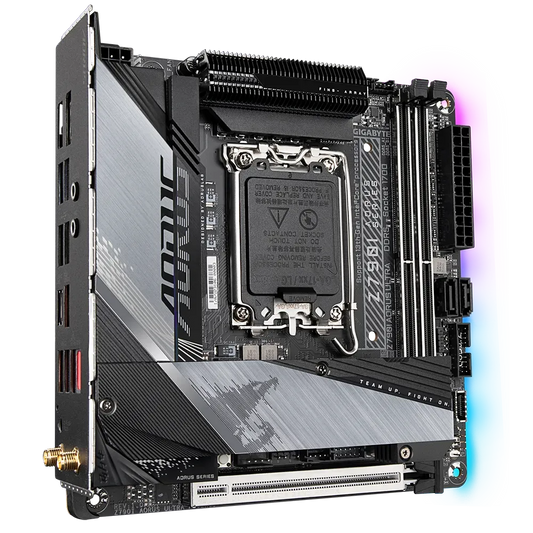

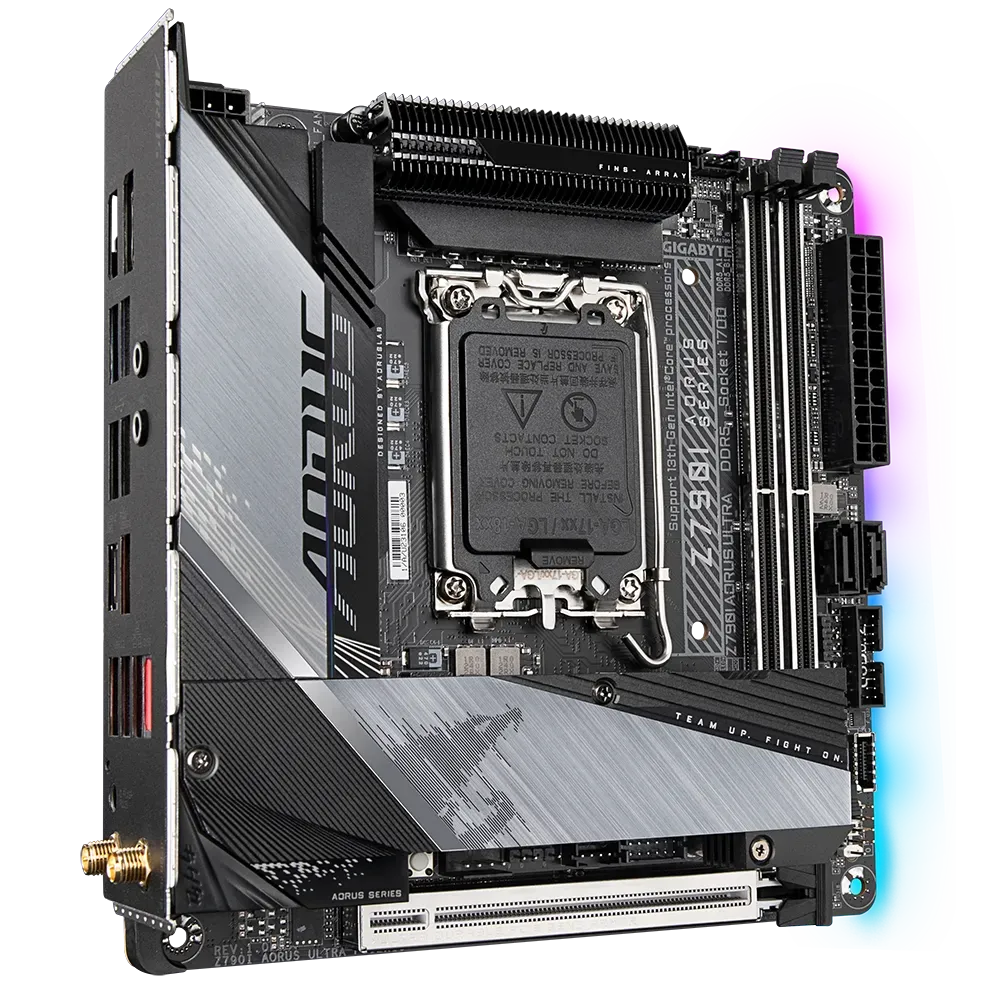

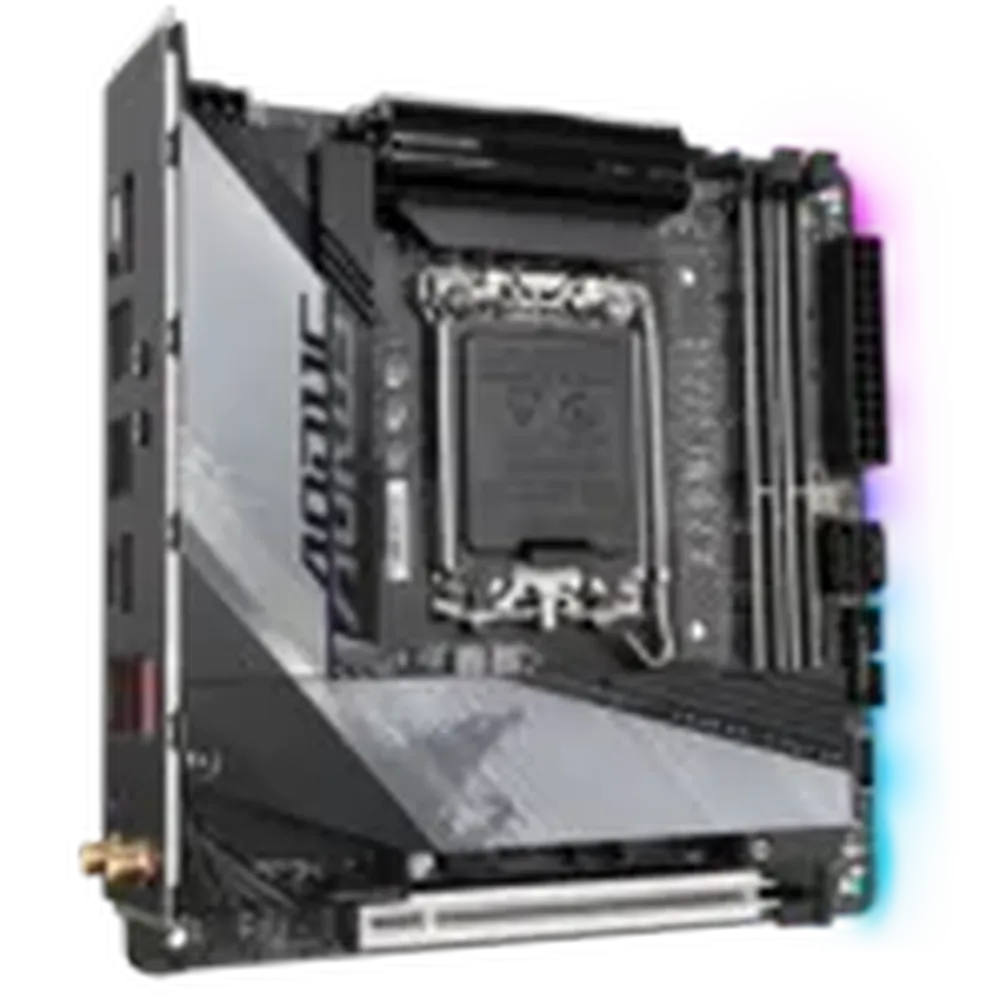

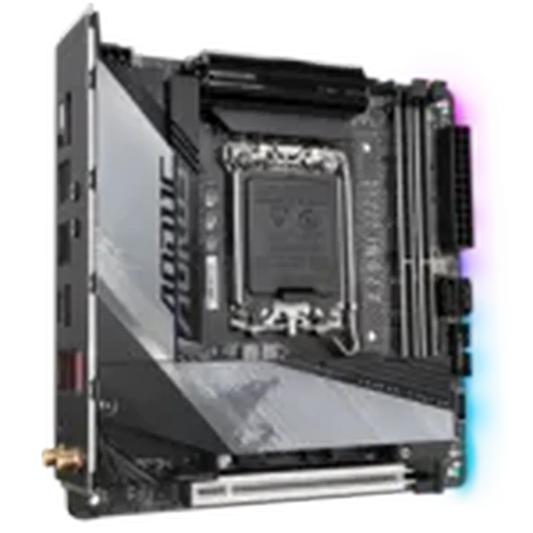

GIGABYTE Z790I Aorus Ultra DDR5 Intel Motherboard

Features of GIGABYTE Z790I Aorus Ultra DDR5 Intel Motherboard

CONNECTIVITY

GIGABYTE Z790I Aorus Ultra Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable

Features

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors​
Unparalleled Performance：Direct 10+1+2 Phases Digital VRM Solution​
Dual Channel DDR5：2*SMD DIMMs with XMP 3.0 Memory Module Support​
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors​
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance​
EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design​
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax​
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s​
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card​

Technical Detail

Brand : Gigabyte
Modal : Z790i

Technical Spec

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

Chipset

Intel® Z790 Express Chipset

Memory

Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
Support for DisplayPort 1.4 version and HDCP 2.3
The DisplayPort does not support HDMI connection by adapter

Audio

Realtek® ALC4080 CODEC
Support for DTS:X® Ultra
High Definition Audio
2-channel

LAN

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Killer™ Wi-Fi 6E AX1690
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

Storage Interface

CPU:1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices

USB

Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x external power connector (Note 1)
1 x CPU fan header
1 x fan/water cooling pump header
2 x system fan headers (SYS_FAN1/SYS_FAN2 (Note 1))
1 x addressable LED strip header (Note 1)
1 x RGB LED strip header
2 x M.2 Socket 3 connectors (M2A_CPU (Note 2)/M2P_SB (Note 1))
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header (Note 1)
1 x reset button (Note 1)
1 x reset jumper
1 x Clear CMOS jumper

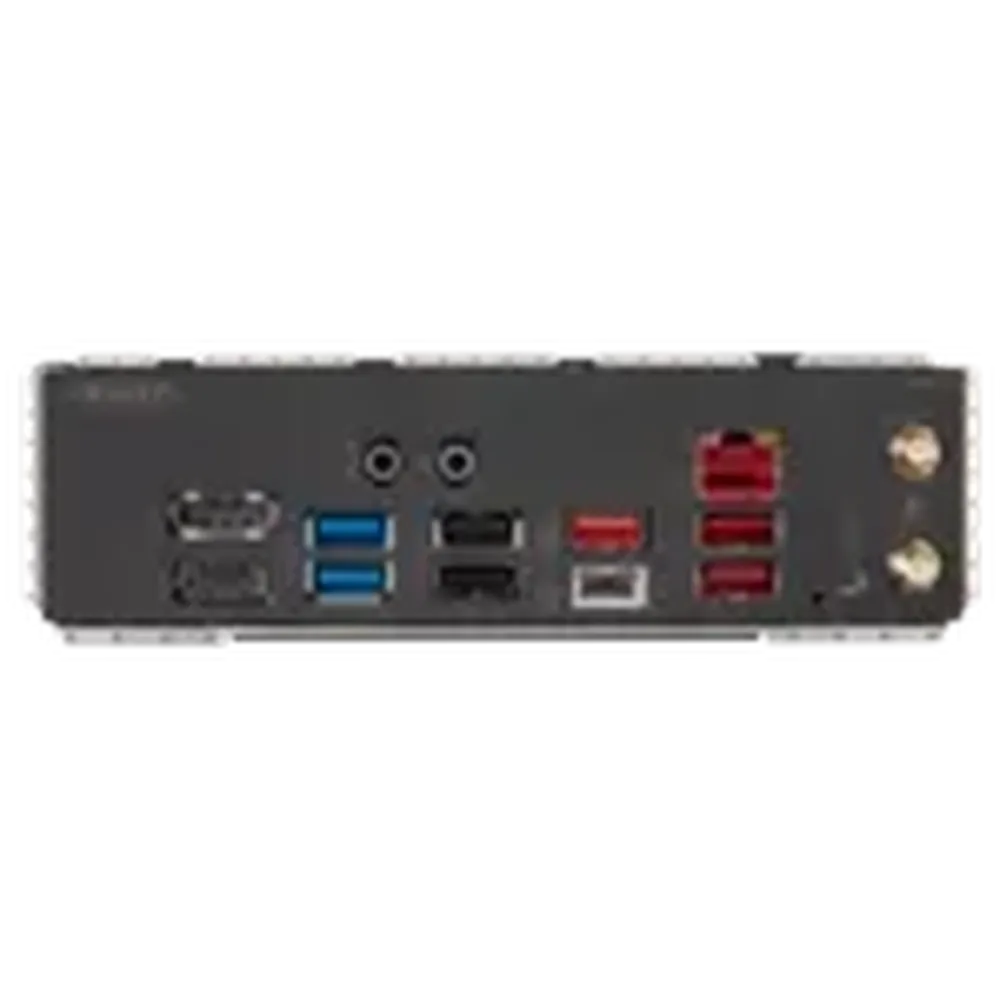

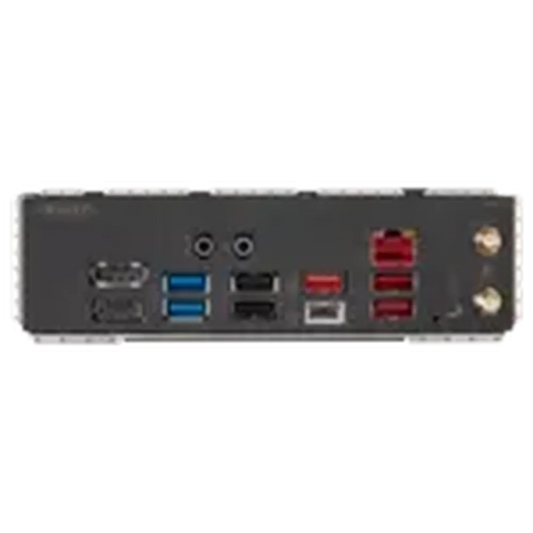

Back Panel Connectors

2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
