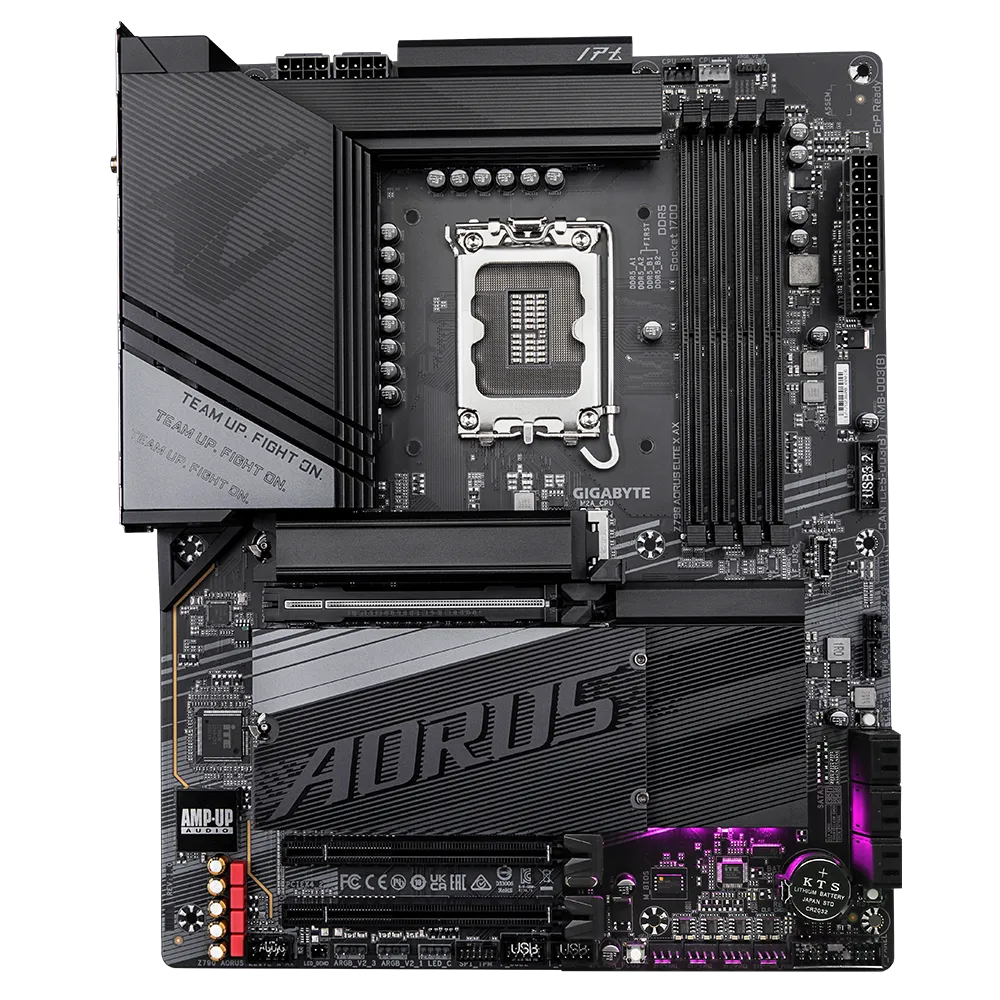

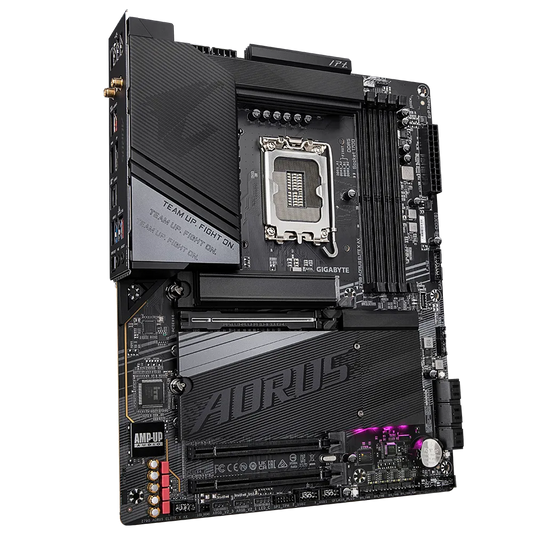

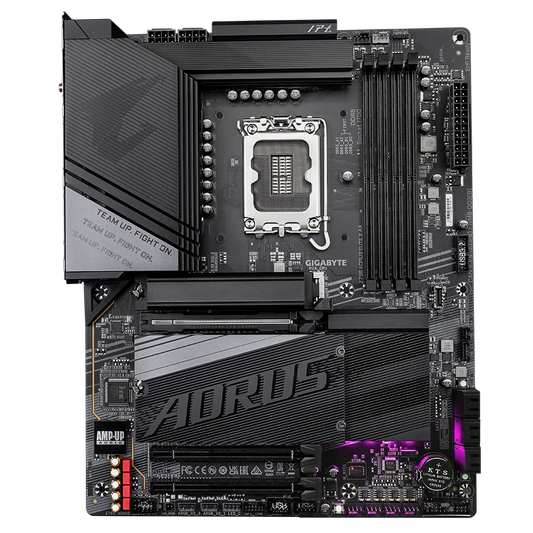

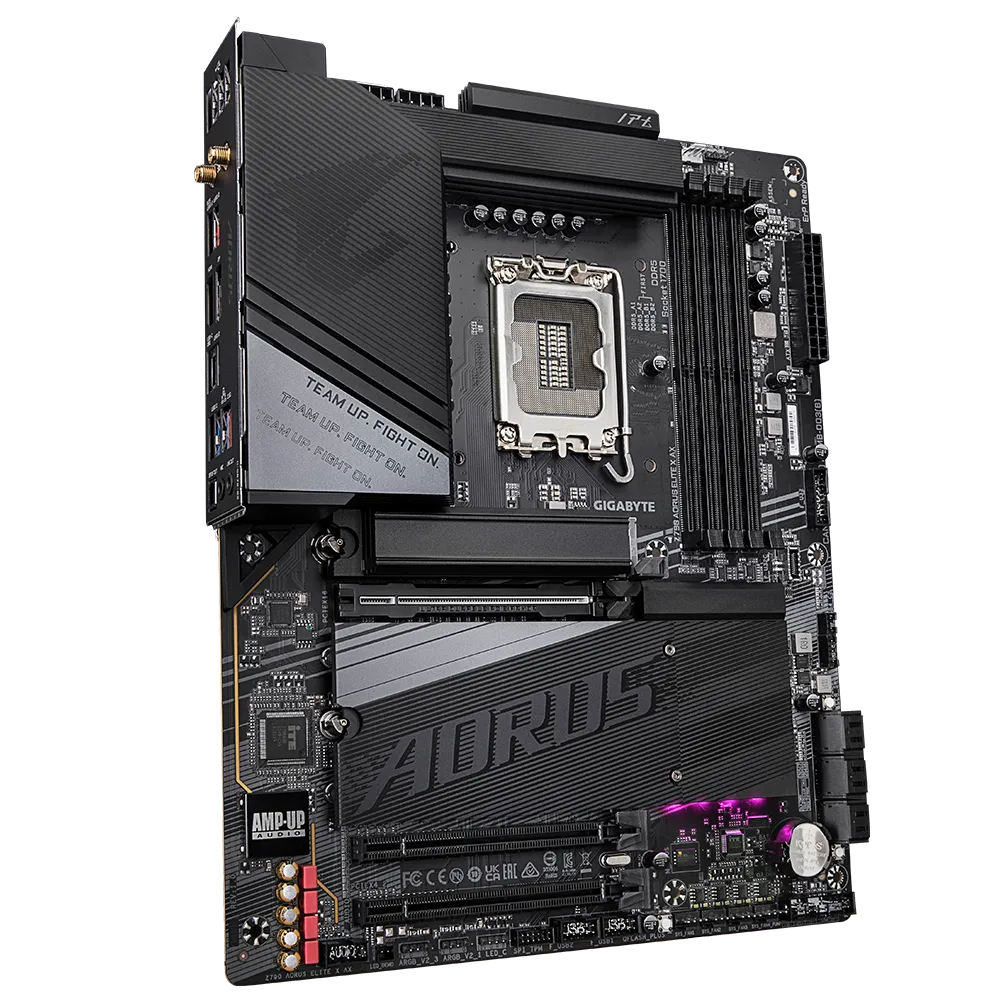

Gigabyte Z790 AORUS ELITE X AX Motherboard
Features
- Supports Intel® Core™ 14th and 13th processors
- Digital twin 16+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
- Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
- Precision Audio：ALC1220 & Audiophile Grade Capacitors
Specifications
| CPU |
| LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
| L3 cache varies with CPU |
| * Please refer to "CPU Support List" for more information. |
| Chipset |
| Intel® Z790 Express Chipset |
| Memory |
|
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
|
| 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics |
| Integrated Graphics Processor-Intel® HD Graphics support: |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.0 version and HDCP 2.3. |
| - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
* Support for DisplayPort 1.2 version and HDCP 2.3
|
| (Graphics specifications may vary depending on CPU support.) |
| Audio |
| Realtek® ALC1220-VB CODEC |
| * The back panel line out jack supports DSD audio. |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
| Support for S/PDIF Out |
| LAN |
|
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
|
Wireless Communication module
|
|
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
| - BLUETOOTH 5.3 |
|
- Support for 11ax 160MHz wireless standard
|
|
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
| - BLUETOOTH 5.3 |
|
- Support for 11ax 160MHz wireless standard
|
|
(Actual data rate may vary depending on environment and equipment.)
|
| Expansion Slots |
| CPU: |
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
|
|
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
|
| Chipset: |
|
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
|
| Storage Interface |
| CPU: |
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
|
| Chipset: |
|
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
|
| - 6 x SATA 6Gb/s connectors |
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
|
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
|
| USB |
| Chipset: |
|
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
|
|
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
|
| internal USB header |
|
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
|
|
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
|
|
through the internal USB header)
|
| Chipset+2 USB 2.0 Hubs: |
|
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
|
| the internal USB headers) |
| Internal I/O Connectors |
|
1 x 24-pin ATX main power connector
|
|
2 x 8-pin ATX 12V power connectors
|
| 1 x CPU fan header |
|
1 x CPU fan/water cooling pump header
|
| 3 x system fan headers |
|
1 x system fan/water cooling pump header
|
|
3 x addressable RGB Gen2 LED strip headers
|
| 1 x RGB LED strip header |
| 4 x M.2 Socket 3 connectors |
| 6 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
|
1 x USB Type-C® header, with USB 3.2 Gen 2 support
|
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
|
2 x Thunderbolt™ add-in card connectors
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
|
| 1 x reset button |
| 1 x Q-Flash Plus button |
| 1 x Clear CMOS button |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| Back Panel Connectors |
|
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
|
|
2 x USB 3.2 Gen 2 Type-A ports (red)
|
| 3 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
|

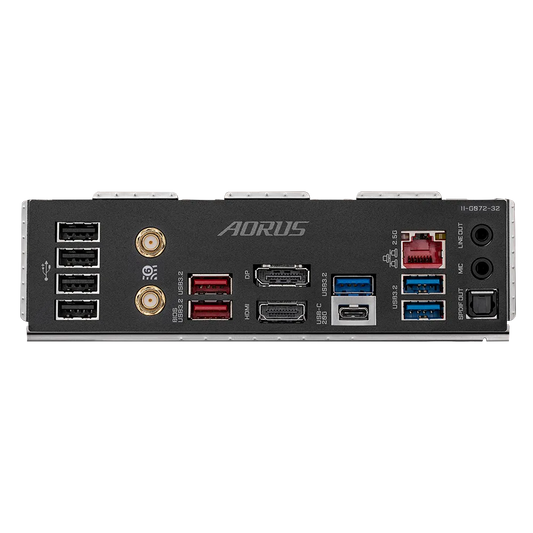

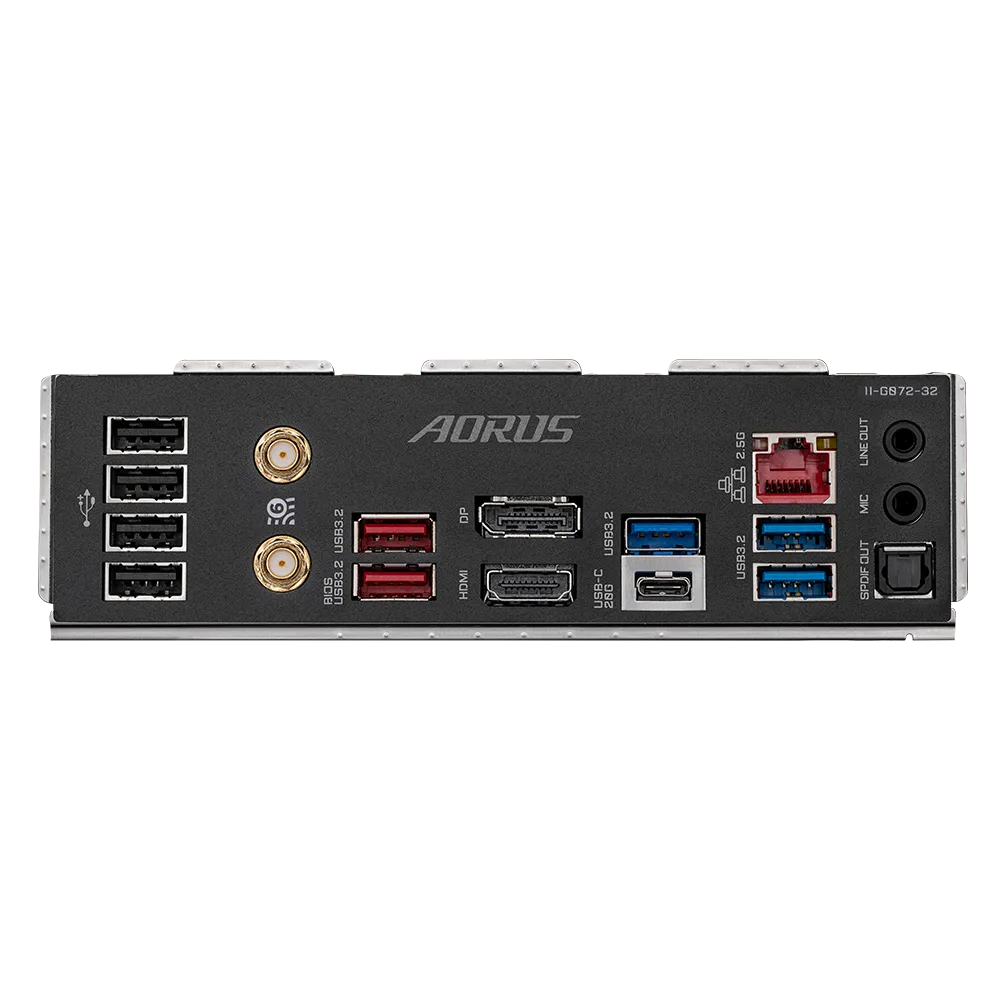

2 x SMA antenna connectors (2T2R) jk
|
| 1 x HDMI port |
| 1 x DisplayPort |
| 1 x RJ-45 port |
|
1 x optical S/PDIF Out connector
|
| 2 x audio jacks |
| I/O Controller |
| iTE® I/O Controller Chip |
| H/W Monitoring |
| Voltage detection |
| Temperature detection |
| Fan speed detection |
|
Water cooling flow rate detection
|
| Fan fail warning |
| Fan speed control |
|
* Whether the fan (pump) speed control function is supported will depend on the fan
|
| (pump) you install. |
| BIOS |
| 1 x 256 Mbit flash |
|
Use of licensed AMI UEFI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
|
Support for GIGABYTE Control Center (GCC)
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
| Support for Q-Flash |
| Support for Q-Flash Plus |
| Support for Smart Backup |
| Bundled Software |
|
Norton® Internet Security (OEM version)
|
|
LAN bandwidth management software
|
| Operating System |
|
Support for Windows 11 64-bit
|
|
Support for Windows 10 64-bit
|
| Form Factor |
|
ATX Form Factor; 30.5cm x 24.4cm
|
