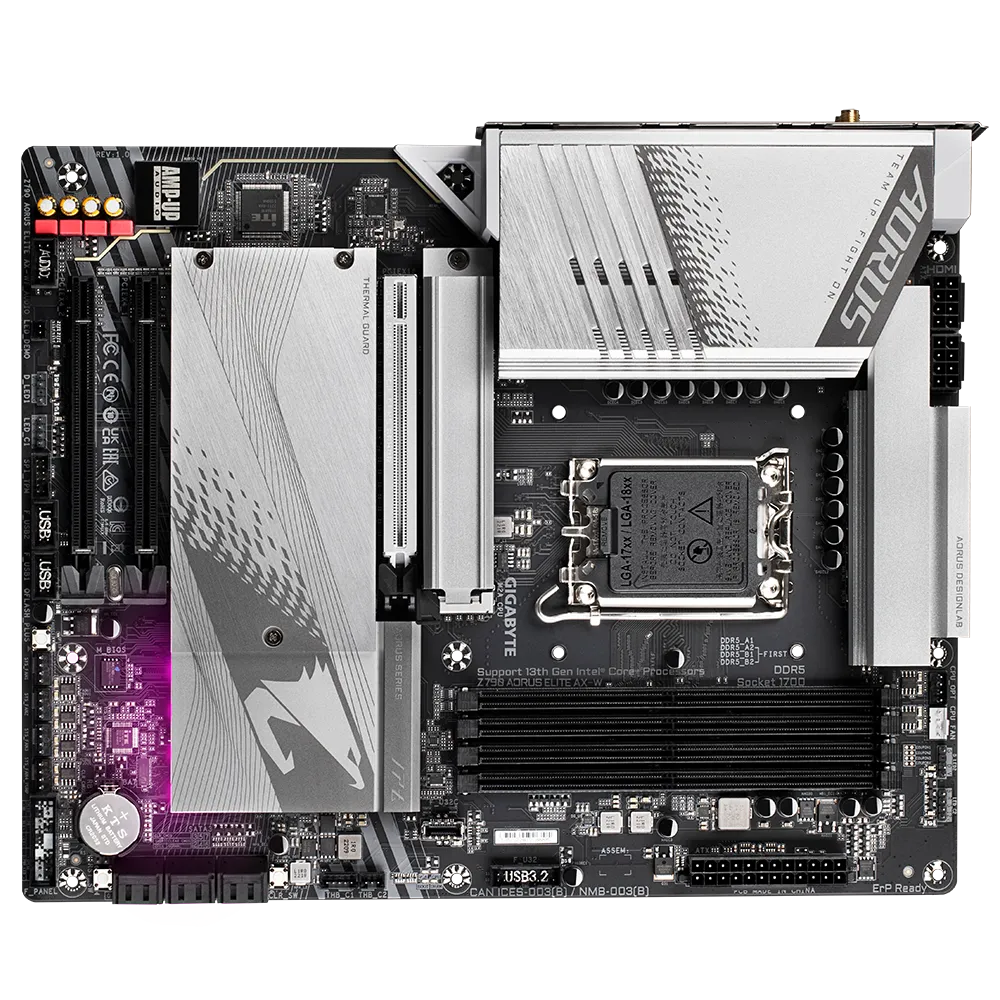

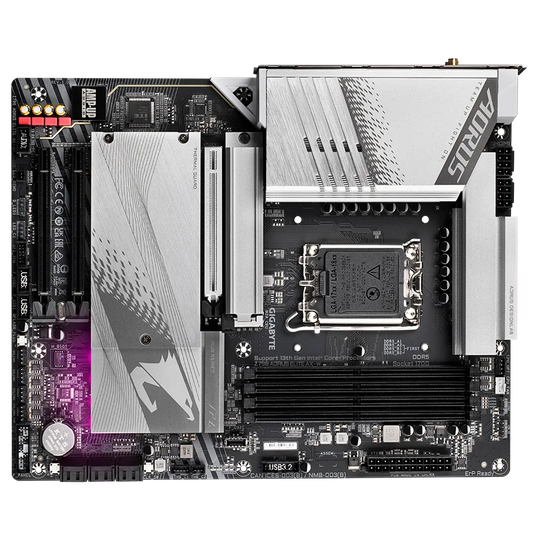

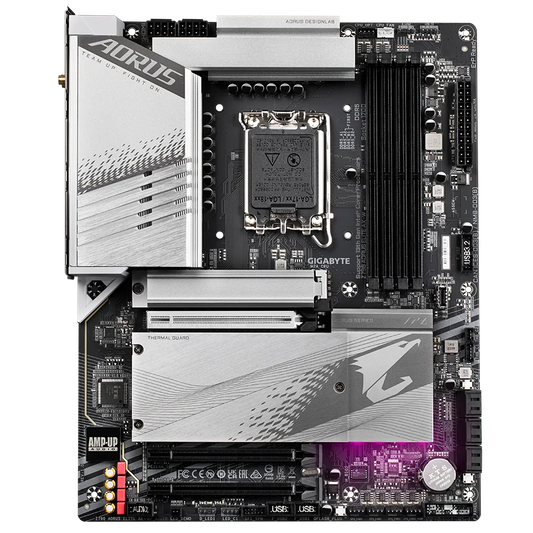

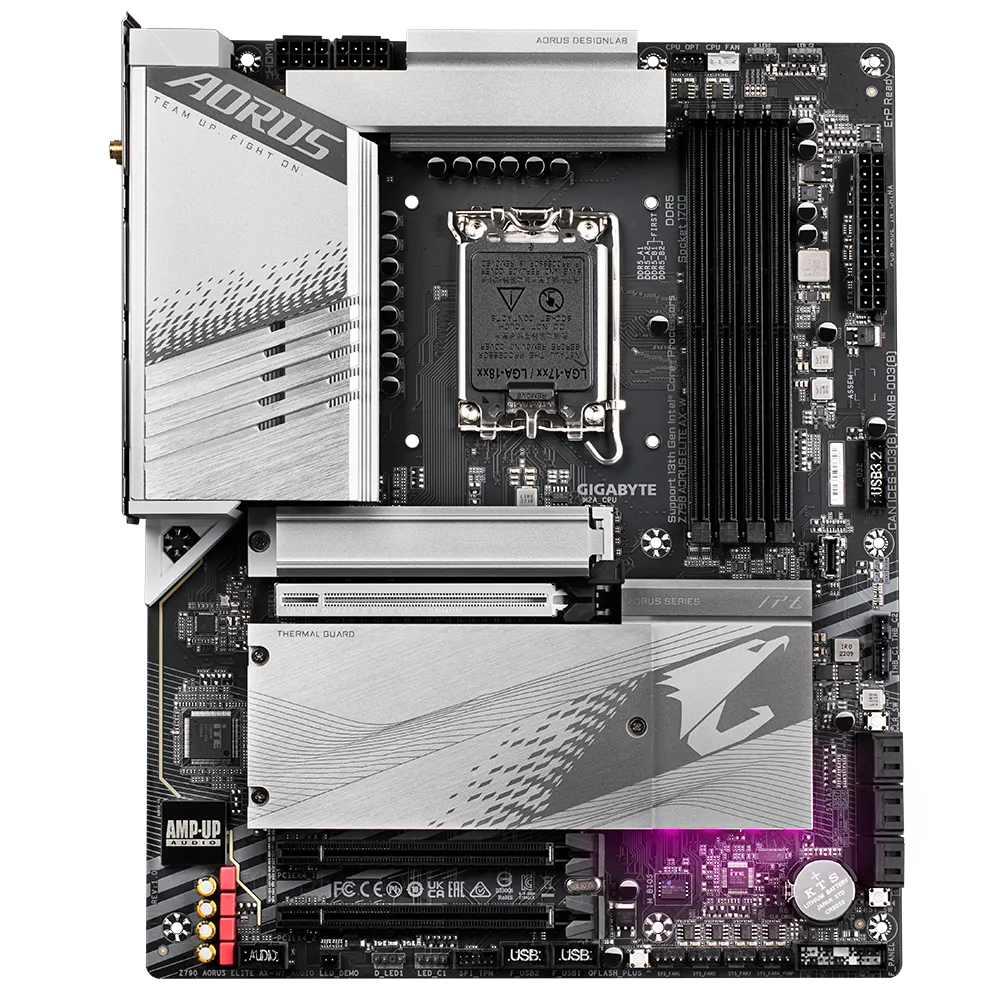

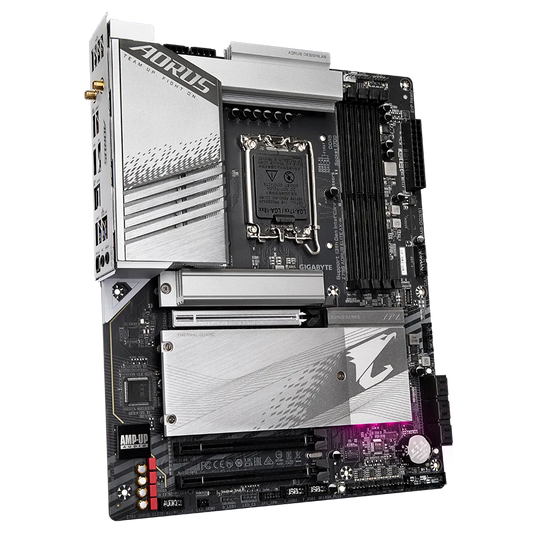

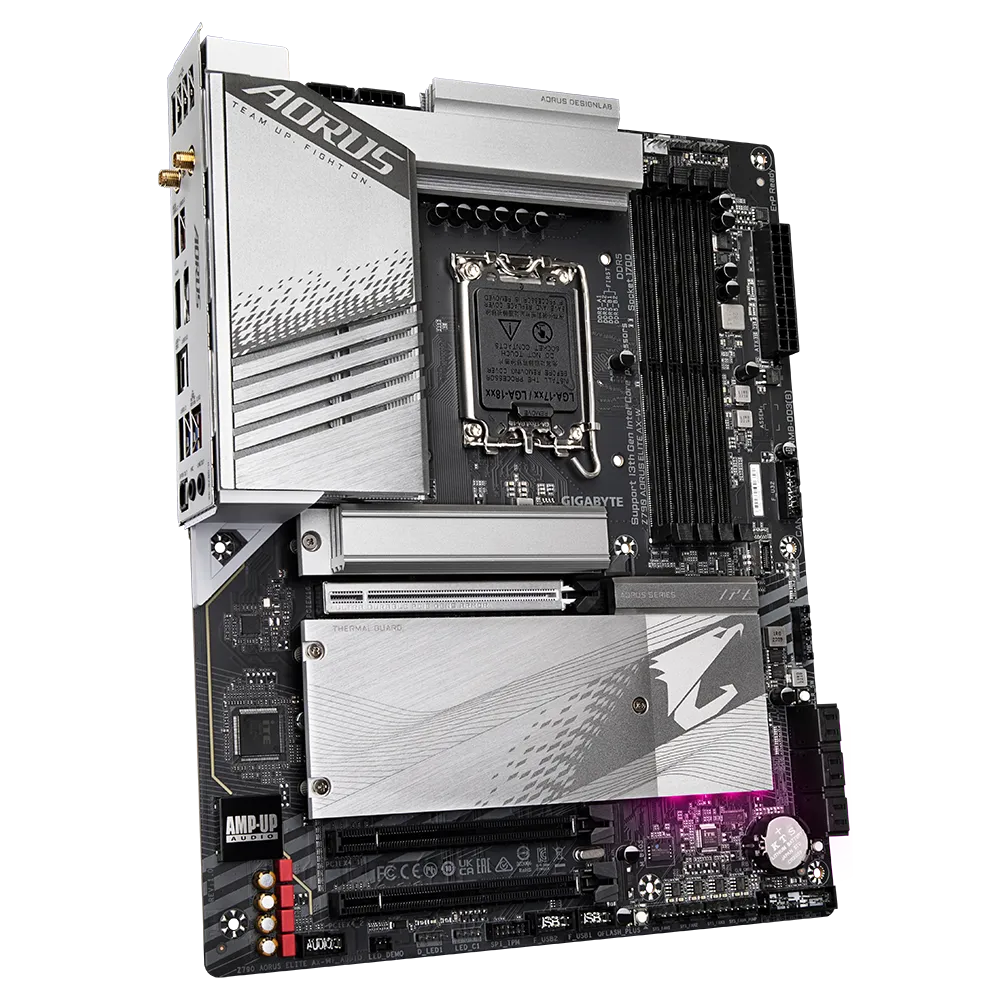

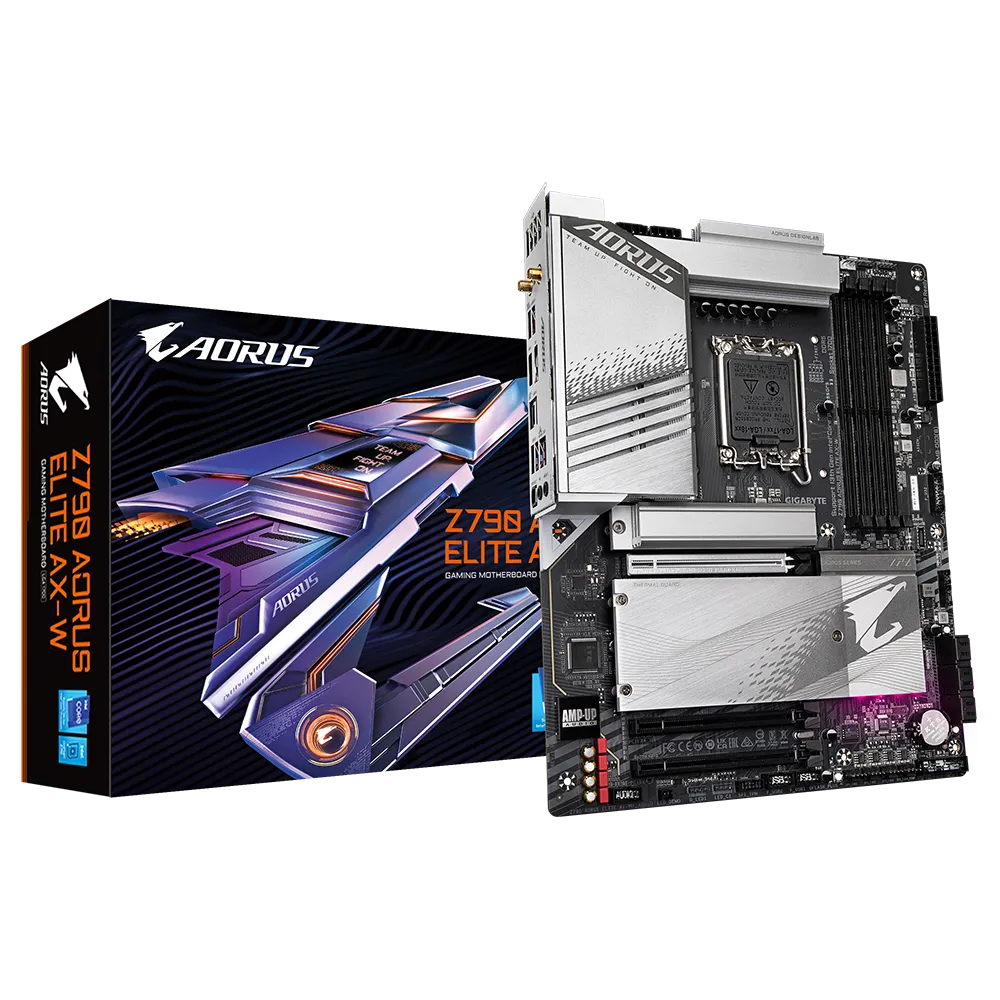

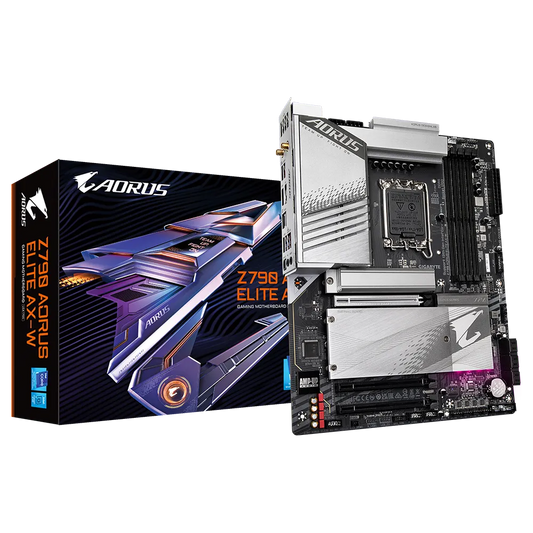

GIGABYTE Z790 AORUS ELITE AX-W DDR5 Intel Motherboard

GIGABYTE Z790 AORUS ELITE AX-W DDR5 Intel Motherboard

Rs. 28,999.00 Rs. 37,999.00

Discount: Rs. 9,000.00 (24%)

42 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 16 December,2024 - 20 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of GIGABYTE Z790 AORUS ELITE AX-W DDR5 Intel

GIGABYTE Z790 AORUS ELITE AX-W Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Twin 16*+1+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Front USB-C^® 10Gb/s, Rear USB-C^® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Performance

Twin Digital VRM design leverages 16 VCORE phases and 70A Power Stage to ensure electrical throughput that can handle Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 7600 MHz for enhanced multitasking and rendering performance.

Power Delivery

The Z790 AORUS ELITE AX-W features a twin 16+1+2 phases digital VRM solution with 70A Smart Power Stages. This ensures that even the most demanding processors can be powered without any problems. The motherboard also has a fully covered MOSFET heatsink and a 6mm heatpipe to ensure that the VRM remains cool under load.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS ELITE AX-W’s fully covered MOSFET heat sink, M.2 Thermal Guard, 6mm heatpipe, 7.5 W/mK Thermal Pad, and 6-layer 2x copper PCB work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Networking

The Z790 AORUS ELITE AX-W features a 2.5GbE LAN port and Wi-Fi 6E with Ultra-high gain antenna. The 2.5GbE LAN port provides up to 2.5x faster speeds than standard Gigabit Ethernet ports. The Ultra-high gain antenna helps to improve signal strength and range.

Front Panel USB-C Connector

The USB 3.2 Gen 2 port has a throughput up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS ELITE AX-W provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor.

Specifications of GIGABYTE Z790 AORUS ELITE AX-W DDR5 Intel

Model
Brand	GIGABYTE
Model	Z790 AORUS ELITE AX-W
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipsets
Chipset	Intel Z790
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
PCI Express 4.0 x16	2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset	Realtek Audio CODEC High Definition Audio
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E AX211 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	Bluetooth 5.3
Rear Panel Ports

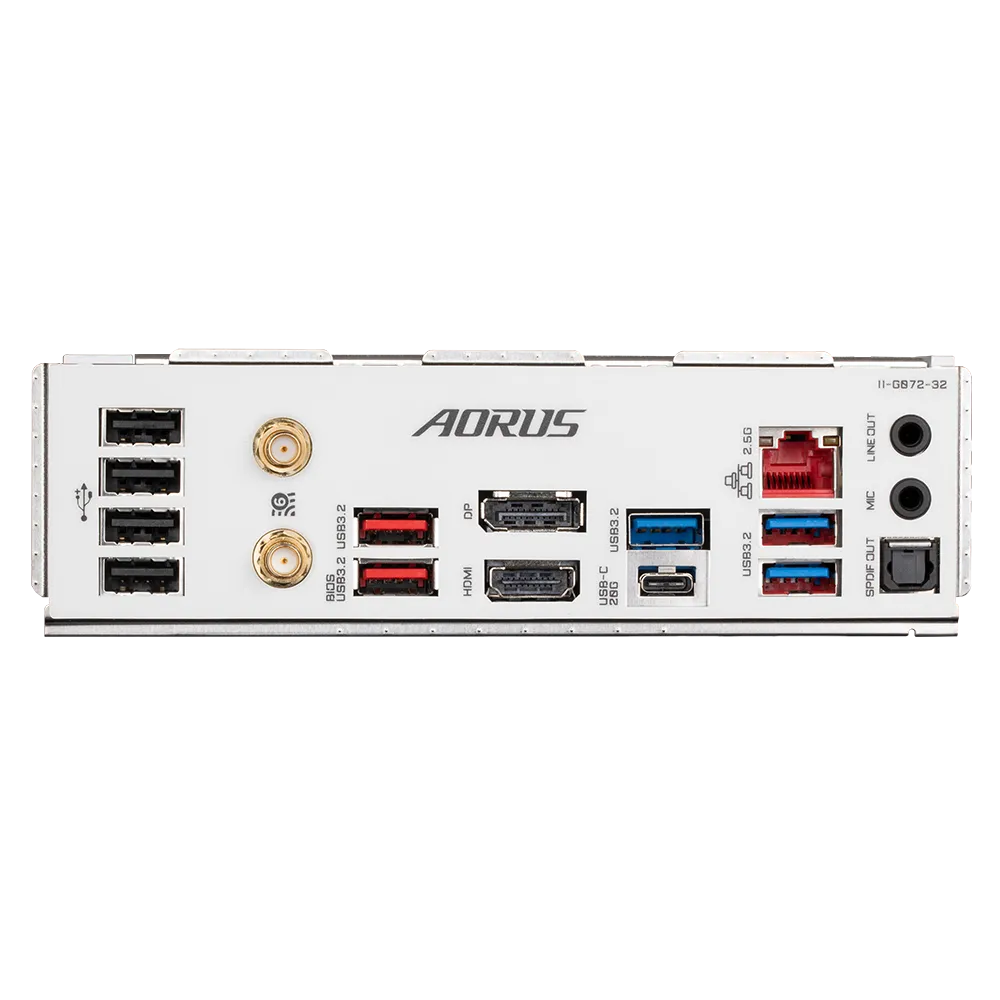

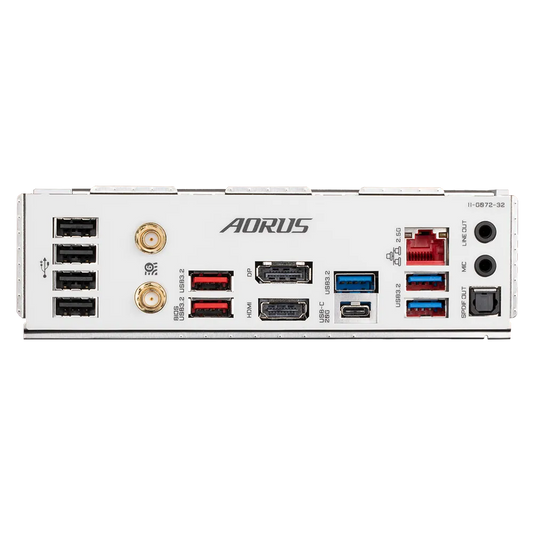

Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11	Supported
