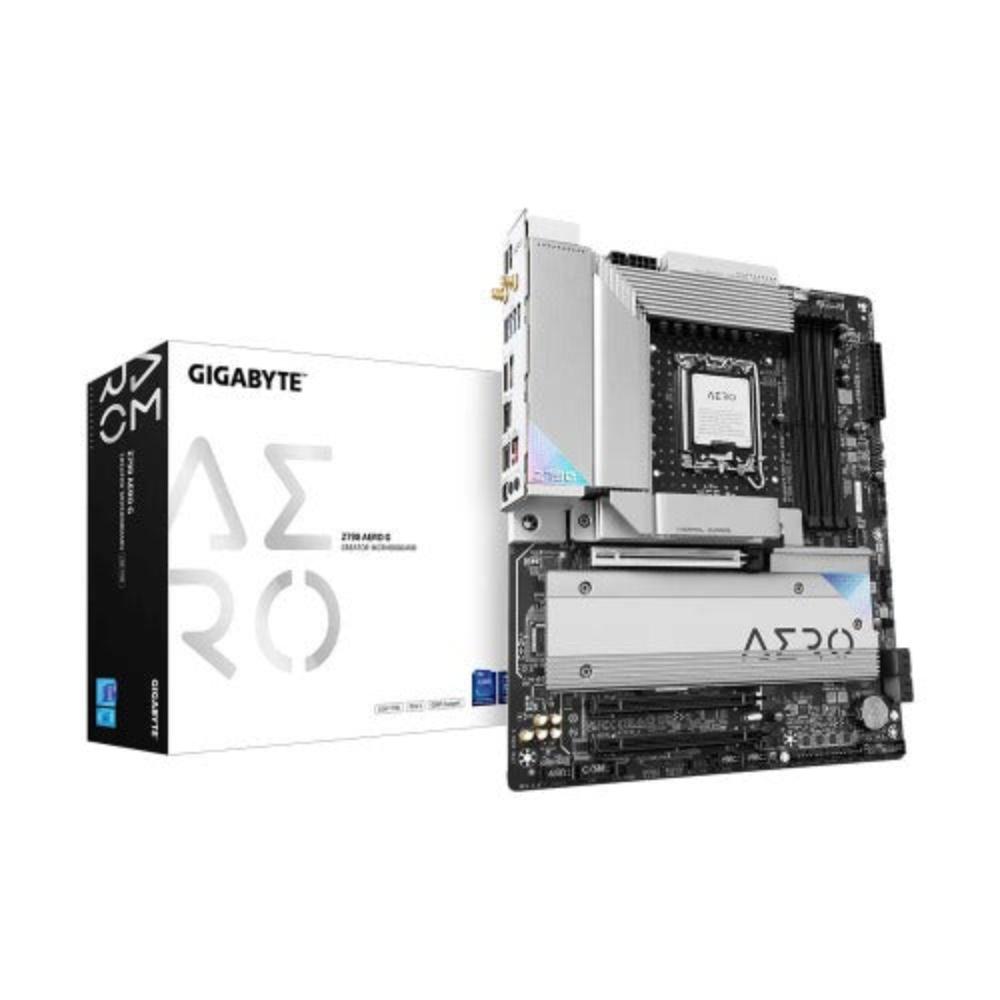

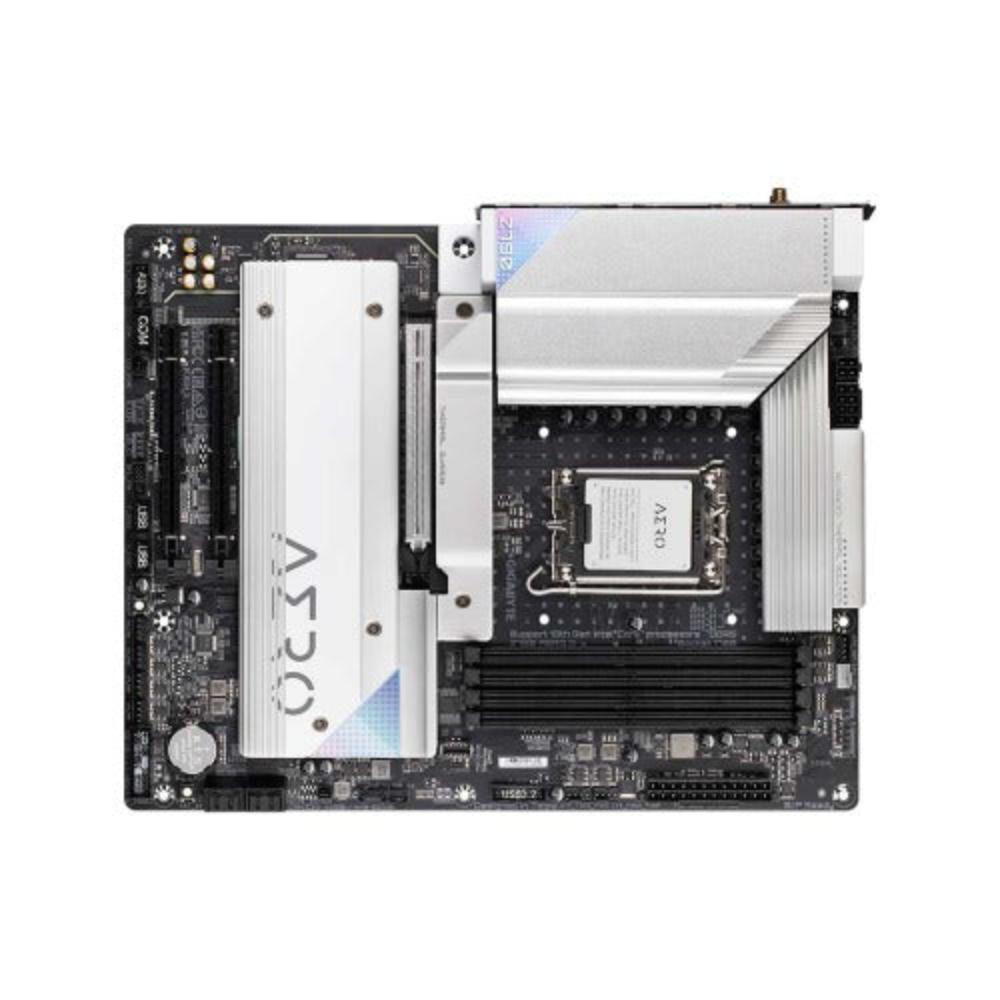

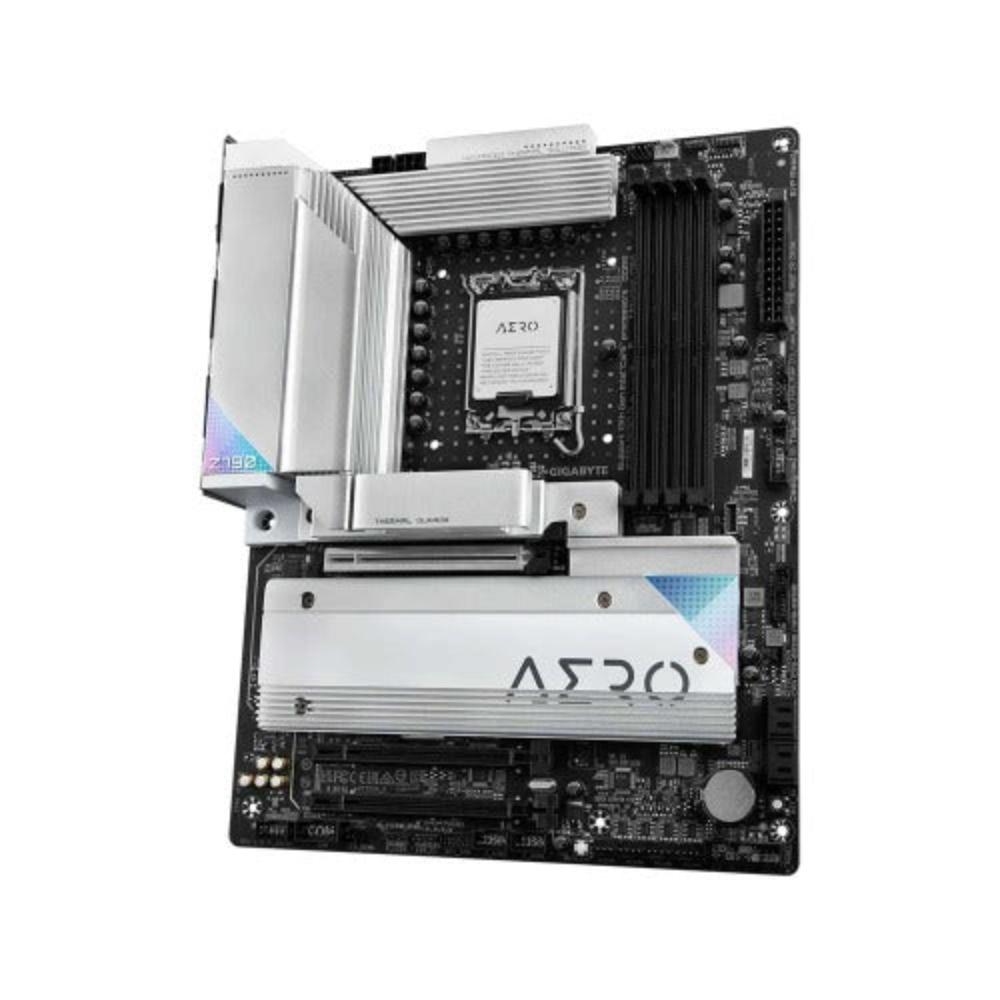

- GIGABYTE Z790 Aero G DDR5 Intel Motherboard
Description
Features of GIGABYTE Z790 Aero G DDR5 Intel Motherboard
Supports 13th and 12th Gen Intel® Core™ Series Processors
VisionLINK :
One USB-C® Port for Video, Data Transfer and Charging
Dual Channel DDR5 :
4*SMD DIMMs with XMP Memory Module Support
Next Generation Storage :
1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III :
To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch Plus:
M.2 Connectors with Quick Release & Screwless Design
Fast Networks :
Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity :
DP IN, HDMI, Front USB-C® 20Gb/s Support
Smart Fan 6 :
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus :
Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications of GIGABYTE Z790 Aero G DDR5 Intel Motherboard
CPU | 1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
2. L3 cache varies with CPU | |
Chipset | Intel® Z790 Express Chipset |
Memory | 1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
3. Dual channel memory architecture | |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
6. Support for Extreme Memory Profile (XMP) memory modules | |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
1. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz | |
* Support for drawing tablets and 20V@3A of power delivery. | |
* Support for DisplayPort 1.4 version and HDR. | |
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.0 version and HDCP 2.3. | |
Audio | 1. Realtek® ALC1220-VB CODEC |
* The back panel line out jack supports DSD audio. | |
2. High Definition Audio | |
3. 2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
4. Support for S/PDIF Out | |
LAN | 1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication Module | Intel® Wi-Fi 6E AX211 |
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
2. BLUETOOTH 5.3 | |
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Expansion Slots | CPU: |
1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
1. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) | |
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) | |
Storage Interface | CPU: |
1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) | |
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
3. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
4. 4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
USB | Chipset: |
1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) | |
2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support | |
3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
4. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
5. 2 x USB 2.0/1.1 ports on the back panel | |
Chipset USB 3.2 Gen 1 Hub: | |
1. 4 x USB 3.2 Gen 1 ports on the back panel | |
Chipset USB 2.0 Hub: | |
1. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector | |
3. 1 x 4-pin ATX 12V power connector | |
4. 1 x CPU fan header | |
5. 1 x water cooling CPU fan header | |
6. 4 x system fan headers | |
7. 2 x system fan/water cooling pump headers | |
8. 2 x addressable LED strip headers | |
9. 2 x RGB LED strip headers | |
10. 5 x M.2 Socket 3 connectors | |
11. 4 x SATA 6Gb/s connectors | |
12. 1 x front panel header | |
13. 1 x front panel audio header | |
14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
15. 1 x USB 3.2 Gen 1 header | |
16. 2 x USB 2.0/1.1 headers | |
17. 1 x noise detection header | |
18. 2 x Thunderbolt™ add-in card connectors | |
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
20. 1 x serial port header | |
21. 1 x Q-Flash Plus button | |
22. 1 x reset button | |
23. 1 x reset jumper | |
24. 2 x temperature sensor headers | |
25. 1 x Clear CMOS jumper | |

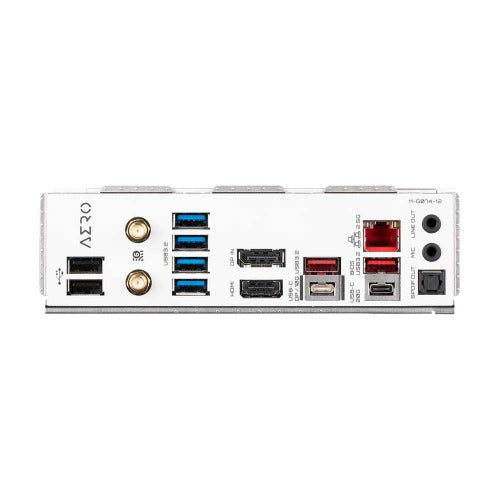

Back Panel Connector | 1. 2 x USB 2.0/1.1 ports |
2. 2 x SMA antenna connectors (2T2R) | |
3. 4 x USB 3.2 Gen 1 ports | |
4. 1 x DisplayPort In port | |
5. 1 x HDMI 2.0 port | |
6. 2 x USB 3.2 Gen 2 Type-A ports (red) | |
7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support | |
8. 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support | |
9. 1 x RJ-45 port | |
10. 1 x optical S/PDIF Out connector | |
11. 2 x audio jacks | |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
2. Temperature detection | |
3. Fan speed detection | |
4. Water cooling flow rate detection | |
5. Fan fail warning | |
6. Fan speed control | |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
7. Noise detection | |
BIOS | 1. 1 x 256 Mbit flash |
2. Use of licensed AMI UEFI BIOS | |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
2. Support for Q-Flash | |
3. Support for Q-Flash Plus | |
4. Support for Smart Backup | |
Bundled Software | 1. Norton® Internet Security (OEM version) |
2. LAN bandwidth management software | |
Operating System | 1. Support for Windows 11 64-bit |
2. Support for Windows 10 64-bit | |
Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
Warranty | 3 Years |
