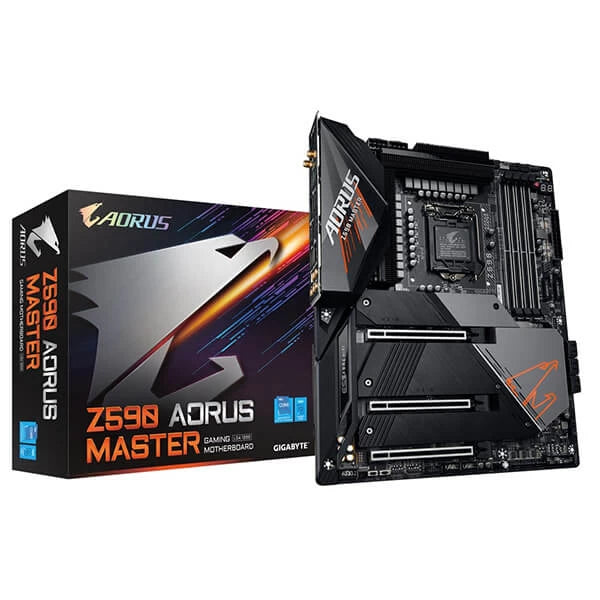

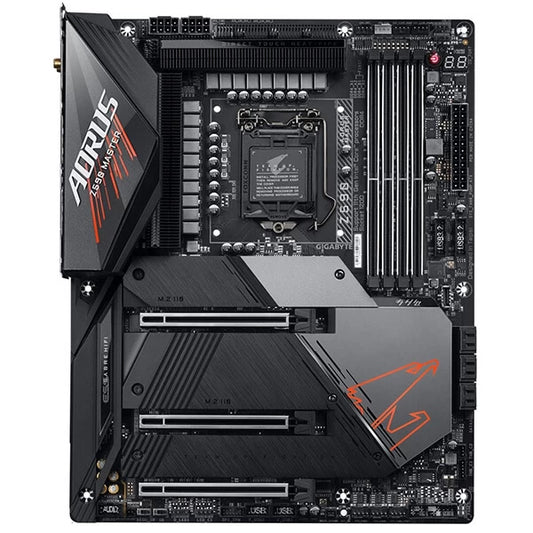

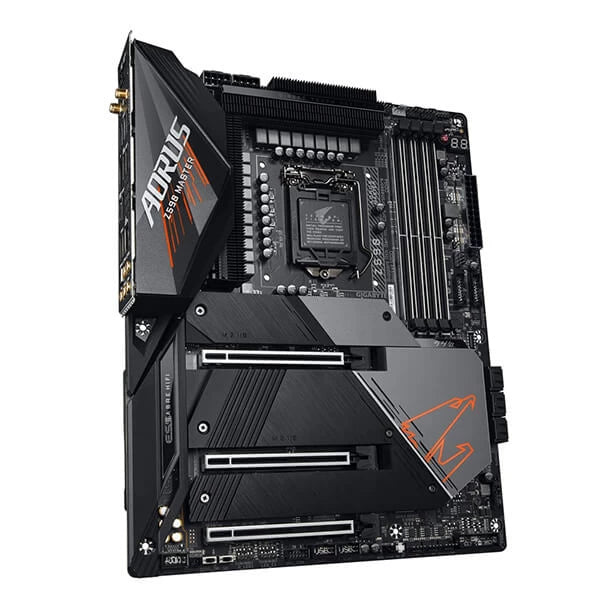

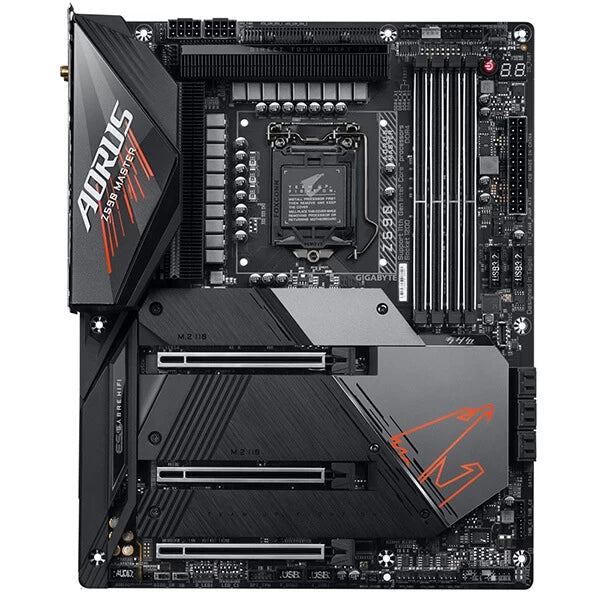

GIGABYTE Z590 AORUS MASTER DDR4 Intel Motherboard

GIGABYTE Z590 AORUS MASTER DDR4 Intel Motherboard

Rs. 36,499.00

26 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 17 December,2024 - 21 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of Gigabyte Z590 AORUS MASTER DDR4

To unleash the full potential of the latest Intel 11th Gen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS MASTER is a true beast among motherboards.

Supports 11th and 10th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel^® Optane™ Memory Ready
18+1 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
Shielded Memory Routing to Avoid Interference
Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II and NanoCarbon Baseplate
Onboard Intel^® WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220 and WIMA Audio Capacitors
AQUANTIA^® 10GbE BASE-T LAN with cFosSpeed
Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Z590 AORUS MASTER

GIGABYTE Z590 AORUS MASTER DDR4 comes with upgraded power solution, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.

EXTREME POWER DESIGN

To unleash the full potential of the latest Intel 11th Gen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS MASTER is a true beast among motherboards.

UNPARALLELED PERFORMANCE

GIGABYTE understands that our customer won't stop chasing better computer performance, and strive to deliver that in our products. For the Z590 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z590 are made possible by the use of PCIe 4.0-ready components.

Direct-Touch Heatpipe II

With an extra large 8mm heatpipe and made from a new manufacturing process that narrows the gap between the heatpipe and heatsink, the new Direct-Touch Heatpipe II greatly help transfers heat on the MOSFET.

2X Copper PCB

2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

Fins-Array II

Fins-Array II use a new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks but also improves thermal efficiency with better airflow and heat exchange.

7.5 W/mK Thermal Conductivity Pad

By using 1.5mm thicker 7.5 W/mK thermal conductivity pads, it can transfer 4x more heat compared to traditional thermal pads in the same time.

3X M.2 Thermal Guard II

Enlarged double-sided M.2 heatsink prevents high-speed, large capacity PCIe 3.0 SSDs with double side flash from throttling due to overheating.

ADVANCED THERMAL SOLUTION

Un-throttled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z590 AORUS MASTER stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

Specifications of Gigabyte Z590 AORUS MASTER DDR4

CPU	LGA1200 package:11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel® Z590 Express Chipset
Memory	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Ou
LAN	Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	module Intel® Wi-Fi 6E AX210WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. * Wi-Fi 6E and its 6GHz carrier frequency support may vary by country
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	CPU:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
USB	Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs:8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches Voltage Measurement Points ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

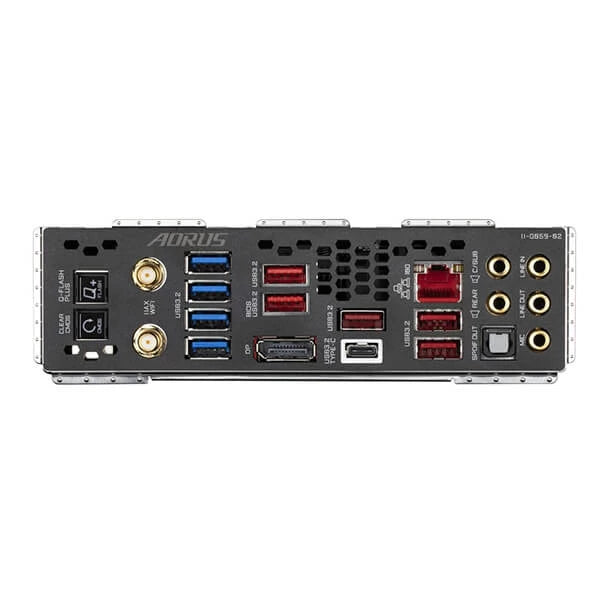

Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) cFosSpeed
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
