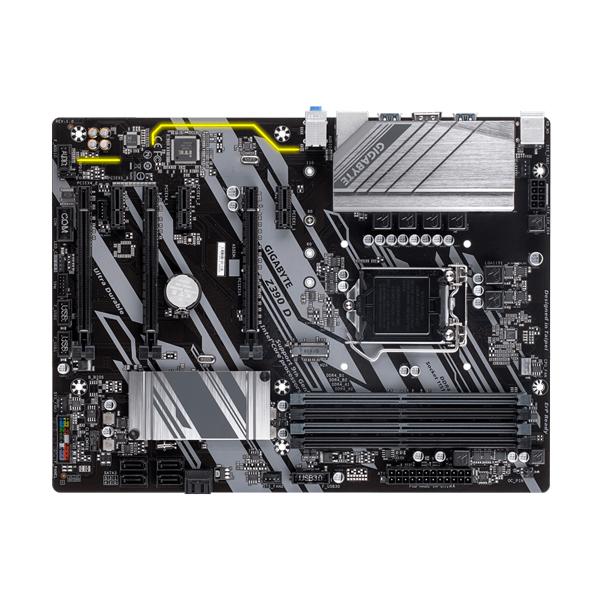

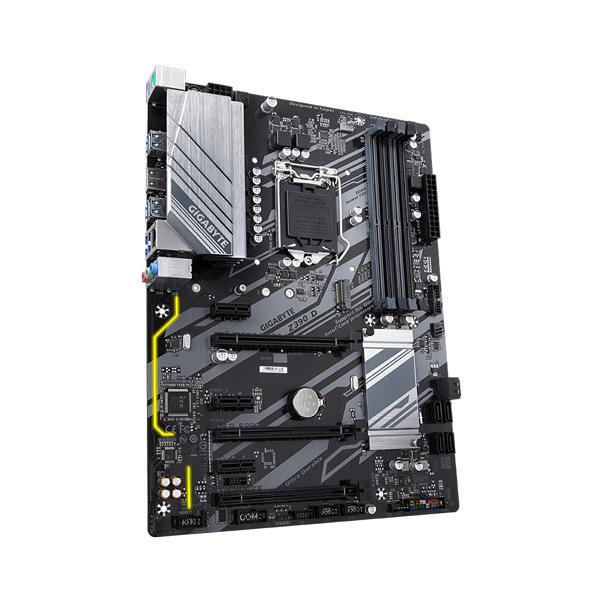

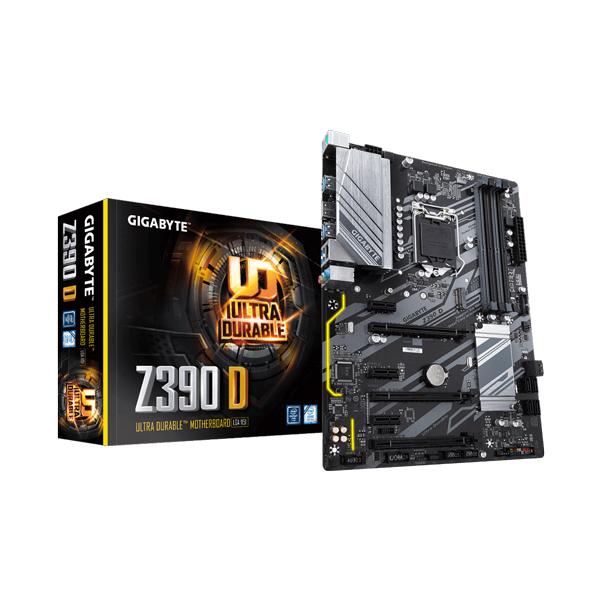

GIGABYTE Z390 D DDR4 Intel Motherboard

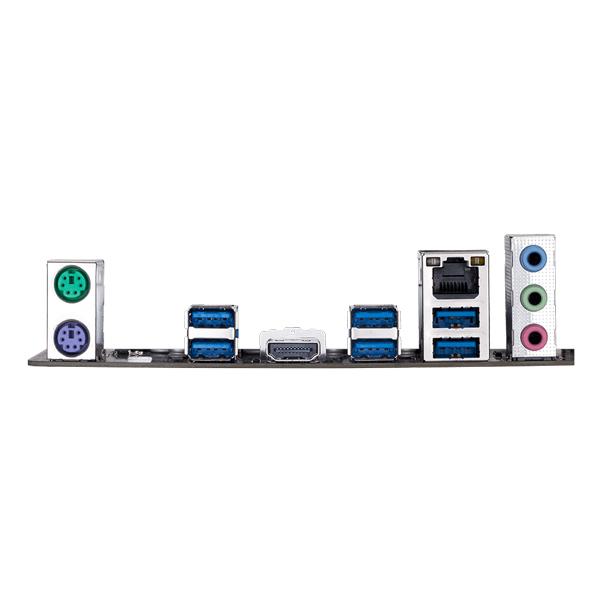

Supports HD Graphics with the assistance of Integrated Graphics Processor-Intel Reward your ears with the best quality of sounds, Not only this but it even has an immersive sound quality of Realtek ALC887 codec, high and premium audio. GIGABYTE Z390 D Motherboard has an 8118 Gaming LAN Bandwidth Control Utility. It has 6 USB ports, precisely four on the back panel and the other two available through the internal USB header H/W monitoring detects voltage, temperature, fan speed as well as overheating. GIGABYTE Z390 D motherboard has 1*128 MB flash. Operating windows Supports for Windows 10 64-biSome of the more unique features are fast boot to improve performance, a game boost to enhance game quality, RGB fusion to give pleasurable visuals, smart backup, on/off charge also system information viewer It has a warranty of three years so just relax and concentrate on your play!

1. Supports 9th and 8th Gen Intel® Core™ Processors
2. Dual Channel Non-ECC Unbuffered DDR4
3. Advanced Thermal Design
4. NVMe PCIe Gen3 x4 22110 M.2 Connector
5. Multi-Way Graphics Support
6. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
7. Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
8. Support RGB Light Strip in Full Colors
9. CEC 2019 Ready, Save the Power as Easy as One Click
10. Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
11. Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
12. Intel® Optane™ Memory Ready

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Stop

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.

For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE Z390 D DDR4 motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Performance Fueled by Optane

The Z390 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Advanced Thermal Design

MOSFET Heatsinks

Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.

Thick Thermal Pad

By using 1.5mm thicker thermal pad with well contact, more efficient heat dissipation.

Support for DDR4 to 4133MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4133MHz and beyond.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Support RGB Lighting Effect in Full Color

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

Solid Pin Power Connectors

Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages

•     Larger contact area for electricity
•     More metal quantity to sustain higher power and generated heat
•     Ultra durable and longer lifespan

Diagnostic LEDs

Hardware Troubleshooting at a Glance

Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Specifications of Gigabyte Z390 D DDR4
