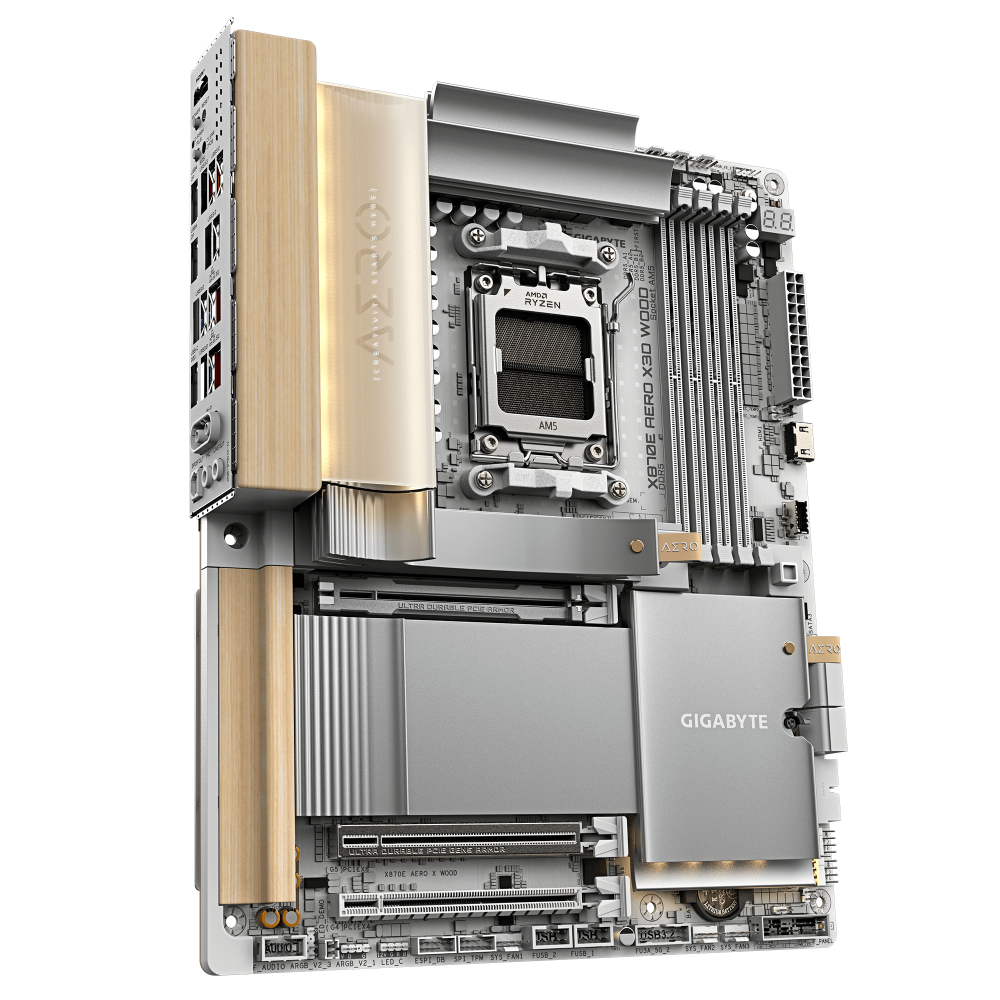

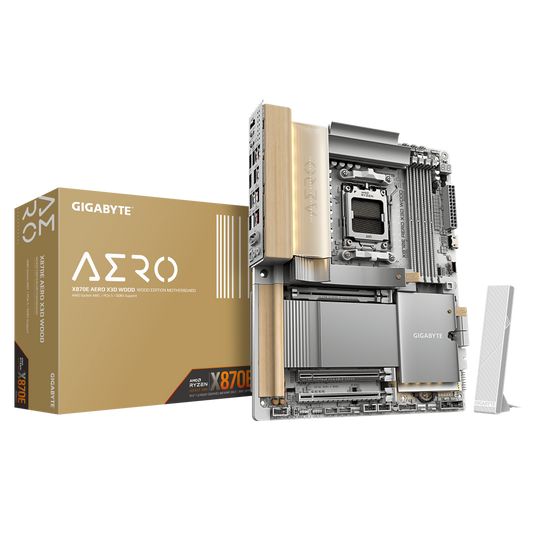

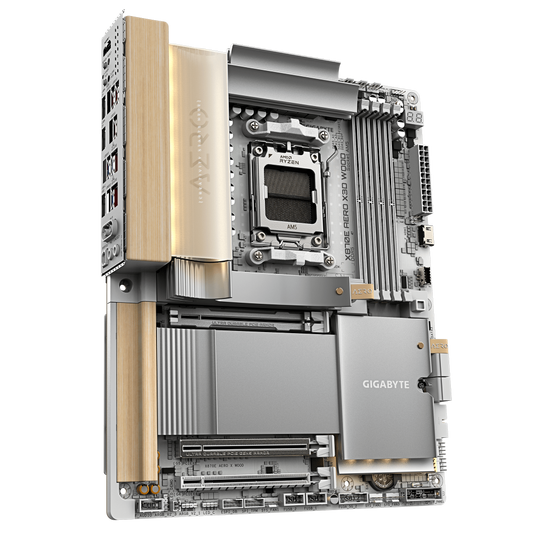

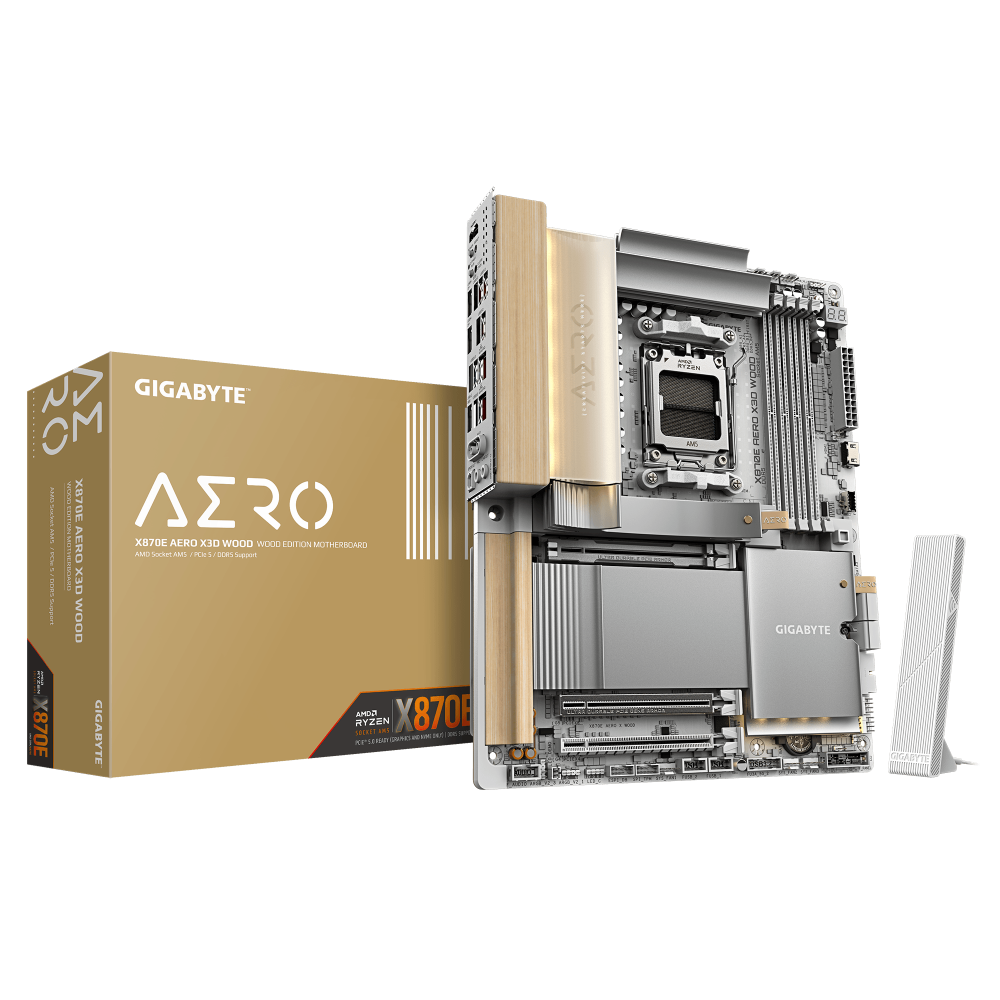

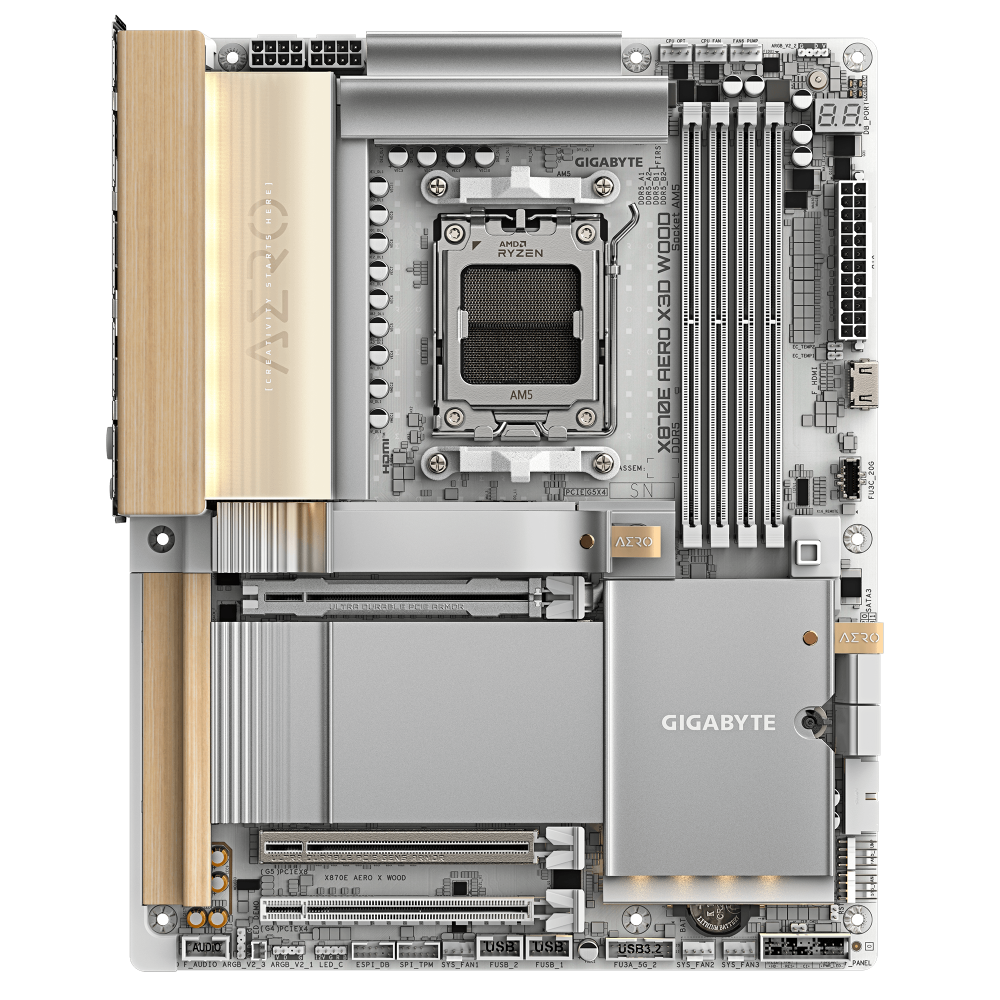

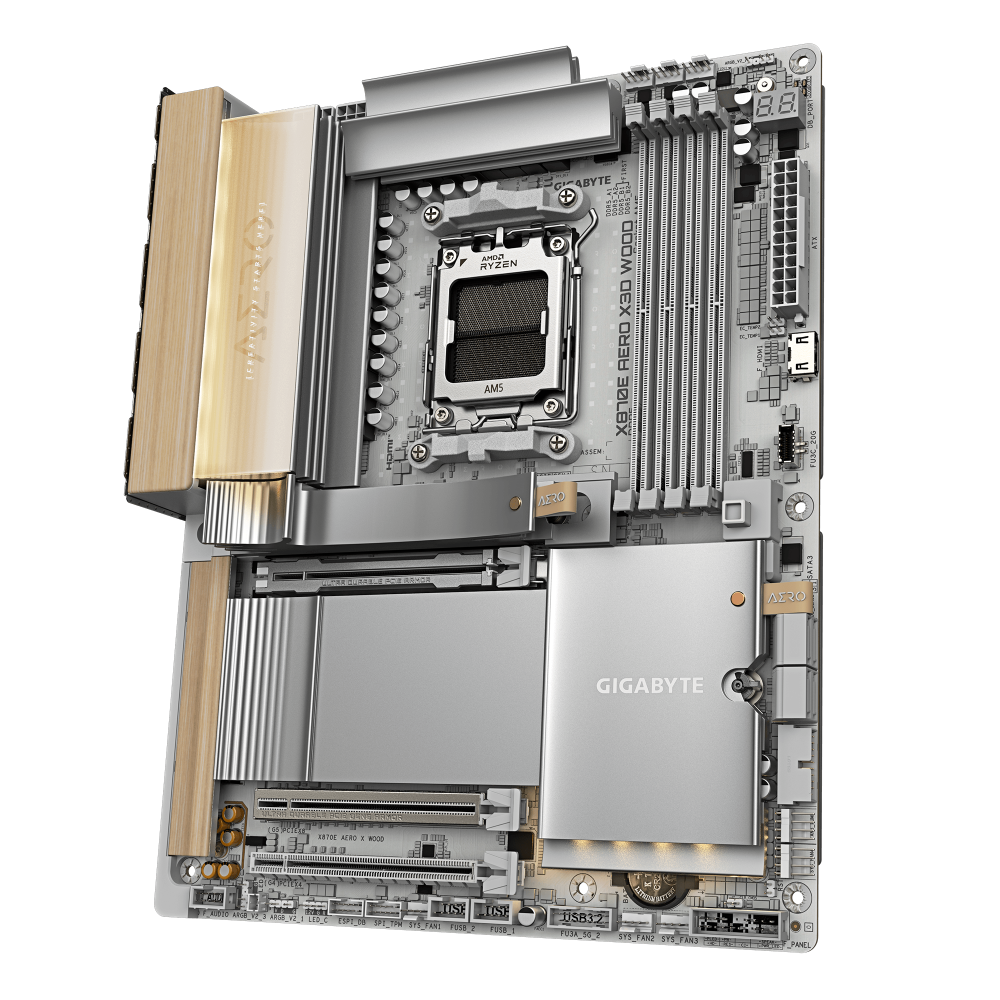

GIGABYTE X870E Aero X3D Wood ATX Wifi7 DDR5 AMD Motherboard

GIGABYTE X870E Aero X3D Wood ATX Wifi7 DDR5 AMD Motherboard

Product Dispatch within 24-96 Hours

Guaranteed Dispatch in 24-48 Hours
Product is in stock in our Head Office Warehouse and will be dispatched within 24-48 hours.

Guaranteed Dispatch in 24-96 Hours
Product is in stock in Branch offices/Warehouses and will be dispatched within 24-96 hours.

Out of Stock
Product is out of stock. Product is an existing current model but stock arrival status unknown.

Pre Order
Product expected anytime soon within 2 days to 2 weeks. Book your product. Full refund if not available within 2 Weeks.

Rs. 44,695.00 Rs. 72,000.00

Discount: Rs. 27,305.00 (38%)

37 people are viewing this right now

Hurry Up! Only 2 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of GIGABYTE X870E Aero X3D Wood ATX Wifi7 DDR5 AMD Motherboard

**16*+2+2 Twin Digital VRM Design**

8-Layer PCB
2X Copper PCB
Premium Choke and Capacitor

UD Power Connector

8+8 pin CPU with UD Solid Pin
24 pin ATX

Full-Length PCIe Slots

1 x PCIe 5.0 x16 with PCIe UD Slot X
1 x PCIe 5.0 x16 slot (run x8)
1 x PCIe 4.0 x16 slot (run x4)

4 x DIMMs, Dual Channel DDR5

Socket AM5 Supports AMD Ryzen Series Processors

4 x SATA 6Gb/s

4 x M.2 Slots

2 x PCIe 5.0 M.2 Slots
2 x PCIe 4.0 M.2 Slots

X870E AERO X3D WOOD motherboard is a statement piece, refined elegance to high-performance computing. Crafted for the connoisseur, it harmonizes the organic beauty of wood grain with uncompromising performance.

The premium leather pull tab transforms a simple detail into a signature moment-a tactile delight that brings luxurious warmth to your fingertips while elevating the aesthetic with effortless, elegant accessibility.

X870E AERO X3D WOOD whispers into your space like a gentle breeze bringing comfort and harmony. Its natural wood aesthetic evokes the warmth of home, transforming cold technology into something inviting belongs in your living room.

It redefines what a motherboard can be- as an elegant extension of your lifestyle, and represents a new era where motherboards transcend the workspace and integrate beautifully into your living space.

Raw Texture Reveal Timeless Elegance

Inspired by the Zen aesthetic of embracing imperfection, AERO WOOD recognizes beauty in the natural transformations of time and decay, embracing their quiet presence as a form of deep aesthetic appreciation.

Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

X3D Turbo Mode 2.0

X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen X3D performance.

Infinite Memory Performance

AERO WOOD series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Enhanced PCB Design for Superior Gameplay

Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

PCB Back drilling Technology

Reduces signal reflections Improves timing accuracy Enhances system performance

8L Server-grade PCB

Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.

2X Copper Enhancement

Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.

56% Lower Dissipation Factor

Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.

Steady Power

AERO WOOD Series with steady power keeps your operation smooth.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

16 VCORE Phases

Unlock the full power of your multi-core CPU for unmatched performance.

2 SOC Phases

Optimized for integrated GPU performance and memory management within the CPU.

2 MISC Phases

Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

FEATURES

Raw textures reveal timeless elegance
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, One click to screenshot, and Click to go BIOS path in BIOS
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

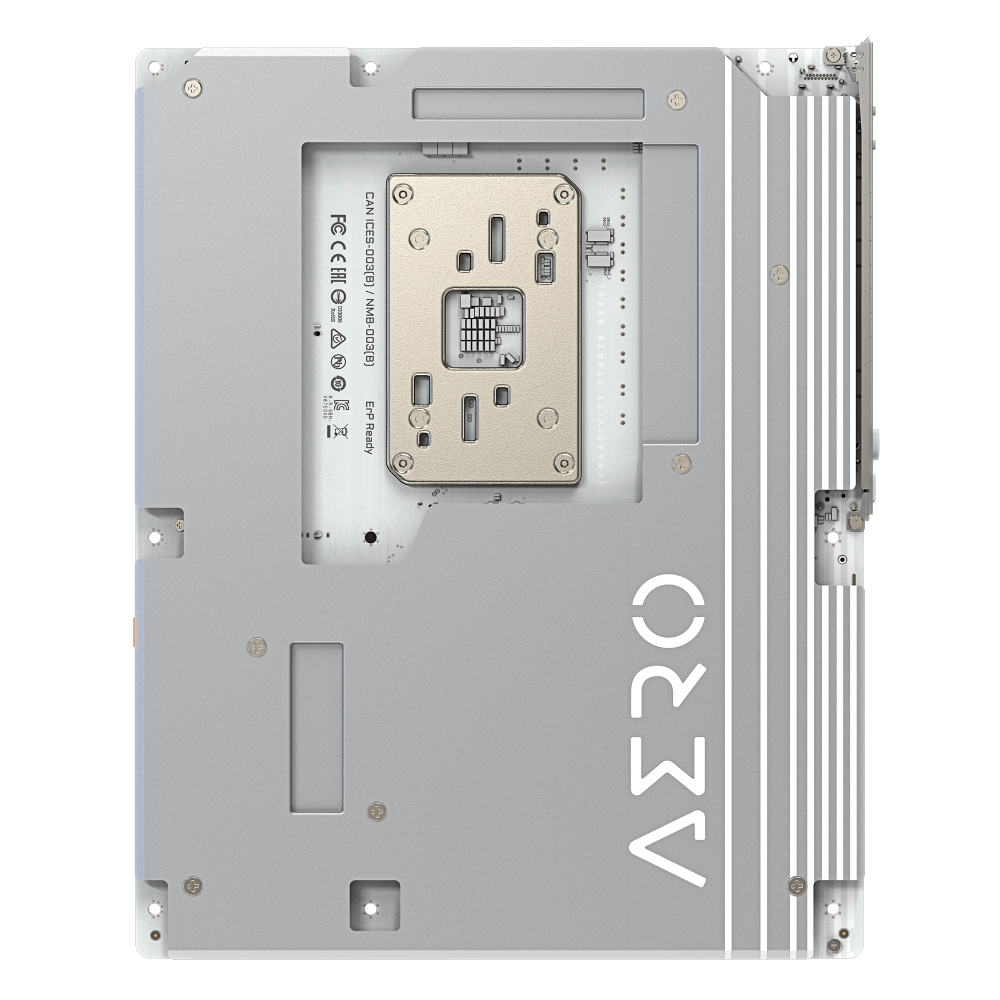

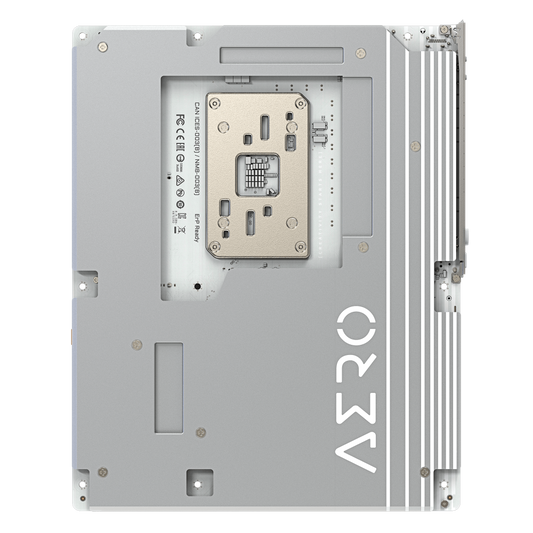

PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Specifications of GIGABYTE X870E Aero X3D Wood ATX Wifi7 DDR5 AMD Motherboard

Model	X870E-AERO-X3D-WOOD
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870E
Memory	Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s memory modules. Support for DDR5 5200/4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. *Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers (Note) Actual support may vary by CPU.

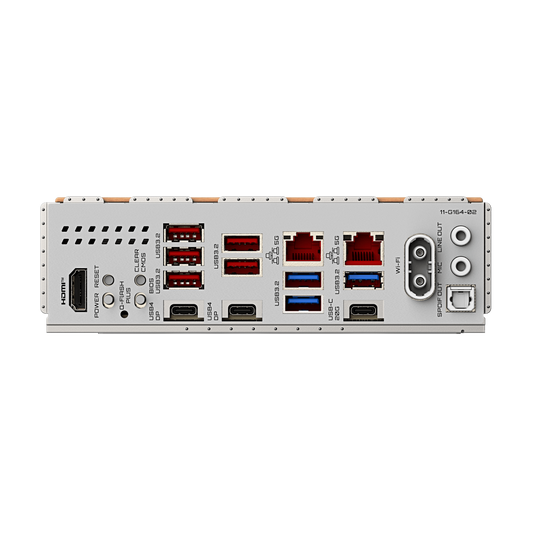

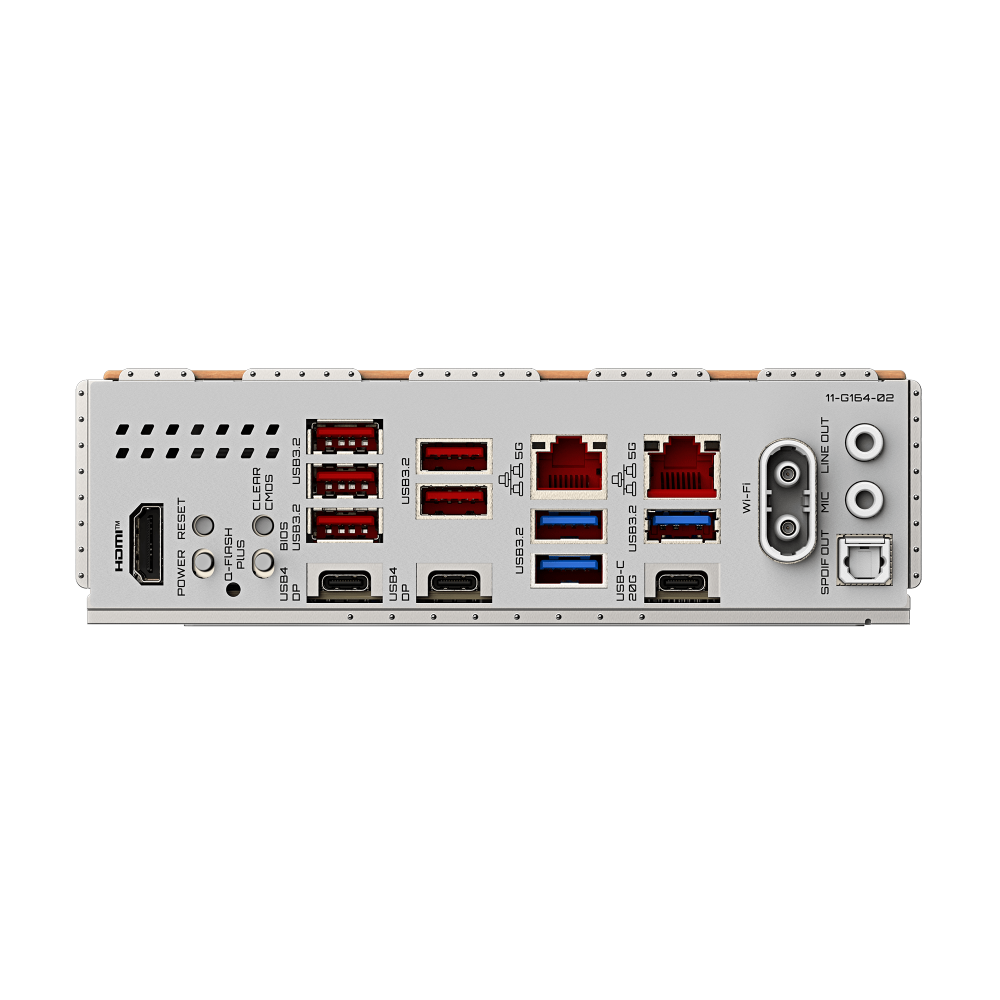

Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 1 x power button 1 x reset button 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPorts (Note)) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
