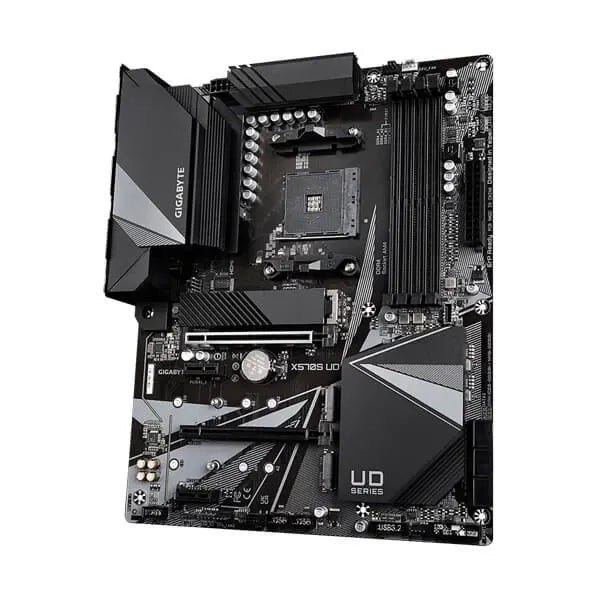

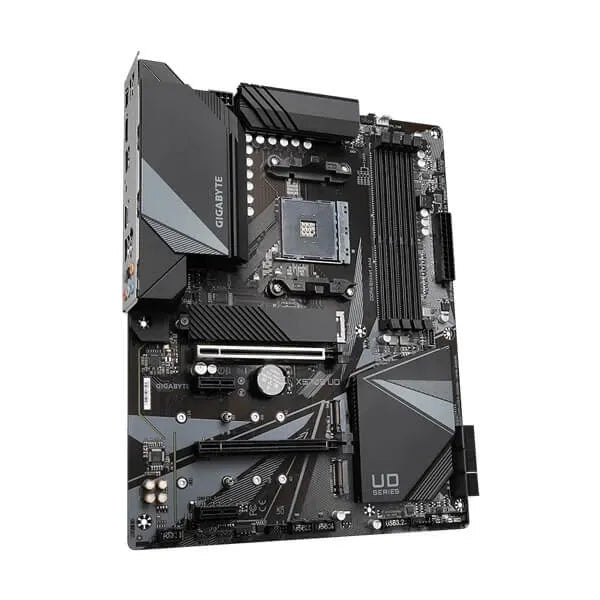

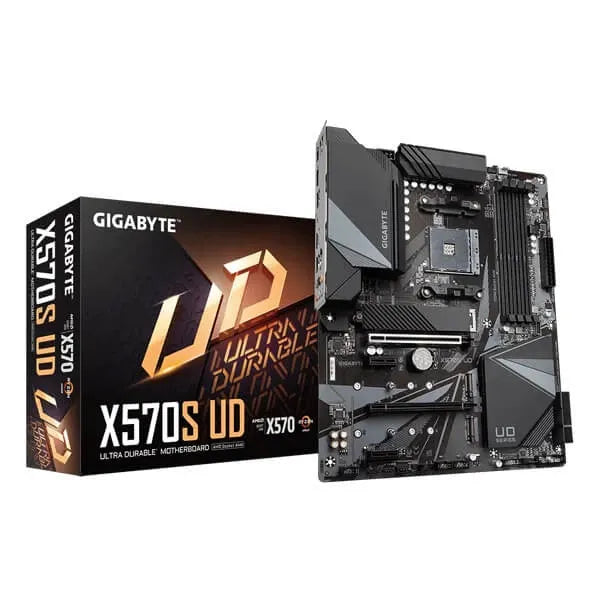

GIGABYTE X570S UD DDR4 AMD Motherboard

Feature of Gigabyte X570S UD DDR4

1. Supports AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
2. Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
3. Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
4. Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
5. Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
6. Fast 2.5GbE LAN with Bandwidth Management
7. Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
8. High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
9. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
10. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
11. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card


Twin Power Design

GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.

Memory Layout – Daisy Chain Design

With the optimized daisy-chain routing, GIGABYTE X570S motherboards provide a proven speed of up to DDR4-5100+ MHz with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, and provides professional gamers a denser and faster system memory experience.

Single 32GB Support

With populated 4 DIMMs per channel on GIGABYTE X570 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.

Support for DDR4 XMP Up to 5100MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5100MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS otherboard.

Thermal

X570S UD uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.

Fully Covered Thermal Design

High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.

Thick Thermal Pad

Thick Thermal Pad up to 5W/mK Thermal Conductivity.

M.2 Thermal Guards

Built-in M.2 heatsinks prevent high-speed, large capacity PCIe 4.0/3.0 SSDs from throttling due to overheating.

2X Large Surface

Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the

MOSFETs.

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.

Multi-Cut Design

TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 6 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users’ specified temperature point

Smart Fan 6 BIOS UI

Improve fan curve UI

We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

Slope/Stair dual graph mode

Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

Manual Input

For advanced users, we provide fan speed manual input for more precise control.

EZ Tuning

Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

Fan curve profile

Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570S UD provides all next generation network, storage, and connectivity to keep you up to speed.
First adopter on 2.5gbe LAN onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Rear and Front USB3.2 Type-C® Support

Including both front and rear USB Type-C® connectors with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.
With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1 , the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C® and the traditional USB Type-A connector for better compatibility over a wider range of devices.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

EasyTune™

GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE motherboard and reinforce every slot to make each of them solid and durable.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Solid Pin Power Connectors

GIGABYTE X570S UD DDR4 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Specifications of Gigabyte X570S UD DDR4
