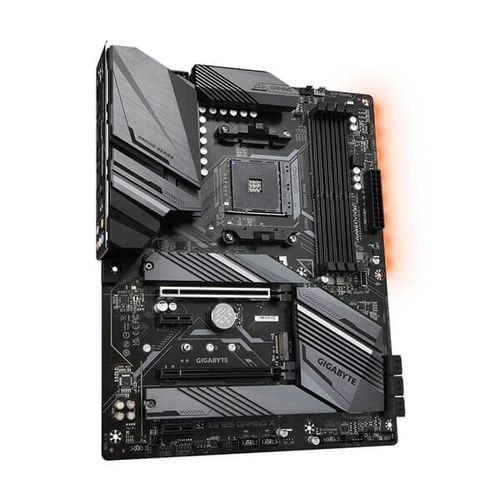

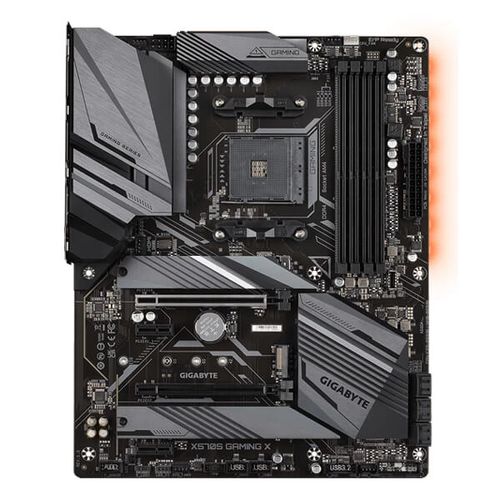

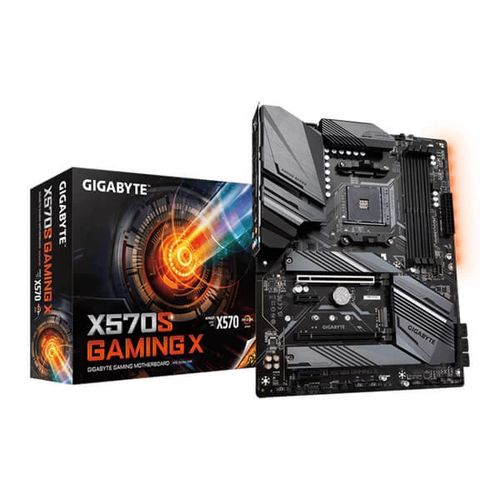

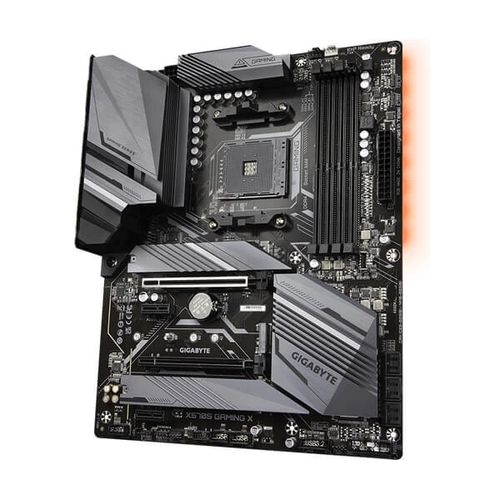

GIGABYTE X570S Gaming X DDR4 AMD Motherboard

Feature of Gigabyte X570S Gaming X DDR4

1. Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
2. Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
3. Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
4. Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
5. Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
6. Fast 2.5GbE LAN with Bandwidth Management
7. Rear and Front USB3.2 Type-C for Fast and Versatile Connections
8. High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
9. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
10. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
11. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Twin Power Design

GIGABYTE X570S Gaming X DDR4 Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.

XMP 5100+

AORUS Support for DDR4 XMP Up to 5100MHz and Beyond AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5100MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Triple PCIe 4.0/3.0 x4 M.2 Connectors with Thermal Guard

AORUS M.2 Thermal Guard II

With durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue.

Smart Fan 6: Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors:

1. 6 PWM/DC Fan Headers
2. 6 Internal Temperature Sensors

Cooling Features

1. High Current Support

   Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

2. Precision Control

   Up to 6 temperature/fan speed control points for precise fan curve

3. Dual Curve Mode

   Slope/Stair dual mode for different user scenario

4. Fan Stop

   Fan can stop completely below users' specified temperature point

First adopter on 2.5gbe LAN onboard

2X Faster than ever

1. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
2. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Including both front and rear USB Type-C connectors with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C^® and the traditional USB Type-A connector for better compatibility over a wider range of devices.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Hi-Fi Audio:

1. High-End Audio Capacitors : GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
2. Audio Noise Guard : GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card

Industry Leading Ultra Durable™ PCIe Armor

Specifications of Gigabyte X570S Gaming X DDR4
