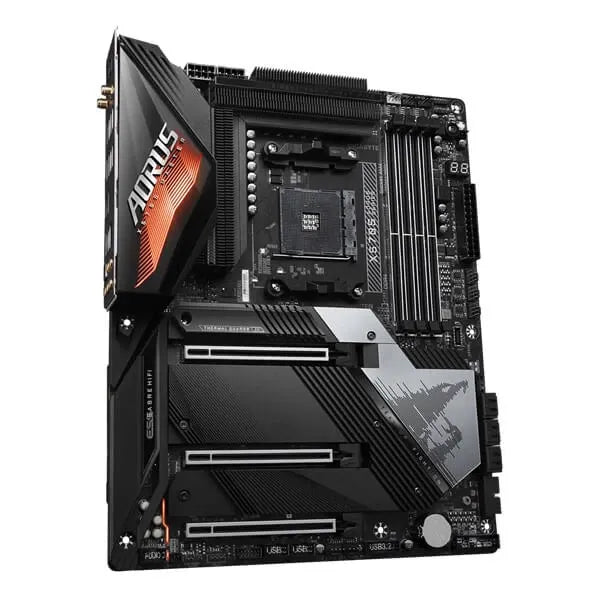

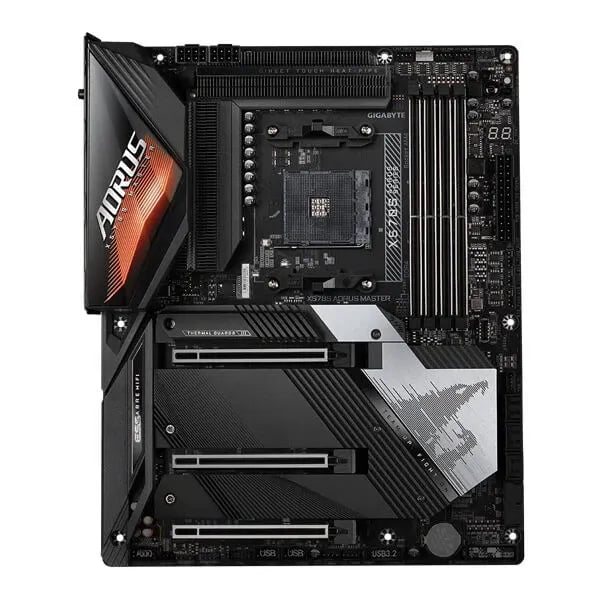

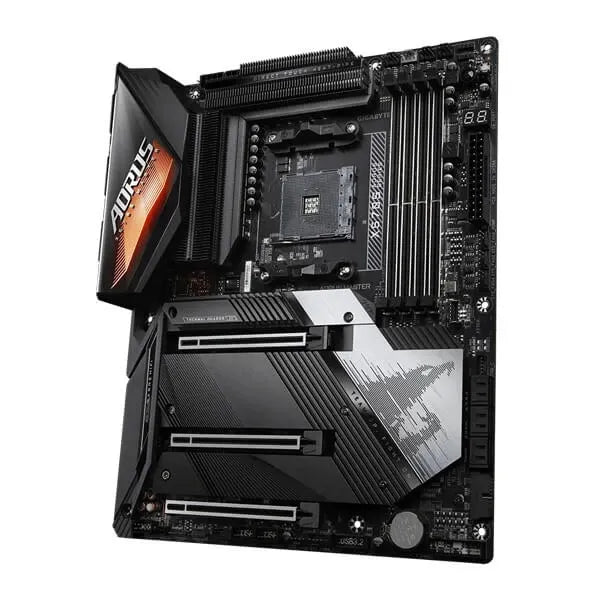

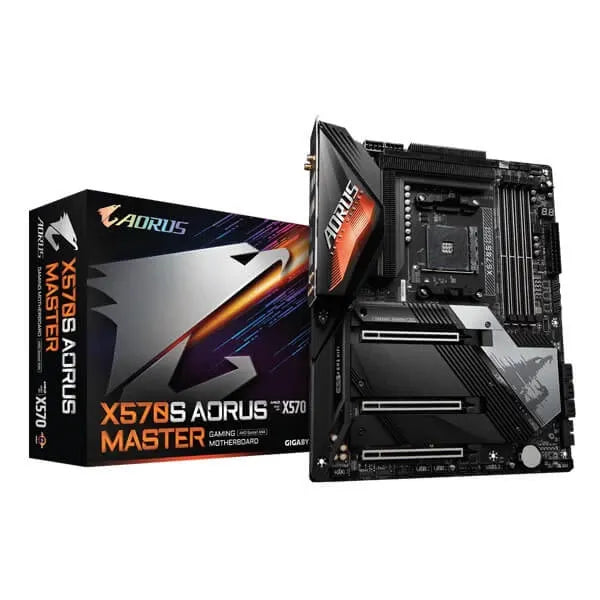

GIGABYTE X570S Aorus Master DDR4 AMD Motherboard

Out of stock

Rs. 32,875.00 Rs. 47,000.00

Discount: Rs. 14,125.00 (31%)

21 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of GIGABYTE X570S Aorus Master DDR4 AMD Motherboard

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate
Intel® WiFi 6E 802.11ax & BT 5.2
Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS MASTER is a true beast among motherboards.

Direct-Touch Heatpipe II

With an extra large 8mm heatpipe and made by a new manufacturing process which has narrowed down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs.

2X Copper PCB

2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

Fins-Array II

Fins-Array II uses brand new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks, but also improves thermal efficiency with better airflow and heat dissipation.

9 W/mK Thermal Conductivity Pad

By using 1.5mm thicker 9 W/mK thermal conductivity pads, it can transfer 4x more of heat dissipation compared to traditional thermal pads in same time.

M.2 Thermal Guard III

M.2 Thermal Guard III constructed with 2.6X optimized heat dissipation surface and double-sided M.2 heatsinks to prevent throttling and bottlenecks on high-speed/ large capacity of PCIe 4.0 M.2 SSDs.

ADVANCED THERMAL SOLUTION

GIGABYTE X570S Aorus Master DDR4 uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.

NEXT GENERATION CONNECTIVITY

A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

Specifications of GIGABYTE X570S Aorus Master DDR4 AMD Motherboard

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD X570
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS jumper Voltage Measurement Points
Memory	AMD Ryzen™ 5000 Series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen™ 4000 G-Series processors: Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen™ 3000 Series processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors: Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0* /3.0 x4 mode * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Wireless Communication module	Intel® Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
USB	CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports, available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio	Realtek® ALC1220-VB audio CODEC * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.
Operating System	Support for Windows 10 64-bit
Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Bundle Software	Norton® Internet Security (OEM version) cFosSpeed
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.
