- GIGABYTE X570S Areo G DDR4 AMD Motherboard
Monsoon Sale Offer
Description
Feature of Gigabyte X570S AERO G DDR4
- Support AMD Ryzen™ 5000 series / Ryzen™ 4000 G series / Ryzen™ 3000 series / Ryzen™ 3000 G series / RYZEN 2000 series / Ryzen™ 2000 G series processors
- Dual Channel ECC / Non-ECC Unbuffered DDR4 memory, 4 DIMMs
- Go further without more cables by VisionLINK I/O design
- High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
- Wi-Fi 6 2x2 802.11ax with all-new antenna support for better signal
- Comprehensive connectivity by front and rear USB 3.2 Type-C® connectors
- 4 Ultra-Fast NVMe PCIe® x4 M.2 connectors with unique thermal guards
- Effective cooling solution design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory, and Graphics Card
Go Further Without More Cables
GIGABYTE X570S Areo G DDR4 VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.
All at One Cable that Does It All
Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging the same time. One USB Type-C® cable connected, turn your workspace into neat and tidy.
Add Graphic Power
Ever wondered if you can have your discrete, high-end graphics card to power your pen display? Through the DisplayPort™_In and VisionLINK connections, the performance of the discrete graphics card is delivered to the pen display. Bring your creation into incredible realism and performance.
DisplayPort™Alternate Mode with USB Power Delivery
VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for video signal, and 60W Power Delivery design for your devices charging. It’s a perfectly tailored connectivity for creators and professional artists.
High-Bandwidth and Low-Latency access.
The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads.
Specifications of Gigabyte X570S AERO G DDR4
| CPU |
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD X570 |
| Onboard Graphics |
Integrated Graphics Processor: 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB * For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only. |
| Memory |
AMD Ryzen™ 5000 Series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen™ 4000 G-Series processors: Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen™ 3000 Series processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors: Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x8 mode AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x8 mode AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0* /3.0 x4 mode * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. |
| Wireless Communication module |
Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| USB |
CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| Audio |
Realtek® ALC1220-VB Audio CODEC * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only. |
| Operating System | Support for Windows 10 64-bit |

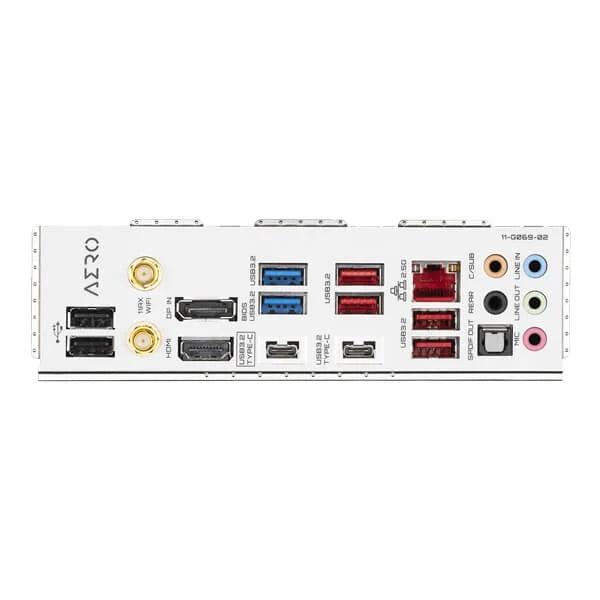

| Back Panel Connectors |
2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort In port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port, with USB 3.2 Gen 1 support 4 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
