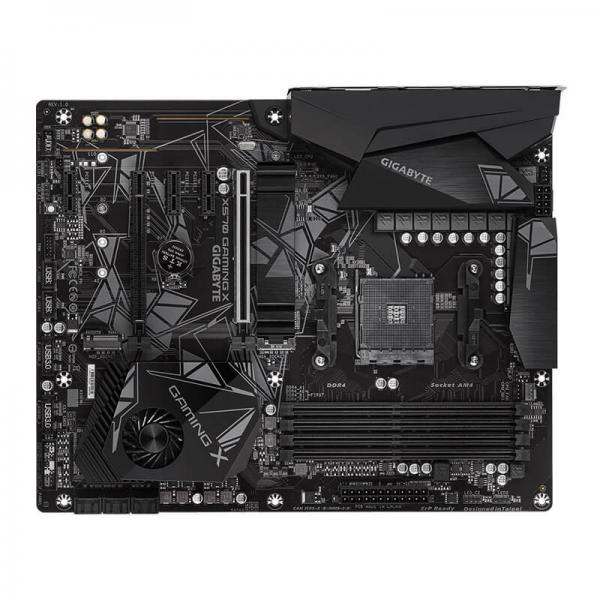

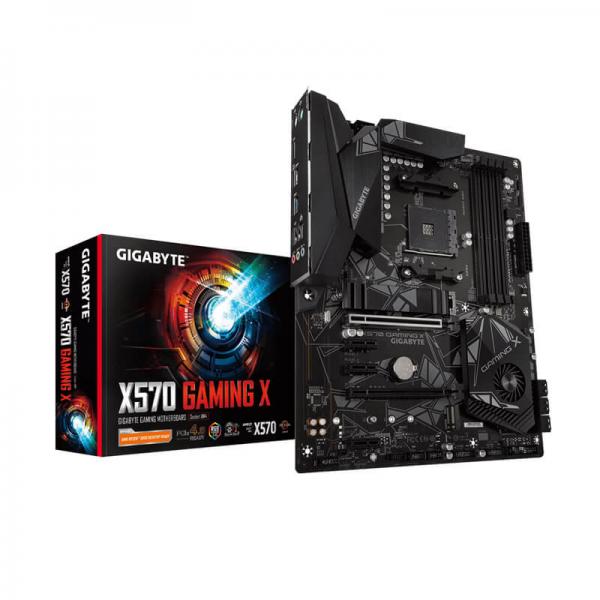

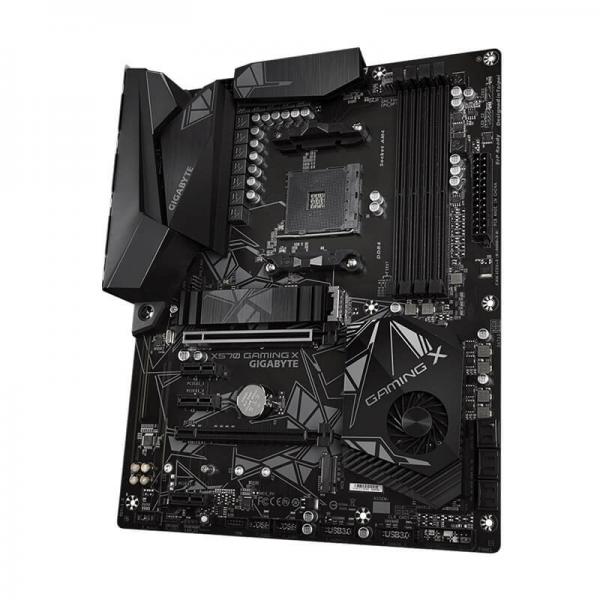

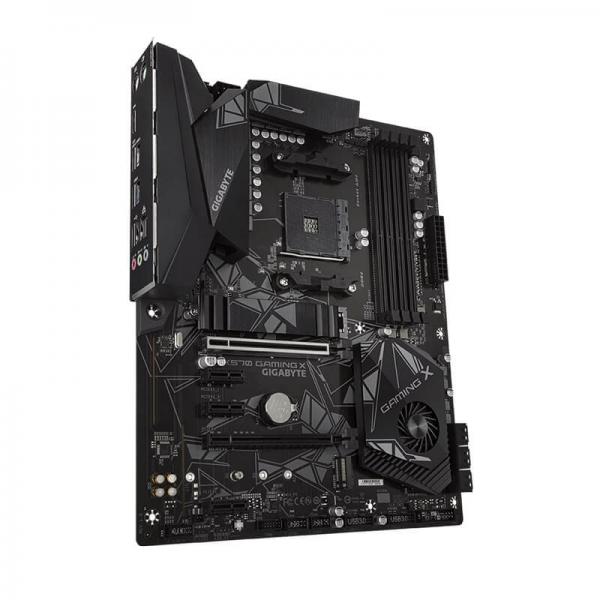

- GIGABYTE X570 Gaming X DDR4 AMD Motherboard
Description
Feature of Gigabyte X570 Gaming X DDR4
GET READY FOR AMD RYZEN 5000 SERIES
GIGABYTE X570 Gaming X DDR4 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users’ performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD StoreMI technology
GIGABYTE X570 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.
Smart Chipset Fan Heatsink
Smart Fan
Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.
High Durability
X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.
Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage to keep you up to speed.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
Audio Noise Guard
AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
Specifications of Gigabyte X570 Gaming X DDR4
| CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| Chipset | AMD X570 |
| Memory |
3rd Generation AMD Ryzen™ processors:Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only. |
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots |
Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)* For 3rd Generation AMD Ryzen™ processors only. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0* For 3rd Generation AMD Ryzen™ processors only. |
| Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only. |
| Storage Interface |
Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)* For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB |
Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

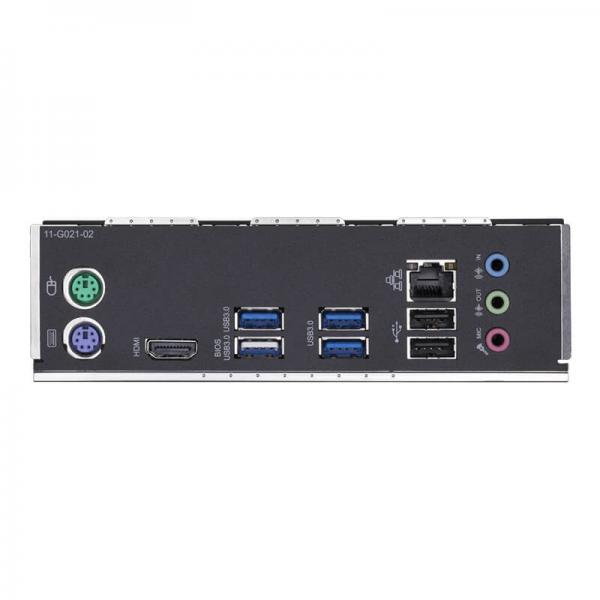

| Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart SurveySystem Information Viewer USB BlockerSupport for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
