Description

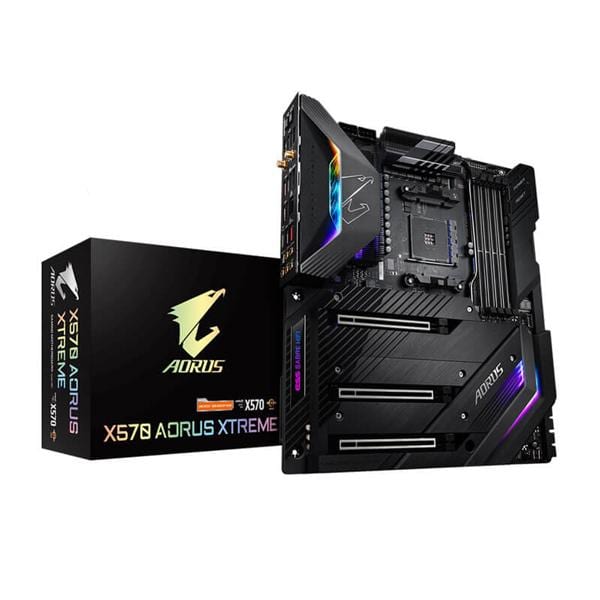

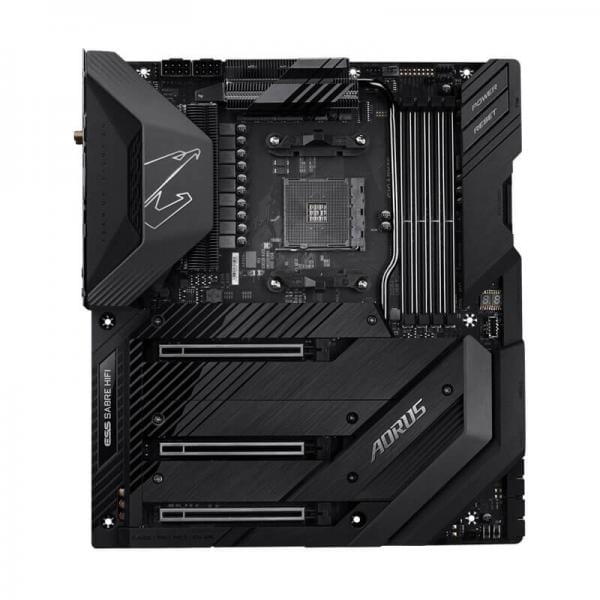

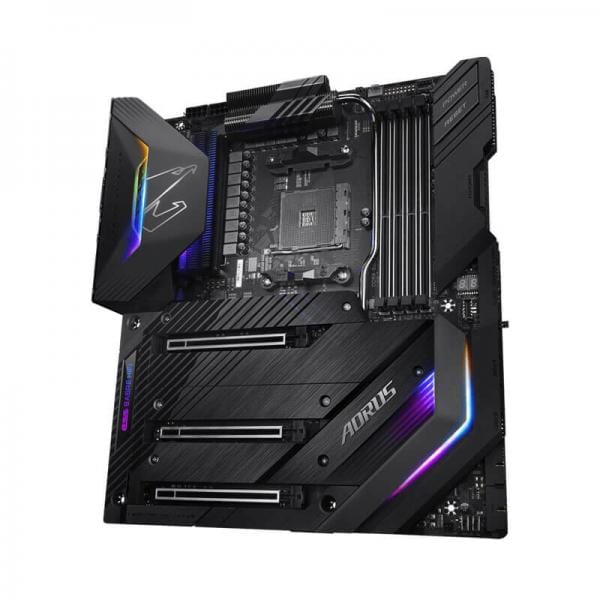

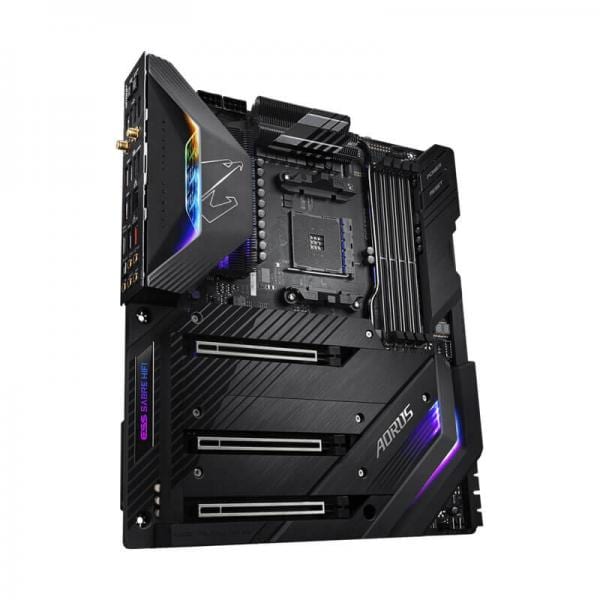

Gigabyte X570 Aorus Xtreme WiFi Motherboard
Features:
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16 Phases Infineon Digital VRM Solution with 70A Power Stage
- Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
- Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors
- AQUANTIA® 10GbE BASE-T LAN Intel® Gigabit LAN with cFosSpeed
- Exclusive RGB FAN COMMANDER for Professional Casemoders
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Front & Rear USB 3.2 Gen 2 Type-C™ Headers
- Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
- Making the PC experience fast, smooth and easy
- Optimizing computer responsiveness from system boot to application launch
- Offering SSD performance with HDD capacity at an affordable cost
- Quickly accessing key files by automatically learning users' computing behaviors
Extreme Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards.
Specifications:
| CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| Chipset | AMD X570 |
| Memory |
3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC is only supported with AMD Ryzen™ PRO-series CPU. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Audio |
Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN |
1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2) |
| Wireless Communication module |
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * For 3rd Generation AMD Ryzen™ processors only. |
| Multi-Graphics Technology |
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies * For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only. |
| Storage Interface |
Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| USB |
Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points |

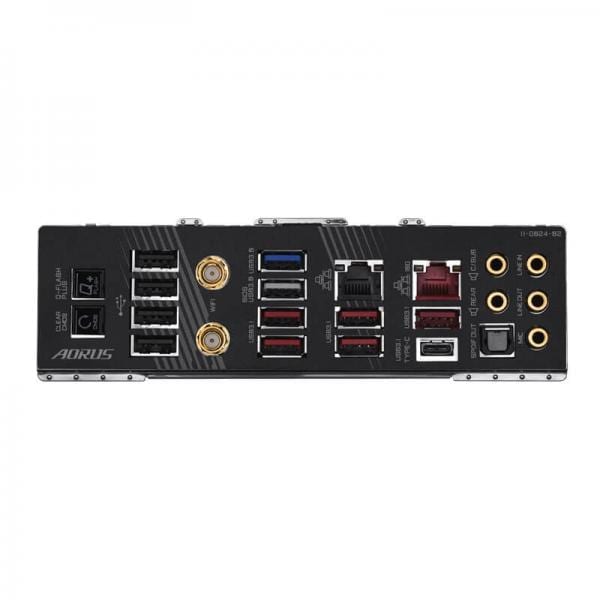

| Back Panel Connectors |
1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster Broadcaster (12 months license) |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 27.0cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
