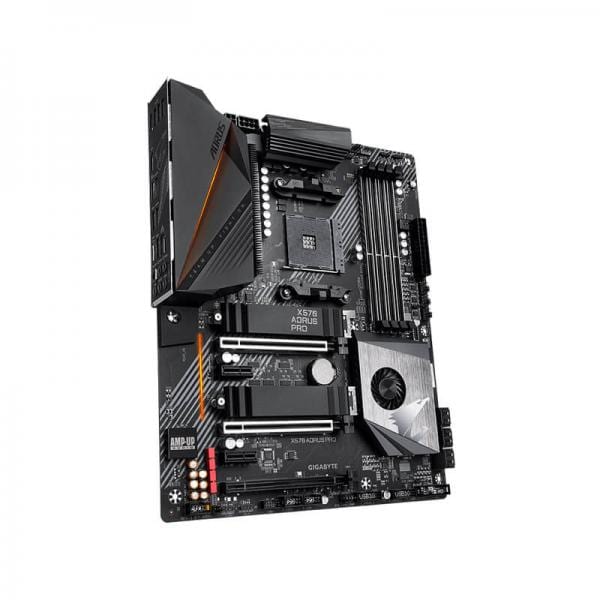

GIGABYTE X570 Aorus Pro DDR4 AMD Motherboard

Feature of Gigabyte X570 Aorus Pro DDR4

• Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+2 Phases IR Digital VRM Solution with PowIRstage
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
• ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
• Intel Gigabit LAN with cFosSpeed Internet Accelerator
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Front & Rear USB 3.1 Gen2 Type-C Header & HDMI 2.0 support

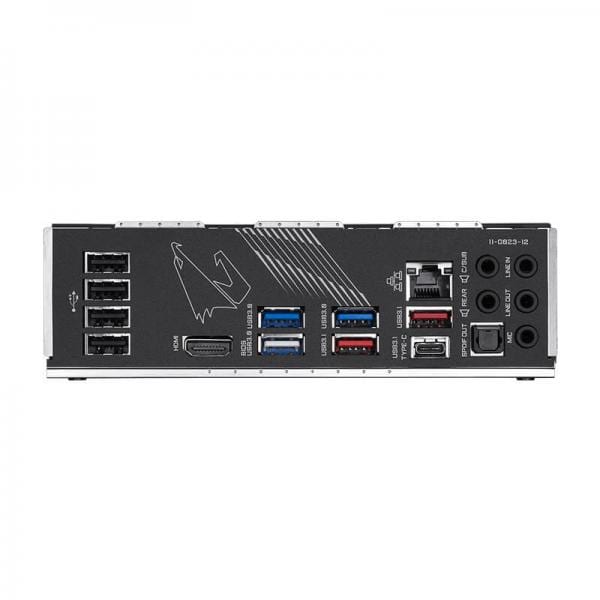

• Integrated I/O Shield Armor
• Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

GET READY FOR AMD RYZEN 3000-SERIES

GIGABYTE X570 Aorus Pro DDR4 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen Processors. The all-new design is a testament to GIGABYTE’s dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users’ performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI Technology

GIGABYTE X570 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

• The benefits of AMD StoreMI: Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors

Ultimate Power Design

To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

Advanced Thermal Design

X570 AORUS PRO reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink and Direct Touch heatpipe to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers

Fins-Array Heatsink with Direct Touch Heatpipe and High Thermal Conductivity Pad

X570 AORUS PRO uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Full PCIe 4.0 Design

X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking

Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

High-End WIMA & Audio Capacitors

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

RGB Fusion 2.0

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support 5v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Solid Pin Power Connectors

X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

Ultra Durable PCIe Armor

Industry Leading Ultra Durable PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable Memory Armor

AORUS’ exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Specifications of Gigabyte X570 Aorus Pro DDR4
