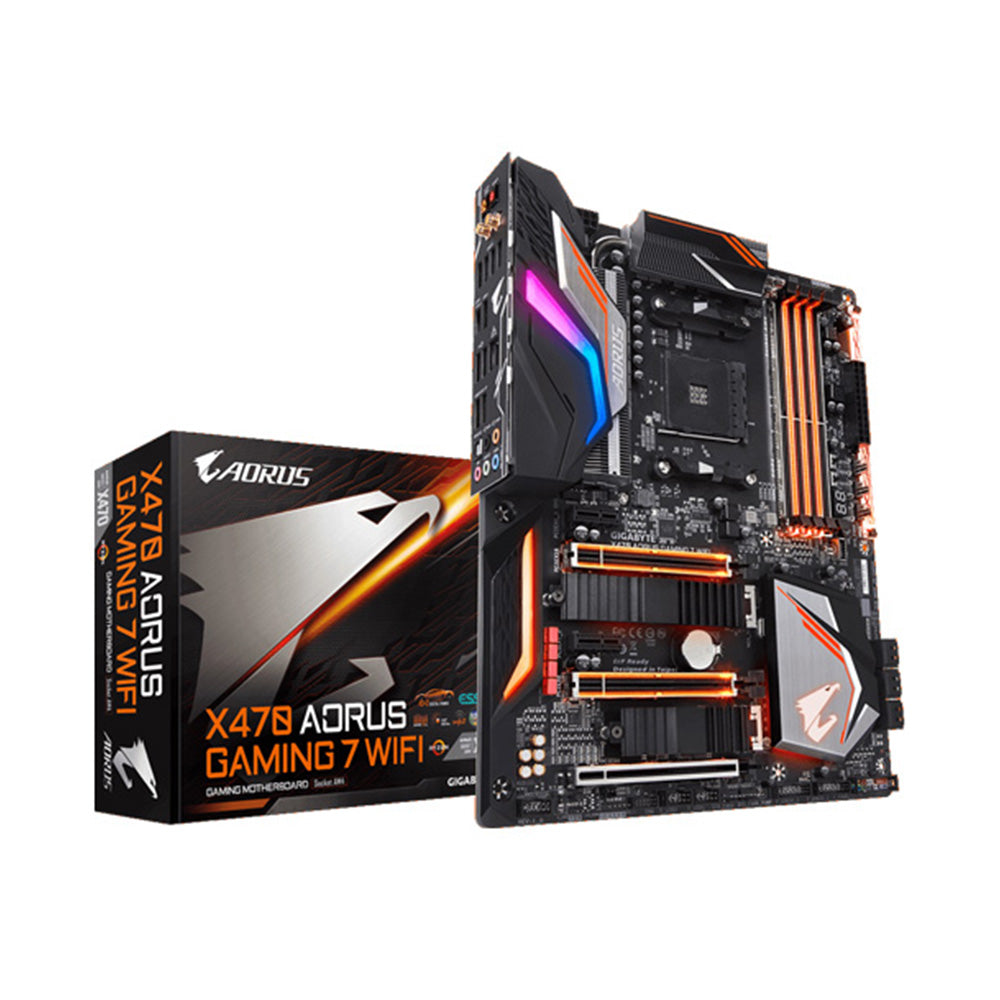

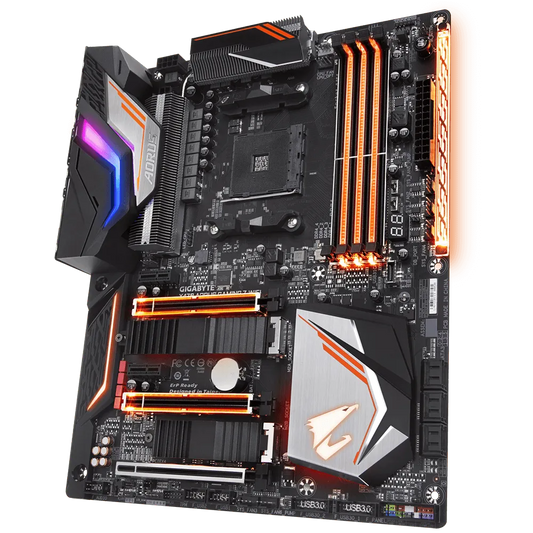

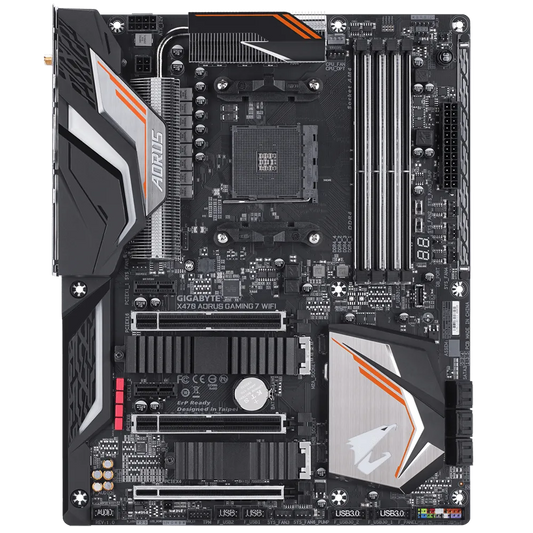

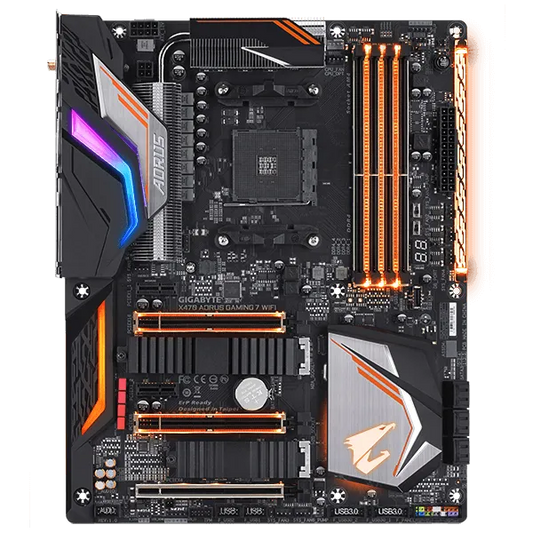

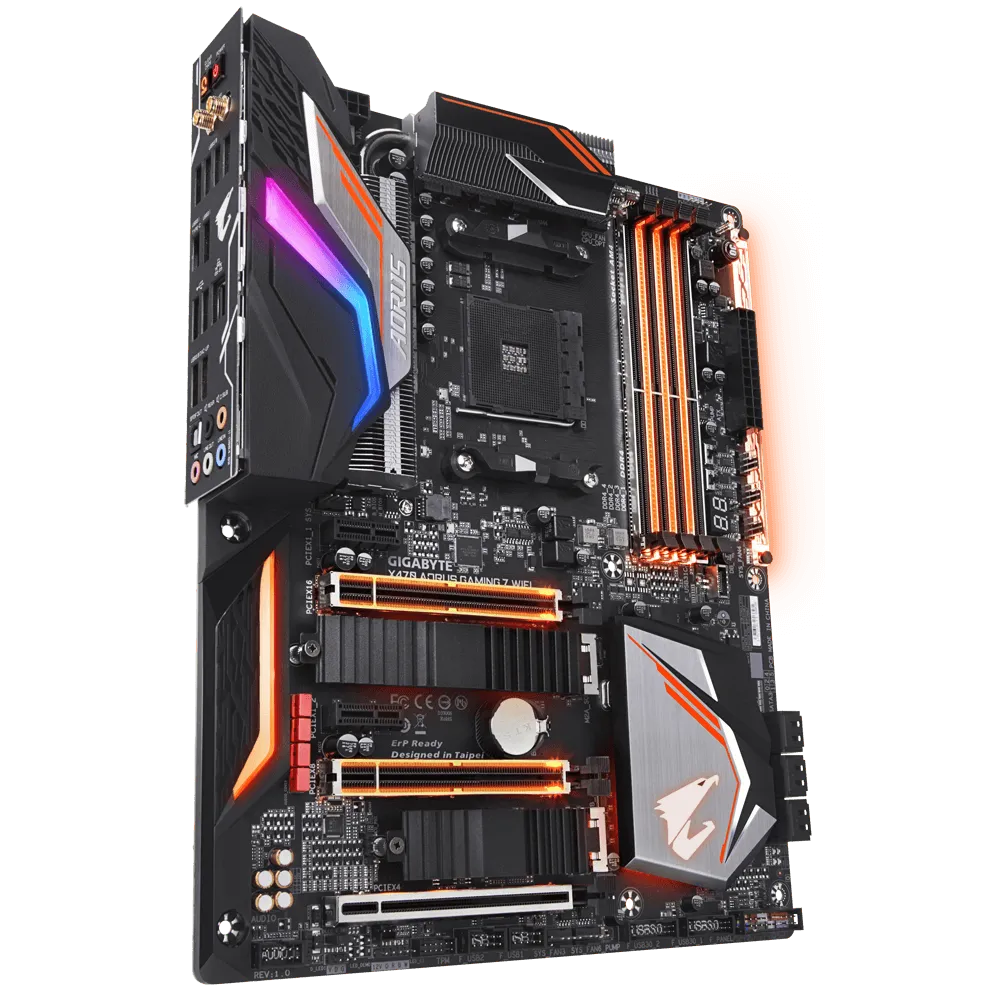

- GIGABYTE X470 Aorus Gaming 7 Wifi DDR4 AMD Motherboard
Description
Features :
- Supports AMD Ryzen™ 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phase IR Digital PWM Design
- Fins-Array Heatsink & Direct Touch Heatpipe
- 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design
- Intel® 802.11ac Wave2 2T2R WIFI & BT 5
- ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone and Built-in ESS SABRE DAC with WIMA Audio Capacitors
- Dual Ultra-Fast M.2 with NVMe PCIe X4 with Dual Thermal Guard

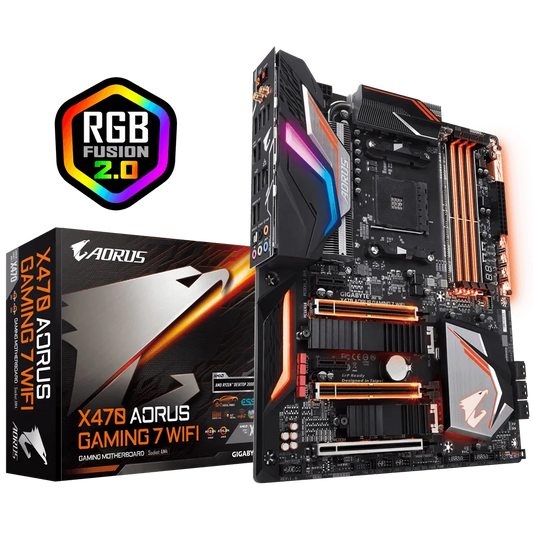

- RGB FUSION 2.0 with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
- Swappable Overlay for Accent LED
- Intel® Ethernet LAN with cFOS Speed Internet Accelerator
- USB DAC-UP 2 with Adjustable Voltage
- Integrated Base Plate & I/O Shield Armor
- Rear Power/Reset/Clear CMOS Button
- CEC 2019 Ready, Save Power with a Simple Click
Specifications :
| Brand | GIGABYTE |
| Model | X470 Aorus Gaming 7 WIFI |
| SUPPORTED CPU | |
| CPU Socket Type | AM4 |
| CPU Type | AMD RYZEN processor |
| CHIPSETS | |
| North Bridge | AMD X470 |
| MEMORY | |
| Number of Memory Slots | 4 x DIMM |
| Memory Standard | DDR4 3600+(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2667/2400/2133 MHz memory modules |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| EXPANSION SLOTS | |
| PCI Slots | 1xPCI Express x16 slot, running at x16 (PCIEX16),1xPCI Express x16 slot, running at x8 (PCIEX8),1xPCI Express x16 slot, running at x4 (PCIEX4),2xPCI Express x1 slots |
| STORAGE DEVICES | |
| SATA 3Gb/s | 6 x SATA 6Gb/s |
| SATA RAID | 2000/1/10 |
| ONBOARD VIDEO | |
| ONBOARD AUDIO | |
| Audio Chipset | Realtek ALC1220 codec |
| Audio Channels | 2/4/5.1/7.1-channel |
| ONBOARD LAN | |
| Max LAN Speed | 10/100/1000 Mbit |
| LAN Chipset | 1 x Intel GbE LAN chip |

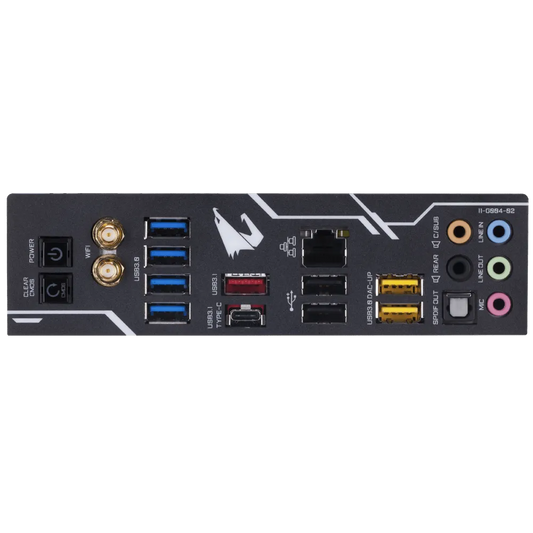

| REAR PANEL PORTS | |
| USB | 6xUSB 3.1 Gen 1 ports,1xUSB Type-C port, with USB 3.1 Gen 2 support,1xUSB 3.1 Gen 2 Type-A port (red),2xUSB 2.0/1.1 ports |
| S/PDIF Out | 1 x optical S/PDIF Out connector |
| Audio Ports | 5 x Audio jack(s) |
| ONBOARD USB | |
| Onboard USB | 1xUSB Type-C port on the back panel, with USB 3.1 Gen 2 support,1xUSB 3.1 Gen 2 Type-A port (red) on the back panel,1xUSB Type-C port with USB 3.1 Gen 2 support, available through the internal USB hea |
| ONBOARD 1394 | |
| PHYSICAL SPEC | |
| Form Factor | ATX |
| Dimensions | 30.5cm x 24.4cm |
