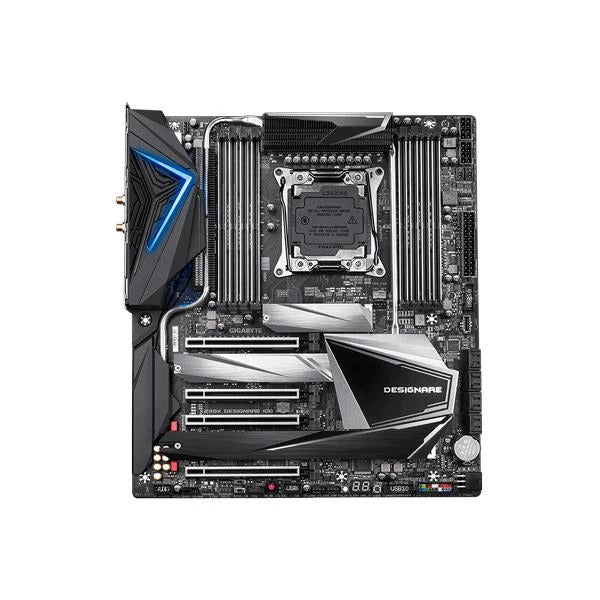

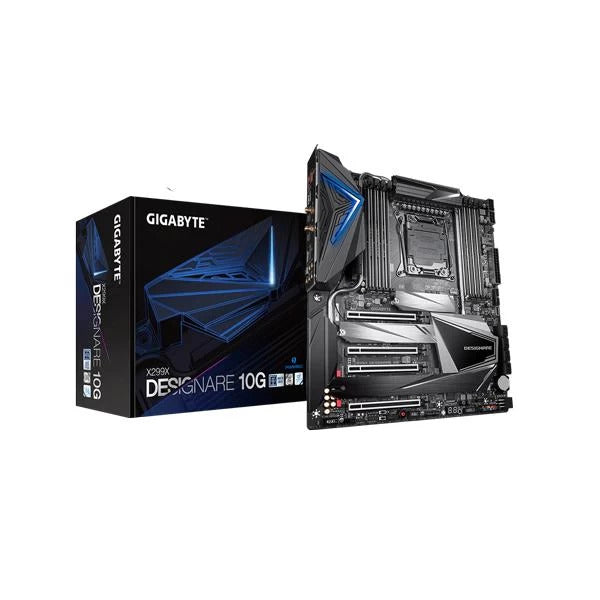

- GIGABYTE X299X Designare 10G DDR4 Intel Motherboard
Monsoon Sale Offer
Description
Feature of Gigabyte X299X Designare 10G DDR4
- Supports Intel® Core™ X-series Processor Family
- Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
- 12 Phases IR Digital VRM Solution with 70A Power Stage

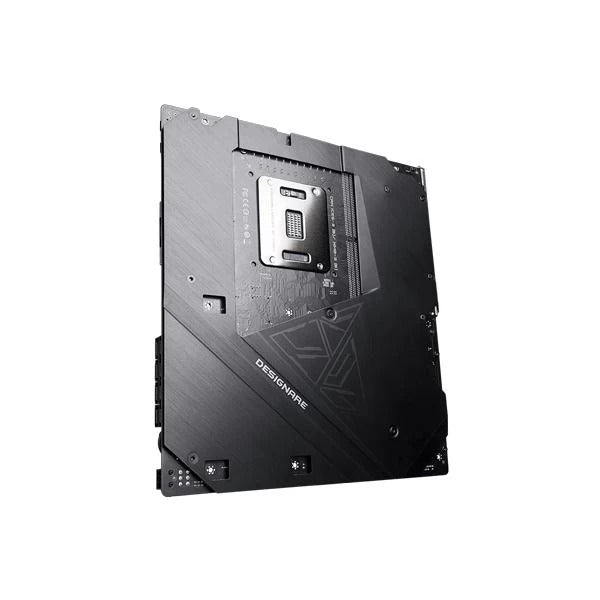

- Advanced Fins-Array Thermal Design with Extended Heatpipes and Back Plate
- Intel® Thunderbolt™ 3 - The USB-C that Does it All
- Server-class Intel® X550-AT2 Dual 10GbE with cFosSpeed
- Onboard Intel® WiFi 6 AX200 802.11ax 2T2R & BT5 with 2X AORUS Antenna
- ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitor
- Exclusive AORUS Gen4 AIC Adaptor for Extra 4*PCIe 3.0 x4 NVMe M.2 Sockets
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
- Smart Fan 5 features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing CPU, Memory and Graphics Card
- Intel® Optane™ Memory Ready
CONNECTIVITY
Next Generation 40 Gb/s Thunderbolt™ 3
Dual Thunderbolt™ 3 - The fastest 40Gb/s single-wire connection
Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O of the GIGABYTE X299X Designare 10G DDR4, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.2, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
Daisy-chain Multiple Devices
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The X299X DESIGNARE 10G is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as the ability to daisy-chain up to 12 devices thanks to the X299X DESIGNARE 10G 's dual USB Type-C™ ports.
Server-Class Intel® X550-AT2 Dual 10GbE LAN
Pre-mounted Server-Class Intel® X550-AT2 provides dual 10 GbE manageable connection for the system, further boosts the communication performance and reliability between clients.
Aorus Gen4 AIC Adaptor
- 4 x PCIe 4.0/3.0 M.2 Slots
- Full PCI Express 4.0 ready Design
- Advanced Thermal Solution for PCIe 4.0 SSD
- Easy Software RAID with Single Click to Get Amazing Performance
- Custom AORUS Storage Manager
Supports Intel® Virtual RAID on CPU (Intel® VROC)
Bring the system storage bandwidth to an astonishing 128Gbps, utilizing Intel VROC (purchased separately) to create CPU-attached RAID 0/1/5/10 volume further boosts the storage either on performance-wise or integrity-wise.
Advanced Thermal Solution
AORUS Gen4 AIC Adaptor equips very advanced thermal solution, including 5.5mm pure copper heatsink, 5cm double ball bearing fan, M.2 SSD baseplate and multiple thermal pads to cool down both sides of 4 M.2 high performance SSD with active cooling.
Users can choose 3 different fan profile based on hardware configuration to reach perfect balance of high storage performance and low noise.
Specifications of Gigabyte X299X Designare 10G DDR4
| CPU | 1. Support for Intel® Core™ i7-7800X and above X series processors/ Intel® Core™ i9 X series processors in the LGA2066 package |
| 2. L3 cache varies with CPU | |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | 1. Intel® X299 Express Chipset |
| Memory | 1. Intel® Core™ X series 48-lane processors: |
| 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory | |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 2. Intel® Core™ X series 44-lane/28-lane processors: | |
| 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 3. 4 channel memory architecture | |
| 4. Support for non-ECC Un-buffered DIMM memory modules | |
| 5. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Intel® Thunderbolt™ 3 Controller: |
| 1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096×2304@60 Hz | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, “Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 1.2 version. | |
| Maximum shared memory of 1 GB | |
| Audio | 1. Realtek® ALC1220-VB codec |
| * The back panel line out jack supports DSD audio. | |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| 4. Support for S/PDIF Out | |
| LAN | 1. Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports |
| Wireless Communication module | 1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
| 2. BLUETOOTH 5.0 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Expansion Slots | Intel® Core™ X series 48-lane processors: |
| 1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) | |
| 2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) | |
| * The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot operates at up to x4 mode when an SSD is installed in the M2M connector. | |
| Intel® Core™ X series 44-lane processors: | |
| 1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) | |
| 2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_2) | |
| 3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_1) | |
| * The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector. | |
| Intel® Core™ X series 28-lane processors: | |
| 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) | |
| 2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) | |
| 3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_1) | |
| * The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector. | |
| (All of the PCI Express slots conform to PCI Express 3.0 standard.) | |
| Multi-Graphics Technology | 1. S upport for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies |
| 2. S upport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) | |
| 2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q) | |
| 3. 6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7) | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * The M2M connector must work with an Intel® VROC Upgrade Key to support RAID configuration. | |
| * Refer to “1-9 Internal Connectors,” for the installation notices for the PCIEX8_1, M.2, and SATA connectors. | |
| Intel® Optane™ Memory Ready | |
| * Only Intel® Core™ X series 48-lane processors support Intel® Optane™ Memory. | |
| Intel® VROC Ready | |
| ASMedia® SATA 6Gb/s controller: | |
| 1. 2 x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only | |
| USB | Chipset Intel® Thunderbolt™ 3 Controller: |
| 1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support | |
| Chipset ASMedia® USB 3.2 Gen 2 controller: | |
| 1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header | |
| Chipset Genesys USB 3.2 Gen 1 hub: | |
| 1. 3 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1. 5 x USB 3.2 Gen 1 ports (1 port on the back panel, 4 ports available through the internal USB headers) | |
| 2. 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 2 x 8-pin ATX 12V power connectors | |
| 3. 1 x VGA_PW power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x water cooling CPU fan header | |
| 6. 4 x system fan headers | |
| 7. 2 x system fan/water cooling pump headers | |
| 8. 2 x addressable LED strip headers | |
| 9. 2 x RGB LED strip headers | |
| 10. 3 x M.2 Socket 3 connectors | |
| 11. 8 x SATA 6Gb/s connectors | |
| 12. 1 x Intel® VROC Upgrade Key header | |
| 13. 1 x front panel header | |
| 14. 1 x front panel audio header | |
| 15. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support | |
| 16. 2 x USB 3.2 Gen 1 headers | |
| 17. 1 x USB 2.0/1.1 header | |
| 18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 19. 1 x noise detection header | |
| 20. 1 x Clear CMOS jumper | |
| 21. 1 x power button | |
| 22. 1 x reset button | |
| 23. 1 x Clear CMOS button | |
| 24. 2 x temperature sensor headers | |
| 25. 2 x BIOS switches | |

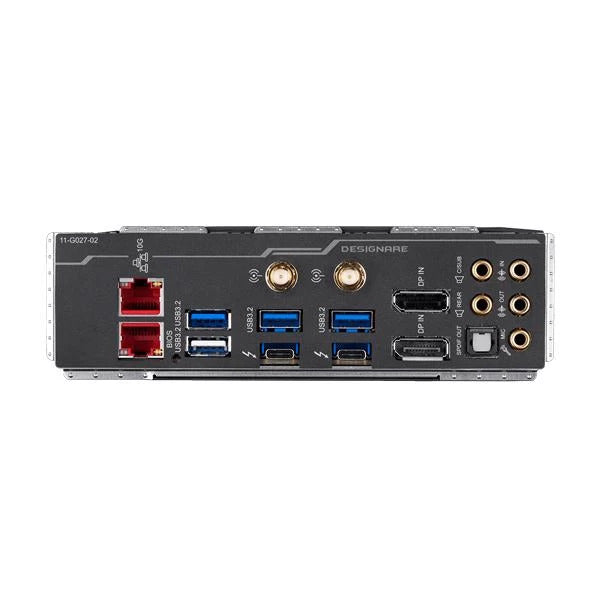

| Back Panel Connectors | 1. 2 x DisplayPort In ports |
| 2. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support) | |
| 3. 2 x SMA antenna connectors (2T2R) | |
| 4. 4 x USB 3.2 Gen 1 ports | |
| 5. 2 x RJ-45 ports | |
| 6. 1 x optical S/PDIF Out connector | |
| 7. 5 x audio jacks | |
| I/O Controller | 1. iTE®I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Overheating warning | |
| 6. Fan fail warning | |
| 7. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| 8. Noise detection | |
| BIOS | 1. 2 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. Support for DualBIOS™ | |
| 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Easy RAID | |
| Fast Boot | |
| Game Boost | |
| Platform Power Management | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| USB TurboCharger | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed | |
| 3. XSplit Gamecaster Broadcaster (12 months license) | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. E-ATX Form Factor; 30.5cm x 27.5cm |
